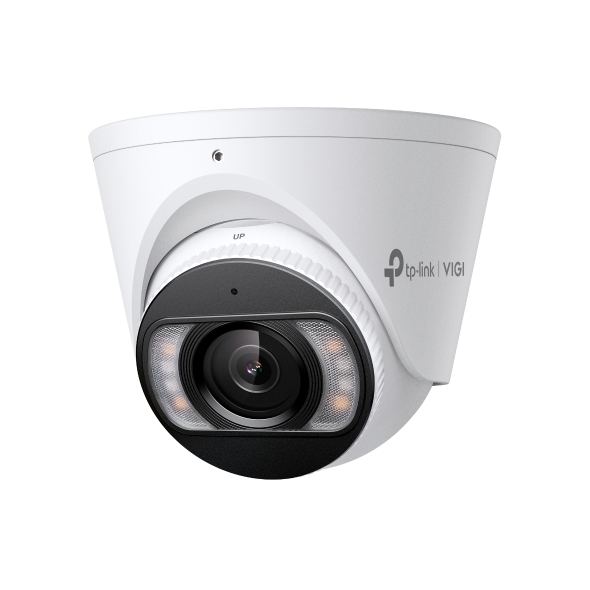

The TP-Link InSight S455 is a cutting-edge 5MP full-color turret network camera designed for robust and versatile surveillance applications. It delivers high-definition video with 24/7 full-color capability, ensuring vivid and detailed footage even in low-light conditions. Advanced features such as People & Vehicle Analytics and Human & Vehicle Classification enhance its accuracy in detecting and distinguishing events, making it a reliable tool for smart monitoring. Equipped with two-way audio, this camera allows for real-time communication, adding a layer of interactivity and security to its operation.
Built to withstand tough environments, the InSight S455 features IP67-rated weatherproofing, ensuring reliable performance in extreme weather. Its H.265+ compression technology optimizes storage and bandwidth usage without compromising video quality, making it efficient and cost-effective. This camera is part of TP-Link’s VIGI series, which integrates smart detection features like intrusion and loitering detection, enabling customizable and precise surveillance.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
In the Box
Build Features
Technical Specifications
| CAMERA |
| Image Sensor |
1/2.7” Progressive Scan CMOS |
| Shutter Speed |
1/3 to 1/10000 s |
| Slow Shutter |
Yes |
| Minimum Illumination |
0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism |
IR Cut Filter |
| Day/Night Switch |
Unified/ Scheduled/ Auto |
| LENS |
| Type |
Fixed Focal Lens |
| Focal Length |
2.8/4 mm |
| Aperture |
F1.6 |
| FOV |
• 2.8 mm:Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°• 4 mm:Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4° |
| Lens Mount |
M12*P 0.5 |
| DORI Distance |
• 2.8 mmDetect: 64 m (210 ft)Observe: 27 m (89 ft)Recognize: 13 m (43 ft)Identify: 6 m (20 ft)• 4 mmDetect: 80 m (262 ft)Observe: 33 m (108 ft)Recognize: 16 m (52 ft)Identify: 8 m (26 ft) |
| Angle Adjustment (Manual) |
| Range |
Pan: 0° to 360°, Tilt: 0° to 85°, Rotation: 0° to 360° |
| ILLUMINATOR |
| IR LED |
• Quantity: 4• Range: 30m• Wavelength: 850nm |
| White LED |
• Quantity: 4• Range: 30m |
| Illuminator On/Off Control |
Auto/Scheduled/Always on/Always off |
| VIDEO |
| Max. Resolution |
2880 X 1620 |
| Main Stream |
• Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:2880×1620,2688×1520, 2304×1296, 2048×1280, 1920×1080,1280×720• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream |
• Frame Rate：50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:848×480, 704×576, 640×480, 640×360, 352×288, 320×240• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control |
CBR, VBR |
| Video Compression |
• Main Stream: H.265+/H.265/H.264+/H.264• Sub-Stream: H.265/H.264 |
| H.264 Type |
High Profile |
| H.264+ |
Main Stream Supported |
| H.265 Type |
Main Profile* |
| H.265+ |
Main Stream Supported* |
| Video Bit Rate |
• Main Stream: 256 Kbps to 6 Mbps• Sub-Stream: 64 Kbps to 512 Kbps |
| Image |
| Image Settings |
• Mirror• Brightness• Contrast• Saturation• Sharpness• Exposure• WDR• White Balance• Prevent Overexposure to Infrared Light• HLC Adjustable by Client Software |
| Image Enhancement |
BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range |
120 dBNote: When People & Vehicle Analytics is enabled, only DWDR is supported. |
| SNR |
≥ 52 dB |
| Image Parameters Switch |
Yes |
| Privacy Mask |
Up to 4 Masks |
| ROI |
1 Region |
| OSD Setting |
Yes |
| AUDIO |
| Audio Communication |
Two-Way Audio |
| Audio Input |
Yes |
| Audio Output |
Yes |
| Audio Compression |
Yes |
| Audio Sampling Rate |
8KHz |
| Environment Noise Filtering |
Yes |
| Audio Bit Rate |
64 Kbps(G.711 alaw) |
| NETWORK |
| Protocol |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| ONVIF |
Yes |
| API |
ONVIF Profile S/T/G |
| Simultaneous Live View |
3 Main Streams & 3 Sub-Streams |
| Client |
VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS |
| Web Browser |
• Google Chrome® 57 and above• Firefox® 52 and above• Safari® 11 and above• Microsoft® Edge 91 and above |
| Cloud |
Yes |
| Security |
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| ALARM AND EVENT MANAGEMENT |
| Smart Event |
• Intrusion Detection• Line-Crossing Detection• Region Entering Detection• Region Exiting Detection• Object Abandoned Detection• Object Removal Detection• Loitering Detection• People Detection• Vehicle Detection• Abnormal Sound Detection• Scene Change Detection |
| Basic Event |
• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)• Video Tampering Detection• Exception ( Illegal Login) |
| Alarm Linkage |
• Memory Card Video Recording• Message Push• Audible Warning• White Light Flashing |
| Linkage Method |
N/A |
| Output Notification |
Message Push |
| Deep Learning Function |
| People & Vehicle Analytics |
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§ |
| INTERFACES |
| Network Interface |
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Alarm |
N/A |
| Reset Button |
Yes |
| Power |
DC Power Port |
| On-board Storage |
Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB** |
| Built-in Microphone |
Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Built-in Speaker |
Yes |
| Audio |
N/A |
| GENERAL |
| Operating Temperature |
-30–60 °C |
| Storage Temperature |
-40–60 °C |
| Operating Humidity |
95% or Less (Non-Condensing) |
| Storage Humidity |
95% or Less (Non-Condensing) |
| Package Contents |
• VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories |
| Material |
Metal |
| Net Weight |
0.48 Kg |
| Power Supply |
• 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug• PoE: 802.3af/at, class 0, Max. 12 W |
| Protection |
IP67 |
| Product Dimensions (L x W x H) |
4.4 × 4.4 × 3.3 in (111 × 111 × 83.7 mm) |
| Certifications |
CE, NTRA, VCCI, KC, BSMI, FCC, IC |
