️ Imaging & Performance
-

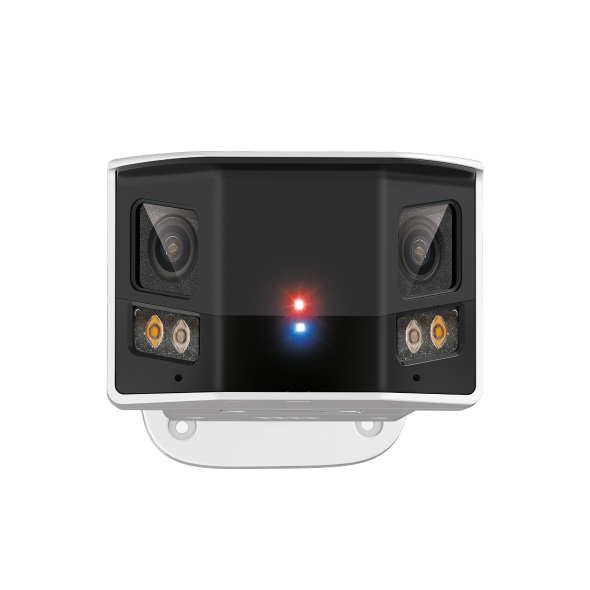

Dual-lens design delivering a true 180° panoramic field of view
-
8MP (4K) ultra-high-definition resolution for exceptional detail
-
ColourPro ultra-low-light technology for full-colour night video
-
Dual progressive scan CMOS sensors
-
Advanced H.265+ video compression to reduce storage and bandwidth
Smart Analytics & AI Detection
-
AI-powered human and vehicle classification
-
Smart event detection including:
-
Line crossing
-
Intrusion
-
Region entry / exit
-
Loitering detection
-
Scene change detection
-
Abnormal sound detection
-
Reduces false alarms from animals, rain, and foliage
Network & Integration
-
ONVIF compliant for third-party NVR and VMS integration
-
Seamless operation with VIGI NVRs and VIGI VMS
-
Power options:
-
PoE (802.3at Class 4)
-
12V DC
-
Supports microSD card storage up to 512GB
Audio & Active Deterrence
-
Built-in microphone and speaker for two-way audio
-
Integrated red-blue warning lights
-
Audible siren for active intrusion deterrence
-
Alarm input and output for external devices
️ Build & Environmental Protection
-
IP67 weather-resistant housing
-
IK10 vandal-resistant metal enclosure
-
Designed for harsh outdoor environments
-
Operating temperature range: -30°C to +60°C
-
Adjustable mount:
-
Pan: 0°–360°
-
Tilt: 0°–90°
-
Rotation: 0°–360°
✅ Ideal Applications
-
Commercial building perimeters
-
Car parks and loading zones
-
Warehouses and industrial sites
-
Retail storefronts and entrances
-
Campuses and public facilities
-
Areas requiring wide coverage with minimal camera count

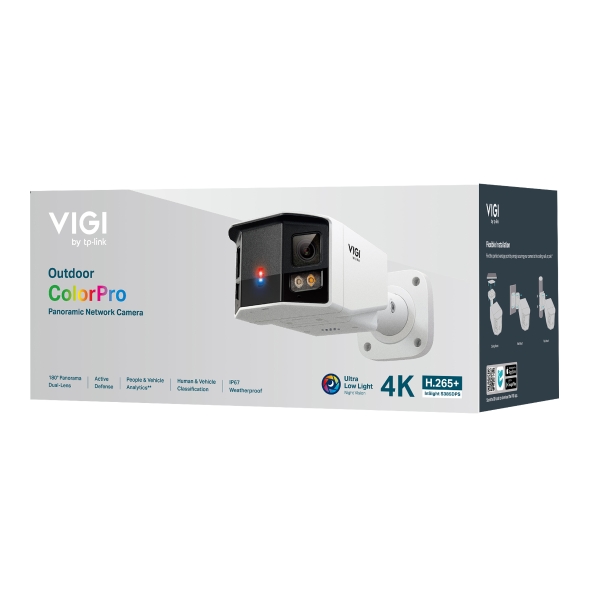

What’s in the Box
-

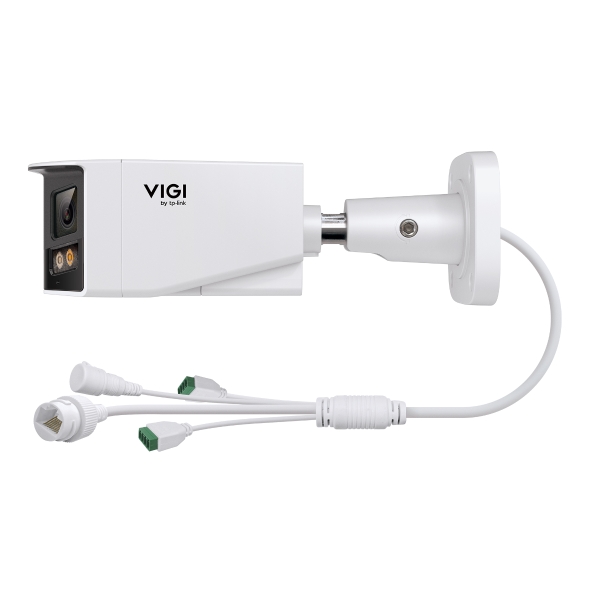

VIGI InSight S385DPS Panoramic Network Camera
-
Mounting hardware
-
Waterproof cable accessories
-
Quick start guide
(MicroSD card sold separately)
Technical Specifications
| Specification |
Detail |
| Image Sensor |
Dual 1/1.79″ Progressive Scan CMOS |
| Maximum Resolution |
5456 × 1520 (Panoramic) |
| Field of View |
180° |
| Lens |
Dual fixed lenses, 5 mm, F1.0 |
| Night Vision |
Full-colour low-light + supplemental LEDs |
| Video Compression |
H.265+, H.265, H.264+, H.264 |
| Smart Analytics |
Human & vehicle classification |
| Audio |
Built-in mic & speaker (two-way audio) |
| Alarm I/O |
1× Alarm In / 1× Alarm Out |
| Local Storage |
MicroSD up to 512GB |
| Network Interface |
10/100 Mbps Ethernet |
| Power Supply |
PoE (802.3at) or 12V DC |
| Weather Rating |
IP67 |
| Vandal Rating |
IK10 |
| Operating Temperature |
-30°C to +60°C |
| Housing |
Metal |
️ Installer Notes
-
Use 802.3at PoE to ensure sufficient power for dual lenses, audio, and active deterrence features
-
Mount at appropriate height to maximise panoramic coverage and AI accuracy
-
Configure analytics zones carefully to avoid false triggers
-
Recommended to pair with a VIGI NVR for centralised recording and smart search
❓ FAQs
Does this camera provide full-colour video at night?
Yes. ColourPro ultra-low-light technology enables full-colour video in minimal lighting conditions.
Can it distinguish between people and vehicles?
Yes. AI-based classification filters events for humans and vehicles only.
Is this suitable for wide outdoor areas?
Absolutely. The 180° panoramic view reduces blind spots and minimises the number of cameras required.
