Tp-Link TL-EAP215-Bridge KIT Wireless Bridge 5 GHz 867 Mbps Long-Range Indoor/Outdoor Access Point

The TP-Link EAP215-Bridge KIT is a high-performance wireless bridge designed for long-range, point-to-point communication. Operating on the 5 GHz frequency band, it provides wireless speeds of up to 867 Mbps, making it ideal for high-speed data transfer across remote locations, up to 5 kilometers (3.1 miles). This kit is particularly well-suited for extending networks to remote buildings, farms, or construction sites without requiring extensive cabling. Its auto-pairing feature simplifies setup, while LED signal indicators ensure easy alignment for optimal connectivity.

Key Features

802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.
Ideal for long-range wireless transmission up to 5 km.
Auto-pairing and agile LEDs for efficient deployment.
3× Gigabit Ethernet ports for more high-speed IP camera connections.
Supports Omada SDN for remote and centralized management.
IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.
Supports Passive PoE for flexible deployment (adapter included).

Designed for outdoor use, the EAP215-Bridge KIT is housed in an IP65-rated weatherproof enclosure with 6kV lightning protection, ensuring reliable performance in harsh conditions. The device supports three Gigabit Ethernet ports, allowing for the connection of IP cameras or other devices. It integrates with TP-Link’s Omada SDN for centralized cloud-based management, enabling easy network monitoring and configuration. This makes it an ideal solution for surveillance systems and long-distance Wi-Fi transmission for outdoor environments.

$249.00 inc GST +3 Year Warranty & Support

Description

The TP-Link EAP215-Bridge KIT is a 5 GHz wireless access point designed for long-range indoor and outdoor applications, offering a maximum data rate of 867 Mbps. Ideal for point-to-point (PtP) and point-to-multipoint (PtMP) connections, it provides stable transmission over distances up to 5 km. It features auto-pairing for easy installation, where two devices can connect with minimal configuration. The LED signal strength indicator helps with alignment during setup, ensuring optimal performance. Its weatherproof IP65-rated enclosure, combined with 6kV lightning protection and an operating temperature range of -40°F to 158°F, makes it robust enough for harsh outdoor environments like farms, construction sites, or parking lots.

The EAP215-Bridge KIT supports Omada SDN (Software-Defined Networking), allowing centralized cloud management and remote configuration through the Omada App or web interface. This makes it ideal for larger deployments where multiple units need simultaneous setup or control. It is also compatible with IEEE 802.11ac wireless standards and features technologies such as MU-MIMO, beamforming, and airtime fairness for efficient bandwidth usage. With three Gigabit Ethernet ports, this kit can easily integrate into existing networks for surveillance or other data-heavy applications.

Specifications

HARDWARE FEATURES

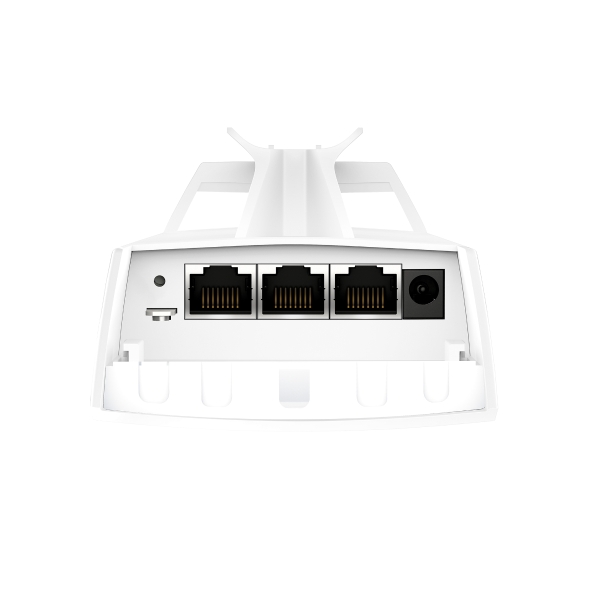

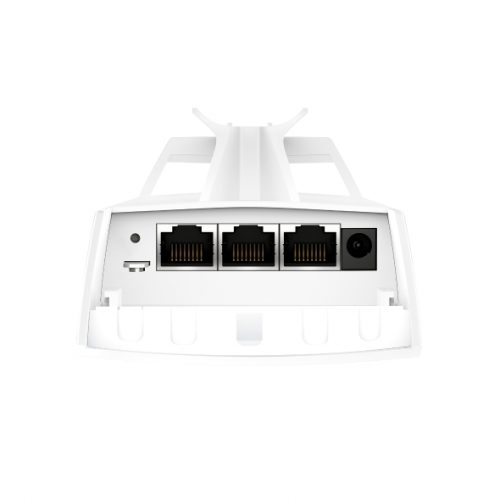

Interface	3x Gigabit Ethernet Ports
Button	Reset
Power Supply	12V DC / 24V Passive PoE (Passive PoE adapter included.)
Power Consumption	11.5W
Dimensions ( W x D x H )	8.8 x 3.1 x 2.4 in (224 × 79 × 60 mm)
Antenna Type	Internal 2×2 Dual-polarized directional MIMO antennas 5 GHz: 11.0 dBi
Weatherproof Enclosure	IP65
Mounting	Pole mounting (Accessories included)
WIRELESS FEATURES
Coverage	5000m (16400ft)
Wireless Standards	IEEE 802.11 a/b/g/n/ac
Frequency	5 GHz
Signal Rate	5 GHz: Up to 867 Mbps
Wireless Functions	• Mesh*4 • MU-MIMO: 5G 2×2 MU-MIMO DL • Load Balance • Beamforming • Airtime Fairness • Multiple SSIDs: 8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP
Wireless Security	• VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication*4 • Maximum number of MAC Filter: 4,000 • WPA-Personal/Enterprise, WPA2-Personal/Enterprise
Transmission Power	• CE: <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz band 3, EIRP); • FCC: <22dBm (5 GHz band1/4)
MANAGEMENT
Omada App	Yes
Restore & Backup	Yes
Firmware update via Web	Yes
NTP	Yes
Centralized Management	• Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
Cloud Access	Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1, v2c, v3
SSH	Yes
Web-based Management	Yes
OTHERS
Certification	CE, FCC, RoHS
Package Contents	• EAP215-Bridge KIT • Passive PoE Adapter • Power Cord • Installation Guide • Mounting Kit
Environment	• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing

Video

SKU: TL-EAP215-Bridge KIT Categories: TP-Link CCTV & Security Camera Systems, Tp-link Point to Point Bridge Kits & Range Extenders Tags: Indoor Access Point, Outdoor Access Point, Tp Link, tp link range extenders, Wireless Bridge
