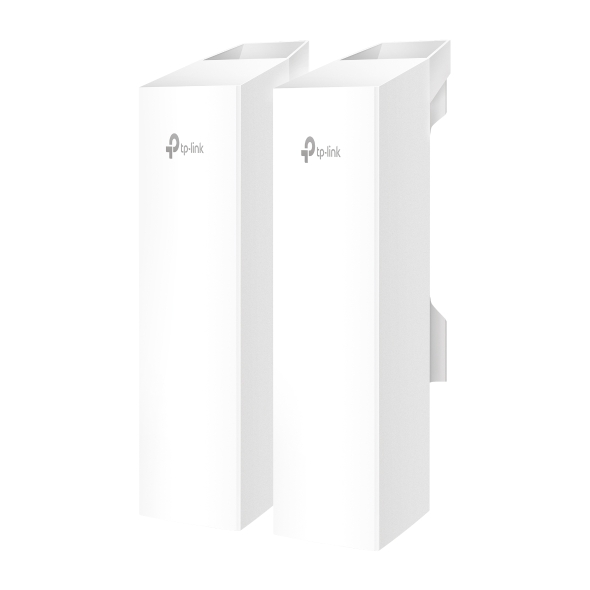

The EAP100‑Bridge KIT offers a robust and user‑friendly wireless bridging solution for extending network connectivity in challenging outdoor settings.
Plug‑and‑Play Simplicity
Each unit comes preconfigured for instant auto‑pairing. After powering on, the bridge pairs automatically and LED indicators help quickly align for optimal signal performance. Mobile app guidance streamlines setup and includes instant speed testing to verify deployment quality.
Extended Wireless Link
Operating on the 2.4 GHz band with MIMO directional antennas, this bridge supports stable Wi‑Fi transmission up to 500 m (1640 ft) under clear line‑of‑sight — ideal for connecting remote buildings, surveillance zones or outdoor sensors.
Flexible Deployment & Power Options
Supports multiple power input types: 802.3af PoE, 24 V passive PoE, or 12 V DC (compatible with TP‑Link solar systems). Built‑in three 10/100 Mbps Ethernet ports allow direct connection of cameras, switches or devices—reducing the need for extra networking hardware.
Rugged Outdoor Durability
With IP65-rated housing, lightning protection up to 6 kV, and an operating temperature range from –40 °C to +70 °C, the unit withstands heavy rain, dust, extreme heat or cold environments. Included pole- and wall‑mount accessories support flexible installations.
Centralized Management via Omada SDN
Supports both Standalone operational mode and full remote control through the Omada SDN platform or Omada mobile app. Centralised configuration and monitoring make it easy to scale deployments and manage multiple sites.
Use Cases
-
Remote site connectivity: bridge networks between separate buildings on a campus, warehouse or retail site
-
Surveillance extension: link security cameras or NVR systems in parking lots, farms or large outdoor areas
-
Outdoor Wi‑Fi links: provide reliable connection over open terrain, across fields, driveways or between towers
-
Temporary installations: pop‑up events, construction sites or outdoor gatherings needing fast deployment without cabling
FAQs
Q: How far can the EAP100‑Bridge KIT transmit reliably?
A: It supports line‑of‑sight wireless transmission of up to 500 m (approx. 1640 ft). Actual range may vary due to obstacles or environmental interference.
Q: Is it hard to configure?
A: No. It is preconfigured for automatic pairing. Alignment LEDs and a mobile app guide assist with setup. Once positioned, it’s operational right away.
Q: What power options are available?
A: The bridge supports standard 802.3af PoE, 24 V passive PoE and 12 V DC. It’s also compatible with TP‑Link solar power systems.
Q: Can it handle harsh outdoor conditions?
A: Yes. The device is IP65-rated, includes 6 kV lightning protection, and operates reliably in temperatures from –40 °C to +70 °C. Mounting hardware is included.
Q: Does it support centralized management?
A: Yes. You can manage it in standalone mode or integrate fully into the Omada SDN ecosystem via Omada controller, web UI or mobile app.
Why Choose Omada EAP100‑Bridge KIT?
With a long‑range link, robust outdoor reliability, flexible power support, and intuitive setup guided by the app, this bridge kit simplifies wireless connectivity between distant points. Whether deploying surveillance over wide areas or connecting remote network segments, the EAP100‑Bridge KIT offers a dependable, fast and easily scalable solution.
