Product SKU: SHD-1128FPW
Product Overview

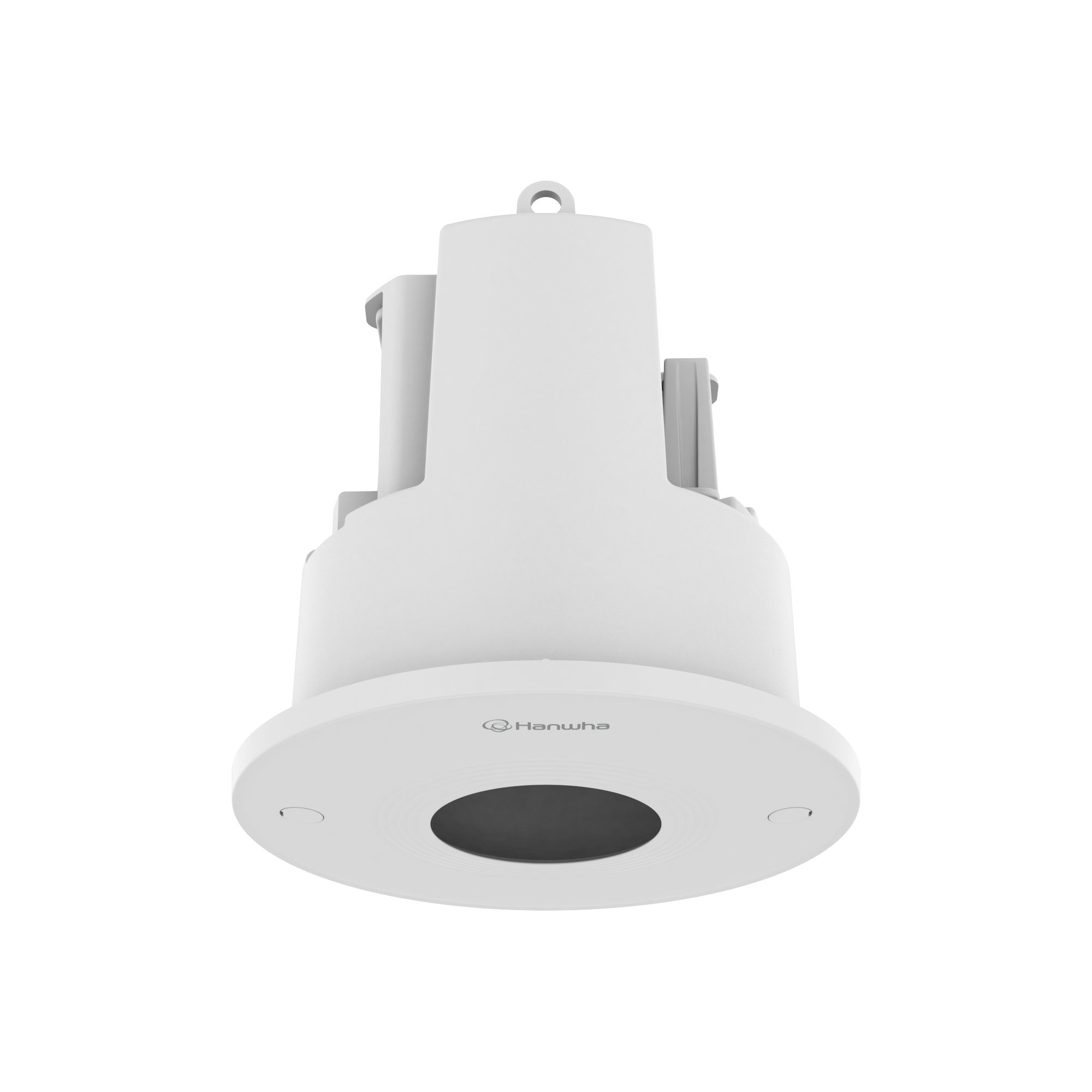

For installers fitting Hanwha or Wisenet dome cameras into suspended or solid ceilings, the SHD-1128FPW provides a purpose-built in-ceiling flush mount housing that keeps hardware concealed and finishes looking professional. Built from plenum-rated aluminium with a polycarbonate top cover and finished in white (RAL 9003), this mount is engineered for commercial-grade ceiling installations in offices, retail environments, and public spaces where clean aesthetics matter. The circular housing measures Ø 160 mm in diameter and accommodates ceiling thicknesses from 5 mm up to 70 mm, making it compatible with a wide range of tile and panel types. Three trim rings are included to interface with different compatible camera models across the HCD, LND, QND, QNF, XND, and XNV product lines. Conduit outlets sized at 19.1 mm (M25) and 12.7 mm (M20) allow structured cable routing inside the ceiling void. QR code installation guidance is also included. Please note this is a special order item.
Key Capabilities
Plenum-Rated Aluminium Enclosure
The aluminium body meets plenum-space installation requirements, making it suitable for ceilings where fire-rated materials are specified. The polycarbonate top cover completes the enclosure without compromising structural integrity.
Broad Ceiling Thickness Support
Adjustable to fit ceiling panels from 5 mm to 70 mm thick, this mount handles a wide range of suspended tile systems and solid ceiling constructions without requiring additional adapters or custom hardware.
Three Trim Rings Included
Three interchangeable trim rings are supplied to accommodate different camera interface profiles across the compatible Hanwha and Wisenet camera lineup, removing the need to source separate adapter kits for most supported models.
Dual Conduit Wiring Outlets
Pre-formed conduit holes sized at 19.1 mm (M25) and 12.7 mm (M20) allow cables to be routed cleanly through the housing, keeping network and power cabling hidden above the ceiling line for a tidy finished installation.
Best For
- Concealed Commercial Installations: Offices, corporate reception areas, and retail environments where exposed camera mounting hardware would interrupt ceiling aesthetics.
- Variable Ceiling Thickness Scenarios: Sites with mixed suspended tile systems or solid ceilings between 5 mm and 70 mm, where a single adjustable housing needs to cover multiple install points.
- Structured Wiring Environments: Installations requiring cable runs to remain inside the ceiling void, supported by the 19.1 mm and 12.7 mm conduit outlets built into the housing.
Why Choose the SHD-1128FPW
The SHD-1128FPW is not a generic mounting bracket. It is a factory-matched in-ceiling housing designed specifically for use with Hanwha and Wisenet camera models across several product families, with 3 trim rings included to manage interface differences between those models without additional cost. The plenum-rated aluminium enclosure meets material standards required in many commercial ceiling spaces, which a standard surface mount or generic housing would not satisfy. The ceiling thickness adjustment range of 5 mm to 70 mm removes a common on-site problem where a mount is ordered but cannot fit the actual ceiling construction. Dual conduit outlets support clean, professional cable management rather than cables exiting through an open hole. As a special order item, lead time should be confirmed before scheduling installation. Available through Security Wholesalers, the SHD-1128FPW suits integrators completing Hanwha-based installations where the ceiling finish is as important as the camera performance.
Buyer Decision Tips
Confirm Compatibility Before Ordering: The SHD-1128FPW is listed as a special order item, meaning it cannot be exchanged or returned if it does not suit your camera model. Cross-check your specific Hanwha or Wisenet camera model number against the confirmed compatibility list (HCD, LND, QND, QNF, XND, XNV series) before placing your order, and verify which of the 3 included trim rings applies to your model.
Key Features & Technical Specifications
| Model |
SHD-1128FPW |
| Mount Type |
In-ceiling flush mount housing |
| Enclosure Material |
Plenum-rated aluminium (body), polycarbonate (top cover) |
| Colour |
White (RAL 9003) |
| Dimensions |
Ø 160 mm x 145.5 mm (6.30″ x 5.73″) |
| Weight |
692 g (1.53 lb) |
| Ceiling Thickness Range |
5 mm to 70 mm |
| Conduit Outlets |
19.1 mm (3/4″ / M25) and 12.7 mm (1/2″ / M20) |
| Trim Rings Included |
3 (to accommodate different camera interface profiles) |
| Installation Support |
QR code installation guidance included |
| Compatible Camera Series |
HCD, LND, QND, QNF, XND, XNV (selected models – see compatibility list) |
| Brand Compatibility |
Hanwha / Wisenet |
| Intended Environment |
Indoor and sheltered ceiling installations |
| Availability |
Special order item |
Ideal Use Cases
Corporate Offices
Open-plan and corridor ceiling spaces where flush-mounted cameras with hidden cabling maintain a clean professional appearance. The white RAL 9003 finish blends with standard commercial ceiling tiles.
Retail Environments
Shopfronts, fitting rooms, and stockrooms where ceiling-mounted surveillance hardware should not draw customer attention. The flush housing keeps the camera profile low and the finish consistent.
Public-Facing Indoor Spaces
Lobbies, reception areas, healthcare waiting rooms, and educational facilities where surveillance infrastructure is required but must remain unobtrusive within an occupied ceiling environment.
Mixed-Thickness Ceiling Sites
Multi-tenancy buildings or refurbished spaces where ceiling construction varies across zones. The 5 mm to 70 mm thickness adjustment range means a single mount type can be used consistently across the site.
Choosing the Right Model
- Choose this model if: You are installing a compatible Hanwha or Wisenet camera (HCD, LND, QND, QNF, XND, or XNV series) into a ceiling between 5 mm and 70 mm thick and require a plenum-rated, flush housing with concealed cable routing and a white finish.
- Choose a different model if: Your camera model is not confirmed on the compatibility list, if you need an outdoor-rated or weatherproof enclosure, or if your ceiling thickness falls outside the 5 mm to 70 mm supported range. A surface mount or pendant mount bracket may be more appropriate for exposed or non-standard installations.
FAQs
- What ceiling thickness does the SHD-1128FPW support?
The SHD-1128FPW accommodates ceiling panels and tiles from 5 mm up to 70 mm thick. This broad range covers most suspended grid tile systems as well as thicker solid ceiling constructions, making it suitable for a wide variety of commercial building types without needing separate mounts for different areas.
- Which Hanwha and Wisenet camera models are compatible with this mount?
Confirmed compatible models include selected cameras from the HCD-6010/6020R/7010R/7020R/7030R, LND-6010R through 6032R, QND-6010R through 8030R, QNF-8010/9010, XND-6010/6020R/8020R/8030R/8040R, and XNV-6011/6011W series. Always verify your specific model number against the full compatibility list before ordering, as not every variant within each series may be supported.
- What conduit or cable entry options does this housing provide?
The SHD-1128FPW includes 2 conduit outlets: a 19.1 mm (M25 / 3/4″) outlet and a 12.7 mm (M20 / 1/2″) outlet. These allow structured cable runs to enter and exit the housing cleanly, keeping network cabling, power cables, and any additional wiring contained within the ceiling void rather than exposed at the camera position.
- Why are 3 trim rings included and how do they work?
Different compatible camera models have slightly different base diameters or interface profiles. The 3 included trim rings allow the same housing to interface neatly with different camera footprints, eliminating gaps between the camera base and the ceiling opening for a finished appearance. Select the trim ring that matches the specific camera model being installed.
- Can this mount be used outdoors or in exposed environments?
No. The SHD-1128FPW is designed for in-ceiling installations in indoor and sheltered environments. It does not carry an IP or IK weather resistance rating and is not suitable for fully exposed outdoor conditions where moisture, dust, or direct weather exposure would be present.
- Is this a stocked item or does it need to be ordered in?
The SHD-1128FPW is listed as a special order item through Security Wholesalers. This means it is not held as standard warehouse stock, and lead times apply. Confirm availability and expected delivery timeframe before scheduling your installation, particularly for time-sensitive projects.
Additional Information
No additional downloads available for this product.
