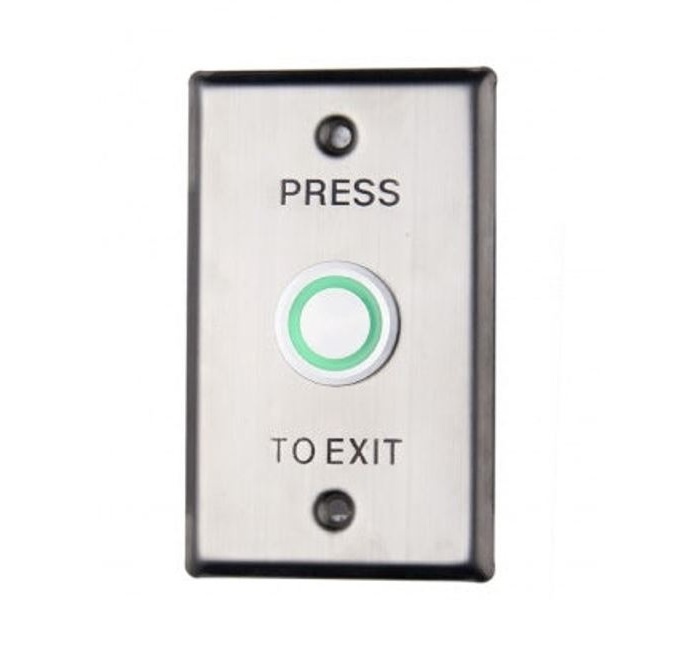

SECOR WEL2451 Piezo Electric Press to Exit Button with Dual Colour LED IP66

Name: SECOR WEL2451 Piezo Electric Press to Exit Button with Dual Colour LED IP66
Brand: Secor
SKU: WEL2451
Price: 38.00 AUD
Availability: InStock

$38.00

WARRANTY GUARANTEED

✔ Dedicated 5★ Customer Care Team ✔ Fast & Responsive Tech Support

The SECOR WEL2451 delivers a piezo electric press to exit button solution designed for access control, door release and durable exit applications in commercial, retail, office and secure entry environments. Featuring Piezoelectric Effect technology, finger touch activation and no moving parts, it provides a long-lasting door release switch for high-use access control installations.

It also includes a dual-colour LED for clear action indication, making this model available at Security Wholesalers practical for installers needing reliable visual feedback during door release operation. With IP66 waterproof protection, two isolated NO/NC relay outputs, selectable output timer and compact W70 x H115 x D23mm dimensions, the WEL2451 suits indoor or protected outdoor installations requiring a durable press to exit button.

Key Features

Piezo Electric Activation: Uses Piezoelectric Effect technology for finger touch activation with no moving parts.
IP66 Waterproof Rating: Provides water-resistant protection for suitable access control installation environments.
Dual-Colour LED: Delivers clear action indication for standby and activation feedback.
Isolated NO/NC Outputs: Includes two isolated relay outputs rated at 1A/30V for flexible system integration.
Selectable Output Timer: Supports momentary operation or timed output with 2 or 10 second selectable delay.
Compact Exit Button Design: Fits standard mounting blocks and uses flying leads for easier, corrosion-resistant wiring.

Additional Information

Secor Piezo WEL2451 Datasheet

$38.00 inc GST +3 Year Warranty & Support

Description

Product SKU: WEL2451

Product Overview

The SECOR WEL2451 Piezo Electric Press to Exit Button with Dual Colour LED IP66 is a durable request-to-exit switch designed for compatible access control, door release and egress applications. It uses Piezoelectric Effect technology with finger-touch activation and no moving parts, helping improve long-term reliability compared with traditional mechanical push buttons. The compact IP66 waterproof design is made to fit standard mounting blocks, making it suitable for commercial, public-facing and protected access control locations where a robust exit button is required. With dual-colour LED action indication, isolated NO and NC relay outputs, selectable output timing and flying leads for easy wiring, the WEL2451 is a practical low-voltage exit button for doors that require reliable press-to-exit activation.

Key Capabilities

Piezoelectric Activation

The WEL2451 is designed using Piezoelectric Effect technology for responsive finger-touch exit activation.

No Moving Parts

The touch-activated design has no mechanical moving parts, helping improve durability in high-use access control locations.

IP66 Waterproof Design

The IP66 rating supports suitable installations where water resistance is required for the exit button position.

Dual-Colour LED Indication

The dual-colour LED provides clear action indication so users can confirm when the button has been activated.

Isolated NO/NC Relay Outputs

Two isolated relay outputs provide NO and NC switching for compatible request-to-exit and door release circuits.

Selectable Output Timer

The output timer can be set for 2 or 10 seconds, supporting different access control release timing requirements.

Best For

Press-to-Exit Doors: Suitable for compatible access control systems requiring finger-touch request-to-exit activation.
High-Use Access Points: The no-moving-parts piezo design is practical for busy commercial exit points.
Water-Resistant Installations: The IP66 rating supports suitable protected locations where waterproof performance is required.
Commercial Access Control: Useful for offices, retail stores, warehouses, schools, medical suites and controlled internal exits.
Dual Output Wiring: Suitable where isolated NO and NC relay outputs are required for access control or release circuits.

Why Choose the WEL2451

Choose the SECOR WEL2451 when the installation needs a durable piezo electric press-to-exit button with IP66 water resistance and clear dual-colour LED feedback. Its finger-touch activation and no-moving-parts design make it a strong alternative to mechanical exit buttons in busy access control environments. The isolated NO/NC relay outputs, selectable 2 or 10 second output timer and 12VDC operation give installers flexible options for compatible request-to-exit inputs and door release circuits. This model, supplied by Security Wholesalers, is a practical choice for commercial sites requiring a reliable press-to-exit button with easy wiring and a compact standard mounting design.

Buyer Decision Tips

Buyer Tip: Confirm the access control system can accept isolated NO or NC relay output and that the connected circuit remains within the 1A/30V output rating.

Buyer Tip: Select the required timer setting during installation. The WEL2451 supports 2 or 10 second output timing, depending on the door release and controller requirements.

Key Features & Technical Specifications

Product Type	Piezo electric press-to-exit button / request-to-exit switch.
Model	WEL2451.
Brand	SECOR.
Activation Method	Finger touch activated switch using Piezoelectric Effect technology.
Moving Parts	No moving parts for improved durability.
Ingress Protection	IP66 waterproof rating.
Voltage	12VDC.
Current Draw	10mA standby; 50mA activation.
Output	Isolated NO and NC relay output; 1A/30V.
Relay Outputs	Two isolated relay outputs NO and NC.
Output Timer	2 or 10 seconds.
Door Stay Open Time	Selectable: momentary or 10 seconds.
LED Indicator	Dual-colour LED for clear action indication.
Wiring	Flying leads for easy wiring and reduced corrosion risk at terminals.
Mounting	Compact design to fit standard mounting blocks.
Plate Options	Stainless steel or plastic plate options available.
Dimensions	W70 x H115 x D23mm.
Typical Use	Request-to-exit, door release and compatible access control exit applications.

Ideal Use Cases

Press-to-Exit Points

Use where users need a simple finger-touch request-to-exit button for a controlled door.

High-Use Exit Buttons

The no-moving-parts piezo design is useful for busy doors that require durable activation hardware.

Commercial Door Release

Suitable for offices, retail sites, warehouses, schools, medical suites and controlled access areas.

Water-Resistant Locations

The IP66 rating supports suitable installations where the button location may require water resistance.

Access Control REX Inputs

Can be wired to compatible request-to-exit inputs using isolated NO or NC relay output.

Standard Mounting Blocks

The compact body is designed to fit standard mounting blocks for easier installation planning.

Choosing the Right Model

Choose this model if: You need a piezo electric press-to-exit button with IP66 rating, dual-colour LED and isolated NO/NC outputs.
Choose a touchless model if: The site requires hand-wave or body approach activation rather than finger-touch operation.
Choose a mechanical exit button if: The installation specifically requires a traditional physical push-button action.
Check relay requirements first: Confirm whether the access controller requires NO or NC output and whether the timed output should be set to 2 or 10 seconds.
Check before installation: Confirm 12VDC power, output rating, mounting block depth, cable route, selected plate style and the required LED indication behaviour.

FAQs

What is the SECOR WEL2451 used for?
The SECOR WEL2451 is used as a piezo electric press-to-exit button for compatible access control and door release systems. It allows users to request exit using finger-touch activation instead of a traditional mechanical push button.
How does the WEL2451 operate?
The WEL2451 uses Piezoelectric Effect technology. A finger touch activates the switch, and because there are no moving parts, the design is more durable than many mechanical exit buttons used in busy access control environments.
Is the WEL2451 waterproof?
Yes. The WEL2451 has an IP66 waterproof rating. Final suitability still depends on correct installation, sealing, wiring protection and whether the button location is appropriate for the environmental conditions.
What output does the WEL2451 provide?
The WEL2451 provides isolated NO and NC relay output rated at 1A/30V. This makes it suitable for compatible access control request-to-exit inputs and low-voltage release circuits within the listed output rating.
What power does it require?
The WEL2451 requires 12VDC power. Current draw is listed as 10mA in standby and 50mA during activation, so the installer should confirm the available access control power supply capacity before installation.
Can the output time be changed?
Yes. The WEL2451 supports a selectable output timer of 2 or 10 seconds, with door stay open time described as momentary or 10 seconds. The timing should be set to suit the connected controller and door release requirements.
What size is the WEL2451?
The WEL2451 measures W70 x H115 x D23mm. It has a compact design made to fit into standard mounting blocks, although the installer should confirm wall depth, cable route and installation clearance before fitting.
What should I check before buying the WEL2451?
Before buying the WEL2451, confirm that your system requires a 12VDC piezo electric press-to-exit button, that the relay output suits the controller input, and that the IP66 design is appropriate for the location. This model is available through Security Wholesalers for compatible access control exit applications.

Additional Information

Secor Piezo WEL2451 Datasheet

SKU: WEL2‌451 Category: Secor
