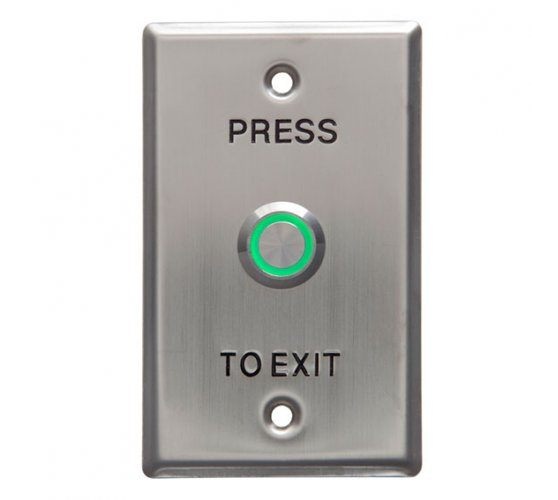

SECOR WEL1911 Press to Exit Button Stainless Steel Plate with Fly Leads Green LED IP65

Name: SECOR WEL1911 Press to Exit Button Stainless Steel Plate with Fly Leads Green LED IP65
Brand: Secor
SKU: WEL1911
Price: 53.00 AUD
Availability: InStock

$53.00

WARRANTY GUARANTEED

✔ Dedicated 5★ Customer Care Team ✔ Fast & Responsive Tech Support

The SECOR WEL1911 delivers a stainless steel press to exit button solution designed for access control, door release and secure exit applications in commercial, retail, office and public building environments. Featuring a stainless steel flush mount button, green LED indication and IP65 protection, it provides a durable manual release option with clear visual feedback for compatible low-voltage access control systems.

It also includes isolated normally open and normally closed contacts, making this model available at Security Wholesalers practical for installers needing flexible output wiring. With flying leads, 2A maximum current support and up to 1 million mechanical cycles, the WEL1911 suits wall-mounted door release installations requiring a robust stainless steel finish and illuminated button operation.

Key Features

Stainless Steel Button: Provides a durable flush mount exit button for access control and door release installations.
Green LED Indicator: Offers clear visual indication for button status or activation feedback in compatible systems.
IP65 Protection: Provides weather-resistant protection for suitable indoor or protected outdoor environments.
Isolated NO/NC Contacts: Includes 1 x normally open and 1 x normally closed isolated contact for flexible wiring.
Flying Leads: Supports easier installation with flying lead terminals and reduced corrosion risk.
Durable Switching Life: Supports 50,000 electrical cycles and 1 million mechanical cycles for regular access control use.

$53.00 inc GST +3 Year Warranty & Support

Description

Product SKU: WEL1911

Product Overview

The SECOR WEL1911 Press to Exit Button Stainless Steel Plate with Fly Leads Green LED IP65 is a mechanical request-to-exit button designed for compatible access control, door release and egress applications. It features a stainless steel flush mount button, green LED indication, isolated normally open and normally closed contacts, and flying leads for straightforward wiring into compatible low-voltage control circuits. The IP65 rating makes it suitable for installations where additional protection against dust and water ingress is required, subject to correct mounting and sealing. With 1 x NO and 1 x NC isolated contacts, 2A maximum current at 12 or 24VDC, ≤50mΩ resistance, greater than 100MΩ insulation resistance and a listed mechanical life of 1 million cycles, the WEL1911 is a practical illuminated press-to-exit option for commercial access control installations requiring a durable stainless steel finish.

Key Capabilities

Stainless Steel Exit Button

The WEL1911 uses a stainless steel flush mount button for a durable, professional access control finish.

Green LED Indication

The supplied configuration includes green LED indication for clearer visual status at the exit button location.

IP65 Rated Design

The IP65 rating supports suitable installations where protection against dust and water ingress is required.

Isolated NO and NC Contacts

The button provides one isolated normally open contact and one isolated normally closed contact for flexible access control wiring.

Flying Lead Wiring

Flying leads simplify wiring and reduce exposed terminal points at the button assembly.

High Mechanical Life

The listed 1 million cycle mechanical life supports repeated operation in suitable commercial access control locations.

Best For

Illuminated Request-to-Exit Applications: Suitable for compatible access control systems requiring a stainless steel press-to-exit button with LED indication.
Commercial Door Release: Practical for offices, warehouses, retail stores, medical suites, schools and controlled internal exits.
Stainless Steel Fit-Offs: Ideal where a durable stainless steel plate finish is preferred.
IP65 Installations: Suitable for locations requiring a dust and water resistant exit button when installed correctly.
NO/NC Circuit Wiring: Useful where isolated normally open and normally closed contacts are required for compatible controllers or release circuits.

Why Choose the WEL1911

Choose the SECOR WEL1911 when the installation needs a stainless steel press-to-exit button with green LED indication, IP65 protection and flying lead wiring. Its flush mount stainless steel design provides a professional finish for commercial access control points, while the isolated NO and NC contacts allow flexible wiring into compatible request-to-exit and door release circuits. The green LED helps improve visibility at the exit button, and the listed mechanical life supports regular use in suitable environments. This model, supplied by Security Wholesalers, is a practical choice for sites requiring an illuminated mechanical exit button for compatible access control applications.

Buyer Decision Tips

Buyer Tip: Confirm the access control system requires a physical press-to-exit button with LED indication. If the site requires contactless operation, a touchless exit button may be more suitable.

Buyer Tip: Confirm the required plate size and mounting depth before installation, as the supplied dimensions list W70 x H115 x D32mm or W30 x H75 x D32mm.

Key Features & Technical Specifications

Product Type	Mechanical press-to-exit button / request-to-exit switch with LED indication.
Model	WEL1911.
Brand	SECOR.
Button Type	Stainless steel flush mount button.
Operation	Mechanical press-to-exit activation.
LED	Green LED supplied; LED colour options include green, red or blue.
IP Rating	IP65.
Contacts	1 x NO and 1 x NC, isolated.
Output Type	Isolated NO and NC contacts.
Maximum Current	2A at 12 or 24VDC.
Minimum Current	5mA.
Resistance	≤50mΩ.
Insulation Resistance	>100MΩ.
Electric Life	50,000 cycles.
Mechanical Life	1 million cycles.
Terminals	Flying leads.
Dimensions	W70 x H115 x D32mm or W30 x H75 x D32mm.
Typical Use	Request-to-exit, door release and compatible access control exit applications requiring mechanical activation with LED indication.

Ideal Use Cases

Illuminated Exit Points

Use where users need a physical press button with LED visibility at a controlled door.

Commercial Door Release

Suitable for offices, retail sites, warehouses, schools, medical suites and controlled access areas.

Stainless Steel Wall Plates

A practical option where a durable stainless steel finish is preferred for the exit button location.

IP65 Button Locations

Suitable where the installation requires an IP65 rated press-to-exit button, subject to correct mounting.

Access Control REX Inputs

Can be wired to compatible request-to-exit inputs using isolated NO or NC contact operation.

Flying Lead Wiring

Useful where flying leads are preferred for installation, maintenance or reduced terminal exposure at the button.

Choosing the Right Model

Choose this model if: You need a stainless steel press-to-exit button with green LED indication, flying leads, IP65 rating and isolated NO/NC contacts.
Choose WEL1910 if: The installation requires a stainless steel press-to-exit button without LED indication.
Choose a touchless exit button if: The site requires hand-wave or body approach activation instead of physical press operation.
Choose a piezo model if: The site requires a finger-touch button with no moving parts rather than a mechanical press button.
Check before installation: Confirm mounting size, plate format, wall depth, flying lead routing, LED wiring, current rating and IP65 installation requirements.

FAQs

What is the SECOR WEL1911 used for?
The SECOR WEL1911 is used as an illuminated stainless steel press-to-exit button for compatible access control and door release systems. It allows users to physically press the button to request exit through a controlled door.
Does the WEL1911 include LED indication?
Yes. The supplied configuration is for a green LED version, and the specifications list LED options as green, red or blue. The installer should confirm the LED wiring requirements before installation.
Is the WEL1911 touchless?
No. The WEL1911 is a mechanical press-to-exit button. If the site requires contactless operation, a touchless exit button should be selected instead.
What contacts does the WEL1911 provide?
The WEL1911 provides 1 x normally open and 1 x normally closed isolated contact. This gives installers flexibility when connecting the button to compatible request-to-exit inputs or door release circuits.
Is the WEL1911 weather resistant?
The WEL1911 is listed with an IP65 rating. Final suitability depends on the installation environment, mounting method, sealing, wiring route and whether the button is protected from conditions beyond its rating.
What wiring does it use?
The WEL1911 uses flying leads rather than exposed screw terminals at the button assembly. This can make wiring straightforward and may help reduce corrosion risk at the switch connection point.
What size is the WEL1911?
The supplied dimensions list W70 x H115 x D32mm or W30 x H75 x D32mm. Installers should confirm the exact plate format, wall space, depth and cable route before fitting the button.
What should I check before buying the WEL1911?
Before buying the WEL1911, confirm that your access control system requires a mechanical stainless steel press-to-exit button with green LED indication, that the NO/NC contacts match the controller input, and that the IP65 rating suits the location. This model is available through Security Wholesalers for compatible illuminated access control exit applications.
