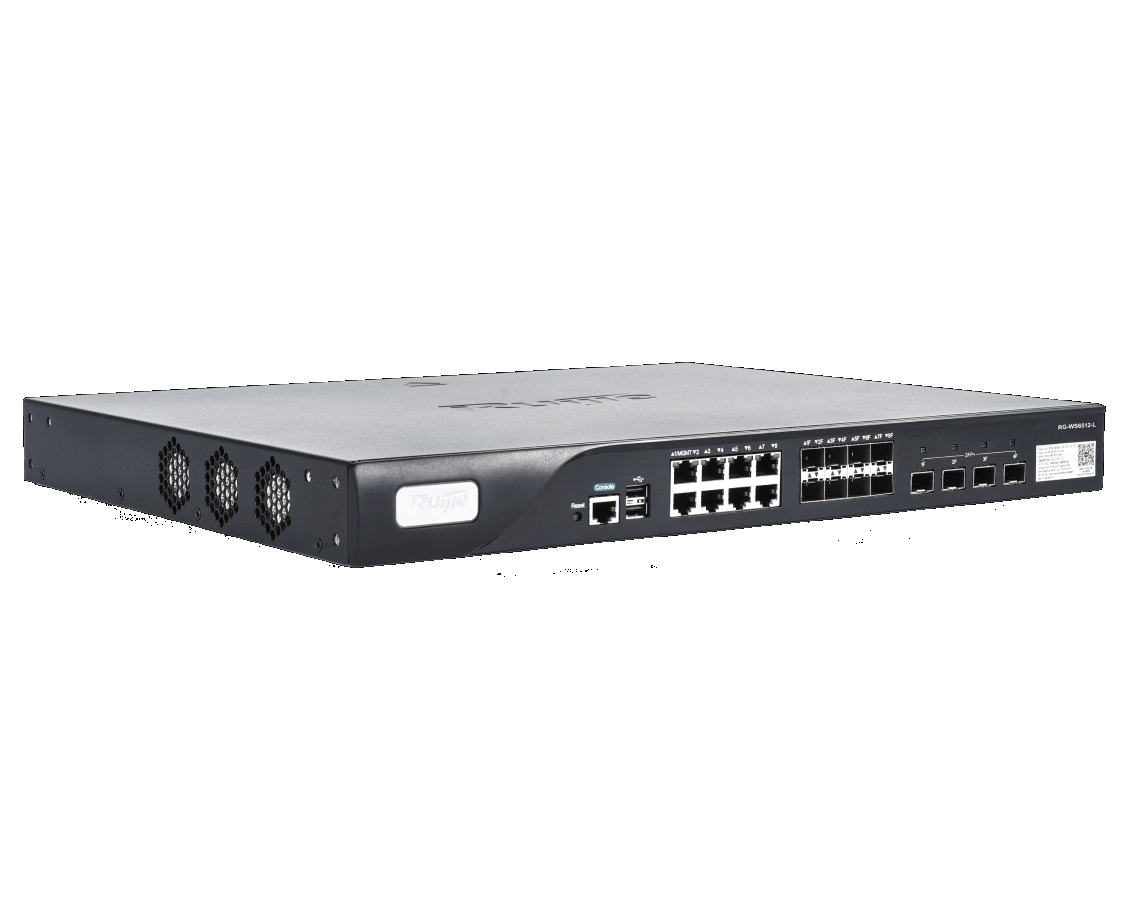

Ruijie RG-WS6512-L High-Performance Wireless Access Controller‍‌​​‌​​​‌‌‌‌‌‌​​​‌​‍

$10,858.54
FREE DELIVERYWARRANTY GUARANTEED
✔ Dedicated 5★ Customer Care Team   ✔ Fast & Responsive Tech Support

Ruijie Wireless Access Controller | 128 Default AP Management | Up to 1,152 Generic APs with Licensing | Layer 2/3 Networking | Large Campus Deployment | Centralised Wireless Control

‍‌​​‌​​​‌‌‌‌‌‌​​​‌​‍

The RG-WS6512-L delivers a high-performance wireless access controller solution designed for large campuses, education, government, healthcare, enterprise and other high-density wireless networks. Featuring 128 AP management by default, scalable licensing for up to 1,152 generic APs or 2,304 wall-mounted APs, and Layer 2/3 network deployment support, it helps simplify large wireless rollouts.

It also includes centralised and visualised wireless management, making this model available at Security Wholesalers suitable for administrators who need stronger control across multiple access points. With support for secure wireless control without major network architecture changes, the RG-WS6512-L is built for demanding managed Wi-Fi environments.

Key Features

  • 128 Default AP Management: Manages up to 128 wireless access points by default for large network deployments.
  • Scalable AP Licensing: Expands up to 1,152 generic APs or 2,304 wall-mounted APs with capacity licensing.
  • Layer 2/3 Deployment: Supports deployment across Layer 2 or Layer 3 networks without major architecture changes.
  • Centralised Wireless Control: Provides centralised and visualised management for easier network administration.
  • Large Campus Suitability: Designed for education, government, healthcare, enterprise and other large-scale environments.
  • Secure WLAN Management: Helps administrators maintain consistent wireless control across managed access points.

Additional Information

RG-WS6512-L High-Performance Wireless Access Controller Datasheet

$10,858.54 inc GST +3 Year Warranty & Support

Product SKU: RG-WS6512-L

‍‌​​‌​​​‌‌‌‌‌‌​​​‌​‍

Product Overview

The Ruijie RG-WS6512-L is a high-performance wireless access controller designed for large campus, education, enterprise, healthcare, government and multi-building wireless networks. It supports 128 access points by default and can scale with additional licensing to manage larger deployments, making it suitable for sites where standalone AP management is no longer practical. This controller can be deployed on Layer 2 or Layer 3 networks without requiring major architecture changes, helping organisations centralise wireless control while keeping existing network designs more flexible. With 8 combo ports, 4 SFP+ 10GE ports, clustering support, identity-based networking services and centralised visual management, the RG-WS6512-L is built for networks that need secure AP control, roaming support and reliable large-scale wireless administration.

Key Capabilities

Large AP Management Capacity

The RG-WS6512-L manages 128 APs by default and can scale with licences for larger networks. This makes it suitable for campuses, schools, hospitals and enterprise sites where many APs need coordinated control.

Layer 2 and Layer 3 Deployment

The controller can be deployed in Layer 2 or Layer 3 network environments, which helps reduce redesign work when adding centralised wireless control to an existing enterprise or campus network architecture.

10GE Uplink Capability

Four SFP+ 10GE ports provide high-speed uplink options for core or aggregation network connectivity. This is important where many APs and wireless users are managed through the same controller platform.

Centralised Wireless Control

Centralised and visual management helps simplify AP deployment, configuration, monitoring and policy control. This matters when wireless settings must remain consistent across buildings, floors or departments.

Clustering and Roaming Support

Multiple controllers in a cluster can share user database information, helping support roaming across different areas of a network while maintaining session integrity for wireless users and voice applications.

Expandable Controller Platform

Licence-based expansion lets the controller grow with the network. This is useful for staged campus upgrades where AP counts may increase over time as buildings, outdoor areas or departments are added.

Best For

  • Large Campuses: Suitable for multi-building wireless networks where many APs need centralised configuration and control.
  • Education Networks: A practical fit for schools, universities and training facilities managing classroom, staff, guest and outdoor Wi-Fi zones.
  • Healthcare and Government Sites: Useful where secure wireless access, user control and structured management are important across many departments.
  • Enterprise Wi-Fi Deployments: Designed for businesses that need controller-based wireless management rather than standalone AP operation.
  • Scalable AP Rollouts: Well suited to networks that start with 128 APs or fewer but may require additional AP licences as coverage expands.

Why Choose the RG-WS6512-L

Choose the RG-WS6512-L when a wireless network has grown beyond simple AP-by-AP administration and needs a dedicated access controller for centralised policy, roaming and deployment control. Its main advantage is scalability: it includes 128 AP management by default, with licensing available for much larger AP counts. Compared with cloud-only or small-site AP management, this controller is better suited to structured campus environments where administrators need more predictable control over wireless services, user access and network design. This model, supplied by Security Wholesalers, suits organisations planning large wireless networks that need enterprise-grade management without changing the existing Layer 2 or Layer 3 architecture unnecessarily.

Buyer Decision Tips

Buyer Tip: Check the expected AP count before ordering. The RG-WS6512-L supports 128 APs by default, but larger deployments require the correct capacity expansion licences, and the number of supported APs can vary by AP type.

Buyer Tip: Plan uplinks, redundancy and power requirements early. The controller includes one power module, but redundant power and required optical modules should be selected separately if the deployment needs higher availability or fibre connectivity.

Key Features & Technical Specifications

Product Type High-performance wireless access controller.
Model RG-WS6512-L.
Default AP Management Manages up to 128 wireless access points by default.
Maximum Generic AP Management Up to 1,152 generic APs with capacity expansion licences.
Maximum Wall Plate AP Management Up to 2,304 wall plate APs, depending on licence and AP type.
Network Deployment Supports deployment on Layer 2 or Layer 3 networks.

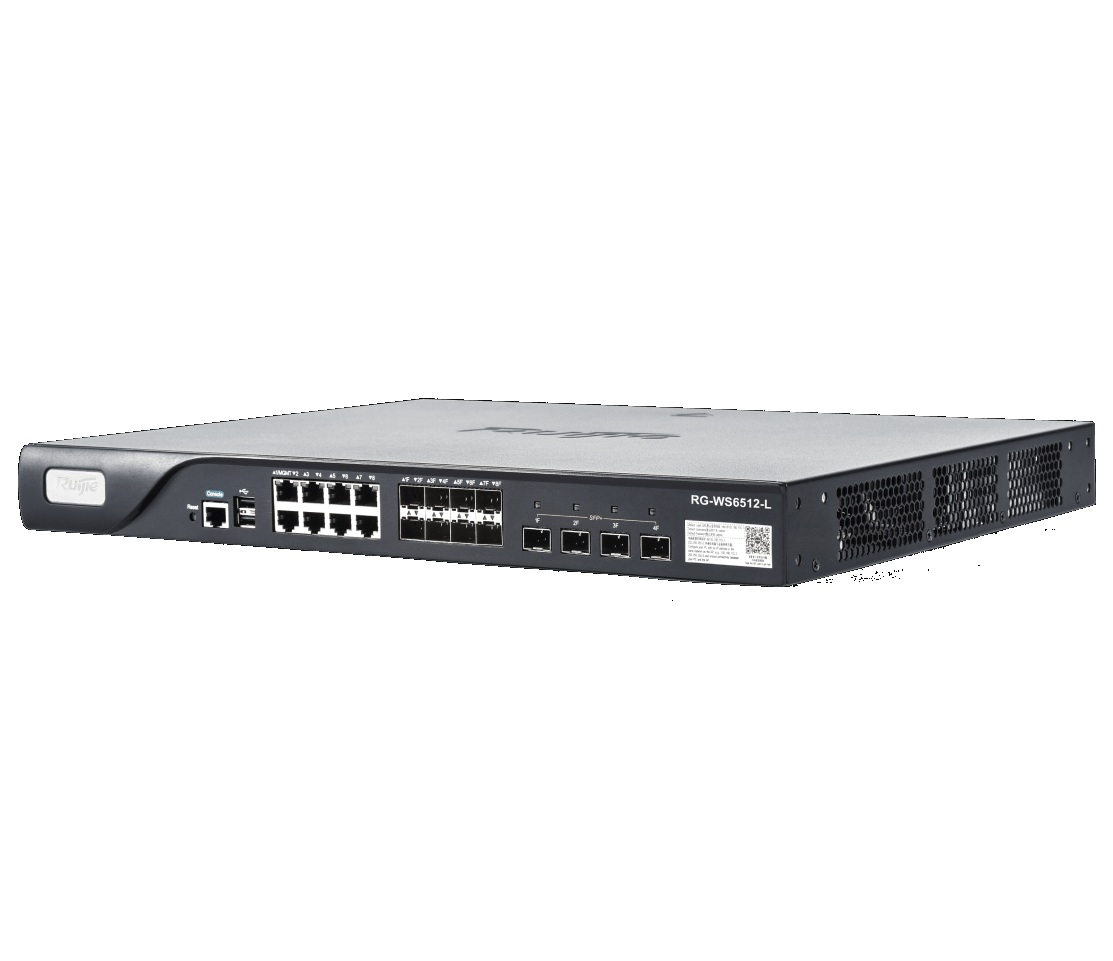

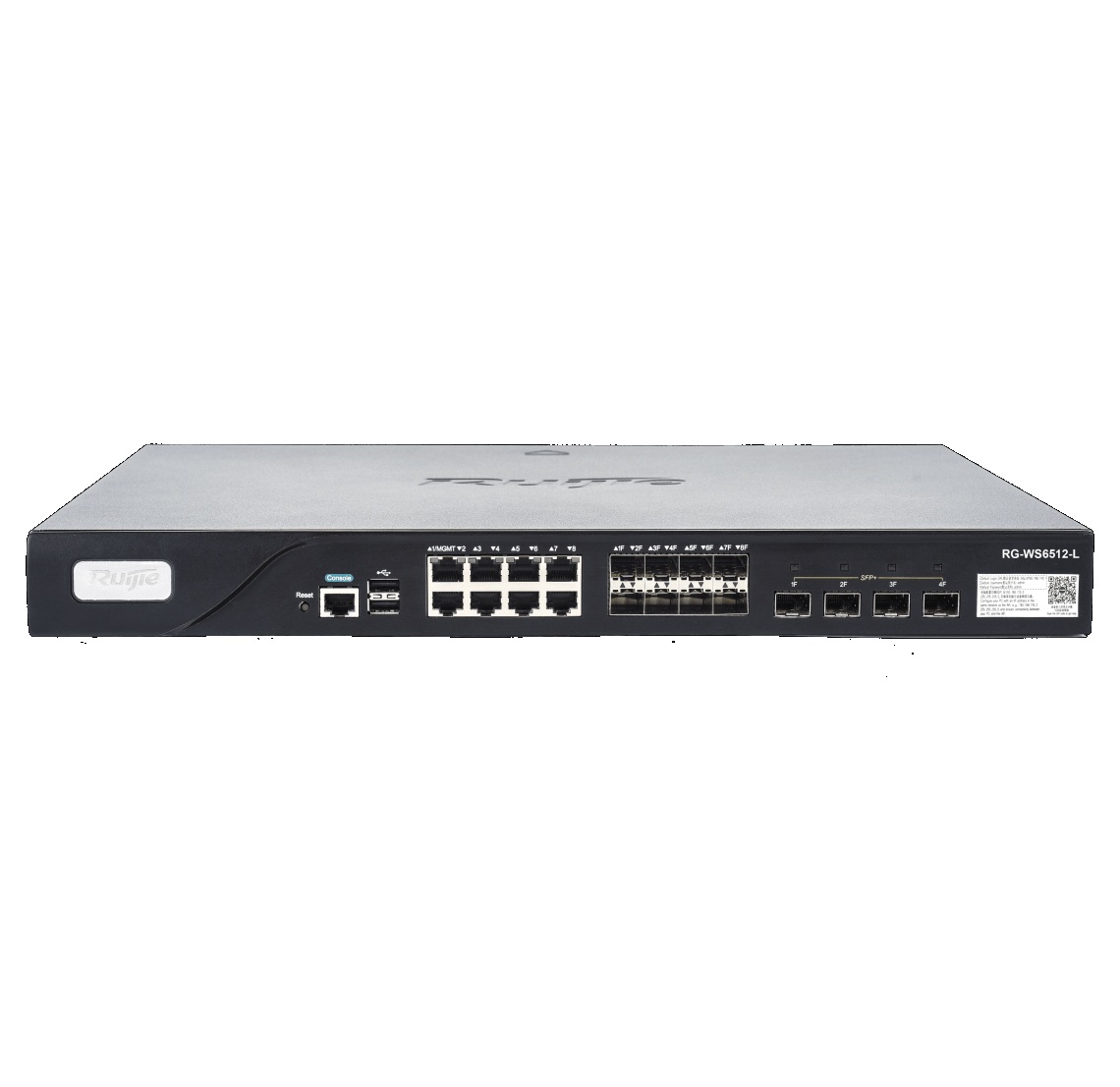

Service Ports 8 x 1GE SFP/RJ45 combo ports and 4 x SFP+ 10GE ports.
Management Port Port 1 can be used as an out-of-band management port.
Console and USB Includes 1 x RJ45 console port and 2 x USB ports.
Clustering Supports controller clustering with shared user database information for roaming scenarios.
Forwarding Modes Supports centralised and local forwarding modes.
Load and Band Management Supports load balancing, dynamic bandwidth allocation and 5GHz band steering.
Wireless Services Supports large WLAN service deployments with centralised wireless policy control.
IPv6 Support Supports IPv6 for modern network environments.

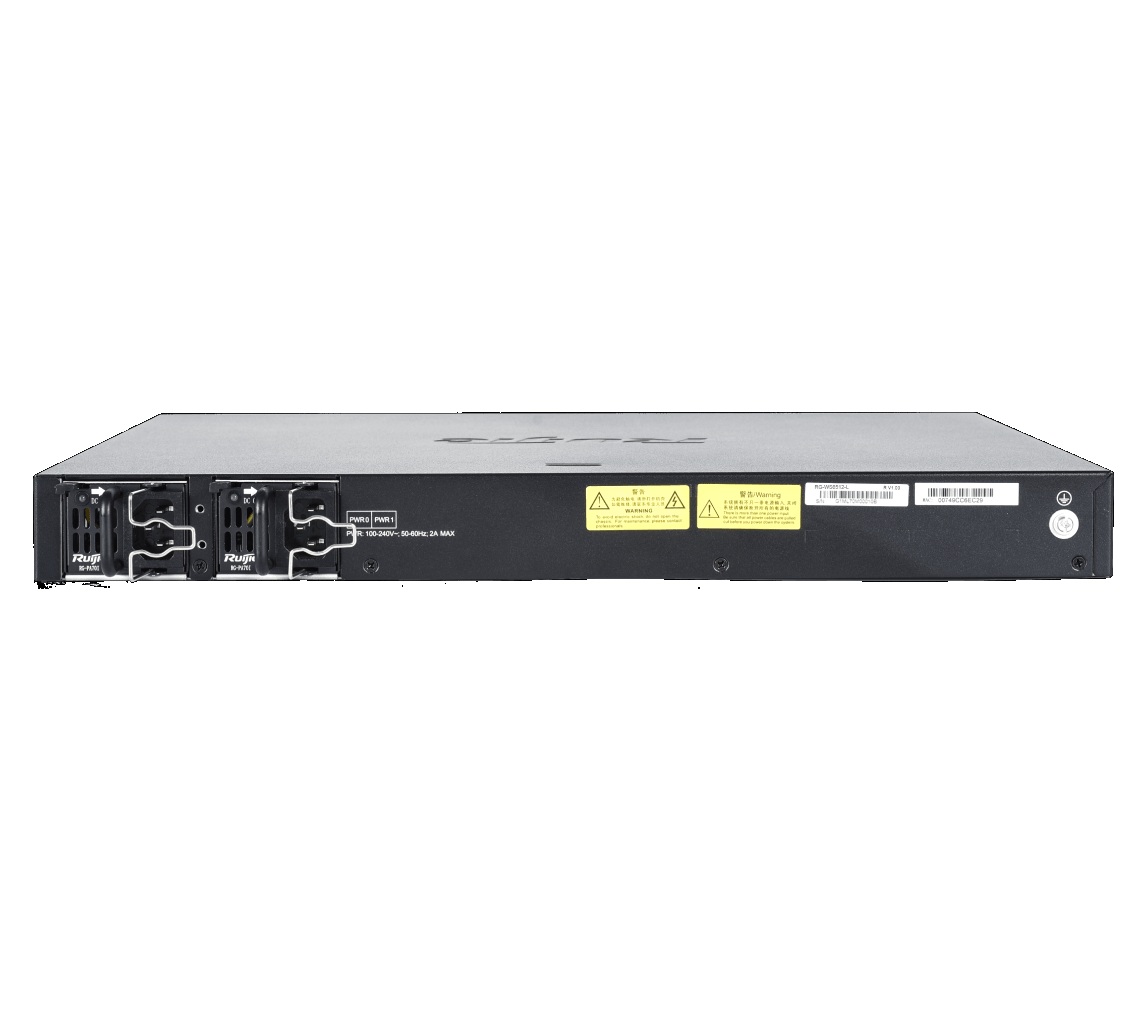

Power Supply One power module is included with the main unit.
Redundant Power Supports redundant power with an additional power module purchased separately.
Rack Height 1 RU rack-mount controller.
Dimensions 440 x 340 x 43.6 mm.
Main Unit Weight 5.9 kg.
Operating Temperature Main unit: 0°C to 45°C.

Ideal Use Cases

University Campuses

Use for managing APs across lecture theatres, libraries, administration buildings, outdoor spaces and accommodation areas from a central wireless controller.

Schools and Education Sites

Suitable for classroom, staff, student and guest Wi-Fi where administrators need centralised control across many APs and coverage areas.

Hospitals and Healthcare Networks

A practical option where wireless access needs to support staff mobility, controlled user access and consistent coverage across multiple departments.

Government and Enterprise Buildings

Useful for structured wireless networks that require central administration, segmentation, roaming support and scalable AP management.

Multi-Building Wireless Networks

Works well where APs are spread across buildings and need Layer 2 or Layer 3 controller deployment without major network redesign.

Growing AP Deployments

A strong fit for staged wireless rollouts where the network may begin with 128 APs and expand through additional controller licences.

Choosing the Right Model

  • Choose this model if: You need a high-performance wireless controller for large campus deployments with 128 default AP management and licence-based expansion.
  • Choose a smaller controller if: The site has a smaller AP count and does not need the scalability, 10GE uplinks or campus-level control of the RG-WS6512-L.
  • Plan licences carefully: Generic APs, wall plate APs and other AP types may consume licences differently, so confirm the exact AP mix before finalising controller capacity.

FAQs

  1. How many APs can the RG-WS6512-L manage by default?
    The RG-WS6512-L manages up to 128 wireless access points by default. This makes it suitable for medium to large wireless networks from the start. If the site needs more APs, capacity expansion licences can be added, but the final supported count depends on the AP type and licensing structure.
  2. Can the RG-WS6512-L scale beyond 128 APs?
    Yes. With capacity expansion licences, the RG-WS6512-L can scale beyond the default 128 APs. It can manage up to 1,152 generic APs or up to 2,304 wall plate APs, depending on licensing and AP type. Buyers should calculate the AP mix before ordering licences.
  3. Is the RG-WS6512-L suitable for a large campus network?
    Yes. The RG-WS6512-L is designed for large campus wireless networks where APs are spread across buildings, departments and outdoor areas. It supports Layer 2 and Layer 3 deployment, centralised control, clustering and high-speed uplinks, making it a strong fit for universities, schools, hospitals and enterprise sites.
  4. Does the RG-WS6512-L require a Layer 2 network?
    No. The RG-WS6512-L can be deployed on either Layer 2 or Layer 3 networks, which helps when integrating the controller into an existing campus or enterprise environment. This flexibility reduces the need to redesign the whole network simply to add centralised wireless access control.
  5. What ports does the RG-WS6512-L provide?
    The RG-WS6512-L provides 8 x 1GE SFP/RJ45 combo ports and 4 x SFP+ 10GE ports. It also includes a RJ45 console port and two USB ports. The 10GE ports are useful for uplink connectivity in larger wireless deployments where many APs and users are controlled centrally.
  6. Does the RG-WS6512-L support redundant power?
    Yes. The RG-WS6512-L supports redundant power, and one power module is supplied with the main unit. If the deployment needs power redundancy, an additional compatible power module should be purchased separately. This model is available through Security Wholesalers for suitable large wireless controller deployments.
  7. What type of organisation should choose the RG-WS6512-L?
    The RG-WS6512-L is best suited to organisations with many APs, multiple buildings or structured wireless management requirements. Typical examples include schools, universities, healthcare facilities, government sites and medium to large enterprises. Smaller sites with only a few APs may not need this level of controller capacity.
  8. What should be checked before buying the RG-WS6512-L?
    Before buying the RG-WS6512-L, confirm the AP count, AP model mix, required licences, uplink design, optical module needs, rack space and redundancy requirements. A common mistake is selecting the controller without checking future expansion plans, which can lead to licence or uplink limitations later.

Additional Information

RG-WS6512-L High-Performance Wireless Access Controller Datasheet
