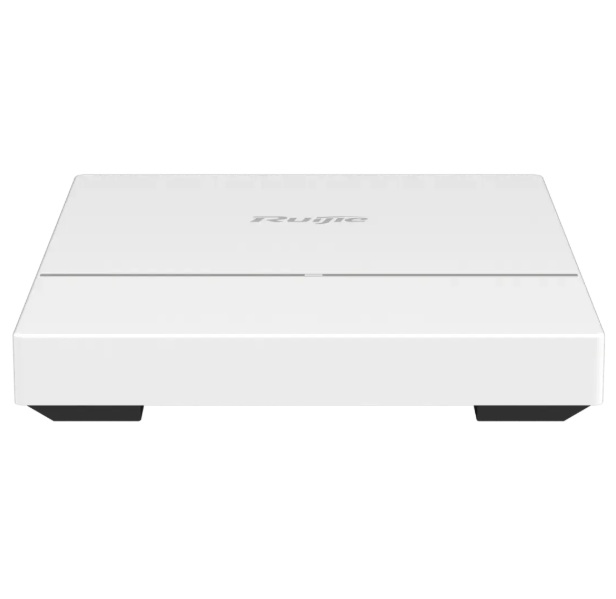

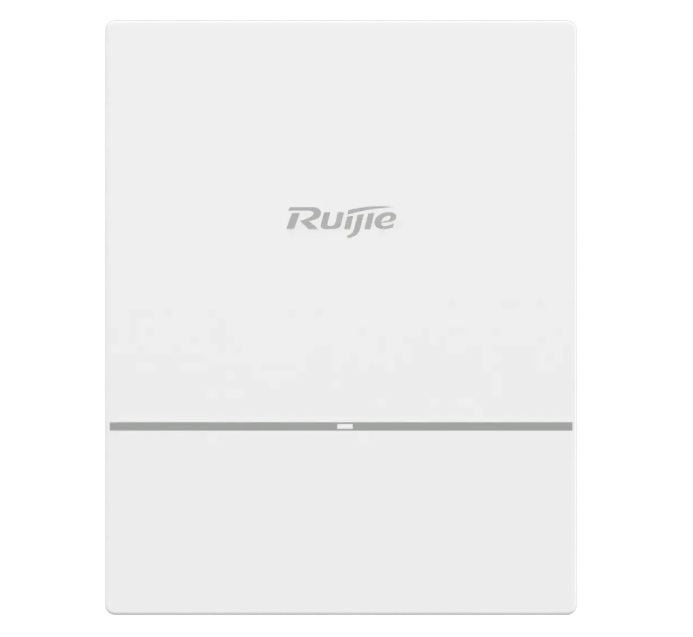

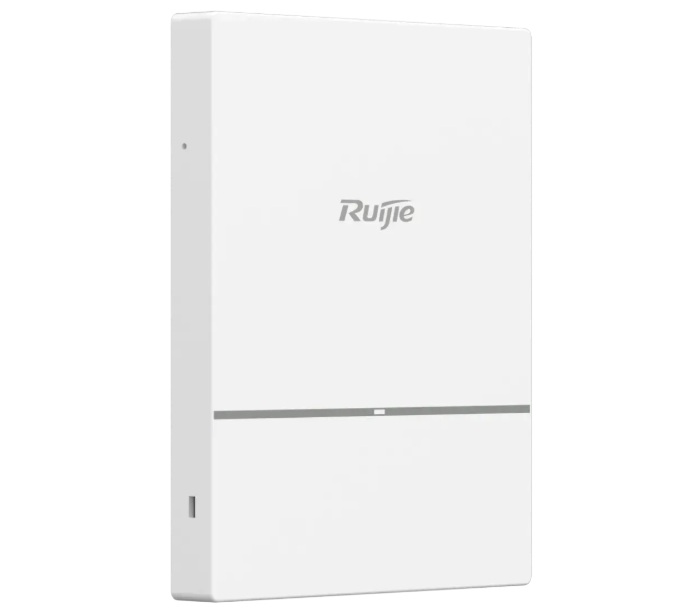

Ruijie RG-AP820-L(V2) Wi-Fi 6 Dual-Radio 2.402Gbps Indoor Access Point with 4 Spatial Streams PoE & Cloud Management

Product SKU: RG-AP820-L-V2

Product Overview

The Ruijie RG-AP820-L(V2) is a Wi-Fi 6 dual-radio indoor wireless access point designed for offices, schools, hotels, retail environments and other commercial networks requiring reliable high-density wireless connectivity. Its four-spatial-stream architecture uses two 2×2 MU-MIMO radios and supports a combined peak wireless data rate up to 2.402 Gbps when both radios operate at 5 GHz, or up to 1.775 Gbps in a conventional 2.4 GHz plus 5 GHz configuration. Wi-Fi 6 technologies including OFDMA, MU-MIMO and 1024-QAM improve efficiency when multiple clients are active simultaneously. Built-in smart antennas, 802.11k/v/r roaming support, Gigabit Ethernet, PoE and Ruijie Cloud management make the RG-AP820-L(V2) suitable for centrally managed business wireless deployments.

Key Capabilities

Best For

• Offices: Wi-Fi 6 capacity, roaming support and cloud management suit modern workplaces with laptops, mobiles and collaboration devices.
• Schools & Education: OFDMA, MU-MIMO and support for high client counts suit classrooms, learning spaces and administration areas.
• Hotels: Roaming and centralised management help provide consistent wireless coverage across guest areas and corridors.
• Retail Stores: Compact indoor mounting and cloud monitoring suit shops, showrooms and multi-site retail deployments.
• High-Density Commercial Wi-Fi: Four spatial streams and a recommended maximum of 120 active devices provide capacity for busier indoor environments.

Why Choose the RG-AP820-L(V2)

The RG-AP820-L(V2) combines modern Wi-Fi 6 performance with flexible enterprise management in a relatively compact indoor access point. Dual 2×2 radios, four spatial streams, OFDMA, MU-MIMO and WPA3 provide the core wireless features needed for busy commercial networks, while Ruijie’s roaming optimisation and smart antennas help improve continuity for moving clients. Fat, Fit and Cloud modes allow the same hardware to suit standalone, controller-managed or cloud-managed deployments. Available through Security Wholesalers, the RG-AP820-L(V2) is particularly suitable for organisations that want a centrally manageable Wi-Fi 6 access point without moving to a significantly larger or higher-power enterprise AP.

Buyer Decision Tips

Key Features & Technical Specifications

Product Type	Wi-Fi 6 dual-radio indoor wireless access point.
Model	RG-AP820-L(V2).
Wireless Standards	IEEE 802.11a/b/g/n/ac/ax.
Radio Design	Dual radio with four spatial streams.
Radio 1	2.4 GHz or 5 GHz, 2×2, two spatial streams, MU-MIMO.
Radio 2	5 GHz, 2×2, two spatial streams, MU-MIMO.
Maximum Combined Data Rate	Up to 2.402 Gbps in 5 GHz + 5 GHz configuration.
2.4 GHz + 5 GHz Combined Rate	Up to 1.775 Gbps.
2.4 GHz Maximum Rate	Up to 574 Mbps.
5 GHz Maximum Rate Per Radio	Up to 1.201 Gbps.
Channel Width	Up to 40 MHz on 2.4 GHz and up to 80 MHz on 5 GHz.
Wi-Fi 6 Technologies	OFDMA, MU-MIMO and 1024-QAM.
Wireless Security	WPA, WPA2, WPA3, 802.1X, RADIUS, PSK, PPSK and supported enterprise authentication methods.
Roaming	802.11k/v/r plus Ruijie roaming optimisation; Layer 2 and Layer 3 roaming in supported Fit-mode deployments.
Recommended Maximum Active Devices	120 per AP.
Maximum Associated Clients	Up to 1,024; actual capacity varies with environment and workload.
Maximum BSSIDs	32 total, up to 16 per radio.
Antennas	Built-in smart omnidirectional antennas.
Bluetooth	Bluetooth 5.0.

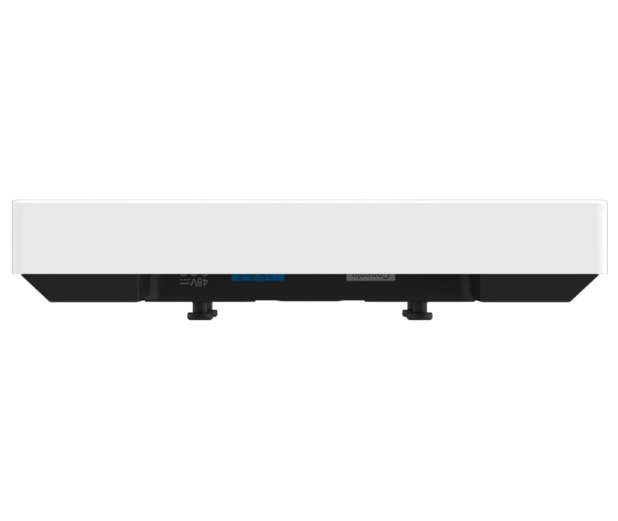

Ethernet Port	1 × 10/100/1000BASE-T RJ45.
Console Port	1 × RJ45 serial console port.
PoE	IEEE 802.3af PoE supported; compatible with suitable 802.3at/bt PSE equipment at Class 3 or higher.
Local Power	48 VDC, 0.3 A via 2.1/5.5 mm centre-positive DC connector; adapter sold separately.
Maximum Power Consumption	12.95 W.
Idle Power Consumption	Less than 8 W.
Management Modes	Fat, Fit and Cloud.
Cloud Management	Ruijie Cloud.
Other Management	Web management, SNMP v1/v2c/v3, console, SSH, Telnet and TFTP-based management.

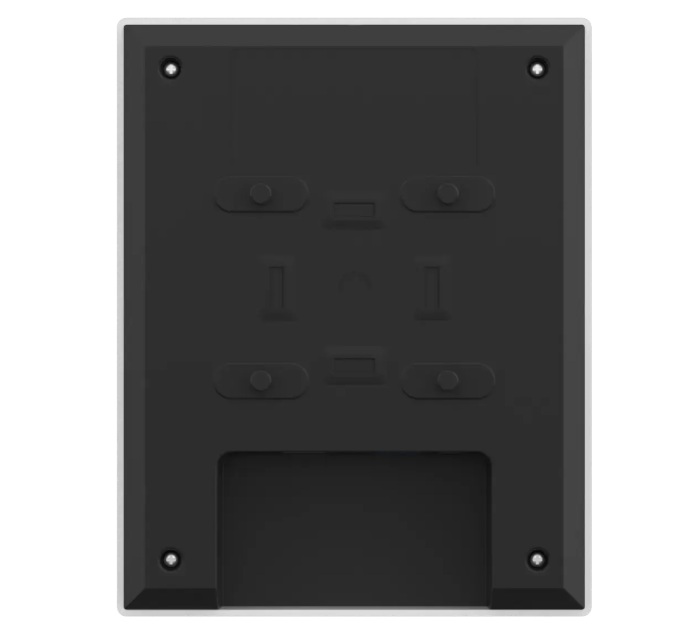

Mounting	Wall or ceiling mounting; mounting bracket supplied.
Colour	White.
Operating Temperature	-10°C to 50°C.
Storage Temperature	-40°C to 70°C.
Operating Humidity	5% to 95% RH, non-condensing.
MTBF	200,000 hours at 25°C.
Dimensions	Approximately 153 × 193 × 26 mm.
Unit Weight	Approximately 0.42 kg.
Mounting Bracket Weight	Approximately 0.07 kg.

Ideal Use Cases

Choosing the Right Model

• Choose the RG-AP820-L(V2) if: You need a Wi-Fi 6 indoor access point with dual radios, four spatial streams, PoE and Ruijie Cloud or controller management.
• Use 2.4 GHz + 5 GHz mode if: The network still needs 2.4 GHz coverage for older, IoT or longer-range client devices.
• Use 5 GHz + 5 GHz mode if: The deployment prioritises higher aggregate capacity and the connected device environment is suitable for 5 GHz-only service.
• Choose a higher-capacity AP if: A single coverage area is expected to sustain significantly more than Ruijie’s recommended 120 active devices or unusually high per-user bandwidth.

FAQs

1. What wireless performance does the Ruijie RG-AP820-L(V2) provide?
   The Ruijie RG-AP820-L(V2) is a Wi-Fi 6 dual-radio indoor access point with four spatial streams. Its combined peak data rate reaches 2.402 Gbps when both radios operate in the 5 GHz band, while a 2.4 GHz plus 5 GHz configuration provides a combined peak rate of 1.775 Gbps. Each radio supports two spatial streams and 2×2 MU-MIMO.
2. How many users can the RG-AP820-L(V2) support?
   Ruijie recommends a maximum of 120 active devices per RG-AP820-L(V2). The platform supports up to 1,024 associated clients, although Ruijie notes that the actual number varies with the environment. The access point also supports up to 32 BSSIDs, with up to 16 BSSIDs available per radio.
3. Does the RG-AP820-L(V2) support PoE?
   Yes. The RG-AP820-L(V2) can be powered through its Gigabit LAN/PoE port using IEEE 802.3af PoE. Ruijie also lists compatibility with 802.3at and 802.3bt PSE equipment at Class 3 or higher. Alternatively, it can use a 48 VDC, 0.3 A local power adapter. The maximum stated power consumption is 12.95 W.
4. What management options does the RG-AP820-L(V2) support?
   The RG-AP820-L(V2) supports Fat, Fit and Cloud operating modes. In Cloud mode it can be managed through Ruijie Cloud, while Fit mode supports centralised management through a compatible Ruijie wireless controller. Web-based management, SNMP, SSH, Telnet, console and TFTP-based management are also listed, providing flexibility for both standalone and centrally managed deployments.
5. What Wi-Fi 6 features does the RG-AP820-L(V2) support?
   The access point supports Wi-Fi 6 features including OFDMA, MU-MIMO and 1024-QAM. It also supports WPA3 security and 802.11k/v/r roaming assistance. These capabilities are designed to improve efficiency, roaming continuity and client handling in higher-density indoor environments such as offices, schools, hotels and retail sites.
6. What are the dimensions and operating limits of the RG-AP820-L(V2)?
   The RG-AP820-L(V2) measures approximately 153 mm × 193 mm × 26 mm. The main unit weighs about 0.42 kg and the included mounting bracket about 0.07 kg. Ruijie specifies an operating temperature from -10°C to 50°C and operating humidity from 5% to 95% non-condensing. For Security Wholesalers installations, coverage planning should still account for wall construction, interference and client density.

Additional Information

• RG-AP820-L(V2) Wi-Fi 6 Dual-Radio Indoor Access Point Datasheet
