Ruijie Reyee Training Kit with RG-RAP62 AX3000 Wi-Fi 6 Access Point RG-ES209GC-P 9-Port Gigabit PoE Switch & RG-EG105GWT Wireless Router

Product SKU: RUIJIE-WI-FI-TRAINING-KIT

Product Overview

The Ruijie Reyee Training Kit combines three core networking components into a practical platform for learning, demonstration, testing and small-network deployment: the RG-RAP62 AX1800 Wi-Fi 6 ceiling access point, RG-ES209GC-P 9-port Gigabit smart cloud-managed PoE switch and RG-EG105GW(T) Wi-Fi 5 wireless business router. Together, the devices allow trainees, installers and network technicians to build a complete routed, switched and wireless network while working with PoE, VLANs, cloud onboarding, Wi-Fi configuration and remote management. The RG-ES209GC-P can provide PoE power to the RG-RAP62, while the RG-EG105GW(T) provides gateway, wired and wireless routing functions. Integration with the Ruijie Reyee ecosystem makes the kit particularly useful for practical cloud-managed networking exercises.

System Capabilities

Best For

• Installer Training: Provides physical equipment for learning gateway, switch, PoE and wireless-access-point configuration.
• Networking Workshops: Suitable for demonstrating routing, switching, VLANs, wireless access and cloud management in a practical environment.
• Technical Demonstrations: Allows trainers to demonstrate how Ruijie Reyee routers, switches and access points interact as a complete network.
• Test & Lab Environments: Useful for testing network configurations before applying similar settings to larger deployments.
• Small Business Networks: The included hardware can also demonstrate a compact routed and PoE-powered wireless network topology.

Why Choose This Training Kit

This training kit provides more practical value than studying routing, switching and wireless concepts in isolation because the three included devices represent the main layers of a real small-business network. The router can provide the gateway, the smart switch distributes Gigabit connectivity and PoE power, and the dedicated Wi-Fi 6 access point provides centrally managed wireless access. Users can practise onboarding devices, monitoring the network, working with VLANs, testing PoE behaviour and troubleshooting connectivity. Available through Security Wholesalers, the kit is particularly useful for installers, technical teams and training environments that want hands-on familiarity with the Ruijie Reyee ecosystem before working on larger customer deployments.

Package Inclusions

• 1 × Ruijie Reyee RG-RAP62 AX1800 Wi-Fi 6 Dual-Band Ceiling Access Point
• 1 × Ruijie Reyee RG-ES209GC-P 9-Port Gigabit Smart Cloud Managed PoE Switch with 8 PoE+ Ports & 120 W PoE Budget
• 1 × Ruijie Reyee RG-EG105GW(T) Wi-Fi 5 1266 Mbps Wireless All-in-One Business Router

Buyer Decision Tips

Key Features & Technical Specifications

Kit Type	Ruijie Reyee networking training and demonstration kit.
Included Devices	RG-RAP62 access point, RG-ES209GC-P PoE switch and RG-EG105GW(T) wireless router.

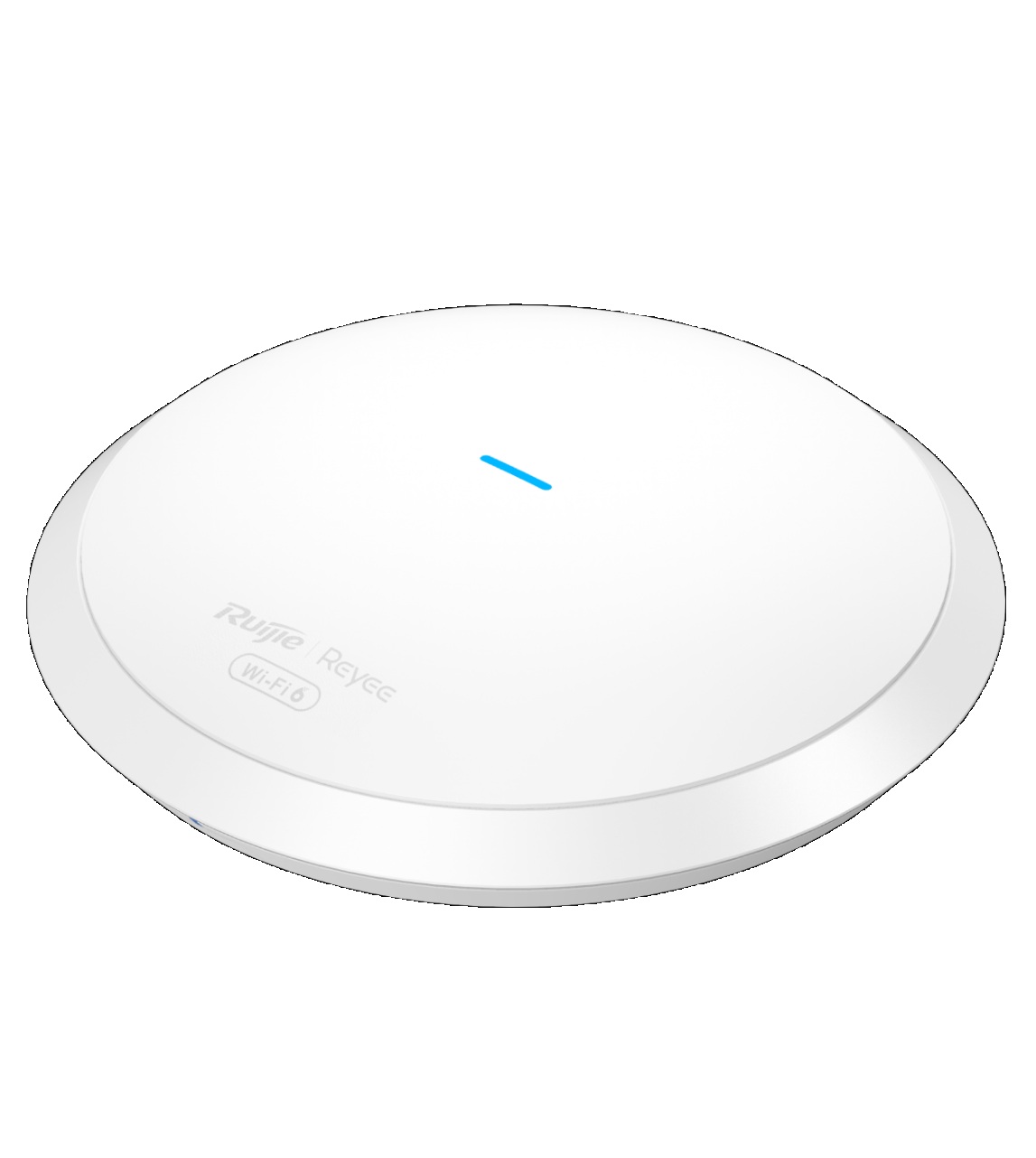

Access Point Model	RG-RAP62.

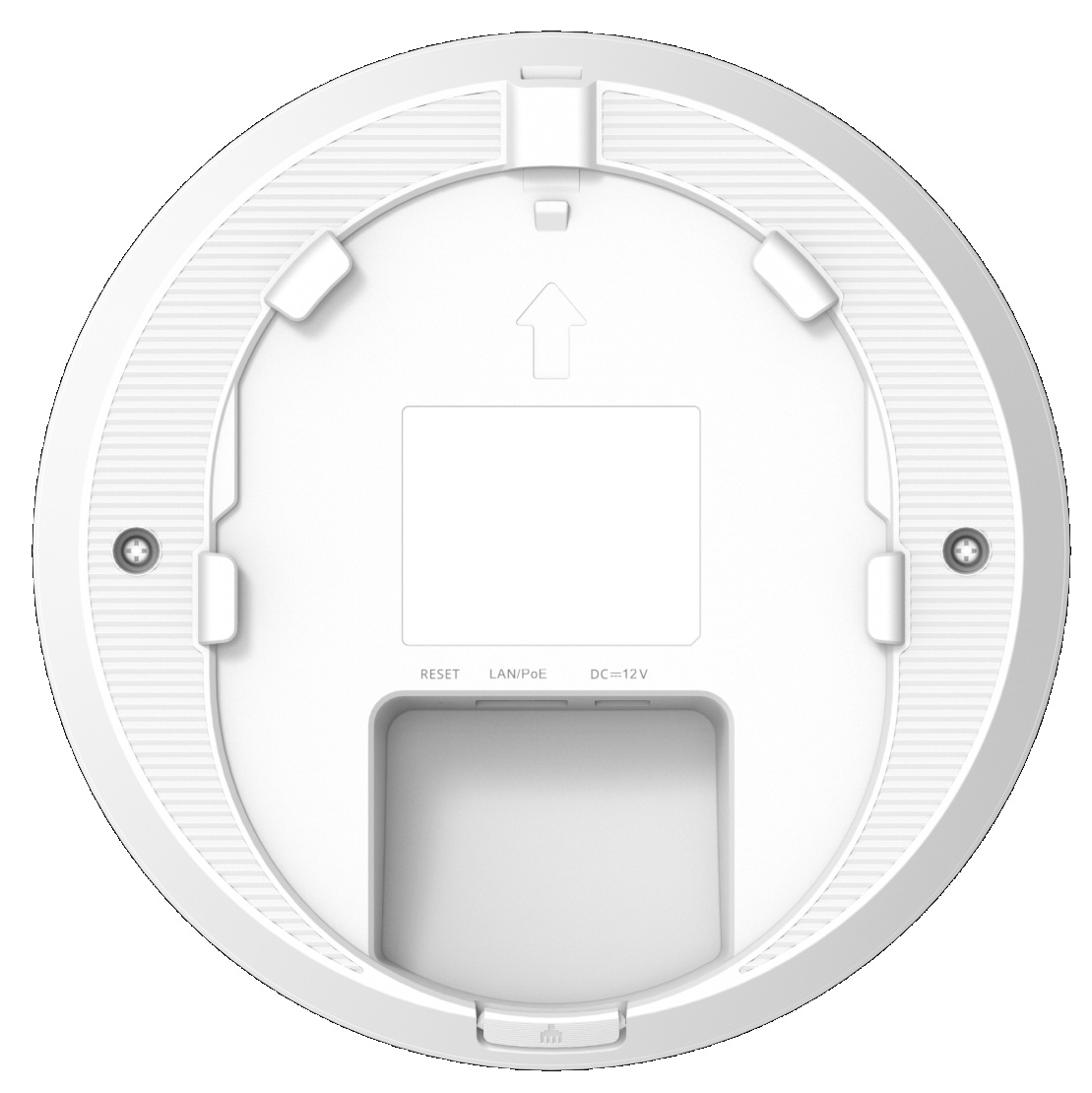

RG-RAP62 Product Type	Indoor ceiling/wall-mount Wi-Fi 6 access point.
RG-RAP62 Wireless Class	AX1800.
RG-RAP62 Radio Design	Dual radio, 4 spatial streams; 2×2 MU-MIMO on 2.4 GHz and 2×2 MU-MIMO on 5 GHz.
RG-RAP62 Maximum Wireless Rate	1774 Mbps combined theoretical rate.
RG-RAP62 2.4 GHz Rate	573 Mbps.
RG-RAP62 5 GHz Rate	1201 Mbps.
RG-RAP62 Ethernet	1 × 10/100/1000BASE-T Gigabit port.
RG-RAP62 Power	PoE/PoE+ or 12 VDC, 1.5 A local power.
RG-RAP62 Maximum Power Consumption	12.95 W.
RG-RAP62 Maximum Associated Clients	64 on 2.4 GHz, 256 on 5 GHz and 256 total with both bands enabled.
RG-RAP62 Maximum Managed Devices	300.
RG-RAP62 IPv6	Supported.
RG-RAP62 IP Rating	IP41.

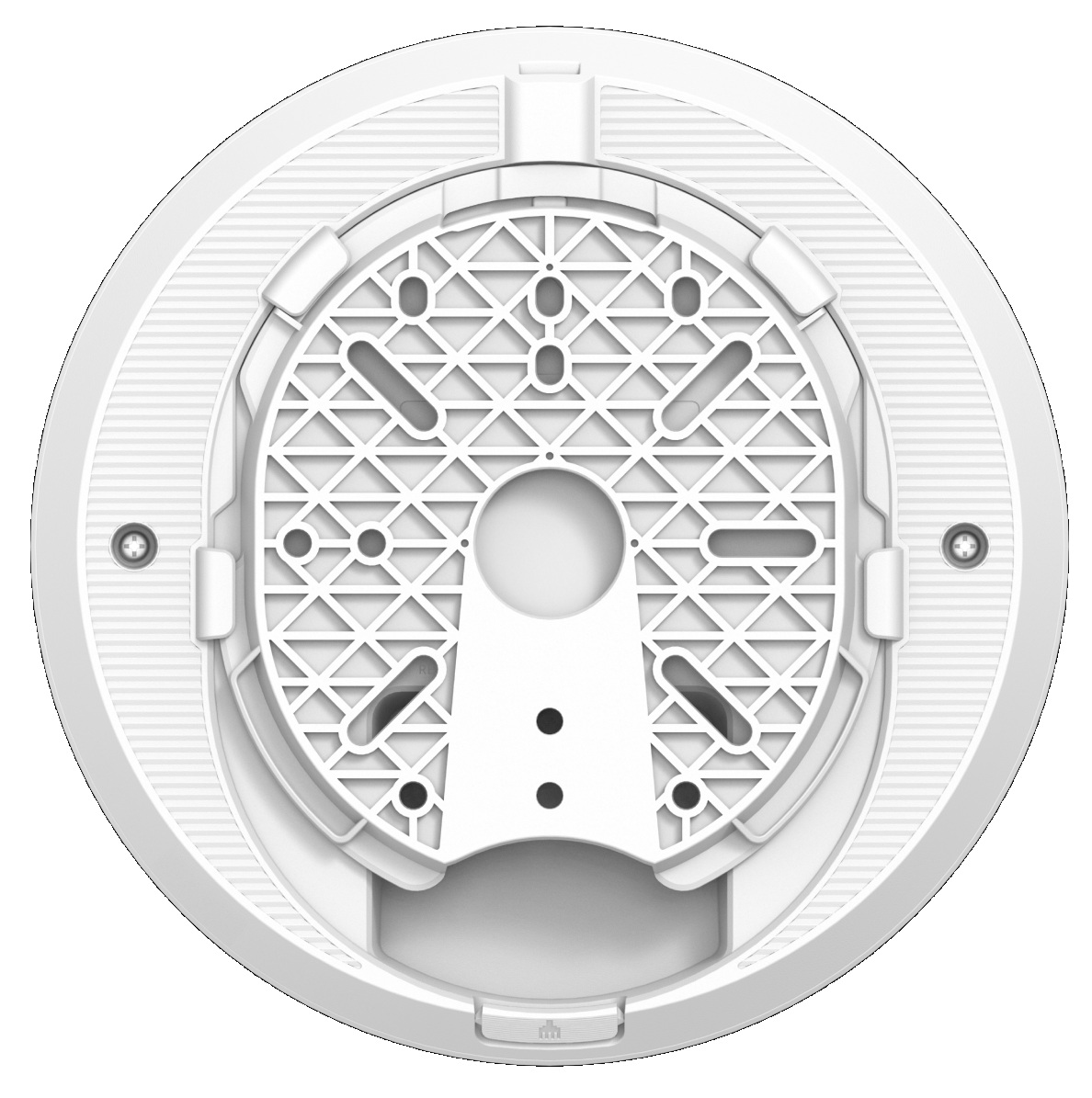

RG-RAP62 Mounting	Ceiling or wall.
RG-RAP62 Dimensions	Ø175 × 39 mm excluding mounting bracket.
RG-RAP62 Weight	≤0.4 kg without packaging.

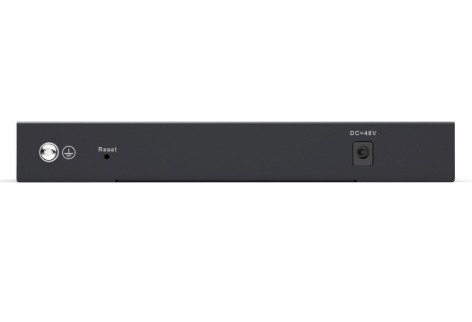

PoE Switch Model	RG-ES209GC-P.

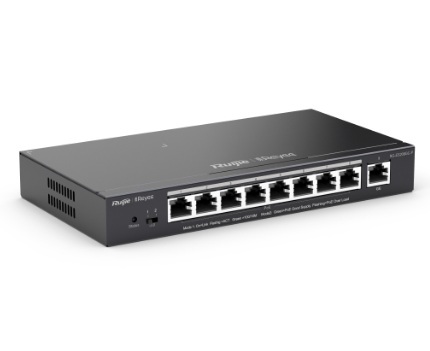

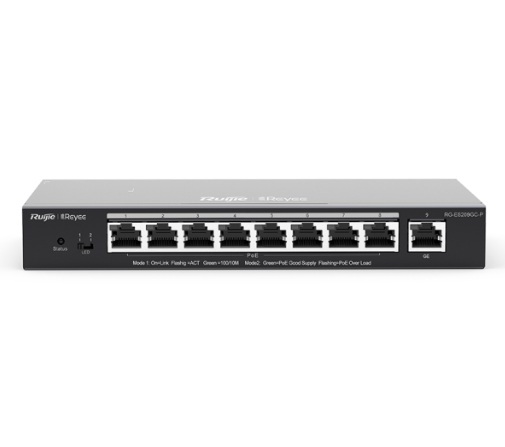

RG-ES209GC-P Product Type	Layer 2 Gigabit smart cloud-managed PoE switch.
RG-ES209GC-P RJ45 Ports	9 × 10/100/1000BASE-T Gigabit ports.
RG-ES209GC-P PoE Ports	8 × PoE/PoE+ output ports.
RG-ES209GC-P PoE Budget	120 W.
RG-ES209GC-P Switching Capacity	18 Gbps.
RG-ES209GC-P Forwarding Rate	13.4 Mpps.
RG-ES209GC-P PoE Watchdog	Supported.
RG-ES209GC-P Port Isolation	Supported.
RG-ES209GC-P IP Camera Recognition	Supported.
RG-ES209GC-P Automatic Loop Prevention	Supported.
RG-ES209GC-P Extended Transmission	Up to 250 m in supported CCTV extension mode.
RG-ES209GC-P Operating Temperature	0°C to 40°C.
RG-ES209GC-P Warranty	3 years.

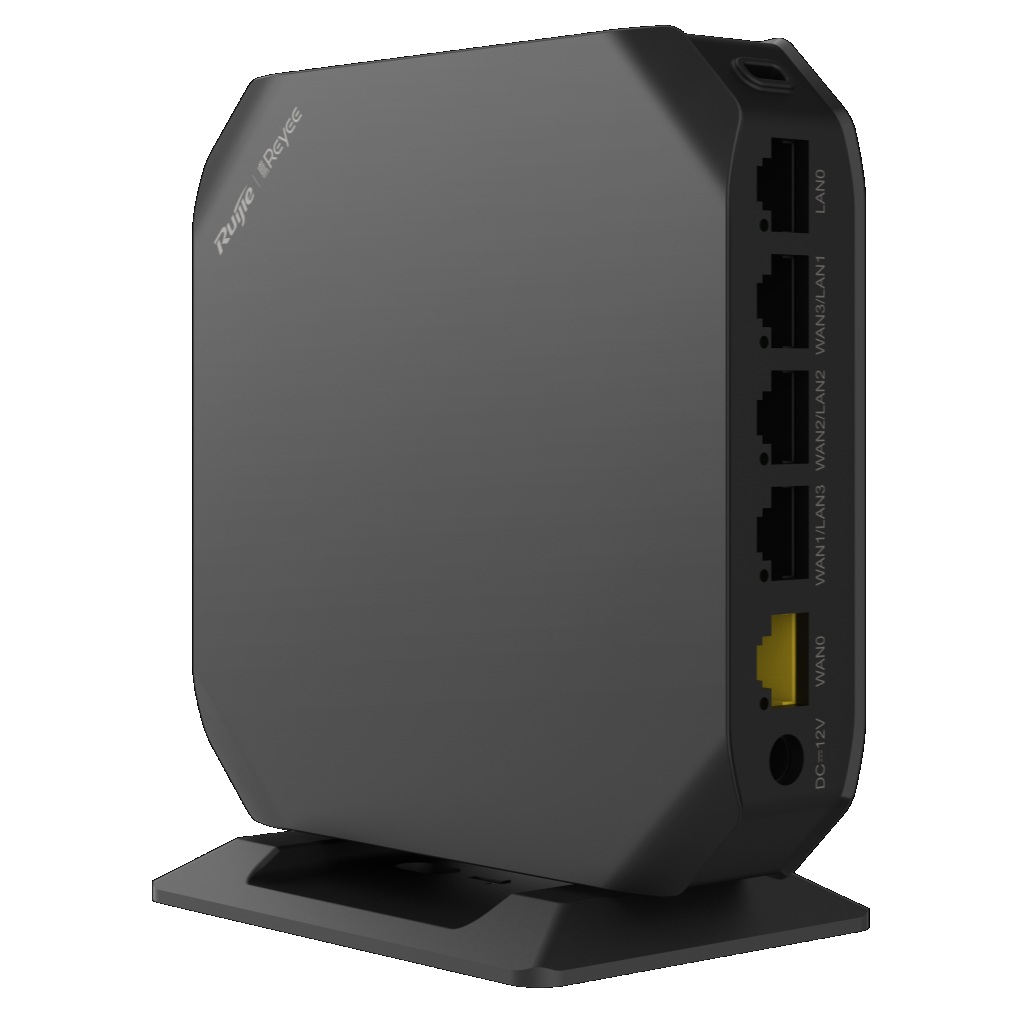

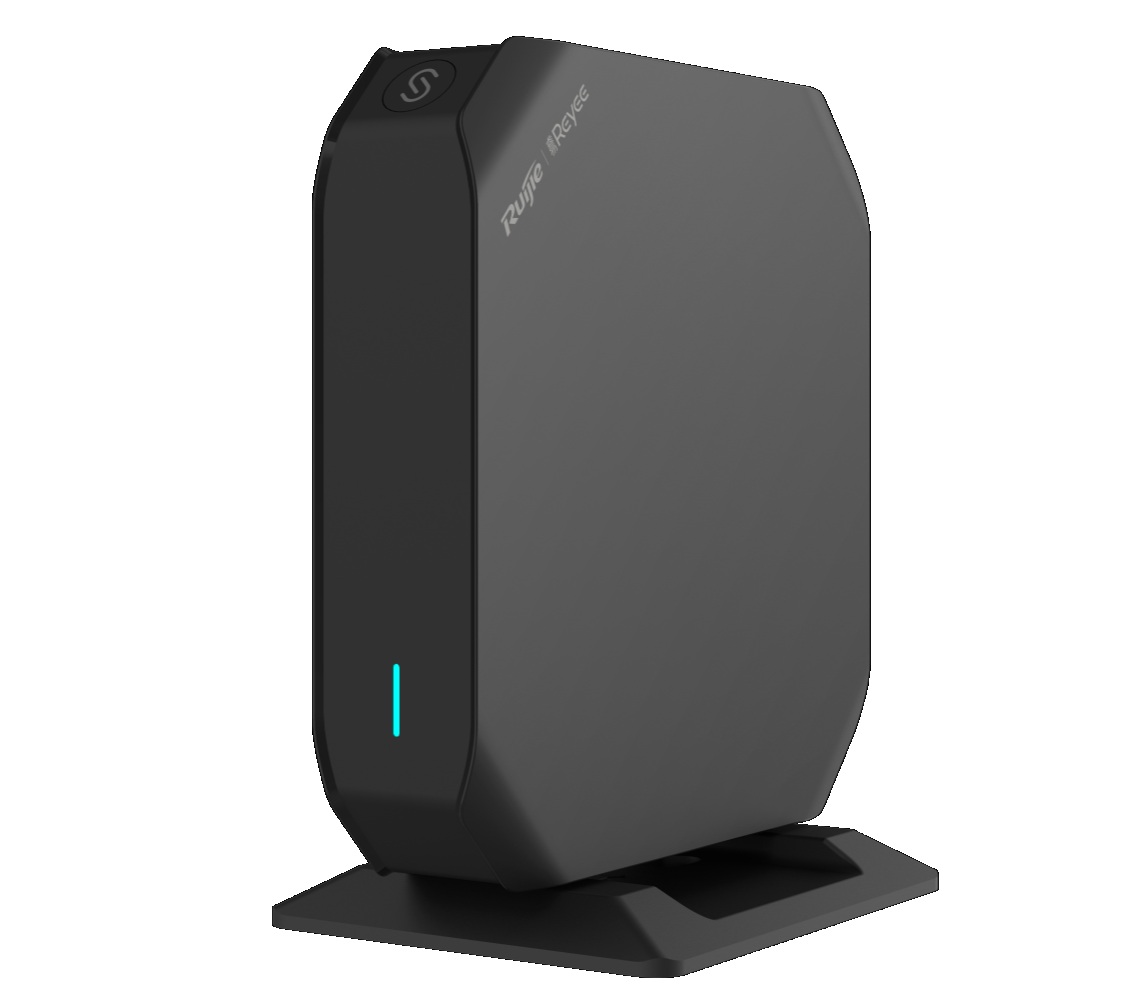

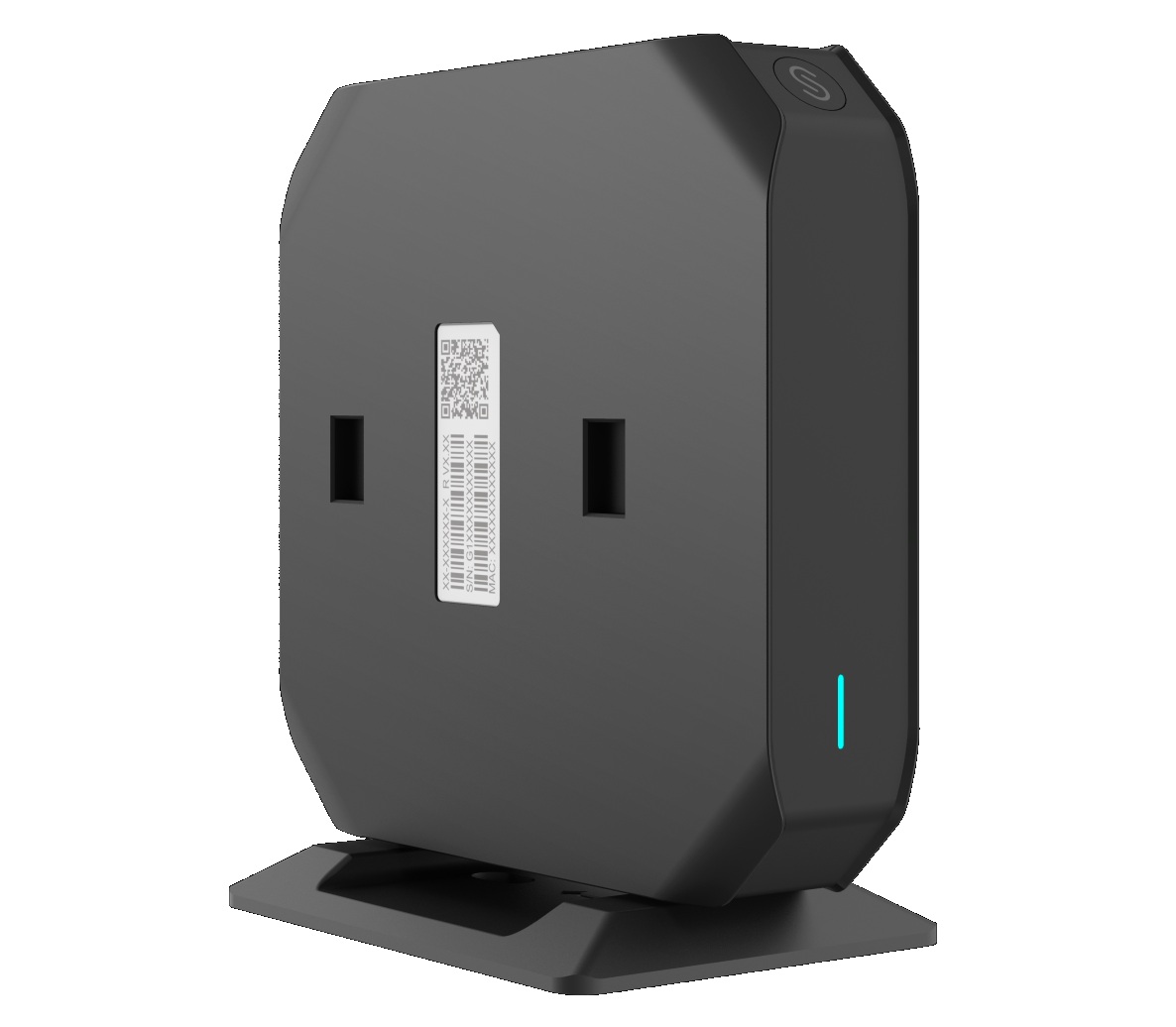

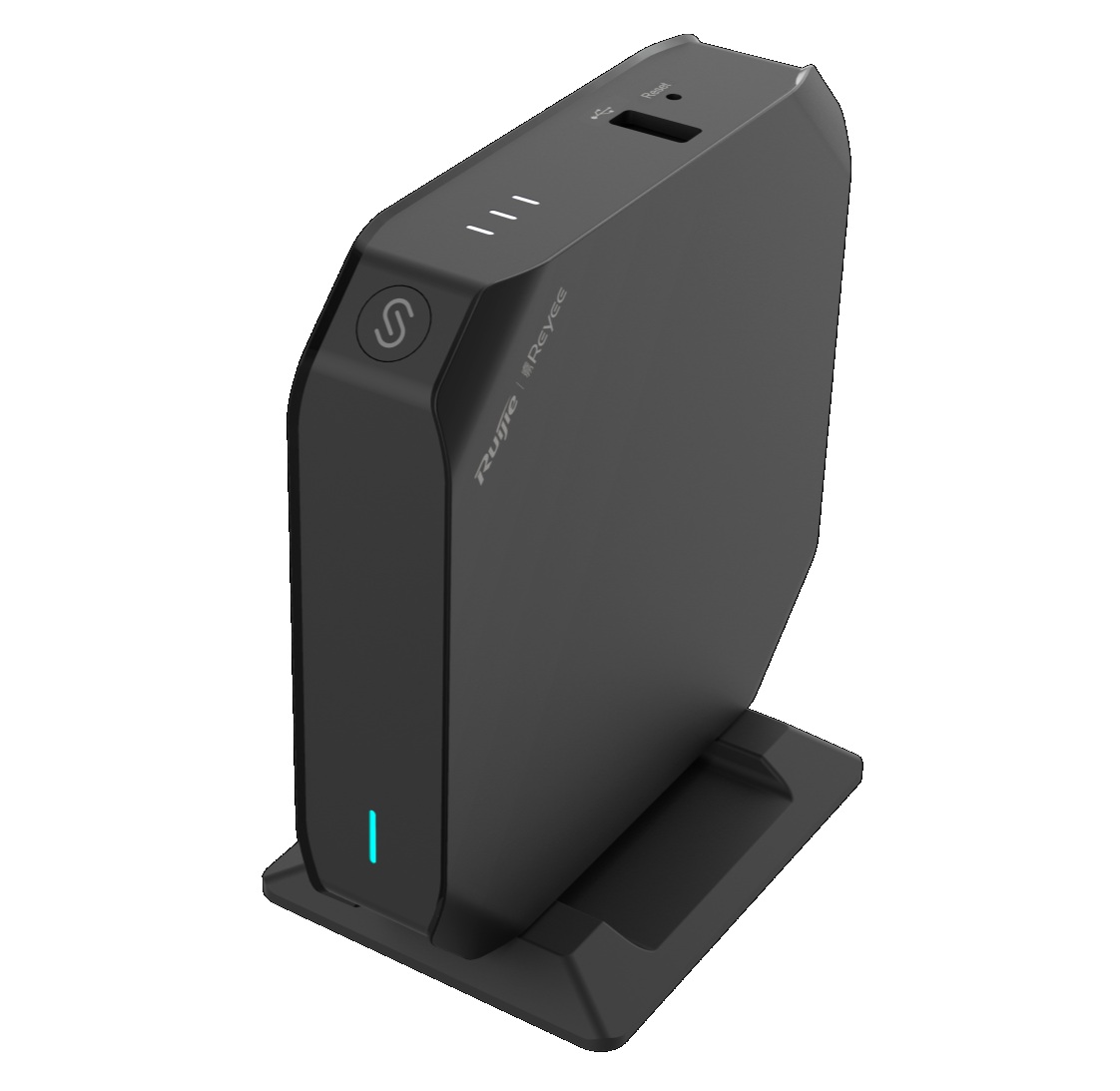

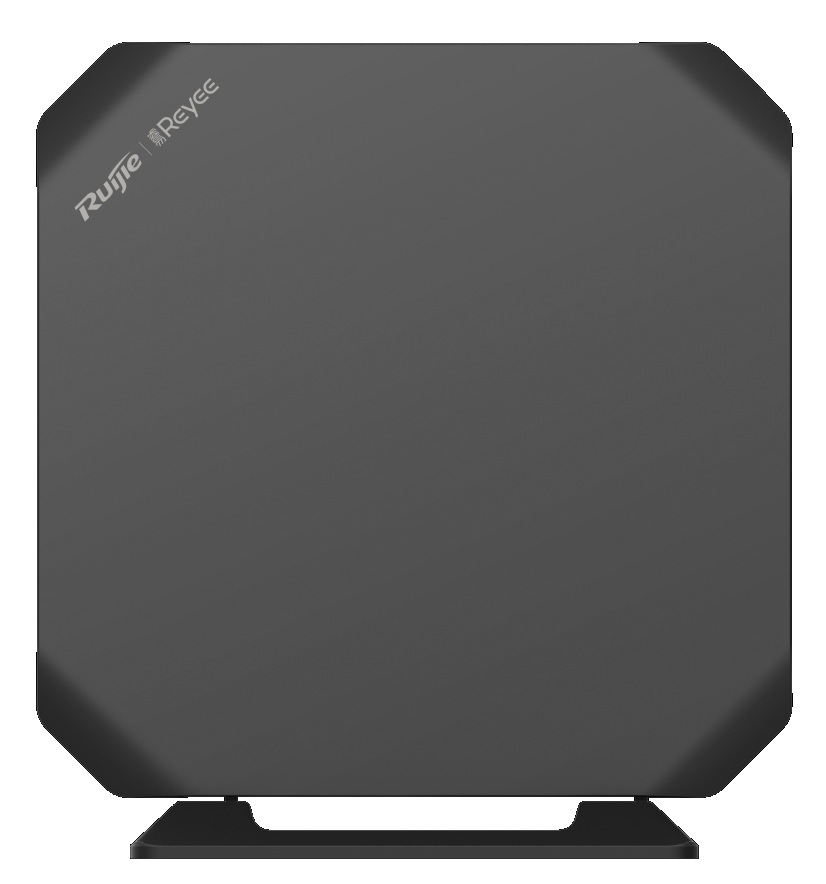

Router Model	RG-EG105GW(T).
RG-EG105GW(T) Product Type	Wi-Fi 5 wireless all-in-one business router.
RG-EG105GW(T) Ethernet Ports	5 × 10/100/1000BASE-T Gigabit ports.
RG-EG105GW(T) Fixed WAN Ports	1.
RG-EG105GW(T) Fixed LAN Ports	1.
RG-EG105GW(T) CPU	Dual-core processor, 880 MHz clock frequency.
RG-EG105GW(T) RAM	256 MB DDR3.
RG-EG105GW(T) Flash Memory	32 MB SPI NOR Flash.
RG-EG105GW(T) Wi-Fi Standard	Wi-Fi 5 IEEE 802.11ac, compatible with IEEE 802.11a/b/g/n.
RG-EG105GW(T) Maximum Wireless Rate	1266 Mbps.
RG-EG105GW(T) Throughput	Up to 700 Mbps.
RG-EG105GW(T) Recommended Concurrent Clients	150.
RG-EG105GW(T) Mounting	Desktop or wall.
RG-EG105GW(T) Dimensions	120 × 28 × 120 mm excluding mounting bracket.
RG-EG105GW(T) Weight	Approximately 0.251 kg without packaging.
RG-EG105GW(T) Operating Temperature	0°C to 40°C.

Ideal Training & Deployment Use Cases

Choosing the Right Kit

• Choose this kit if: You want a practical Ruijie Reyee lab containing a router, managed PoE switch and dedicated Wi-Fi 6 access point.
• Choose a larger PoE switch kit if: Training exercises need substantially more powered devices or a larger number of network endpoints.
• Choose a Wi-Fi 7 training platform if: The course specifically needs 6 GHz, MLO, 4K-QAM or other Wi-Fi 7 features not provided by the RG-RAP62.
• Add further compatible Reyee hardware if: Training needs to cover multi-AP design, larger VLAN scenarios, fibre switching, multi-gigabit Ethernet or more advanced gateway functions.

FAQs

1. What is included in the Ruijie Reyee Training Kit?
   The kit includes 1 × Ruijie Reyee RG-RAP62 Wi-Fi 6 ceiling access point, 1 × Ruijie Reyee RG-ES209GC-P 9-port Gigabit smart cloud-managed PoE switch and 1 × Ruijie Reyee RG-EG105GW(T) wireless all-in-one business router. These three devices provide a practical platform for demonstrating routing, PoE switching, wireless access, Ruijie Cloud management and small-network deployment concepts.
2. What wireless performance does the RG-RAP62 provide?
   The RG-RAP62 is an AX1800-class Wi-Fi 6 dual-band ceiling access point, not AX3000. Ruijie specifies a maximum wireless data rate of 1774 Mbps, comprising 573 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz. It uses dual 2 × 2 MU-MIMO radios with four spatial streams and supports up to 256 associated wireless clients when both bands are enabled.
3. What PoE capability does the RG-ES209GC-P provide?
   The RG-ES209GC-P provides nine Gigabit RJ45 ports, with eight ports supporting PoE and PoE+ output. Ruijie specifies a total PoE budget of 120 W, 18 Gbps switching capacity and 13.4 Mpps forwarding. It also supports PoE watchdog, port isolation, IP camera recognition, automatic loop prevention and Ruijie Cloud management, making it useful for demonstrating both general network and CCTV-oriented switch functions.
4. What does the RG-EG105GW(T) router provide?
   The RG-EG105GW(T) is a Wi-Fi 5 all-in-one business router with five Gigabit Ethernet ports, a dual-core 880 MHz processor, 256 MB DDR3 RAM and 32 MB flash memory. Ruijie specifies a maximum wireless data rate of 1266 Mbps, throughput up to 700 Mbps and a recommended capacity of 150 concurrent clients. It also integrates with Ruijie Cloud for remote configuration and management.
5. Can the devices in this training kit be managed through Ruijie Cloud?
   Yes. The RG-RAP62, RG-ES209GC-P and RG-EG105GW(T) are designed to work within the Ruijie Reyee management ecosystem. This makes the kit useful for demonstrating cloud onboarding, remote monitoring, wireless configuration, VLAN-related tasks and device management. For Security Wholesalers training environments, the combination provides a practical small-network platform for learning how gateway, switch and access-point roles interact.
6. Is this kit suitable for hands-on networking training?
   Yes. The combination of a business router, PoE switch and Wi-Fi 6 access point provides a useful physical lab for learning small-network topology, WAN/LAN routing, PoE delivery, wireless deployment, device onboarding and cloud-based management. The RG-ES209GC-P can power the RG-RAP62 through a compatible PoE connection, allowing trainees to build a realistic routed and switched wireless network using the three included components.
