The RG-RAP72-Wall delivers a BE3600 Wi-Fi 7 wall-mount access point solution designed for hotels, education spaces, offices and modern indoor wireless deployments. Featuring up to 3600Mbps wireless performance, dual-band Wi-Fi 7 and a 2.5Gbps uplink port, it supports high-speed indoor access for bandwidth-heavy applications.
It also includes PoE output for IP phones and IoT devices, making this model supplied by Security Wholesalers practical for rooms or workspaces needing both wireless coverage and connected endpoint support. With its 24mm ultra-slim design and anti-theft lock, the RG-RAP72-Wall suits clean wall-mounted installations where performance, appearance and device protection all matter.
Key Features
BE3600 Wi-Fi 7: Provides high-speed dual-band wireless performance for modern indoor network environments.
2.5G Uplink Port: Supports ultra-high-speed wired uplink connectivity for stronger access point performance.
PoE Output: Allows compatible IP phones and IoT devices to receive power from the access point.
Wall-Mount Installation: Designed for hotel rooms, offices, education spaces and other room-based deployments.

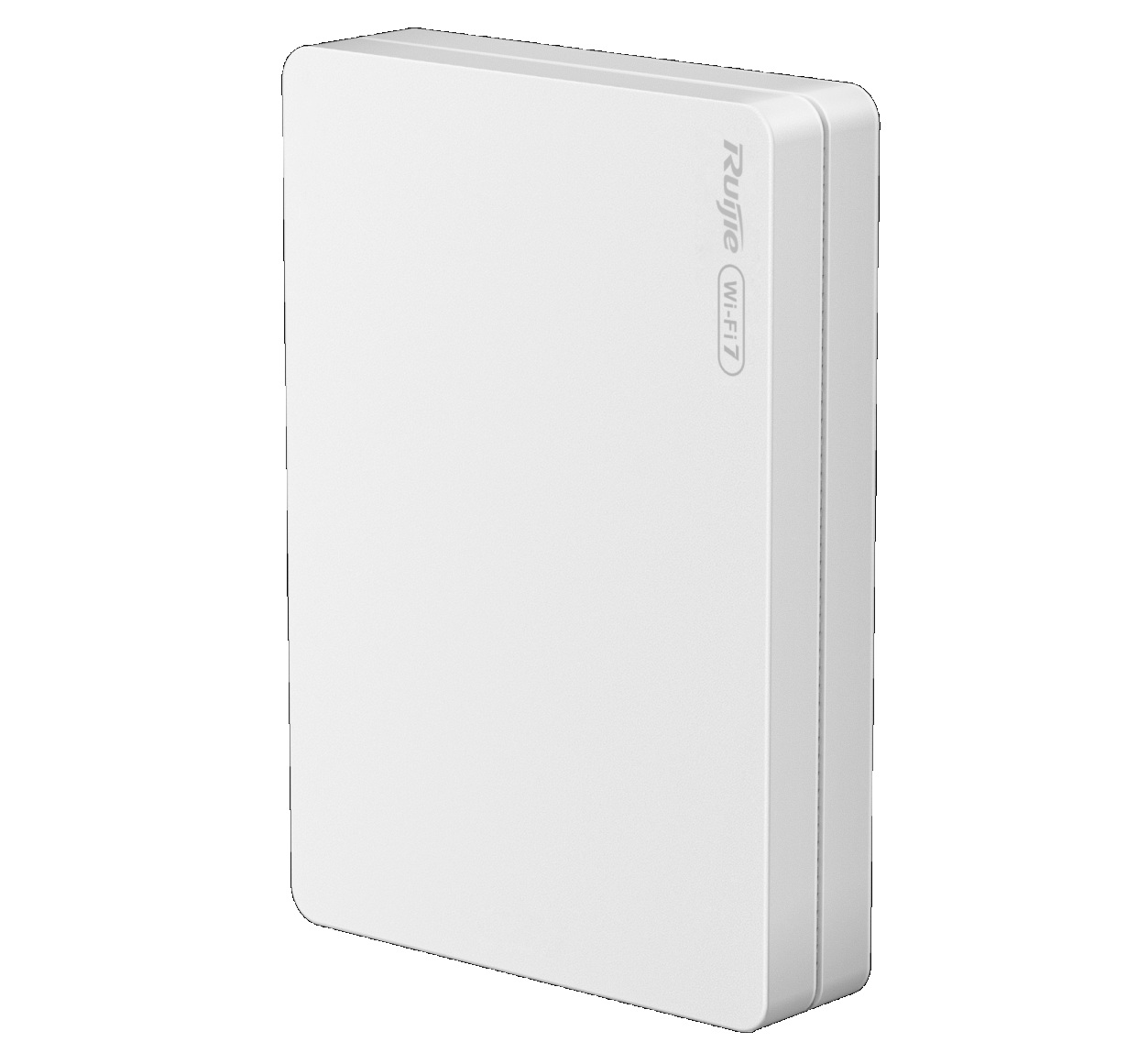

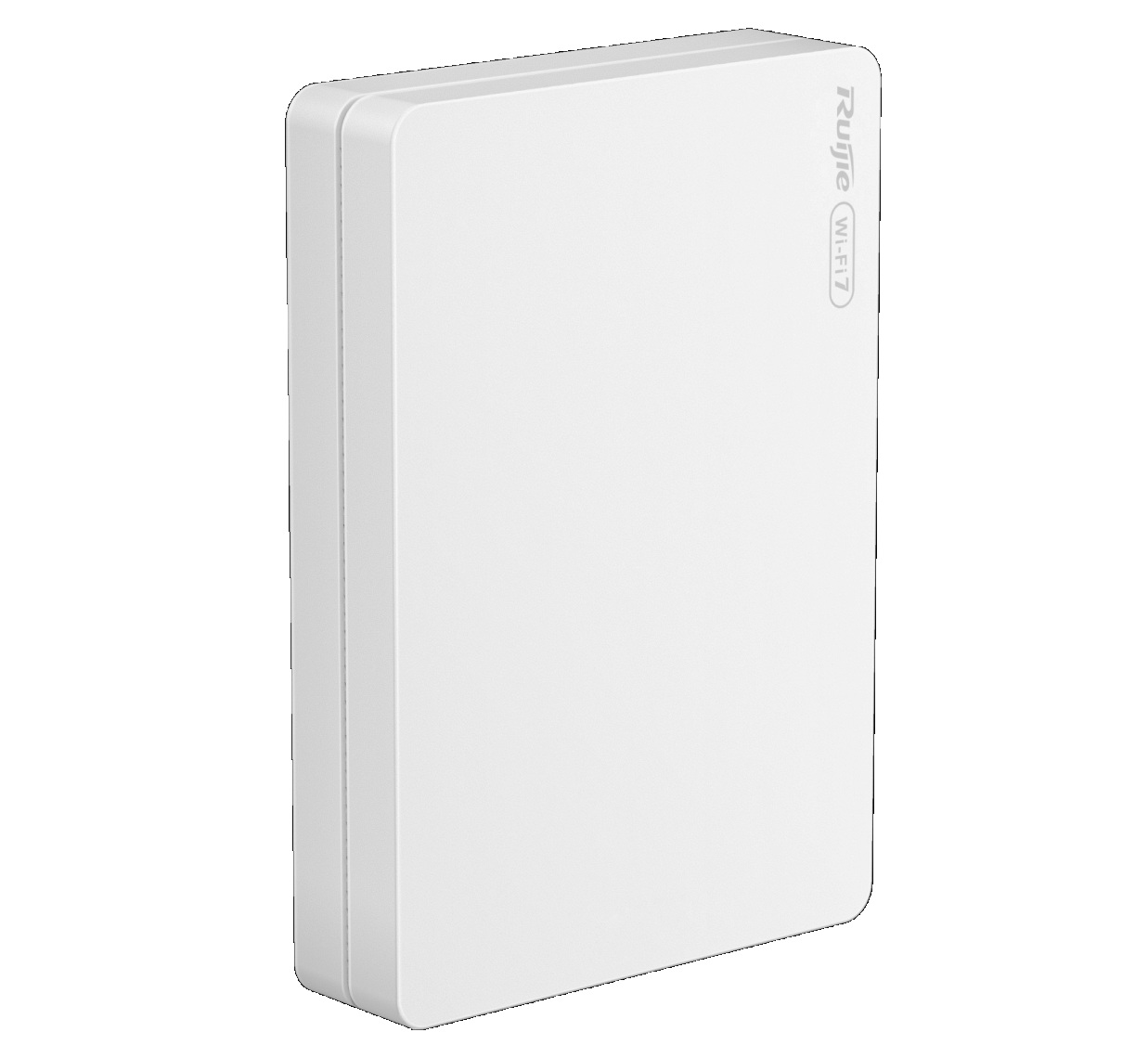

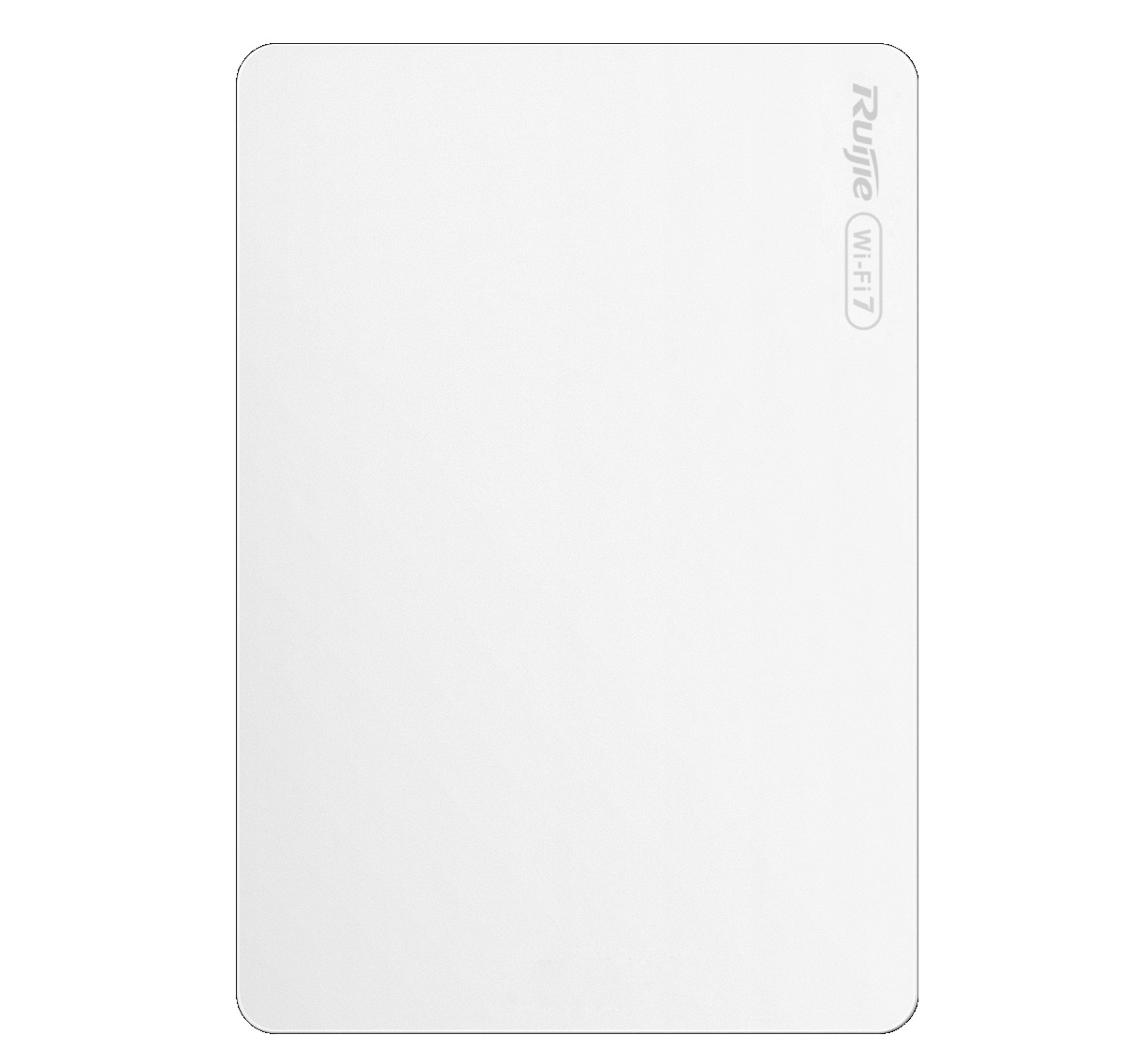

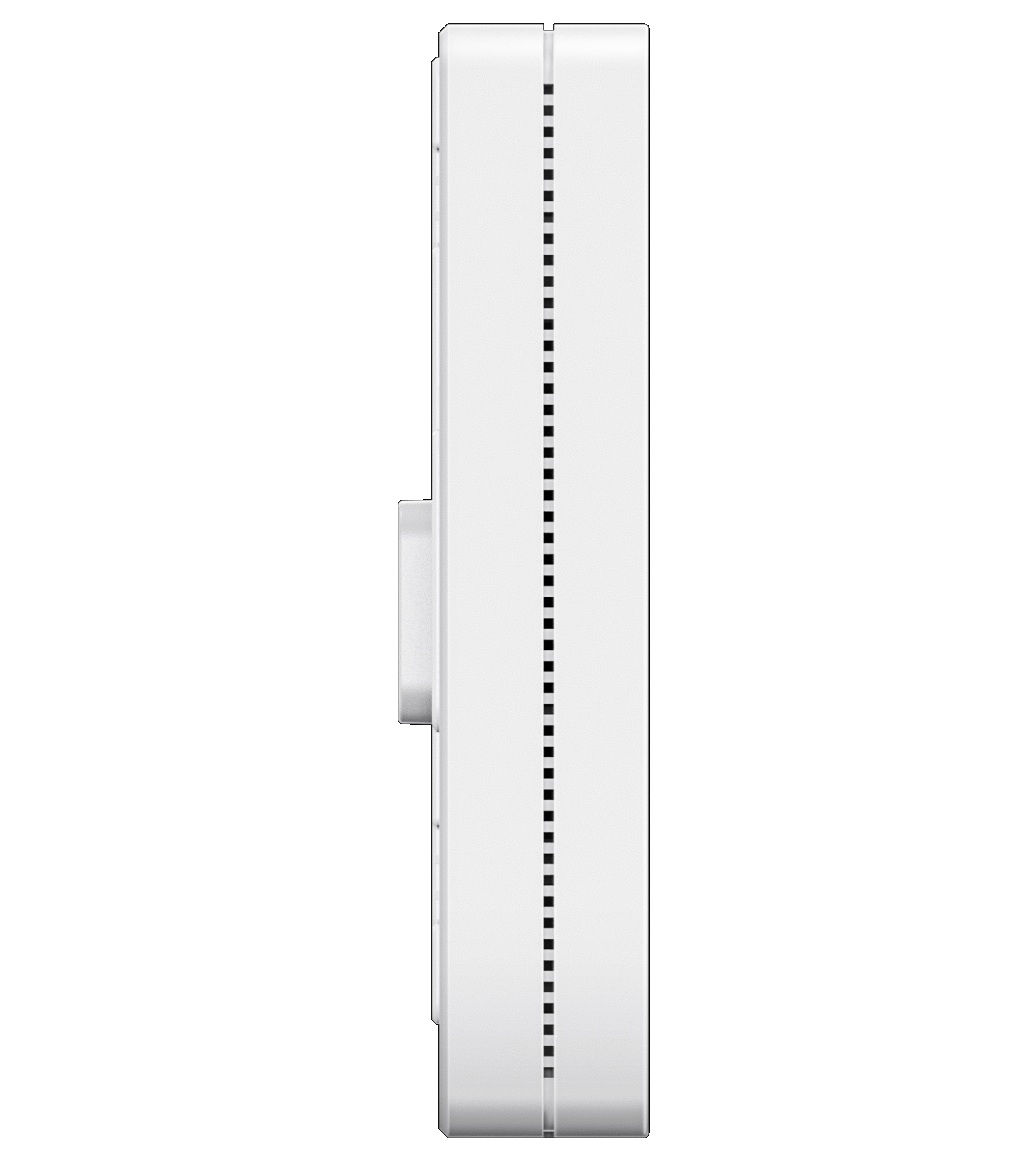

Ultra-Slim Design: Uses a compact 24mm profile for a cleaner and less intrusive installation.
Anti-Theft Lock: Helps protect the device in shared or publicly accessible indoor locations.
The Ruijie Reyee RG-RAP72-Wall is a BE3600 Wi-Fi 7 wall-mount access point designed for indoor rooms, offices, hotels, education spaces and business environments where both wireless and wired access are needed from one compact wall plate. It delivers dual-band Wi-Fi 7 performance up to 3570Mbps, with 688Mbps on 2.4GHz and 2882Mbps on 5GHz, making it a strong upgrade from older Wi-Fi 5 and Wi-Fi 6 wall APs. With a 2.5G uplink port, four Gigabit Ethernet ports, PoE output, Reyee AP Mesh, MLO, WIO optimisation and Ruijie Cloud management, this model is built for modern room-based networking. Its 24mm ultra-slim design and anti-theft lock also make it suitable for visible indoor installations where appearance and device protection matter.
Key Capabilities
BE3600 Wi-Fi 7 Performance
The RG-RAP72-Wall provides up to 3570Mbps combined wireless performance, giving compatible Wi-Fi 7 devices faster indoor connectivity than earlier wall AP generations in rooms, offices and shared business spaces.
2.5G High-Speed Uplink
The 2.5G uplink helps reduce bottlenecks between the AP and the wired network. This matters for Wi-Fi 7 deployments where the wireless side can exceed the practical limits of a standard Gigabit uplink.
Four Gigabit Downlink Ports
With four Gigabit Ethernet ports, the AP can support wired room devices such as PCs, IPTV units, phones, printers or other local equipment, reducing the need for a separate mini switch in many room setups.
PoE Output for Room Devices
PoE output can power compatible IP phones or IoT devices from the wall AP when the AP is powered by an IEEE 802.3at-compliant source, helping simplify cabling for hotel, education or office room deployments.
Wi-Fi 7 MLO and 4K-QAM
Wi-Fi 7 features such as MLO and 4K-QAM help improve wireless efficiency and throughput for compatible clients. This is useful in rooms where high-speed streaming, video conferencing and modern mobile devices are common.
Ruijie Cloud and WIO
Ruijie Cloud management and WIO optimisation help simplify setup, monitoring and Wi-Fi tuning. This is valuable for multi-room sites where many wall APs need consistent configuration and easier remote maintenance.
Best For
Hotels and Accommodation: Suitable for guest rooms where Wi-Fi, wired access and PoE output may all be needed from one wall-mounted AP.
Offices and Meeting Rooms: A practical fit for rooms needing fast Wi-Fi 7 plus multiple local Ethernet connections.
Education Spaces: Useful for classrooms, training rooms and student accommodation where wireless and wired devices share the same area.
Room-Based IoT Deployments: Helpful where IP phones, terminals or IoT devices need wired connectivity near the access point.
Modern Wi-Fi 7 Upgrades: Ideal for buyers moving beyond Wi-Fi 5 or Wi-Fi 6 and wanting a compact wall AP with a 2.5G uplink.
Why Choose the RG-RAP72-Wall
Choose the RG-RAP72-Wall when the installation needs more than a simple wireless access point. Its main advantage is combining Wi-Fi 7, a 2.5G uplink, four Gigabit wired ports and PoE output into a slim wall-mounted design that suits individual rooms. Compared with ceiling APs, it is better for room-level wired and wireless access, especially in hotels, offices, classrooms and accommodation environments. Compared with older wall APs, it gives buyers a stronger upgrade path with BE3600 wireless performance and modern Wi-Fi 7 features. This model, supplied by Security Wholesalers, suits projects where clean installation, room connectivity and cloud-managed control are all important.
Buyer Decision Tips
Buyer Tip: Choose the RG-RAP72-Wall when each room needs both Wi-Fi and wired ports. If the goal is broad open-area coverage rather than room-based access, a ceiling AP may provide better placement and coverage flexibility.
Buyer Tip: To use PoE output, the AP must be powered by an IEEE 802.3at-compliant source, and the connected device must fit within the available PoE budget. Do not assume every connected wired device can receive PoE power.
Key Features & Technical Specifications
Product Type
Indoor wall-mount wireless access point.
Model
RG-RAP72-Wall.
Wireless Standard
Wi-Fi 7, IEEE 802.11be.
Wireless Performance
Up to 3570Mbps combined dual-band wireless data rate.
2.4GHz Data Rate
Up to 688Mbps.
5GHz Data Rate
Up to 2882Mbps.
6GHz Support
No 6GHz wireless radio.
Radio Design
Dual-radio with 4 spatial streams.
MIMO
2.4GHz 2×2 MU-MIMO and 5GHz 2×2 MU-MIMO.
Wi-Fi 7 Features
Supports MLO, 4K-QAM and MRU for compatible Wi-Fi 7 clients.

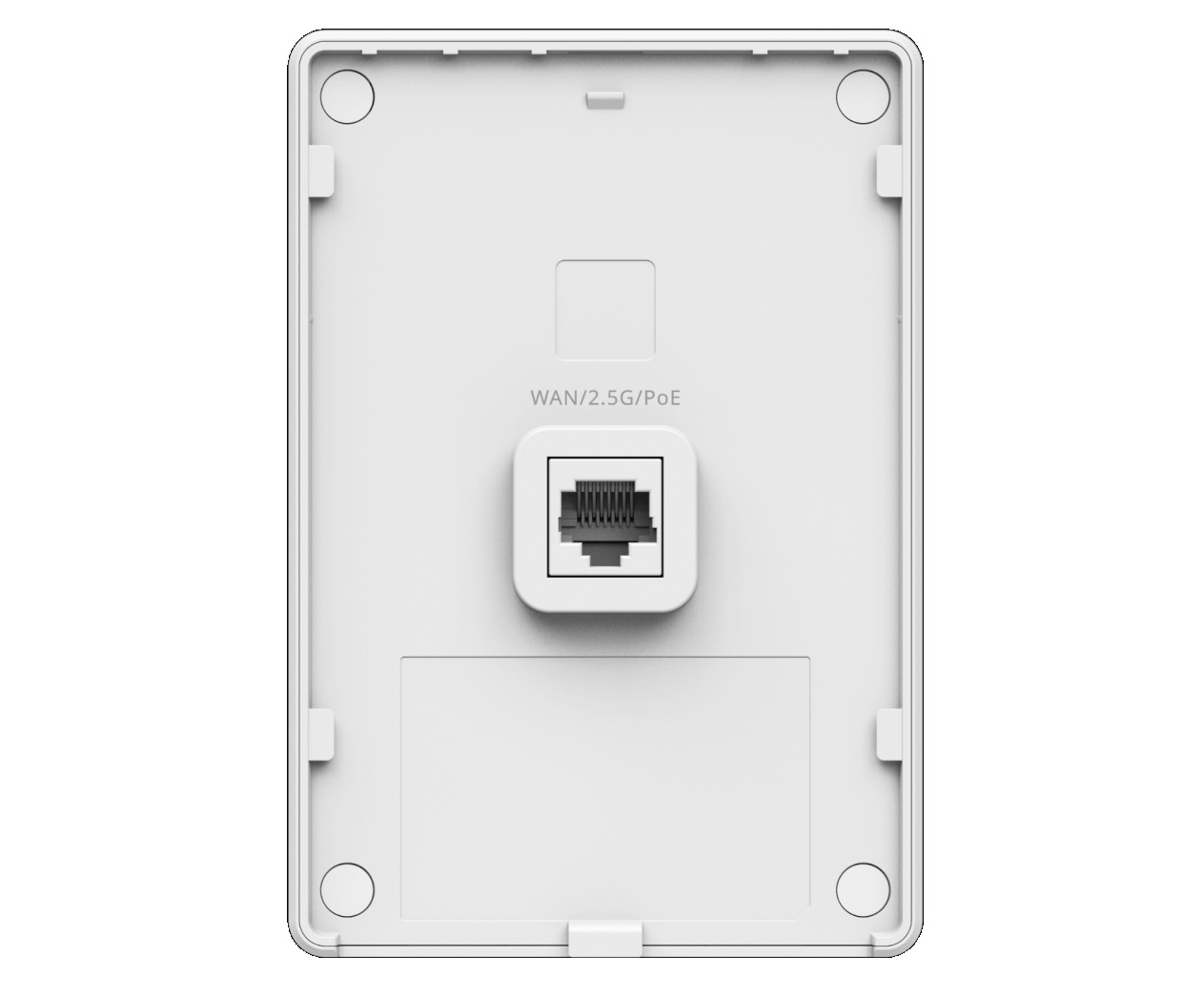

Uplink Port
1 x 10/100/1000/2500BASE-T 2.5G port.

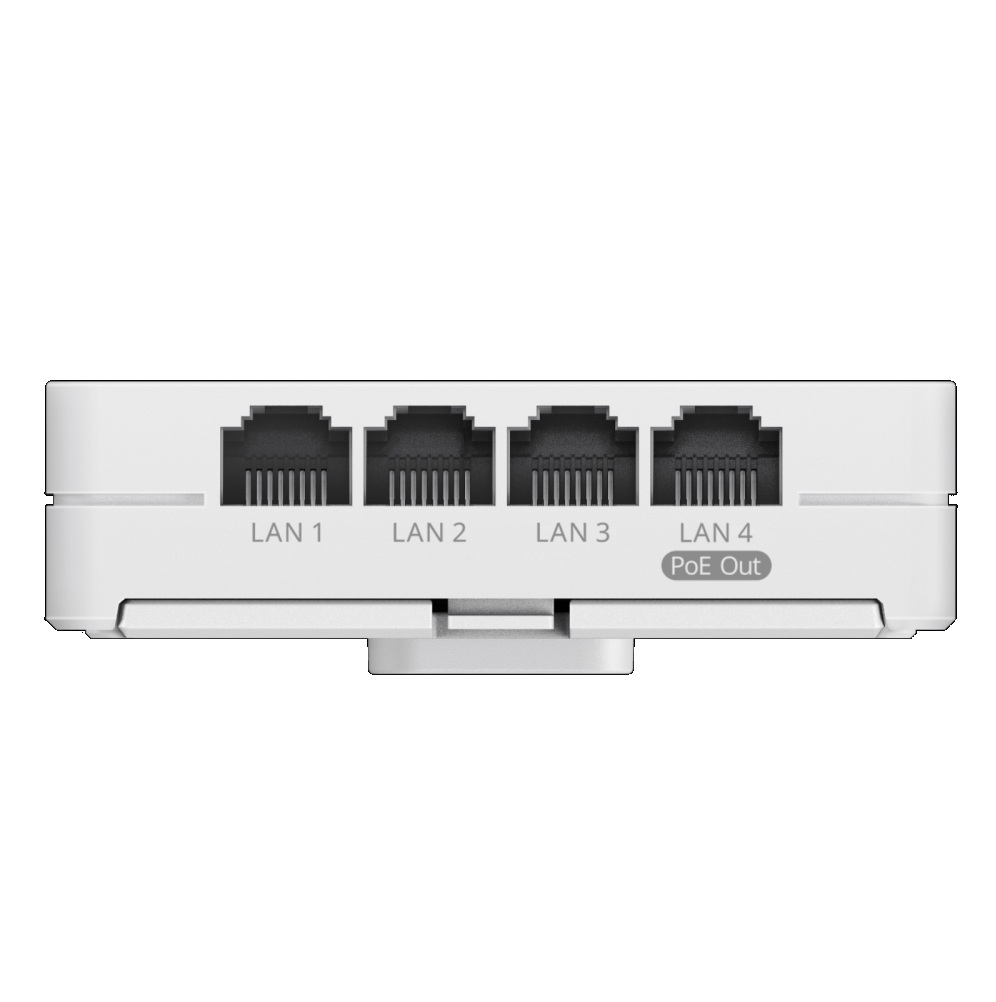

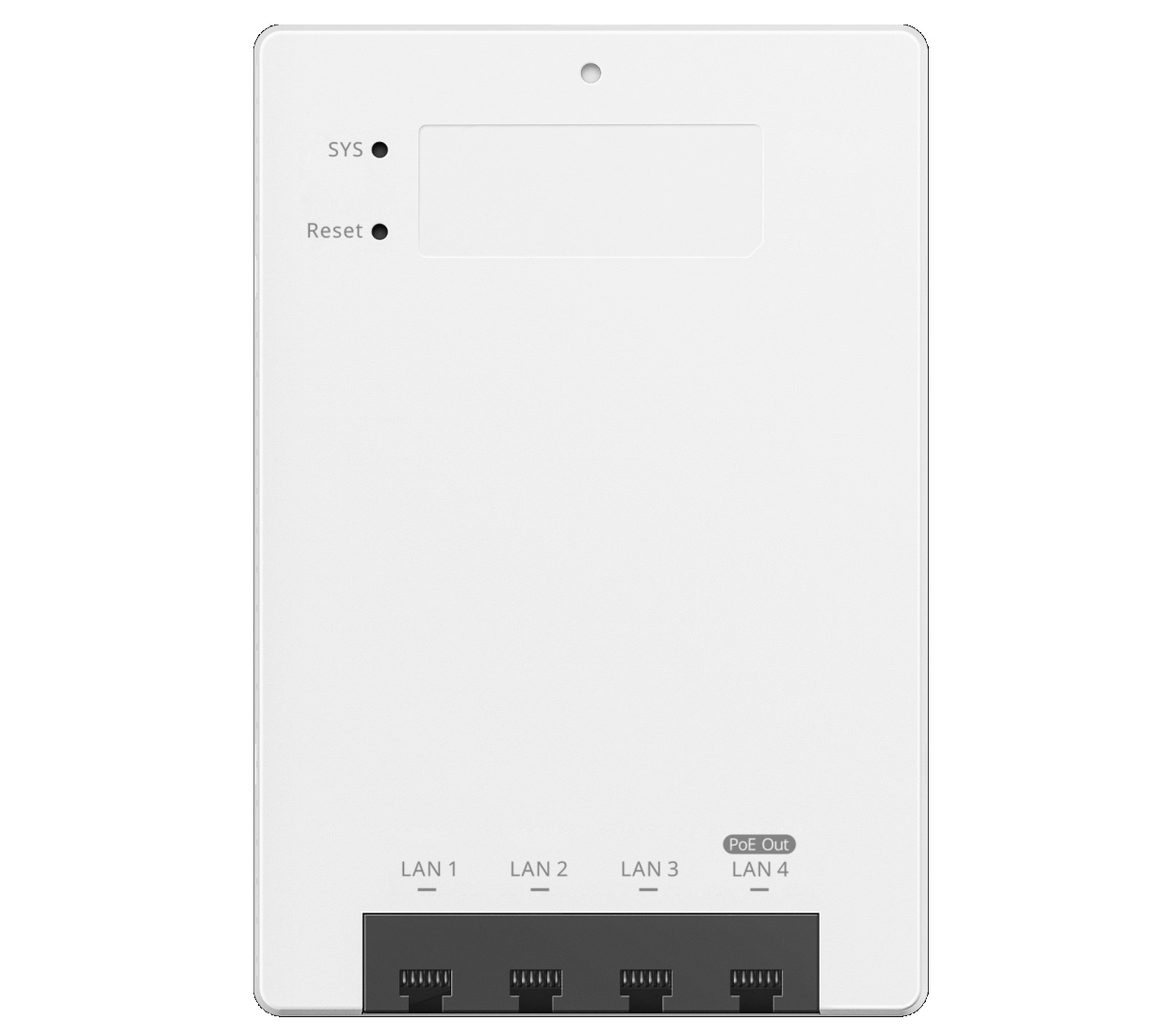

Wired Access Ports
4 x 10/100/1000BASE-T Gigabit ports.
PoE Output
10W PoE budget when powered by an IEEE 802.3at-compliant source.
Power Supply
PoE/PoE+ power input.
Local Power Supply
No local DC power input.
Maximum Power Consumption
15W, excluding PoE output.
Cloud Management
Supports Ruijie Cloud management for remote monitoring and maintenance.
Mesh Support
Supports Reyee AP Mesh for compatible wireless expansion.
Optimisation Features
Supports WIO Wi-Fi optimisation and AP portal features.
Maximum Associated Clients
64 on 2.4GHz; 511 on 5GHz; 511 with both 2.4GHz and 5GHz enabled.
Managed Device Capacity
Up to 300 devices can be managed.
IPv6
Supported.

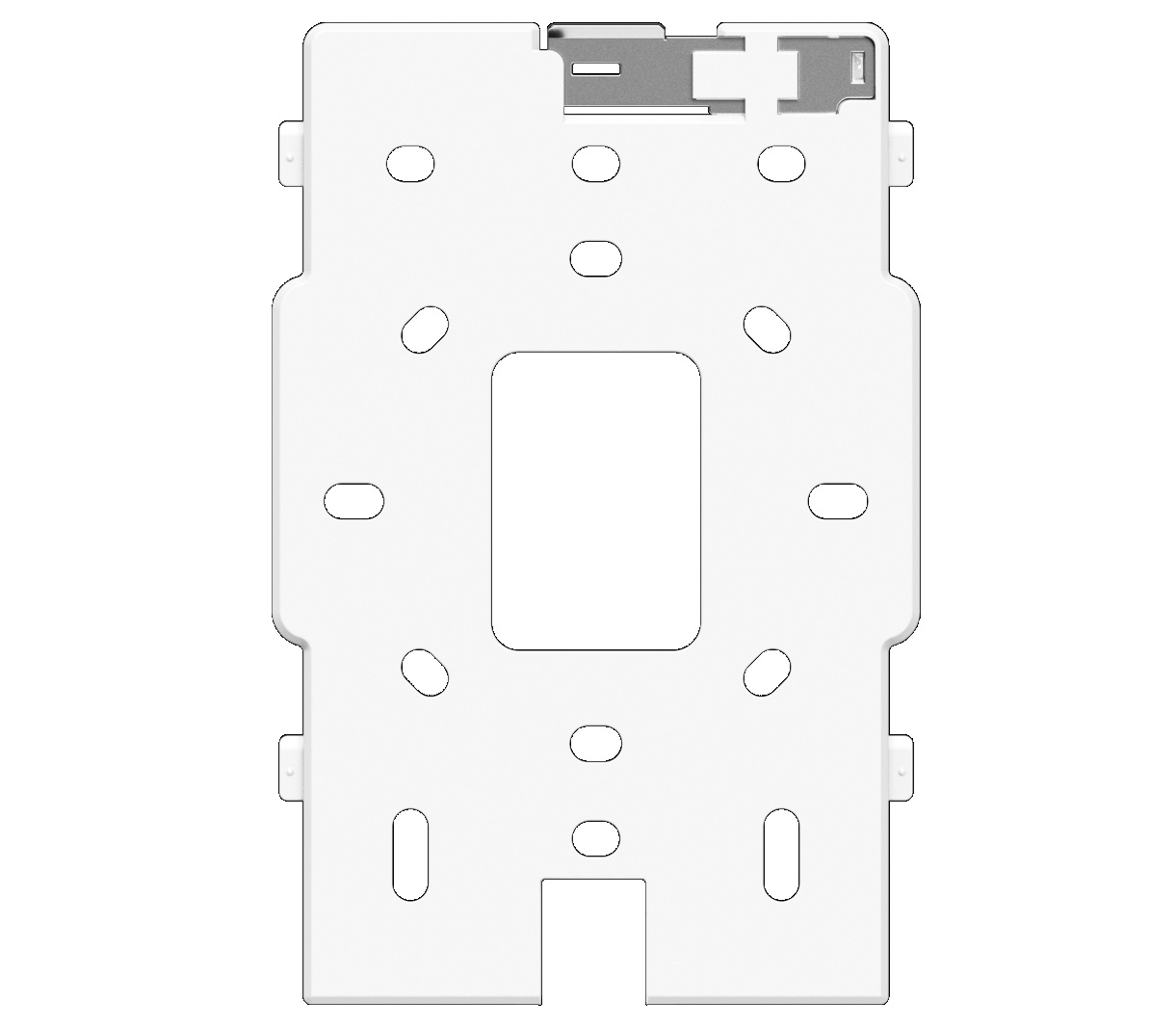

Mounting
Junction box wall mounting.
IP Rating
IP41 indoor rating.
Device Protection
Anti-theft lock for device protection.
Operating Temperature
0°C to +40°C.
Dimensions
86 x 24 x 124 mm, excluding mounting bracket.
Weight
≤ 0.27 kg, without packaging materials.
Colour
White.
Ideal Use Cases
Hotel Guest Rooms
Install in guest rooms where Wi-Fi, wired Ethernet and potential PoE output for compatible room devices are needed from one wall AP.
Meeting Rooms
Use where laptops, video conferencing equipment, displays or wired room devices need fast local network access and Wi-Fi 7 coverage.
Classrooms and Training Rooms
Suitable for education spaces where tablets, laptops, teacher stations and wired devices may all connect from the same room.
Office Rooms
A practical option for private offices or shared workrooms needing a clean wall-mounted AP with multiple Ethernet ports.
Room IoT and IP Phone Setups
PoE output can help support compatible IP phones or room IoT devices where the power budget and power source requirements are met.
Modern Accommodation Networks
Useful for room-by-room Wi-Fi 7 upgrades where a slim appearance, wired ports and cloud-managed control are priorities.
Choosing the Right Model
Choose this model if: You need a Wi-Fi 7 wall AP with BE3600 wireless performance, 2.5G uplink, four Gigabit ports and PoE output.
Choose a ceiling AP if: The site needs broader open-area wireless coverage rather than room-by-room wall-mounted connectivity.
Choose a higher-density model if: The area has very heavy user demand, more demanding wireless capacity requirements or needs higher-bandwidth uplink options.
FAQs
Is the RG-RAP72-Wall suitable for hotel rooms?
Yes. The RG-RAP72-Wall is well suited to hotel and accommodation rooms because it combines Wi-Fi 7, wired Ethernet ports and PoE output in a slim wall-mounted design. It can support guest Wi-Fi, wired room devices and compatible IP phones or IoT equipment when the power and PoE budget requirements are met.
What wireless speed does the RG-RAP72-Wall support?
The RG-RAP72-Wall supports up to 3570Mbps combined wireless performance, with up to 688Mbps on 2.4GHz and up to 2882Mbps on 5GHz. Actual user speed depends on client device capability, channel width, interference, room layout, uplink speed and whether the device supports Wi-Fi 7 features such as MLO.
Does the RG-RAP72-Wall include a 6GHz radio?
No. The RG-RAP72-Wall is a dual-band Wi-Fi 7 access point using 2.4GHz and 5GHz bands, with no 6GHz radio. It still supports Wi-Fi 7 features such as MLO, 4K-QAM and MRU, but buyers needing 6GHz operation should choose a model that specifically includes a 6GHz radio.
How many wired ports does the RG-RAP72-Wall provide?
The RG-RAP72-Wall provides one 2.5G uplink port and four Gigabit Ethernet ports for wired access. This makes it useful in rooms where wired devices such as computers, phones, displays or IoT equipment need local connectivity without adding a separate desktop switch.
Can the RG-RAP72-Wall provide PoE output?
Yes. The RG-RAP72-Wall provides a 10W PoE budget when it is powered by an IEEE 802.3at-compliant source. This can be useful for compatible IP phones or IoT devices, but the connected device must fit within the available PoE output budget and be suitable for the installation setup.
Can the RG-RAP72-Wall be managed remotely?
Yes. The RG-RAP72-Wall supports Ruijie Cloud management, helping installers and site managers remotely monitor, maintain and configure compatible networks. This is especially useful for hotels, offices and education sites with many rooms. This model is available through Security Wholesalers for suitable Reyee wall AP deployments.
Should I choose the RG-RAP72-Wall or a ceiling access point?
Choose the RG-RAP72-Wall when the priority is room-level connectivity, wired ports, PoE output and a clean wall-mounted design. Choose a ceiling access point when the goal is wider open-area coverage across reception spaces, classrooms, offices or shared zones. The right choice depends on building layout and user locations.
What should I check before installing the RG-RAP72-Wall?
Before installing the RG-RAP72-Wall, confirm the wall box or mounting location, PoE/PoE+ power source, 2.5G uplink requirement, downstream wired device needs and PoE output load. A common mistake is selecting a wall AP for open-area coverage when the installation actually needs ceiling AP placement instead.
