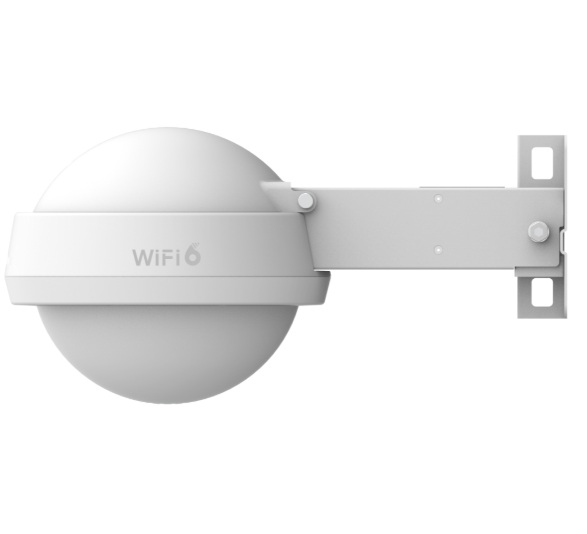

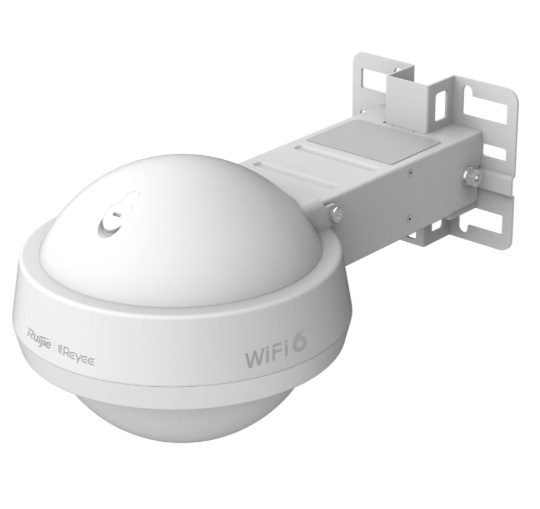

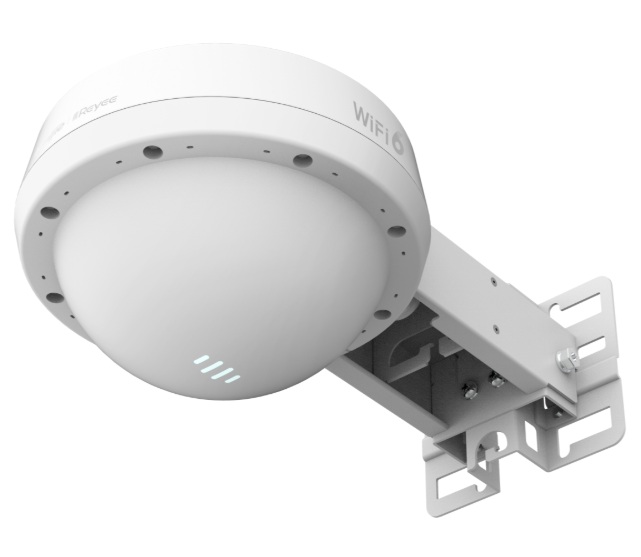

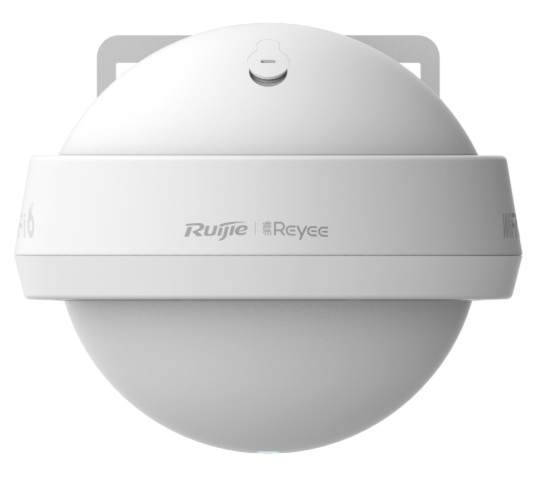

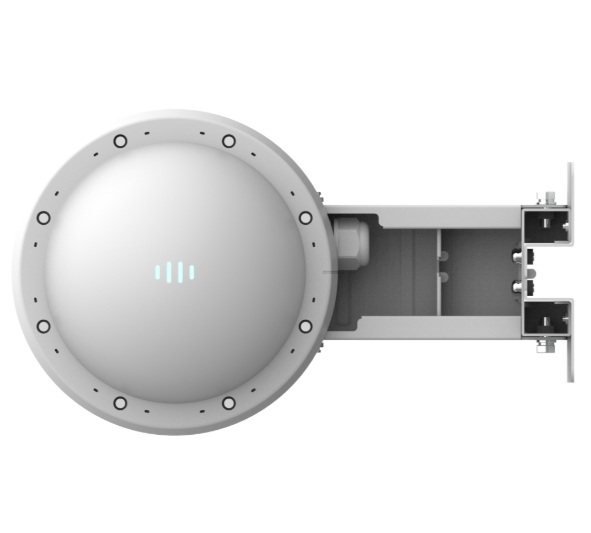

Ruijie Reyee RG-RAP6262 AX1800 Wi-Fi 6 Dual-Band Outdoor Access Point with Gigabit Ethernet PoE IP68 & Cloud Management

Product SKU: RG-RAP6262

Product Overview

The Ruijie Reyee RG-RAP6262 is an AX3000 Wi-Fi 6 dual-band outdoor omnidirectional access point designed for high-performance wireless coverage across campuses, car parks, warehouses, public spaces, hospitality areas, transport locations and other demanding outdoor environments. It delivers up to 573 Mbps on 2.4 GHz and 2401 Mbps on 5 GHz for a combined theoretical wireless rate of 2974 Mbps, with 160 MHz channel support helping compatible 5 GHz clients achieve higher peak throughput. One Gigabit copper port and one 1GE SFP optical port provide flexible network connectivity, while IP68 weather protection, PoE/PoE+ powering, Reyee Mesh and Ruijie Cloud management make it well suited to professional outdoor wireless deployments.

Key Capabilities

Best For

• Large Outdoor Areas: Omnidirectional antennas and Wi-Fi 6 performance suit parks, plazas, campuses and large open commercial spaces.
• Fibre-Linked Remote Locations: The 1GE SFP port allows the access point to connect over fibre where copper Ethernet distance is impractical.
• Warehouses & Industrial Yards: IP68 protection and wide operating temperatures suit exposed working environments.
• Hospitality & Public Wi-Fi: Ruijie Cloud and portal authentication support centrally managed guest wireless networks.
• High-Client-Density Networks: Wi-Fi 6, 160 MHz support and high association capacity suit busy outdoor wireless environments.

Why Choose the RG-RAP6262

The RG-RAP6262 combines high-speed AX3000 Wi-Fi 6 with fibre connectivity and rugged outdoor construction, making it particularly useful where conventional copper-connected outdoor access points are difficult to deploy. Its 160 MHz 5 GHz radio can provide much higher peak wireless rates to compatible clients, while the 1GE SFP port supports long-distance optical links between the AP and network infrastructure. IP68 protection, a -30°C to +65°C operating range and 4 kV Ethernet surge protection improve suitability for exposed sites. Available through Security Wholesalers, the RG-RAP6262 is a strong choice for professional outdoor Wi-Fi requiring fibre backhaul, cloud management and modern Wi-Fi 6 performance.

Buyer Decision Tips

Key Features & Technical Specifications

Product Type	Outdoor omnidirectional Wi-Fi 6 access point.
Model	RG-RAP6262.
Wireless Class	AX3000.
Wi-Fi Standards	IEEE 802.11a/b/g/n/ac/ax.
Radio Design	Dual radio, 4 spatial streams.
2.4 GHz Radio	2 × 2 MU-MIMO.
5 GHz Radio	2 × 2 MU-MIMO.
Maximum Wireless Data Rate	2974 Mbps combined theoretical rate.
2.4 GHz Maximum Rate	573 Mbps.
5 GHz Maximum Rate	2401 Mbps.
5 GHz Channel Width	Auto / 20 / 40 / 80 / 160 MHz.
2.4 GHz Channel Width	Auto / 20 / 40 MHz.
Wi-Fi 6 Technologies	OFDMA, 1024-QAM and MU-MIMO.
2.4 GHz Antennas	2 × built-in omnidirectional antennas.
5 GHz Antennas	3 × built-in omnidirectional antennas.
2.4 GHz Antenna Gain	3 dBi.
5 GHz Antenna Gain	4 dBi.
Gigabit Copper Port	1 × 10/100/1000BASE-T RJ45.
SFP Port	1 × 1GE SFP.
Maximum LAN Rate	1000 Mbps.
PoE Input	IEEE 802.3af PoE or IEEE 802.3at PoE+.
Local Power	12 VDC, 2 A.
Power Priority	DC power is preferred when DC and PoE are connected simultaneously.
Maximum Power Consumption	24 W.
802.3af Limitation	Radio transmission/reception is restricted and 5 GHz wireless rate is reduced when powered by IEEE 802.3af.
Flash Memory	128 MB.
RAM	256 MB DDR3.
Maximum Associated Clients – 2.4 GHz	64.
Maximum Associated Clients – 5 GHz	512.
Maximum Associated Clients – Dual Band	512 total.
Maximum Managed Devices	300.
IPv6	Supported.
Reyee Mesh	Supported.
Cloud Management	Ruijie Cloud supported.
Remote Monitoring	Supported through Ruijie Cloud.
Remote Wi-Fi Management	Supported.
Cloud Portal Authentication	Supported.
Wireless Intelligent Optimisation	Supported.
IP Rating	IP68.
Ethernet Surge Protection	±4 kV common mode.
Operating Temperature	-30°C to +65°C.
Storage Temperature	-40°C to +85°C.
Operating Humidity	0% to 100% RH, non-condensing.
Mounting	Wall or pole mounting.
Dimensions	Ø230 × 195 mm excluding mounting bracket.
Weight	≤1.4 kg without packaging.
Colour	White.
MTBF	400,000 hours.
Certifications	CE, FCC, CB, ISED and cTUVus.

Ideal Use Cases

Choosing the Right Model

• Choose the RG-RAP6262 if: You need AX3000 Wi-Fi 6, 160 MHz support, IP68 protection and a Gigabit SFP optical interface.
• Choose the RG-RAP6262(G) if: Gigabit copper connectivity is sufficient and the installation does not require an optical SFP port or 160 MHz 5 GHz operation.
• Choose a 2.5G outdoor AP if: A Gigabit wired uplink could become the bottleneck for the required aggregate wireless throughput.
• Choose a directional wireless product if: The requirement is a focused point-to-point or point-to-multipoint link rather than broad omnidirectional client coverage.

FAQs

1. What wireless speeds does the Ruijie Reyee RG-RAP6262 support?
   The Ruijie Reyee RG-RAP6262 is an AX3000-class Wi-Fi 6 dual-band outdoor access point with a maximum wireless rate of 573 Mbps on 2.4 GHz and 2401 Mbps on 5 GHz, for a combined theoretical rate of 2974 Mbps. These are PHY rates rather than guaranteed client throughput. Actual performance depends on client capability, interference, distance, channel conditions, mounting and the quality of the wired or fibre uplink.
2. What network ports does the RG-RAP6262 provide?
   The RG-RAP6262 provides one 10/100/1000BASE-T Gigabit Ethernet port and one 1GE SFP optical port. The SFP interface allows the access point to be linked over fibre for longer-distance deployments, while the copper Ethernet port provides standard Gigabit connectivity. Ruijie promotes optical transmission distances up to 20 km when suitable single-mode fibre and compatible optical modules are used.
3. How is the RG-RAP6262 powered?
   The RG-RAP6262 can be powered by IEEE 802.3af PoE, IEEE 802.3at PoE+ or a 12 VDC, 2 A local power supply. Ruijie specifies a maximum power consumption of 24 W. When powered by 802.3af PoE, radio capability is restricted and 5 GHz wireless performance is reduced, so IEEE 802.3at PoE+ is the preferred choice for full-performance deployments.
4. How many wireless clients can the RG-RAP6262 support?
   Ruijie lists a maximum of 64 associated clients on 2.4 GHz, 512 associated clients on 5 GHz and 512 total when both bands are enabled. Practical capacity depends on traffic demand, RF conditions, application mix and client capability. For Security Wholesalers installations, capacity planning should focus on expected active usage and airtime demand rather than association count alone.
5. Does the RG-RAP6262 support Reyee Mesh and cloud management?
   Yes. The RG-RAP6262 supports Reyee Mesh technology and Ruijie Cloud management. Ruijie highlights remote monitoring, remote Wi-Fi management, cloud portal authentication and wireless intelligent optimisation. Reyee Mesh can help extend outdoor coverage in suitable deployments, while cloud management provides centralised visibility and maintenance across multiple compatible Ruijie Reyee access points.
6. Is the RG-RAP6262 suitable for harsh outdoor environments?
   Yes. The RG-RAP6262 carries an IP68 rating and is designed for wall or pole mounting. Ruijie specifies operation from -30°C to +65°C, 0% to 100% non-condensing operating humidity and ±4 kV common-mode surge protection on the Ethernet port. The enclosure is promoted as waterproof, dustproof, moisture-resistant, flame-retardant and resistant to wind erosion for demanding outdoor installations.

Additional Information

• RG-RAP6262 AX300 High Performance Outdoor Access Point Datasheet
