Ruijie Reyee RG-RAP62-Wall AX3000 Wi-Fi 6 Dual-Band Wall Plate Access Point with 2.5G Ethernet PoE & Cloud Management

Product SKU: RG-RAP62-WALL

Product Overview

The Ruijie Reyee RG-RAP62-Wall is an AX3000 Wi-Fi 6 dual-band wall-plate access point designed for hotels, offices, apartments, guest rooms and other indoor environments where discreet wireless coverage and convenient wired connectivity are required. It delivers up to 573 Mbps on 2.4 GHz and 2401 Mbps on 5 GHz for a combined theoretical wireless rate of 2974 Mbps, using dual 2×2 MU-MIMO radios and four spatial streams. Four Gigabit LAN ports provide local wired connectivity, with LAN4 supporting PoE output for a compatible downstream device. An ultra-thin 23.5 mm profile, support for 86 mm, EU and US junction boxes, PoE/PoE+ powering and centralised Ruijie Cloud management make it particularly suitable for room-by-room commercial Wi-Fi deployments.

Key Capabilities

Best For

• Hotels & Guest Rooms: Wall-plate mounting provides dedicated in-room Wi-Fi together with wired Gigabit ports for televisions, phones and guest devices.
• Offices: Dual-band Wi-Fi 6 and multiple LAN ports suit individual offices, meeting rooms and work areas.
• Apartments & Serviced Accommodation: Compact wall mounting helps provide discreet room-level wireless coverage without ceiling-mounted hardware.
• Hospitality Networks: Centralised cloud management simplifies configuration across multiple rooms or access points.
• TV & Media Locations: The ultra-thin design can sit behind a television while still providing local wired connections and Wi-Fi coverage.

Why Choose the RG-RAP62-Wall

The RG-RAP62-Wall is designed for room-level Wi-Fi deployments where both wireless coverage and multiple local Ethernet connections are required from one compact device. Its four Gigabit LAN ports can reduce the need for a separate room switch, while LAN4 PoE output can power a compatible low-power endpoint when the AP receives suitable PoE+ input. AX3000 Wi-Fi 6 performance provides modern wireless capacity, and the ultra-thin junction-box form factor keeps installations discreet. Available through Security Wholesalers, the RG-RAP62-Wall is particularly suitable for hospitality, offices and serviced accommodation where centralised cloud management and clean room aesthetics are important.

Buyer Decision Tips

Key Features & Technical Specifications

Product Type	Wi-Fi 6 dual-band wall-plate access point.
Model	RG-RAP62-Wall.
Wireless Class	AX3000.
Radio Design	Dual radio, 4 spatial streams.
2.4 GHz Radio	2 × 2 MU-MIMO.
5 GHz Radio	2 × 2 MU-MIMO.
Maximum Wireless Data Rate	2974 Mbps combined theoretical rate.
2.4 GHz Maximum Rate	573 Mbps.
5 GHz Maximum Rate	2401 Mbps.
6 GHz Radio	No.
Antennas	2 × integrated 2.4 GHz/5 GHz omnidirectional antennas plus 1 × 5 GHz omnidirectional antenna.
Total Ethernet Ports	5 × 10/100/1000BASE-T Gigabit Ethernet ports.

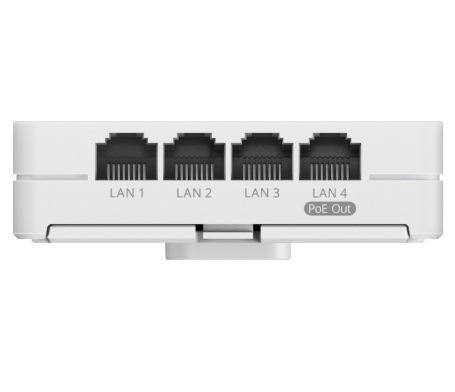

Local LAN Ports	4 × 1GE LAN ports.
PoE Output	Supported on LAN4.
PoE Output Budget	Up to 10 W when powered from an IEEE 802.3at-compliant source.
Power Input	PoE/PoE+.
Local DC Power	Not supported.
Maximum Power Consumption	12 W excluding PoE output.
Maximum Associated Clients – 2.4 GHz	64.
Maximum Associated Clients – 5 GHz	256.
Maximum Associated Clients – Dual Band	256 total.
Maximum Managed Devices	300.
IPv6	Supported.
Cloud Management	Centralised management through Ruijie Cloud.
AI Roaming	Supported through the Ruijie Cloud ecosystem.
AI Network Optimisation	Supported.
AI Heatmap Pro	Supported.
AI Diagnostics	Supported.

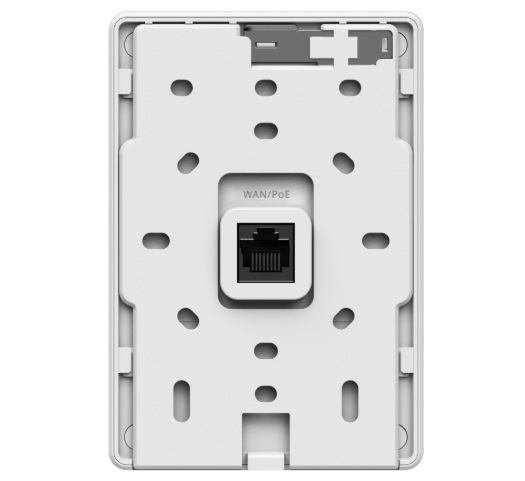

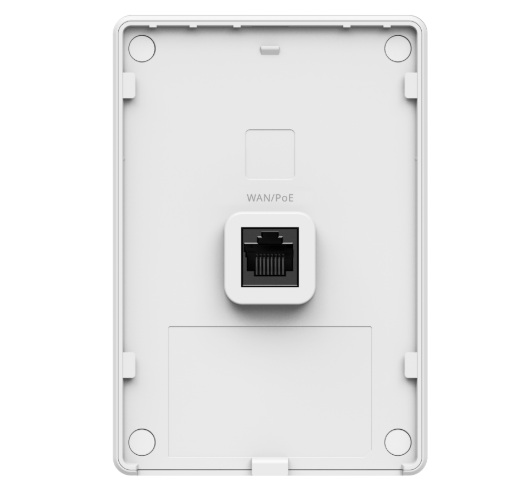

Mounting	Junction-box installation.
Compatible Junction Boxes	86 mm, EU and US standard junction boxes.
Dimensions	86 × 23.5 × 125 mm excluding mounting bracket.
Thickness	23.5 mm.
Weight	≤0.33 kg without packaging.
Colour	White.
Operating Temperature	0°C to 40°C.
IP Rating	No IP rating specified.

Ideal Use Cases

Choosing the Right Model

• Choose the RG-RAP62-Wall if: You need AX3000 Wi-Fi 6, four local Gigabit LAN ports, PoE output and a discreet wall-plate form factor.
• Choose a ceiling AP instead if: The priority is broader open-area coverage rather than dedicated room-level Wi-Fi and local Ethernet ports.
• Choose a 2.5G access point if: Your network specifically requires multi-gigabit Ethernet backhaul above 1 Gbps.
• Use PoE+ input if: You intend to use the available PoE output on LAN4 for a compatible downstream device.

FAQs

1. What wireless speeds does the Ruijie Reyee RG-RAP62-Wall support?
   The Ruijie Reyee RG-RAP62-Wall is an AX3000-class Wi-Fi 6 dual-band wall-plate access point with a maximum wireless rate of 573 Mbps on 2.4 GHz and 2401 Mbps on 5 GHz, for a combined theoretical rate of 2974 Mbps. These are PHY rates rather than guaranteed client throughput. Actual performance depends on client capability, interference, channel conditions, distance and the wired network connected to the access point.
2. Does the RG-RAP62-Wall have a 2.5G Ethernet port?
   No. Ruijie’s current specification lists five 10/100/1000BASE-T Gigabit Ethernet ports in total. The access point provides four 1GE LAN ports for local wired devices, with LAN4 supporting PoE output, plus the network connection used to power and connect the wall-plate AP. The current official product page does not specify a 2.5G Ethernet interface for the RG-RAP62-Wall.
3. Can the RG-RAP62-Wall provide PoE output to another device?
   Yes. Ruijie states that LAN4 supports PoE output. When the access point is powered from an IEEE 802.3at-compliant PoE+ source, the available PoE output budget is up to 10 W. This can be useful for a compatible low-power downstream device, but the connected device’s maximum power requirement should be checked before installation.
4. How many wireless clients can the RG-RAP62-Wall support?
   Ruijie lists a maximum of 64 associated clients on 2.4 GHz, 256 on 5 GHz and 256 total when both bands are enabled. Practical client capacity depends on traffic demand, application mix, RF conditions and client capability. For Security Wholesalers installations, capacity planning should be based on expected active usage rather than association count alone.
5. Can the RG-RAP62-Wall be managed through Ruijie Cloud?
   Yes. The RG-RAP62-Wall supports centralised management through Ruijie Cloud. Ruijie highlights cloud features including AI roaming, AI network optimisation, AI Heatmap Pro and AI diagnostics. This makes the wall-plate access point suitable for centrally managed hospitality, office and similar deployments where multiple access points and connected devices need remote visibility and configuration.
6. Where is the RG-RAP62-Wall designed to be installed?
   The RG-RAP62-Wall is designed for junction-box installation and supports 86 mm, EU and US standard junction boxes. It measures approximately 86 × 23.5 × 125 mm excluding the mounting bracket, weighs no more than 0.33 kg and operates from 0°C to 40°C. Its ultra-thin wall-plate form factor suits hotel rooms, offices, apartments and spaces where a discreet in-room access point is preferred.

Additional Information

• RG-RAP62-Wall Wi-Fi 6 AX3000 Dual-Band Wall-Plate Datasheet
