Product Overview
The Ruijie Reyee RG-RAP62-OD is an AX3000 Wi-Fi 6 indoor/outdoor access point designed for villas, homes, retail businesses, cafés, open dining areas, corridors, backyards and poolside coverage zones. It delivers dual-band wireless performance up to 2974Mbps, with 2×2 MU-MIMO on both 2.4GHz and 5GHz bands, giving modern devices faster wireless performance than earlier Wi-Fi 5 outdoor APs. With built-in antennas, Reyee Mesh, Ruijie Cloud management, IP65 weatherproof protection, wall or pole mounting and a compact white enclosure, this access point is built for flexible deployment indoors or outside. It is best suited to buyers who want stronger outdoor Wi-Fi 6 coverage and cloud-managed setup without moving into larger IP68 outdoor AP models.
Key Capabilities
AX3000 Wi-Fi 6 Performance
The RG-RAP62-OD delivers up to 2974Mbps combined wireless performance, making it suitable for modern homes, villas, retail areas and outdoor business spaces where Wi-Fi 6 speed and multi-user efficiency are important.
Indoor and Outdoor Flexibility
This model can be deployed indoors or outdoors, giving installers more freedom across corridors, open dining areas, backyards, shopfronts and outdoor seating spaces where a standard indoor ceiling AP may not be appropriate.
IP65 Weatherproof Protection
The IP65-rated enclosure helps protect the AP from dust and water exposure, making it a better choice for outdoor wireless zones than indoor-only access points when the unit is installed correctly.
Reyee Mesh Expansion
Reyee Mesh makes it easier to extend compatible wireless networks where running Ethernet to every AP location is difficult. For best performance, a wired uplink is still preferred when practical.
Cloud Managed Setup
Ruijie Cloud management supports remote monitoring, centralised network management, cloud portal authentication and maintenance, making it useful for installers and businesses managing one site or multiple APs.
Built-In Antenna Coverage
The built-in antenna design keeps the unit neat while supporting practical coverage for open spaces. It suits locations where a cleaner appearance is preferred over a larger external-antenna outdoor AP.
Best For
- Outdoor Dining and Hospitality: Suitable for cafés, restaurants, open dining areas and guest outdoor spaces needing managed Wi-Fi 6 coverage.
- Homes and Villas: A practical option for backyards, pool areas, patios, outdoor living spaces and long indoor corridors.
- Retail Businesses: Useful for shopfronts, customer waiting areas, pickup zones, outdoor displays and staff Wi-Fi coverage.
- Mesh Network Extensions: A good fit where compatible Reyee Mesh can extend coverage without running cable to every AP position.
- Indoor/Outdoor Mixed Sites: Ideal where one AP model needs to suit both sheltered indoor areas and weather-exposed outdoor locations.
Why Choose the RG-RAP62-OD
Choose the RG-RAP62-OD when the installation needs Wi-Fi 6 speed, weather-resistant outdoor use and a neater built-in antenna design. Compared with the RG-RAP52-OD, this model gives buyers AX3000 Wi-Fi 6 performance instead of AC1300 Wi-Fi 5, making it better suited to newer devices and busier coverage zones. It is also more compact and versatile than larger outdoor APs, while still supporting wall or pole mounting, Reyee Mesh and cloud-based management. This model, supplied by Security Wholesalers, is a strong choice for practical indoor/outdoor wireless upgrades where coverage, appearance and manageability all matter.
Buyer Decision Tips
Buyer Tip: Choose the RG-RAP62-OD when you want AX3000 Wi-Fi 6 in a compact indoor/outdoor design. If the site is exposed to harsher conditions or needs long-range outdoor coverage, compare it with larger IP68 outdoor AP options before deciding.
Buyer Tip: Mesh is convenient for extending coverage, but wired Ethernet backhaul is usually better where outdoor users need stronger and more consistent throughput. Plan AP placement around walls, metal structures, glass and user gathering areas.
Key Features & Technical Specifications
| Product Type |
Indoor/outdoor wireless access point. |
| Model |
RG-RAP62-OD. |
| Wireless Standard |
Wi-Fi 6, 802.11ax. |
| Wireless Performance |
Up to 2974Mbps combined dual-band wireless data rate. |
| 2.4GHz Data Rate |
Up to 573Mbps. |
| 5GHz Data Rate |
Up to 2401Mbps. |
| Radio Design |
Dual-radio with 4 spatial streams. |
| MIMO |
2.4GHz 2×2 MU-MIMO and 5GHz 2×2 MU-MIMO. |
| 6GHz Support |
No 6GHz wireless radio. |
| Antennas |
Built-in omnidirectional antennas for 2.4GHz and 5GHz coverage. |
| Ethernet Port |
1 x 10/100/1000BASE-T Gigabit port. |
| Power Supply |
PoE/PoE+ power supply. |
| Local Power Supply |
No local DC power input. |
| Maximum Power Consumption |
16W. |
| Mesh Support |
Supports Reyee Mesh for compatible wireless expansion. |
| Cloud Management |
Supports Ruijie Cloud management, remote monitoring and maintenance. |
| Portal and Roaming |
Supports standalone portal, cloud portal authentication and AI roaming features. |
| Maximum Associated Clients |
64 on 2.4GHz; 512 on 5GHz; 512 with both 2.4GHz and 5GHz enabled. |
| Managed Device Capacity |
Up to 300 devices can be managed. |
| IPv6 |
Supported. |
| Weather Rating |
IP65 weatherproof rating. |
| Surge and ESD Protection |
4kV lightning protection and 15kV ESD protection. |

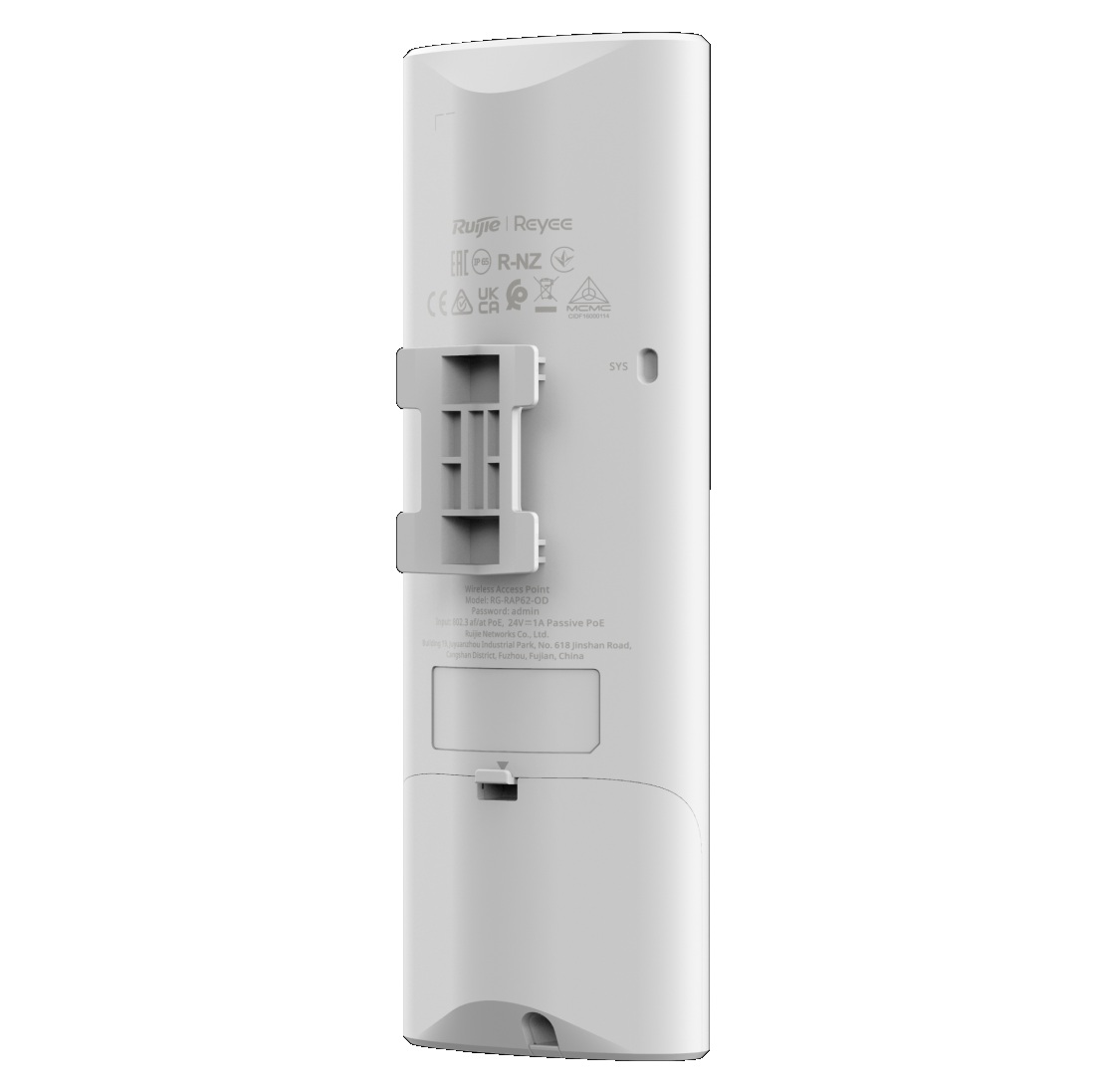

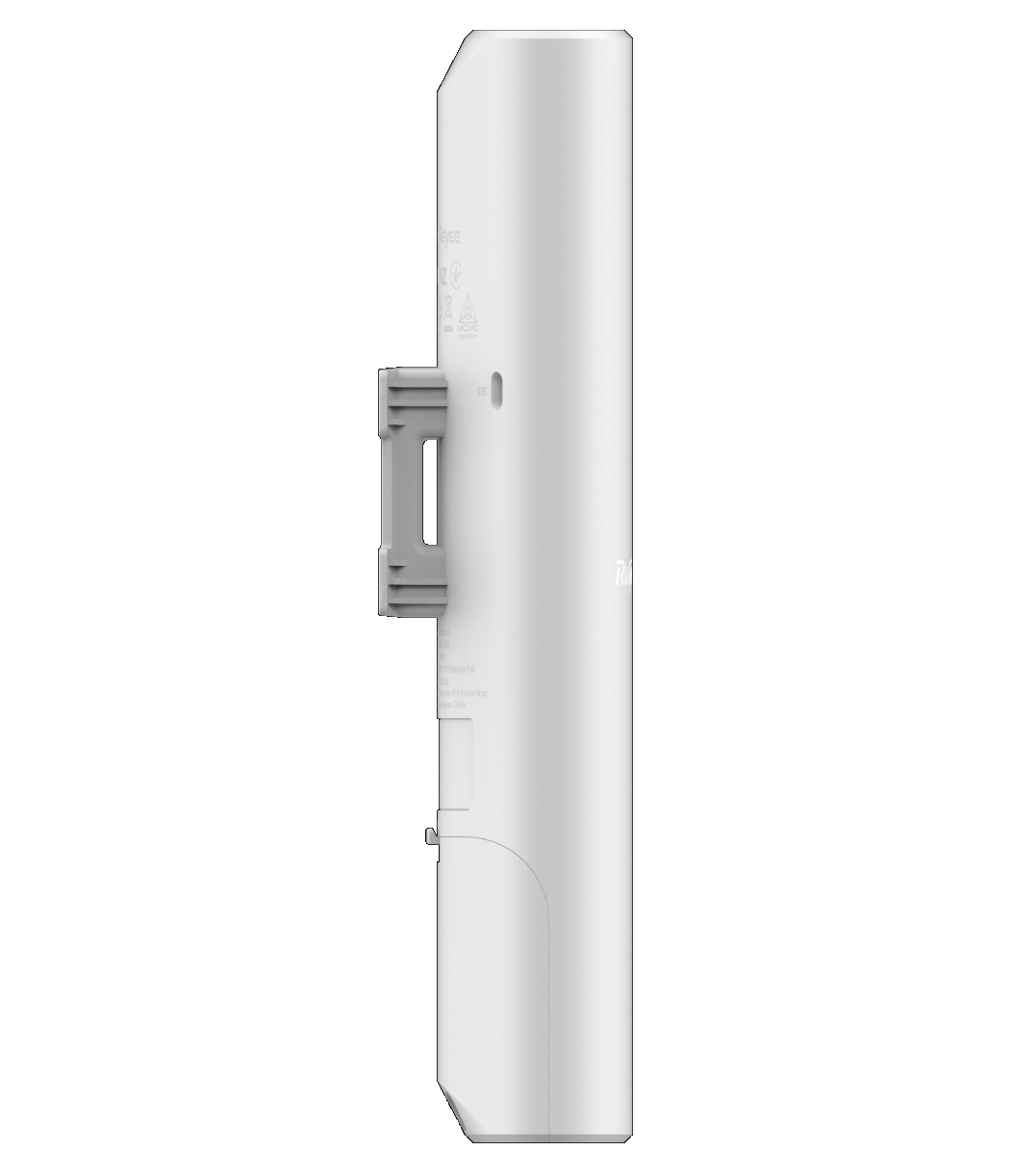

| Mounting Options |
Wall or pole mounting. |
| Operating Temperature |
-30°C to +65°C. |
| Dimensions |
70 x 35 x 200 mm, excluding mounting bracket. |
| Weight |
≤ 0.4 kg, without packaging materials. |
| Colour |
White. |
Ideal Use Cases
Open Dining Areas
Install near outdoor dining zones where customers and staff need managed Wi-Fi 6 access across tables, ordering areas and shared spaces.
Backyards and Pool Areas
Use for home and villa outdoor areas where indoor wireless signal does not properly reach patios, poolside seating or garden zones.
Retail Shopfronts
A good option for customer waiting areas, footpath-facing shopfronts, pickup points and staff devices operating near the entrance.
Corridors and Semi-Outdoor Walkways
Suitable for long corridors, covered walkways and transition areas where a versatile indoor/outdoor AP is easier to place correctly.
Outdoor Mesh Extensions
Use with compatible Reyee Mesh deployments where extra coverage is needed and cabling the AP location is difficult or expensive.
Small Business Outdoor Zones
Suitable for outdoor staff areas, small service yards, front entrances and customer-facing outdoor spaces that need reliable managed Wi-Fi.
Choosing the Right Model
- Choose this model if: You need AX3000 Wi-Fi 6 performance, IP65 protection, built-in antennas and a compact wall or pole-mounted indoor/outdoor AP.
- Choose the RG-RAP52-OD if: Budget is the main priority and Wi-Fi 5 AC1300 performance is enough for the outdoor area.
- Choose a larger IP68 outdoor AP if: The site has harsher exposure, longer-distance coverage requirements, more demanding outdoor use or requires higher weather protection.
FAQs
- Is the RG-RAP62-OD suitable for outdoor Wi-Fi?
Yes. The RG-RAP62-OD is designed for indoor and outdoor Wi-Fi coverage and has an IP65 weatherproof rating. It suits locations such as open dining areas, backyards, poolside spaces, corridors, shopfronts and outdoor business zones. Correct mounting, cable protection and AP placement remain important for reliable long-term performance.
- What wireless speed does the RG-RAP62-OD support?
The RG-RAP62-OD supports up to 2974Mbps combined wireless performance, with up to 573Mbps on 2.4GHz and up to 2401Mbps on 5GHz. Actual user speed depends on client device capability, signal strength, interference, channel planning, uplink quality and whether the AP is connected by Ethernet or Mesh.
- Does the RG-RAP62-OD support Mesh networking?
Yes. The RG-RAP62-OD supports Reyee Mesh for compatible wireless expansion. Mesh is useful when cabling an AP location is difficult, especially in outdoor areas or extended buildings. For performance-sensitive installations, wired Ethernet backhaul is usually the better option because it provides a more stable uplink.
- Can the RG-RAP62-OD be mounted on a pole?
Yes. The RG-RAP62-OD supports wall or pole mounting, making it flexible for building exteriors, patios, pool areas, shopfronts and small business outdoor spaces. The AP should be positioned with a clear coverage path toward users and kept away from metal structures or dense obstructions that can weaken wireless signal.
- Does the RG-RAP62-OD need a power adapter?
No local DC power input is listed for the RG-RAP62-OD. It is designed to be powered by PoE/PoE+, which is usually the cleanest option for wall or pole-mounted installations. Buyers should confirm that the chosen switch or injector provides compatible PoE power before installation.
- How many users can the RG-RAP62-OD support?
The RG-RAP62-OD is listed for up to 512 associated clients with both 2.4GHz and 5GHz enabled. In real installations, usable capacity depends on what users are doing. Light browsing and guest access place a much smaller load on the AP than video calls, streaming or large file transfers.
- Can the RG-RAP62-OD be managed remotely?
Yes. The RG-RAP62-OD supports Ruijie Cloud management for remote monitoring, centralised management and maintenance of compatible Reyee networks. This is helpful for businesses and installers managing outdoor Wi-Fi across one or more sites. This model is available through Security Wholesalers for suitable indoor/outdoor Reyee wireless projects.
- Should I choose the RG-RAP62-OD or RG-RAP52-OD?
Choose the RG-RAP62-OD if you want Wi-Fi 6, higher AX3000 wireless performance and stronger support for newer devices. Choose the RG-RAP52-OD when a lower-cost Wi-Fi 5 outdoor AP is enough for lighter use. The right choice depends on user count, device type, coverage area and budget.
Additional Information
RG-RAP62-OD_Datasheet_Official_2026-01-09
