The RG-RAP52-OD delivers an AC1300 outdoor Wi-Fi 5 access point solution designed for extending wireless coverage across courtyards, outdoor dining areas, warehouses, campuses and semi-open commercial spaces. Featuring dual-band wireless performance, mesh networking support and detachable antennas, it helps provide flexible outdoor connectivity where standard indoor access points are not suitable.
It also includes Ruijie Cloud management, making this model part of the Security Wholesalers range for easier remote setup, monitoring and ongoing network maintenance. With its IP65 weatherproof design, the RG-RAP52-OD is suited to outdoor environments that need reliable Wi-Fi coverage with simplified deployment and management.
Key Features
AC1300 Wi-Fi 5: Provides dual-band wireless performance for outdoor network coverage and everyday connected devices.
Mesh Networking Support: Helps extend Wi-Fi coverage across larger or more complex outdoor deployment areas.
Detachable Antennas: Supports flexible antenna positioning and replacement for practical outdoor installation needs.
Ruijie Cloud Management: Allows easier remote setup, monitoring and maintenance through the Ruijie Cloud platform.
IP65 Weatherproof Design: Built for outdoor use with protection against dust and water exposure.
Outdoor Wireless Coverage: Suitable for patios, courtyards, hospitality venues, warehouses and external business areas.
The Ruijie Reyee RG-RAP52-OD is an AC1300 Wi-Fi 5 outdoor access point designed for homes, villas, retail businesses, cafés, accommodation areas and outdoor coverage zones where a standard indoor AP is not suitable. It delivers dual-band wireless performance up to 1267Mbps, with 2×2 MU-MIMO on both 2.4GHz and 5GHz bands to support everyday outdoor Wi-Fi for phones, tablets, laptops, POS devices and guest users. With Reyee Mesh support, detachable antennas, wall or pole mounting and an IP65 weatherproof enclosure, this access point is a practical option for extending managed wireless coverage outside. It is best suited to outdoor areas that need stable coverage and cloud-managed setup without moving into larger, higher-cost enterprise outdoor AP models.
Key Capabilities
AC1300 Outdoor Wi-Fi
The RG-RAP52-OD provides combined dual-band Wi-Fi performance up to 1267Mbps, making it suitable for outdoor browsing, guest access, mobile devices, handheld terminals and general business wireless use across small outdoor zones.
Dual-Band Mesh Coverage
Reyee Mesh support helps extend compatible wireless networks where running extra network cabling is difficult. It is useful for villas, courtyards, outdoor seating areas and small retail spaces that need flexible coverage expansion.
Detachable Antenna Design
The detachable antenna design gives installers more flexibility when shaping outdoor coverage. This is useful when the access point needs to suit a specific courtyard, shopfront, garden, pool area or open outdoor space.
IP65 Weatherproof Housing
The IP65-rated enclosure helps protect the access point from outdoor dust and water exposure. It is designed for covered or exposed outdoor wireless deployments where indoor-only access points would not be appropriate.

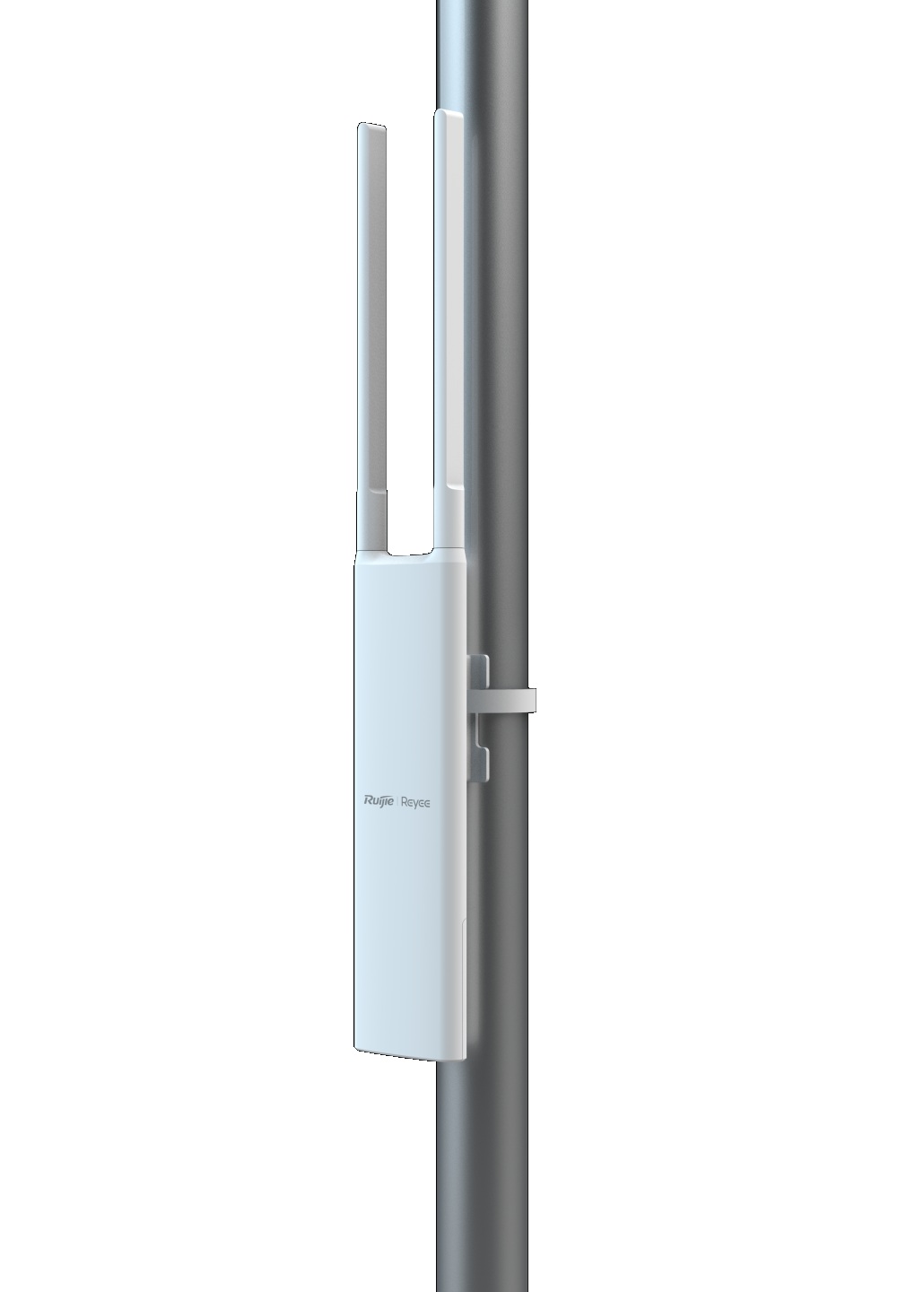

Wall or Pole Mounting
Flexible mounting allows the AP to be installed on walls or poles, helping position it where outdoor users actually need signal rather than being limited to an indoor ceiling or cabinet location.
Ruijie Cloud Management
Ruijie Cloud support allows remote monitoring, setup and maintenance of compatible Reyee networks. This is useful for installers and business owners managing outdoor Wi-Fi across one site or multiple locations.
Best For
Outdoor Guest Wi-Fi: Suitable for cafés, restaurants, courtyards and alfresco spaces where customers need wireless access outside.
Villas and Homes: A practical option for gardens, patios, pool areas, outdoor living spaces and external coverage zones.
Retail Frontages: Useful for shopfronts, outdoor displays, queues, pickup areas and nearby customer access zones.
Mesh Wi-Fi Extensions: A good fit where compatible Reyee Mesh can extend coverage without running Ethernet to every AP location.
Weather-Exposed Installations: Suitable where an IP65 outdoor AP is required instead of a ceiling or indoor wall access point.
Why Choose the RG-RAP52-OD
Choose the RG-RAP52-OD when the installation needs compact outdoor Wi-Fi with weather protection, flexible mounting and simple cloud-managed deployment. Compared with an indoor ceiling AP, this model is better suited to outdoor walls, poles, courtyards, garden areas and shopfronts because it has an IP65-rated enclosure and detachable antennas for more targeted coverage planning. It is also a practical choice for small outdoor Mesh extensions where cabling is difficult, provided the site is planned carefully for signal strength and backhaul quality. This model, supplied by Security Wholesalers, suits buyers who need dependable outdoor Wi-Fi 5 coverage without stepping up to larger outdoor Wi-Fi 6 APs.
Buyer Decision Tips
Buyer Tip: Choose the RG-RAP52-OD when outdoor durability and flexible coverage matter more than the newest Wi-Fi standard. If the site has many newer Wi-Fi 6 devices or heavier user density, consider whether a Wi-Fi 6 outdoor AP is a better long-term choice.
Buyer Tip: Outdoor AP placement is critical. Mount the unit where users need signal, avoid placing it behind metal structures or thick walls, and use wired uplink where possible if the site needs stronger throughput than Mesh backhaul can provide.
Key Features & Technical Specifications
Product Type
Outdoor wireless access point.
Model
RG-RAP52-OD.
Wireless Standard
Wi-Fi 5, 802.11ac Wave 2.
Wireless Performance
Up to 1267Mbps combined dual-band wireless data rate.
2.4GHz Data Rate
Up to 400Mbps.
5GHz Data Rate
Up to 867Mbps.
MIMO
2.4GHz 2×2 MU-MIMO and 5GHz 2×2 MU-MIMO.
Outdoor Design
Mini outdoor access point for villa, home, retail and small business use.
Weather Rating
IP65 weatherproof enclosure.
Antennas
Detachable antennas for customisable outdoor coverage.
Ethernet Port
1 x Gigabit Ethernet port.
Mesh Support
Supports Reyee Mesh for compatible wireless expansion.
Cloud Management
Supports Ruijie Cloud remote monitoring and management.
Standalone Portal
Supports standalone portal features for retail and guest access scenarios.
Roaming Feature
Supports AI roaming for compatible Reyee wireless deployments.
Recommended Clients
Up to 96 recommended clients.
Maximum Clients
Up to 110 maximum clients.
Mounting
Wall or pole mounting.
Operating Temperature
-30°C to +70°C.
Dimensions
220 x 50 x 35.7 mm.
Ideal Use Cases
Café Outdoor Seating
Install near alfresco areas where customers and staff need stable Wi-Fi outside the main indoor coverage zone.
Villa and Home Outdoor Areas
Use for patios, gardens, pool areas, balconies and outdoor living spaces where indoor AP coverage does not reach properly.
Retail Shopfronts
Suitable for shop entrances, pickup areas, outdoor displays and customer waiting areas needing managed Wi-Fi access.
Accommodation Properties
Useful for small hotels, motels and guest spaces where outdoor walkways or shared zones need additional wireless coverage.
Outdoor Mesh Extensions
A practical option for compatible Reyee Mesh networks where Ethernet cabling is difficult and outdoor coverage needs to be extended.
Small Business Perimeters
Use around loading entries, external service areas or staff outdoor zones where basic outdoor wireless access is needed.
Choosing the Right Model
Choose this model if: You need a compact AC1300 Wi-Fi 5 outdoor AP with IP65 weatherproofing, detachable antennas and Reyee Mesh support.
Choose a Wi-Fi 6 outdoor model if: The site has newer client devices, heavier usage, higher density or a stronger future-proofing requirement.
Use wired uplink where possible: Mesh is convenient, but Ethernet backhaul is usually better for outdoor areas that need stronger, more consistent throughput.
FAQs
Is the RG-RAP52-OD suitable for outdoor Wi-Fi?
Yes. The RG-RAP52-OD is designed as an outdoor Wi-Fi access point with an IP65 weatherproof enclosure. It is suitable for areas such as patios, courtyards, outdoor seating, shopfronts and villa surrounds. Correct mounting, cable protection and placement are still important for long-term reliability and wireless performance.
What wireless speed does the RG-RAP52-OD support?
The RG-RAP52-OD supports up to 1267Mbps combined dual-band performance, with up to 400Mbps on 2.4GHz and up to 867Mbps on 5GHz. Actual user speed will depend on distance, interference, antenna positioning, client device capability, uplink quality and whether the AP is connected by Ethernet or Mesh.
Does the RG-RAP52-OD support Mesh networking?
Yes. The RG-RAP52-OD supports Reyee Mesh, which can help extend outdoor Wi-Fi coverage with compatible Reyee devices. Mesh is useful when running a cable to the AP location is difficult, but a wired Ethernet uplink is usually preferred when the installation needs stronger and more consistent performance.
Can the RG-RAP52-OD be mounted on a pole?
Yes. The RG-RAP52-OD supports wall or pole mounting, making it flexible for outdoor locations such as building exteriors, courtyards, gardens, entrance areas and small business perimeters. The AP should be mounted where it has a clear coverage path to users and is not blocked by metal structures or dense walls.
What are the detachable antennas used for?
The detachable antennas allow more flexible coverage planning than a fully fixed antenna design. This is useful when the outdoor wireless area has a specific shape, such as a long shopfront, courtyard or garden zone. Antenna positioning still needs to be planned carefully so signal is directed toward the areas where users need coverage.
How many users can the RG-RAP52-OD support?
The RG-RAP52-OD is listed for up to 96 recommended clients and 110 maximum clients. In real installations, user experience depends on what those users are doing. Light browsing or guest access is very different from many users streaming video or uploading large files at the same time.
Can the RG-RAP52-OD be managed remotely?
Yes. The RG-RAP52-OD supports Ruijie Cloud management for remote monitoring and maintenance of compatible Reyee networks. This helps installers and business owners check AP status, manage wireless settings and support outdoor Wi-Fi deployments. This model is available through Security Wholesalers for suitable Reyee outdoor wireless projects.
Should I choose the RG-RAP52-OD or a Wi-Fi 6 outdoor AP?
Choose the RG-RAP52-OD when you need a compact, cost-effective Wi-Fi 5 outdoor AP for general outdoor coverage. Choose a Wi-Fi 6 outdoor AP if the site has newer devices, heavier traffic, more demanding users or a longer-term upgrade plan. The right choice depends on expected usage, coverage area and budget.
