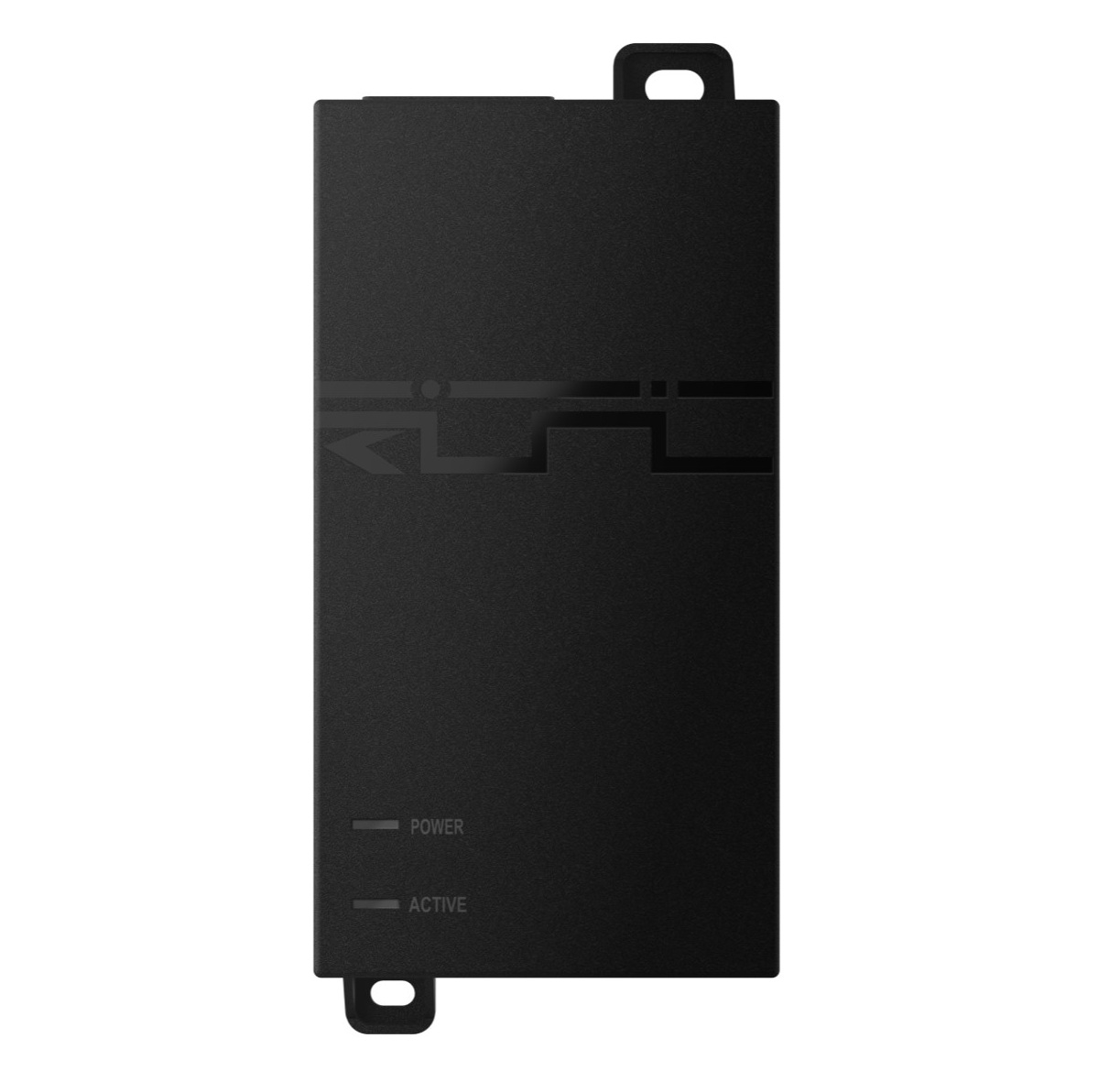

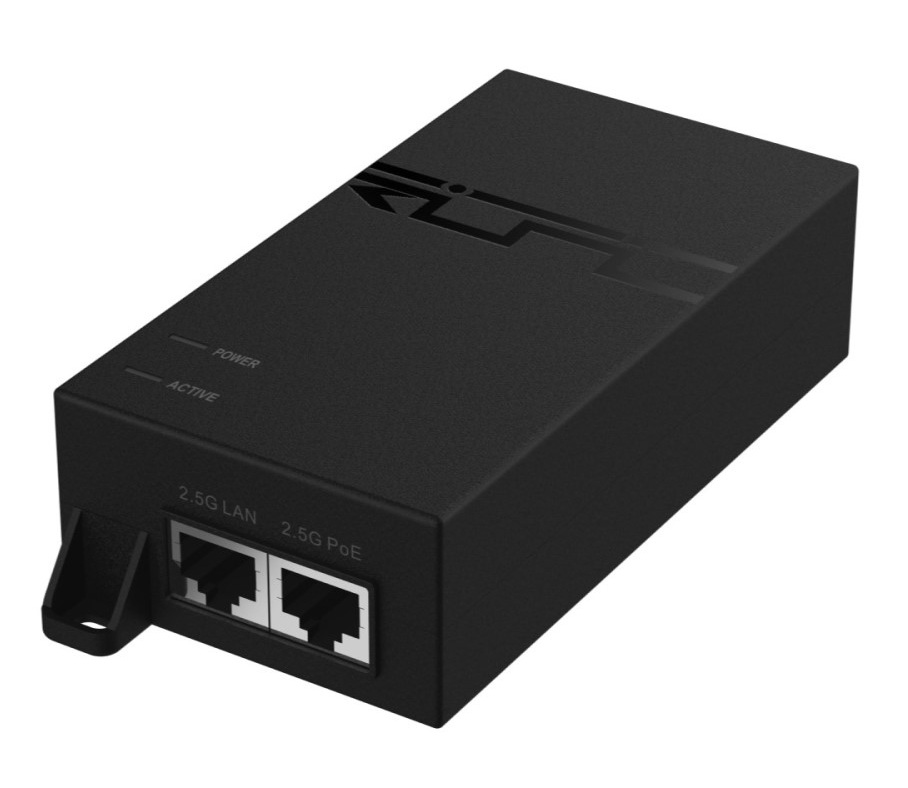

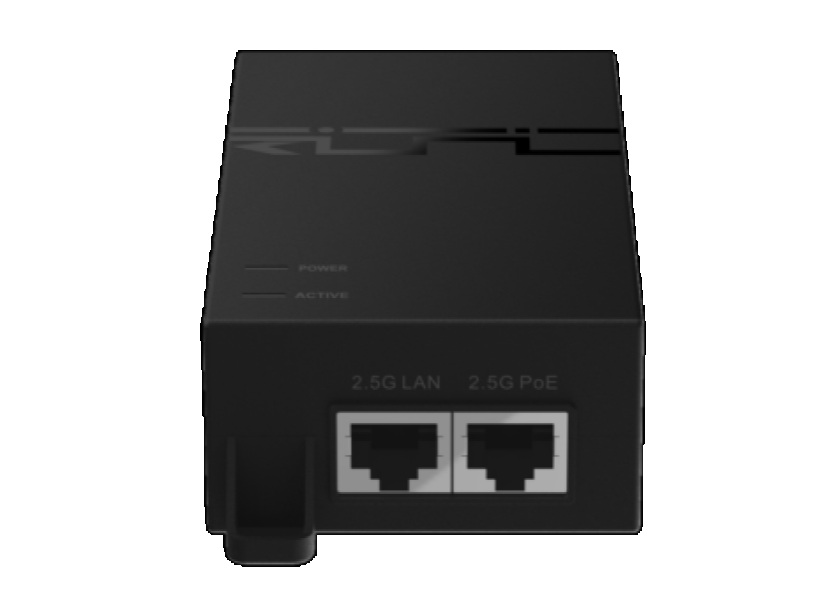

Ruijie Reyee RG-POE-50-60W-MG 1-Port 2.5G Passive PoE Injector with 56V Output, 60W Power, High Surge Protection‍‌​​‌​​​‌‌​‌‌‌‌​‌‌​‍

Product SKU: RG-POE-50-60W-MG

Product Overview

The Ruijie Reyee RG-POE-50-60W-MG is a 1-port passive PoE injector designed to provide data and power to compatible high-powered network devices over a single Ethernet connection. With a 2500Base-T port, 56V output and 60W passive PoE power, it is well suited to selected wireless access points and network devices that require more power than standard lower-wattage injectors can provide. This Ruijie Reyee RG-POE-50-60W-MG passive PoE injector is a practical option for installers working with multi-gigabit access points, outdoor AP deployments, or network upgrades where a compatible PoE switch is not being used. Its compact design, wide operating temperature range and high surge protection help make it suitable for professional wireless and network installations.

Key Capabilities

Best For

• Single AP Installations: Suitable when powering one compatible wireless access point without installing a dedicated PoE switch.
• Multi-Gigabit Networks: A practical choice for compatible devices that benefit from a 2.5G Ethernet connection rather than a standard gigabit link.
• High-Power PoE Requirements: Useful when a device requires up to 60W passive PoE power and cannot be reliably powered by a lower-wattage injector.
• Wireless Network Upgrades: Helpful for upgrading selected access point deployments while keeping the existing non-PoE switch or router in place.

Why Choose the RG-POE-50-60W-MG

Choose the RG-POE-50-60W-MG when the installation needs a dedicated passive PoE injector with both higher power output and a faster Ethernet interface. For most buyers, the key difference is that this model supports 60W passive PoE and 2500Base-T connectivity, making it better suited to selected high-performance access points than basic PoE injectors. It is especially useful when only one device needs PoE power and replacing the existing switch with a PoE switch would be unnecessary. This model, supplied by Security Wholesalers, suits professional network installations where compatibility, PoE wattage and link speed all need to be checked before purchase.

Buyer Decision Tips

Key Features & Technical Specifications

Ideal Use Cases

Choosing the Right Model

• Choose this model if: You need a 1-port 2.5G passive PoE injector with 56V output and 60W power for a compatible device.
• Choose a lower-power injector if: Your device only requires a basic passive PoE power level and does not need 60W output.
• Choose a PoE switch instead if: You need to power several devices from one network location or want centralised PoE management across multiple ports.

FAQs

1. Is the RG-POE-50-60W-MG suitable for all PoE devices?
   No. The RG-POE-50-60W-MG is a passive PoE injector, so it should only be used with compatible devices that support the required passive PoE voltage and power. It should not be assumed to work with every PoE, PoE+ or PoE++ device. Always check the powered device requirements before connecting it.
2. What type of device is the RG-POE-50-60W-MG best used with?
   The RG-POE-50-60W-MG is best used with compatible high-powered access points or network devices that require a 56V, 60W passive PoE supply. It is especially useful where a single compatible AP needs both power and data but the existing switch does not provide suitable PoE output.
3. Does the RG-POE-50-60W-MG support multi-gigabit networking?
   Yes. The RG-POE-50-60W-MG includes a 2500Base-T port, which suits compatible 2.5G devices and network equipment. To benefit from this speed, the connected access point, cabling and upstream switch or router should also support the required multi-gigabit connection.
4. Why choose a 60W injector instead of a smaller PoE injector?
   Choose a 60W injector when the powered device requires more power than a lower-wattage injector can provide. This is common with selected higher-performance wireless access points. Using an undersized injector may cause unstable operation, failed boot-up or performance issues, so matching the injector to the device power requirement is important.
5. Can the RG-POE-50-60W-MG replace a PoE switch?
   It can replace the need for a PoE switch only in a simple single-device setup. The RG-POE-50-60W-MG powers one compatible device, while a PoE switch is usually better for powering multiple access points, cameras or network devices from one location. For larger installations, a PoE switch may be cleaner and easier to manage.
6. What should I check before buying the RG-POE-50-60W-MG?
   Before buying the RG-POE-50-60W-MG, check the powered device’s PoE type, voltage, wattage, Ethernet speed requirement and installation environment. This model is available through Security Wholesalers for compatible Ruijie Reyee deployments, but the most important step is confirming that passive PoE is correct for the device being powered.
7. Is the RG-POE-50-60W-MG suitable for warm installation environments?
   Yes, the RG-POE-50-60W-MG supports an operating temperature range from -10°C to +45°C. This makes it suitable for many indoor network cabinets, office spaces and equipment areas. It should still be installed with adequate ventilation and should not be placed in an enclosed space where heat can build up.

Additional Information

Reyee Passive PoE Adapter Series-20260112
