Ruijie Reyee RG-NBS3300-8MG2XS-P Bundle Kit 8-Port 2.5G PoE+ Managed Switch with 2 x 10G SFP+ Uplinks 240W PoE Budget & XG-SFP-SR-MM850 10G SFP+ 850nm 300m MMF Module

Name: Ruijie Reyee RG-NBS3300-8MG2XS-P Bundle Kit 8-Port 2.5G PoE+ Managed Switch with 2 x 10G SFP+ Uplinks 240W PoE Budget &amp; XG-SFP-SR-MM850 10G SFP+ 850nm 300m MMF Module
Brand: Ruijie
SKU: RG-NBS3300-MM850-KIT
Price: 643.50 AUD
Availability: InStock

$643.50

FREE DELIVERYWARRANTY GUARANTEED

SW ADVANTAGE✓ Trade-Price Verified✓ Priority Tech Support✓ Dedicated After-Sales Support✓ Easy Returns & Warranty

The Ruijie Reyee RG-NBS3300-8MG2XS-P bundle delivers a high-performance Layer 2+ managed PoE+ switching solution with a 10G SFP+ optical transceiver, designed for business networks, high-speed wireless access points and commercial surveillance installations requiring multi-gigabit connectivity. Featuring eight 2.5Gbps PoE+ Ethernet ports, two 10G SFP+ uplinks and a 240W PoE budget, the switch provides efficient power delivery and high-bandwidth networking for compatible devices.

This bundle also includes an XG-SFP-SR-MM850 optical module supporting 10Gbps fibre connectivity over multimode fibre, making it a practical networking solution available at Security Wholesalers. It supports VLAN configuration, link aggregation, IGMP snooping, PoE watchdog and remote management through Ruijie Cloud for streamlined network administration. With 80Gbps switching capacity, 59.52Mpps forwarding performance and optical transmission up to 300m over OM3 multimode fibre, the bundle suits demanding commercial network deployments.

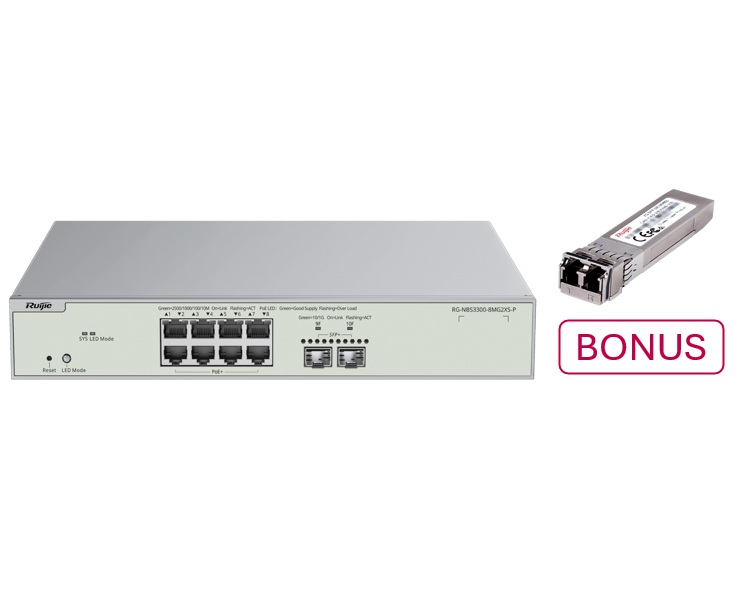

Kit Inclusions

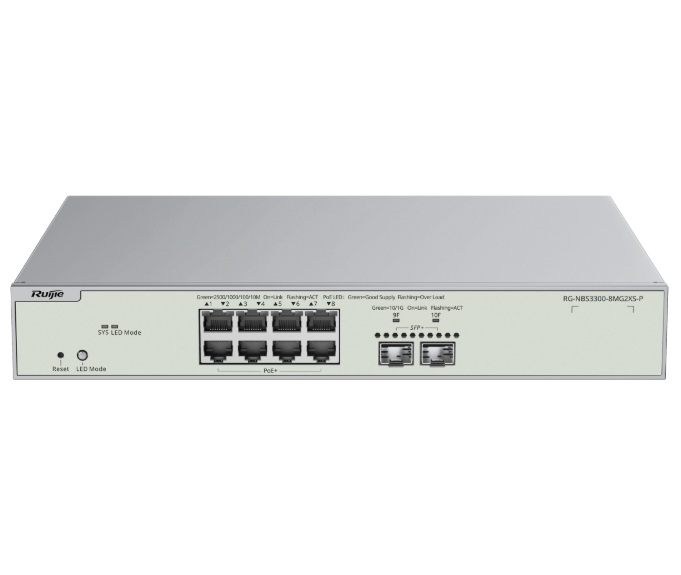

1 x Ruijie Reyee RG-NBS3300-8MG2XS-P 8-Port 2.5G PoE+ Managed Switch – 8 x 2.5Gbps PoE+ Ports, 2 x 10G SFP+ Uplinks, 240W PoE Budget, Layer 2+ Management

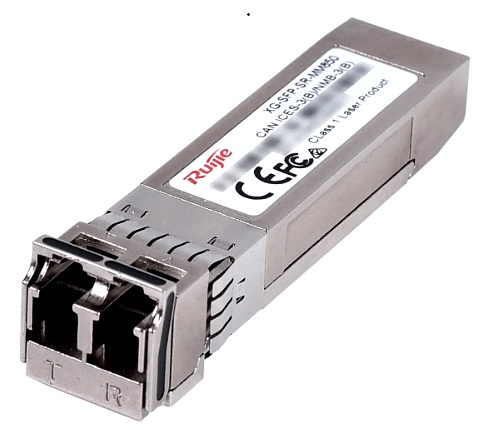

1 x Ruijie XG-SFP-SR-MM850 10G SFP+ Optical Transceiver Module – 10GBASE-SR, 850nm Wavelength, Duplex LC Connector, 300m OM3 Multimode Fibre Range

Additional Information

$643.50 inc GST +3 Year Warranty & Support

Description

Product SKU: RG-NBS3300-MM850-KIT

Product Overview

The Ruijie Reyee RG-NBS3300-8MG2XS-P Bundle Kit combines a high-performance 8-port multi-gigabit PoE+ managed switch with a Ruijie XG-SFP-SR-MM850 10G optical transceiver for fast copper access and multimode fibre connectivity. The switch provides eight 10/100/1000/2500BASE-T PoE+ ports, making it particularly suitable for Wi-Fi 6 and Wi-Fi 7 access points, high-bandwidth surveillance devices and other equipment that can exceed conventional Gigabit Ethernet speeds. Two 10G SFP+ uplinks provide high-capacity backbone connectivity, while the included 850 nm SFP+ module supports 10G transmission up to 300 metres over OM3 multimode fibre or 400 metres over OM4. A 240 W PoE budget, Layer 2+ management and Ruijie Cloud support make the kit suitable for demanding commercial networks.

System Capabilities

8 × 2.5G Multi-Gigabit PoE+ Ports

Eight 10/100/1000/2500BASE-T RJ45 ports allow compatible Wi-Fi 6/7 access points, cameras and other devices to operate beyond standard Gigabit Ethernet speeds while receiving PoE power.

240 W PoE Budget

All eight copper ports support PoE and PoE+, with a combined 240 W power budget providing substantial headroom for compatible wireless access points, surveillance cameras and other powered devices.

Dual 10G SFP+ Uplinks

Two dedicated 10GE SFP+ interfaces provide high-speed uplinks for core switches, servers, storage platforms or fibre backbone connections without constraining multi-gigabit edge traffic to a 1G uplink.

Included 10G Multimode Fibre Module

The bundled XG-SFP-SR-MM850 provides a 10GBASE-SR Duplex LC optical interface at 850 nm, supporting up to 300 m over OM3 or 400 m over OM4 multimode fibre.

Layer 2+ Managed Networking

VLAN, link aggregation, IGMP Snooping, port isolation, broadcast storm control and jumbo-frame support provide substantially more control than an unmanaged multi-gigabit switch.

Ruijie Cloud Management

Remote statistics, VLAN configuration and management through the Ruijie Reyee ecosystem help simplify deployment and maintenance across business, wireless and surveillance networks.

Best For

Wi-Fi 6 & Wi-Fi 7 Networks: 2.5G access ports help avoid the 1G Ethernet bottleneck on compatible high-performance wireless access points.
High-Bandwidth CCTV: Multi-gigabit access and 10G uplinks suit networks carrying multiple high-resolution camera streams and recorder traffic.
Fibre-Linked Buildings: The included 10G SR module provides a ready optical connection over compatible OM3 or OM4 multimode fibre.
Offices & Education: High PoE capacity and cloud management suit environments with multiple high-performance wireless APs.
Servers & Storage Uplinks: Dual SFP+ interfaces provide up to 10G connectivity toward suitable core, server or storage infrastructure.

Why Choose This Kit

This bundle is designed for networks that have outgrown conventional Gigabit access switching. The RG-NBS3300-8MG2XS-P provides 2.5G connectivity on every powered copper port, giving modern Wi-Fi 6 and Wi-Fi 7 access points room to operate above 1 Gbps without replacing the entire network with 10G copper. Dual SFP+ uplinks then provide a high-capacity backbone path, while the bundled XG-SFP-SR-MM850 gives the installer an immediately usable 10G multimode optical interface. Available through Security Wholesalers, the kit is particularly useful where high PoE capacity, multi-gigabit edge performance, fibre connectivity and centralised management are all required from one compact switching solution.

Package Inclusions

1 × Ruijie Reyee RG-NBS3300-8MG2XS-P 8-Port 2.5G PoE+ Managed Switch with 2 × 10G SFP+ Uplinks & 240 W PoE Budget
1 × Ruijie XG-SFP-SR-MM850 10GBASE-SR SFP+ 850 nm 300 m MMF Duplex LC Optical Transceiver Module

Buyer Decision Tips

Buyer Tip: The included XG-SFP-SR-MM850 is designed for multimode fibre, not single-mode fibre. Use OM3 multimode fibre for links up to 300 metres or OM4 multimode fibre for links up to 400 metres, with Duplex LC terminations.

Buyer Tip: A 2.5G access port only delivers multi-gigabit performance when the connected device, cabling and upstream network also support the required speed. Cat5e may support 2.5G in suitable installations, but cable condition, distance and network design should be verified before deployment.

Key Features & Technical Specifications

Switch Model	RG-NBS3300-8MG2XS-P.
Switch Category	Layer 2+ multi-gigabit managed PoE switch.
Copper Ports	8 × 10/100/1000/2500BASE-T RJ45.
Optical Uplinks	2 × 10GE SFP+.
PoE Ports	8 × PoE/PoE+ ports.
PoE Budget	240 W.
PoE Power Pins	1–2 positive, 3–6 negative.
Switching Capacity	80 Gbps.
Packet Forwarding Rate	59.52 Mpps.
Jumbo Frame	Up to 9216 bytes.
PoE Watchdog	Supported.
Port Isolation	Supported.
Broadcast Storm Control	Supported.
VLAN	Supported.
Link Aggregation	Supported.
IGMP Snooping	Supported.
CPU Protection	CPP supported to help protect CPU resources from attack traffic.
Cloud Management	Ruijie Reyee cloud management supported.
Switch Operating Temperature	0°C to 50°C.
Switch MTBF	400,000 hours.
Switch Surge Protection – Service Ports	±6 kV common mode.
Switch Surge Protection – Power Connector	±6 kV common mode and differential mode.
Switch Warranty	5 years.
Optical Module Model	XG-SFP-SR-MM850.
Optical Standard	10GBASE-SR.
Module Form Factor	SFP+.
Optical Data Rate	10.3125 Gbps.
Wavelength	850 nm.
Connector	Duplex LC, UPC.
Fibre Type	Multimode fibre.
OM3 Reach	Up to 300 m.
OM4 Reach	Up to 400 m.
Transmitter	VCSEL.
Receiver	PIN.
DOM/DDM	Supported.
Optical Module Power Consumption	≤1.5 W.
Optical Module Operating Temperature	0°C to 70°C.
Optical Module Operating Humidity	10% to 90% RH.
Optical Module Dimensions	Approximately 56.5 × 13.5 × 8.5 mm.
Optical Module Weight	Approximately 35 g.

Ideal Use Cases

Wi-Fi 6 & Wi-Fi 7 Deployments

Eight 2.5G PoE+ access ports help prevent conventional Gigabit Ethernet from becoming the wired bottleneck for compatible high-performance wireless access points.

High-Resolution CCTV

Multi-gigabit access, a 240 W PoE budget and 10G uplinks suit surveillance networks carrying large volumes of camera and recorder traffic.

Fibre-Linked Offices

The bundled 10G SR module provides a high-speed multimode fibre option between network cabinets, floors or compatible core infrastructure.

Schools & Education

Multi-gigabit PoE access can support high-performance wireless APs across classrooms, administration areas and shared learning environments.

Server & Storage Networks

Dual 10G SFP+ interfaces provide high-capacity connectivity toward compatible servers, NAS systems, core switches or other backbone equipment.

Choosing the Right Kit

Choose this bundle if: You need eight 2.5G PoE+ access ports, a 240 W PoE budget and an immediately usable 10G multimode fibre uplink.
Choose an additional XG-SFP-SR-MM850 if: You need both 10G SFP+ switch ports populated with short-range multimode optical modules.
Choose a single-mode SFP+ instead if: The fibre path is single-mode or exceeds the supported OM3/OM4 multimode distances of the included SR module.
Choose a larger multi-gigabit switch if: More than eight 2.5G powered edge devices are required or substantial future expansion is expected.

FAQs

What does the Ruijie Reyee RG-NBS3300-8MG2XS-P Bundle Kit include?
The bundle includes 1 × Ruijie Reyee RG-NBS3300-8MG2XS-P 8-port 2.5G PoE+ managed switch and 1 × Ruijie XG-SFP-SR-MM850 10GBASE-SR SFP+ optical transceiver module. The switch provides eight 2.5G PoE+ RJ45 ports and two 10G SFP+ uplinks, while the included optical module provides a 10G multimode fibre link using an 850 nm Duplex LC interface.
What network speeds does the RG-NBS3300-8MG2XS-P support?
The RG-NBS3300-8MG2XS-P provides eight 10/100/1000/2500BASE-T RJ45 ports and two 10GE SFP+ optical ports. Ruijie specifies 80 Gbps switching capacity and 59.52 Mpps forwarding performance. This makes the switch suitable for Wi-Fi 6 and Wi-Fi 7 access points, high-bandwidth CCTV devices and other network equipment that can benefit from 2.5G access and 10G uplinks.
What is the PoE budget of the RG-NBS3300-8MG2XS-P?
The switch provides eight PoE and PoE+ output ports with a total PoE budget of 240 W. Ruijie lists IEEE PoE/PoE+ support across all eight multi-gigabit copper ports. The combined maximum power requirement of all connected powered devices should remain within the 240 W total budget, particularly when using higher-power wireless access points, cameras or other PoE equipment.
What fibre cable should be used with the included XG-SFP-SR-MM850 module?
The XG-SFP-SR-MM850 is a 10GBASE-SR SFP+ transceiver designed for multimode fibre with a Duplex LC connector. Ruijie specifies a reach of up to 300 metres over OM3 multimode fibre and up to 400 metres over OM4 multimode fibre. It operates at an 850 nm wavelength and supports digital diagnostic monitoring, allowing compatible switches to report optical operating information.
Can the RG-NBS3300-8MG2XS-P be managed through the cloud?
Yes. The RG-NBS3300-8MG2XS-P supports Ruijie Reyee cloud management, including remote switch statistics, VLAN configuration and maintenance functions. It also supports enterprise-oriented switching features such as link aggregation, IGMP Snooping, VLANs, PoE watchdog, port isolation, broadcast storm control and CPU protection. For Security Wholesalers installations, these functions can simplify administration across business, Wi-Fi and surveillance networks.
What operating and protection specifications apply to this bundle?
Ruijie specifies an operating temperature from 0°C to 50°C, an MTBF of 400,000 hours and ±6 kV common-mode surge protection on service ports for the RG-NBS3300-8MG2XS-P. The XG-SFP-SR-MM850 operates from 0°C to 70°C, consumes no more than 1.5 W and supports 10% to 90% operating humidity. Both products should be installed in a suitable protected indoor network environment.
