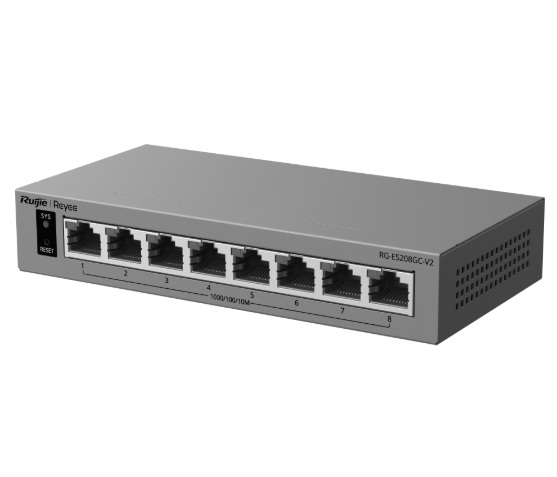

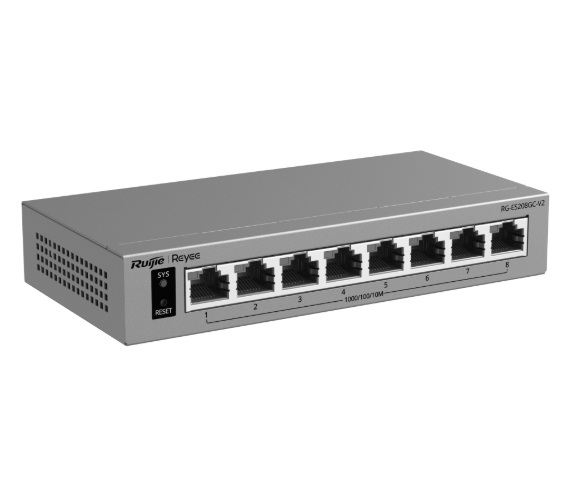

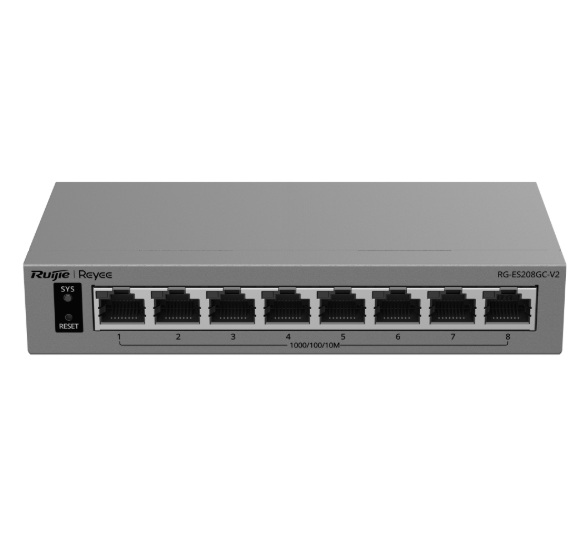

Ruijie Reyee RG-ES208GC V2 8-Port Gigabit Smart Cloud Managed Switch with VLAN Loop Prevention & Cloud Management

$70.95
WARRANTY GUARANTEED
SW ADVANTAGE✓ Trade-Price Verified✓ Priority Tech Support✓ Dedicated After-Sales Support✓ Easy Returns & Warranty

Ruijie Reyee RG-ES208GC V2 8-Port Gigabit Smart Cloud Managed Switch | 8 Gigabit RJ45 Ports | 16Gbps Switching Capacity | VLAN Configuration | Automatic Loop Prevention | Port Isolation | CCTV Network Mode | Ruijie Cloud Management | Fanless Design

The Ruijie Reyee RG-ES208GC V2 delivers an 8-port Gigabit smart cloud managed network switch designed for small businesses, offices, retail premises and CCTV networks requiring reliable wired connectivity and simplified management. Featuring eight 10/100/1000Mbps Ethernet ports, 16Gbps switching capacity and an 11.9Mpps forwarding rate, this Layer 2 switch provides efficient Gigabit data transmission for connecting computers, network video recorders, routers and other compatible Ethernet devices.

This model integrates cloud-based VLAN configuration, port isolation and intelligent network protection, making it a practical networking solution available at Security Wholesalers. It also supports automatic loop prevention, a dedicated CCTV operating mode and remote network monitoring through Ruijie Cloud to simplify troubleshooting and ongoing maintenance. Built with a compact fanless design and 6kV surge protection, the switch is suited to indoor installations where quiet operation, network stability and straightforward administration are important.

Key Features

  • 8 Gigabit Ethernet Ports: Provides eight 10/100/1000Mbps RJ45 ports for high-speed wired connectivity across compatible network devices.
  • 16Gbps Switching Capacity: Supports 16Gbps switching performance and an 11.9Mpps forwarding rate for efficient network traffic handling.
  • Smart VLAN Management: Supports VLAN configuration through the Ruijie Reyee App and Ruijie Cloud, with port isolation for improved network segmentation.
  • Automatic Loop Prevention: Helps detect and prevent network loops that could otherwise interrupt connected devices and network services.
  • Ruijie Cloud Management: Enables remote switch monitoring, configuration and network maintenance through the Ruijie Cloud platform.
  • CCTV Optimisation & Fanless Design: Features a dedicated CCTV operating mode, 6kV surge protection and quiet fanless operation for indoor networking installations.

Additional Information

$70.95 inc GST +3 Year Warranty & Support

Product SKU: RG-ES208GC-V2

Product Overview

The Ruijie Reyee RG-ES208GC-V2 is an 8-port Gigabit smart cloud-managed Layer 2 switch designed for CCTV, office, retail, hotel and small commercial networks requiring reliable Gigabit connectivity with simple remote management. All eight RJ45 ports support 10/100/1000BASE-T Ethernet, while the switch provides 16 Gbps switching capacity and an 11.90 Mpps forwarding rate. Smart protection features include automatic loop prevention and port isolation, helping reduce disruption caused by common network configuration issues. VLANs can be configured through the Ruijie Reyee App or Ruijie Cloud, while zero-touch provisioning and remote statistics monitoring simplify administration across multiple sites. A fanless design, 6 kV surge protection and three-year warranty further suit dependable indoor business networking.

Key Capabilities

8 × Gigabit Ethernet Ports

Eight 10/100/1000BASE-T RJ45 ports provide full Gigabit connectivity for cameras, NVRs, routers, workstations, access points with separate power and other Ethernet devices.

16 Gbps Switching Capacity

A 16 Gbps switching fabric and 11.90 Mpps forwarding rate provide the performance required for an eight-port Gigabit network carrying simultaneous traffic between multiple connected devices.

Automatic Loop Prevention

Smart loop protection is designed to help maintain network service when an accidental Ethernet loop occurs, reducing the risk of a simple cabling mistake disrupting the entire local network.

Cloud-Based VLAN Configuration

VLAN configuration through the Ruijie Reyee App and Ruijie Cloud allows supported network traffic to be segmented without requiring a larger enterprise switching platform.

Lifetime Ruijie Cloud Management

Cloud management provides zero-touch provisioning, remote statistics monitoring, VLAN configuration and maintenance functions from supported Ruijie management platforms.

6 kV Surge Protection

Built-in 6 kV surge protection adds resilience for indoor commercial networks where electrical disturbances could otherwise affect connected switching equipment.

Best For

  • CCTV Networks: Eight Gigabit ports suit NVRs, cameras with separate PoE power sources and other surveillance-network equipment.
  • Small Offices: Gigabit connectivity and cloud management provide a practical switching platform for PCs, printers, access points and business devices.
  • Retail Stores: VLAN configuration and remote management suit compact shop networks and multi-site deployments.
  • Hotels & Hospitality: Port isolation, VLAN support and fanless operation suit smaller guest, administration and back-office networks.
  • Network Retrofits: A straightforward eight-port Gigabit design can replace basic unmanaged switches where cloud visibility and protection features are now required.

Why Choose the RG-ES208GC-V2

The RG-ES208GC-V2 offers a useful middle ground between a basic unmanaged desktop switch and a more complex enterprise-managed model. Its eight Gigabit ports deliver straightforward high-speed connectivity, while automatic loop prevention, port isolation and cloud-configured VLANs provide meaningful network control without unnecessary complexity. Ruijie Cloud also adds zero-touch provisioning, remote statistics and simplified maintenance for distributed sites. The fanless design keeps acoustic noise low, while 6 kV surge protection adds resilience. Available through Security Wholesalers, the RG-ES208GC-V2 is particularly well suited to compact business and CCTV networks that need remote visibility but do not require PoE output or fibre uplinks.

Buyer Decision Tips

Buyer Tip: The RG-ES208GC-V2 is a non-PoE switch. If cameras, wireless access points or other devices need power through Ethernet, use separate PoE injectors or select a Reyee PoE switch with the required port count and total power budget.

Buyer Tip: All eight ports are copper Gigabit RJ45 interfaces. If the installation requires fibre uplinks, long-distance optical connections or SFP modules, choose a model with dedicated SFP interfaces rather than relying on this switch alone.

Key Features & Technical Specifications

Product Type 8-port Gigabit smart cloud-managed non-PoE switch.
Model RG-ES208GC-V2.
Switching Layer Layer 2.
Total RJ45 Ports 8.
Ethernet Ports 8 × 10/100/1000BASE-T Gigabit RJ45.
PoE Output No.
SFP Ports None specified.
Switching Capacity 16 Gbps.
Packet Forwarding Rate 11.90 Mpps.
VLAN Configuration Supported through Ruijie Reyee App and Ruijie Cloud.
Automatic Loop Prevention Supported.
Port Isolation Supported.
Zero-Touch Provisioning Supported through cloud management.
Cloud Statistics Monitoring Supported.
Cloud Management Lifetime management through Ruijie Cloud.
Reyee App Management Supported for functions including VLAN configuration.
Surge Protection 6 kV.

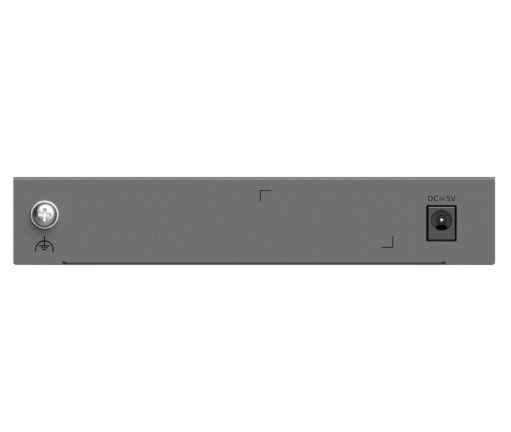

Cooling Fanless design.
Operating Temperature 0°C to 40°C.
Recommended Environment Indoor commercial and surveillance networks.
Warranty 3 years.

Ideal Use Cases

CCTV Recorder Networks

Eight Gigabit ports can connect NVRs, workstations, routers and cameras that already receive power from separate PoE equipment.

Small Offices

Gigabit connectivity, VLAN configuration and cloud monitoring suit workstations, printers, access points and other business devices.

Retail Stores

Remote management and network segmentation provide useful control for compact shop and back-office networks.

Hotels & Hospitality

Fanless operation and smart management suit smaller guest-services, administration and supporting network areas.

Multi-Site Business Networks

Ruijie Cloud management can provide central visibility across several smaller locations without requiring enterprise-scale local management systems.

Choosing the Right Model

  • Choose the RG-ES208GC-V2 if: You need eight Gigabit copper ports with cloud management, VLAN support and automatic loop protection but do not need PoE.
  • Choose a PoE model if: Connected cameras or access points need to receive power directly from the switch.
  • Choose an SFP-equipped model if: The network requires fibre uplinks or long-distance optical connections.
  • Choose a larger switch if: Eight Ethernet ports leave insufficient capacity for future network growth or redundancy.

FAQs

  1. What ports does the Ruijie Reyee RG-ES208GC-V2 provide?
    The Ruijie Reyee RG-ES208GC-V2 provides eight 10/100/1000BASE-T Gigabit RJ45 ports. It is a non-PoE Layer 2 smart cloud-managed switch, so the ports provide network connectivity only and do not supply power to connected devices. This makes it suitable for NVRs, workstations, routers, access points with separate power, and other Gigabit Ethernet equipment.
  2. What switching performance does the RG-ES208GC-V2 provide?
    The RG-ES208GC-V2 has a switching capacity of 16 Gbps and a packet forwarding rate of 11.90 Mpps. These specifications match the requirements of an eight-port Gigabit switch operating at full-duplex line rates and make it suitable for compact CCTV, office, retail and hospitality networks where all connected devices require Gigabit Ethernet connectivity.
  3. Does the RG-ES208GC-V2 support VLAN configuration?
    Yes. Ruijie lists VLAN configuration through the Ruijie Reyee App and Ruijie Cloud. This allows installers or administrators to separate supported network traffic logically without needing a larger enterprise switch. VLAN capability can be useful for CCTV, office and guest-network segmentation where devices need to remain on the same physical switch but operate within separate logical network groups.
  4. How does automatic loop prevention work on the RG-ES208GC-V2?
    Ruijie promotes automatic loop prevention as a smart protection feature designed to help maintain service continuity when an Ethernet loop occurs. This is useful in small networks where accidental patching can create a switching loop and disrupt traffic. The function helps reduce the risk of a simple cabling mistake taking down the entire local network.
  5. Can the RG-ES208GC-V2 be managed through Ruijie Cloud?
    Yes. The RG-ES208GC-V2 supports lifetime management through Ruijie Cloud. Ruijie lists zero-touch provisioning, remote switch-statistics monitoring, VLAN configuration through the Reyee App or cloud platform, and remote maintenance functions. For Security Wholesalers installations, this can reduce onsite administration for small CCTV, office, retail and hospitality networks that need simple remote visibility.
  6. What environmental and protection features does the RG-ES208GC-V2 provide?
    Ruijie specifies a fanless design, 6 kV surge protection and an operating temperature range from 0°C to 40°C for the RG-ES208GC-V2. The switch is intended for indoor use and carries a three-year warranty. Its compact, silent design suits equipment cupboards, offices, reception areas and other locations where low acoustic noise and straightforward maintenance are important.

Additional Information

SKU: RG-ES208GC-V2 Categories: ,
