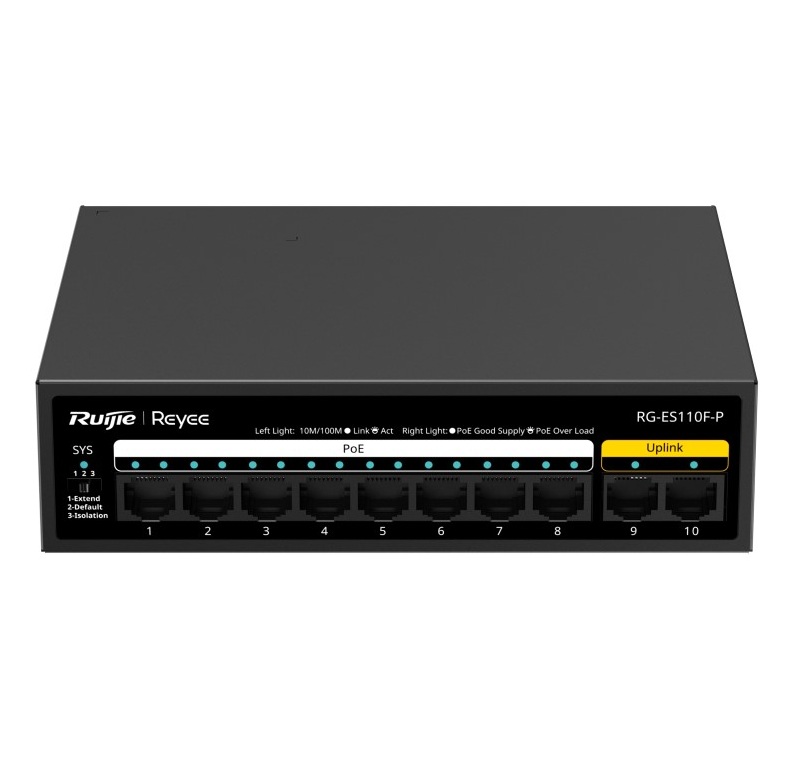

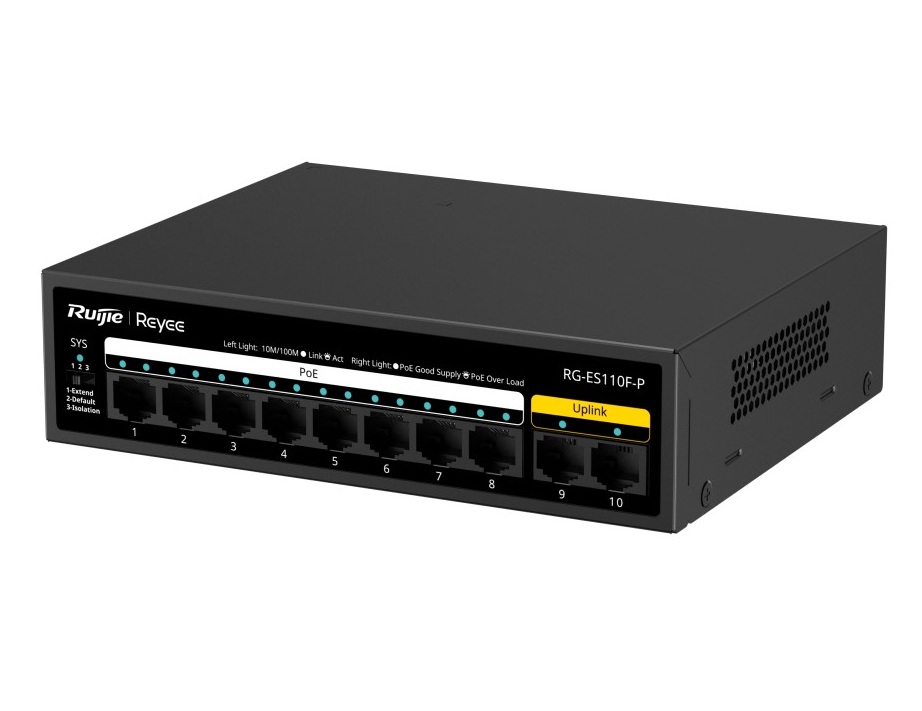

Ruijie Reyee RG-ES110F-P 10-Port 10/100Mbps Unmanaged PoE Switch with 8 PoE+ Ports, 110W PoE Budget, 250m CCTV Transmission

Name: Ruijie Reyee RG-ES110F-P 10-Port 10/100Mbps Unmanaged PoE Switch with 8 PoE+ Ports, 110W PoE Budget, 250m CCTV Transmission
Brand: Ruijie
SKU: RG-ES110F-P
Price: 99.72 AUD
Availability: InStock

$99.72

WARRANTY GUARANTEED

✔ Dedicated 5★ Customer Care Team ✔ Fast & Responsive Tech Support

The Ruijie Reyee RG-ES110F-P delivers a 10-port 10/100Mbps unmanaged PoE switch designed for CCTV, access control, intercom, and small business network installations requiring simple power and data connectivity. Featuring 8 PoE+ ports, a 110W PoE budget, and up to 250m CCTV transmission support, it provides a practical switching option for compatible IP cameras and PoE network devices.

It also supports plug and play deployment without complex configuration, with this switch available at Security Wholesalers for professional security and networking projects. This makes it suitable for homes, retail stores, cafés, offices, small warehouses, camera networks, and compact surveillance systems requiring reliable PoE connectivity. Built as an unmanaged Reyee switch, it helps simplify installation while supporting extended camera transmission where suitable cabling and device conditions allow.

Key Features

10-Port Switch Design: Provides compact wired connectivity for CCTV, business, and small network installations.
8 PoE+ Ports: Powers compatible IP cameras, intercoms, access points, and other PoE network devices.
110W PoE Budget: Supports multiple connected PoE devices within the shared switch power capacity.
250m CCTV Transmission: Supports extended camera transmission in suitable CCTV mode and installation conditions.
Unmanaged Plug & Play: Offers straightforward deployment without advanced configuration.
Security Network Fit: Suitable for homes, retail stores, offices, small warehouses, cafés, and compact surveillance systems.

Additional Information

Ruijie RG-ES110F-P_Datasheet

$99.72 inc GST +3 Year Warranty & Support

Description

Product SKU: Ruijie Reyee RG-ES110F-P

Product Overview

The Ruijie Reyee RG-ES110F-P 10-Port 10/100Mbps Unmanaged PoE Switch is designed for CCTV, small business, retail, office and compact security network deployments where multiple PoE devices need simple plug-and-play connectivity. It features 8 PoE+ ports, a 110W PoE budget and up to 250m CCTV transmission support, making it suitable for compatible IP cameras, access points, intercoms and other PoE-powered network devices. The unmanaged design allows quick installation without advanced switch configuration. This model is best selected where a cost-effective PoE switch is required for small-to-medium CCTV systems using Fast Ethernet connectivity.

Key Capabilities

10-Port Network Design

The RG-ES110F-P provides 10 ports for connecting CCTV, office and security devices in compact network deployments.

8 PoE+ Ports

Eight PoE+ ports allow compatible powered devices to receive power and data through the same Ethernet cable.

110W PoE Budget

The 110W PoE budget supports small-to-medium deployments with compatible IP cameras, intercoms, access points and other PoE-powered devices.

250m CCTV Transmission

Up to 250m CCTV transmission support helps extend compatible camera connections beyond typical short Ethernet runs when configured for CCTV use.

Unmanaged Plug-and-Play Operation

The unmanaged design allows simple deployment without advanced switch configuration, making it practical for quick CCTV and small network installations.

Best For

Small-to-Medium CCTV Systems: Suitable for powering and connecting multiple compatible IP cameras.
Retail and Office Security: Practical for shops, offices, counters, storerooms and compact business spaces needing PoE device connectivity.
PoE Access Point Installations: Useful for powering compatible wireless access points where Fast Ethernet is sufficient.
Intercom and Security Devices: A good option for compatible door stations, intercoms and powered network devices.
Simple Plug-and-Play Deployments: Best where unmanaged PoE switching is preferred without VLAN setup or advanced configuration.

Why Choose the RG-ES110F-P

The RG-ES110F-P is a practical choice when a small or medium CCTV system needs multiple PoE+ ports, a solid PoE power budget and simple unmanaged operation. Its 8 PoE+ ports and 110W PoE budget make it suitable for powering compatible cameras, intercoms and access points, while the 250m CCTV transmission support is useful for selected camera runs where extended distance is required. The plug-and-play design reduces setup time and keeps installation straightforward. For systems supplied through Security Wholesalers, this switch should be selected after confirming device count, PoE wattage, cable length, uplink requirements, transmission mode and whether 10/100Mbps Fast Ethernet is suitable for the site.

Buyer Decision Tips

Buyer Tip: Choose the RG-ES110F-P when you need a 10-port 10/100Mbps unmanaged PoE switch with 8 PoE+ ports, a 110W PoE budget and up to 250m CCTV transmission support.

Installation Tip: Confirm total PoE power demand, camera count, cable length, connected device bandwidth, uplink requirements and whether extended CCTV transmission mode is suitable before installation.

Key Features & Technical Specifications

Model	RG-ES110F-P
Brand	Ruijie Reyee
Product Type	Unmanaged PoE switch
Switch Series	Reyee unmanaged switch
Port Count	10 ports
Port Speed	10/100Mbps Fast Ethernet
PoE Ports	8 × PoE+ ports
PoE Budget	110W
Transmission Support	Up to 250m CCTV transmission
Management	Unmanaged
Setup Type	Plug and play
Primary Use	PoE network expansion for compatible powered devices and CCTV installations
Typical Applications	IP cameras, wireless access points, intercoms, small offices, retail stores, compact security systems and PoE device groups
Installation Type	Desktop, shelf, cabinet or small network area installation with suitable power and cabling
Best Use	Small-to-medium CCTV networks, PoE camera deployments, plug-and-play PoE switching and extended CCTV cable runs where supported
Deployment Consideration	Confirm device count, PoE budget, individual device wattage, cable length, uplink requirements, bandwidth needs, transmission mode and whether unmanaged Fast Ethernet switching is suitable before installation

Ideal Use Cases

CCTV Camera Networks

Use the switch to power and connect multiple compatible PoE cameras in small-to-medium security systems.

Extended Camera Cable Runs

Suitable for selected CCTV installations where up to 250m transmission support is required and compatible with the setup.

Retail Security Systems

Practical for shops, counters, storerooms and back-office areas requiring simple PoE camera or intercom connectivity.

Small Office PoE Devices

A good option for powering compatible access points, phones, intercoms or other PoE network equipment.

Simple PoE Expansion

Useful where an unmanaged PoE switch can power several devices without requiring managed switch features.

Choosing the Right Model

Choose this model if: You need a Ruijie Reyee 10-port 10/100Mbps unmanaged PoE switch with 8 PoE+ ports, a 110W PoE budget and 250m CCTV transmission support.
Choose a different switch if: The site needs Gigabit speed for high-bandwidth cameras, more PoE ports, a higher PoE budget, managed switching, VLANs, fibre uplinks, rackmount installation or advanced administration.
Check before ordering: Confirm camera count, device wattage, total PoE budget, cable distance, uplink speed, power location, installation area and whether unmanaged 10/100Mbps PoE switching suits the network design.

FAQs

What is the Ruijie Reyee RG-ES110F-P used for?
The RG-ES110F-P is used as an unmanaged PoE switch for CCTV, small office, retail and powered network device installations. It is suitable for connecting compatible IP cameras, wireless access points, intercoms and other PoE-powered devices.
How many PoE ports does this switch have?
This model provides 8 PoE+ ports for compatible powered devices. Before installation, confirm the total number of cameras or PoE devices required and whether the available ports are enough.
What is the PoE budget?
The RG-ES110F-P has a 110W PoE budget. The total power draw of connected PoE devices should be calculated to ensure the switch can support the full installation.
What does 250m CCTV transmission mean?
250m CCTV transmission support allows compatible CCTV connections to run longer than typical Ethernet distances when the switch and connected devices are configured for the supported mode. Final performance depends on cable quality, camera requirements and site conditions.
Does this switch need configuration?
No. The switch is unmanaged and designed for plug-and-play operation, making it suitable for simple deployments where advanced VLAN or management features are not required.
Can this switch power IP cameras?
Yes, it can power compatible PoE cameras through its PoE+ ports, provided the total camera power draw remains within the 110W PoE budget. For systems supplied through Security Wholesalers, camera wattage and cable distance should be checked before installation.
When should I choose a Gigabit PoE switch instead?
Choose a Gigabit PoE switch when the site needs higher bandwidth for multiple high-resolution cameras, faster uplinks, larger data transfers or more future-proof network performance. The RG-ES110F-P is better suited to cost-effective Fast Ethernet CCTV deployments.
What should be checked before installation?
Before installation, confirm device count, individual PoE wattage, total PoE budget, cable distance, cable quality, uplink requirements, power outlet availability, camera bandwidth, transmission mode and whether unmanaged Fast Ethernet switching is suitable for the network.

Additional Information

Ruijie RG-ES110F-P_Datasheet

SKU: RG-ES110F-P Categories: Ruijie Networking, Ruijie PoE Switches
