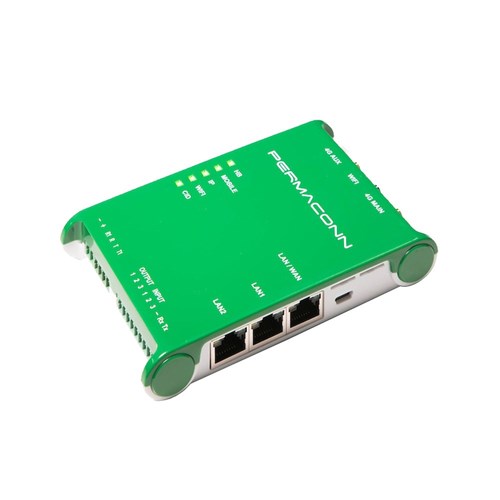

The PM54 is an industry-first 3-in-1 connectivity solution that combines a high-speed 4G router with a Wi-Fi hotspot and an alarm communicator. It provides secure comms for any network-ready device including intruder alarms, IP cameras, access control systems and IoT devices.
© Security Wholesalers Australia. All rights reserved. https://www.securitywholesalers.com.au/product/permaconn-pm54-3-in-1-dual-sim-alarm-communicator-4g-router-and-wifi/
This PM54 can interface with a wide range of alarm panels using RS232, Contact ID and IP.
Features of the Permaconn PM54
- Contact ID dialler capture compatible with most panels
- Serial interface supporting multiple panel protocols
- Remote alarm panel Upload / Download to most popular alarm panels
- Three Inputs and three Outputs with function control using Atlas and / or Pocket Secure
- Monitors and reports status of alarm panel dialler interface lead
- No onsite programming required
- RF signal strength indicator
- Router function with Atlas management portal
- Device fully configurable using Atlas via 4G or IP
- Wi-Fi hotspot (Station mode) to connect wireless devices
- Wi-Fi Client (AP mode) allows connection to an existing Wi-Fi network
- One WAN port allows connection to an existing onsite internet gateway
- Two LAN ports to connect to wired devices, alarm panels or network switches
- LTE Gateway capable of 5Mbps uplink and 10Mbps downlink
- Configure IP settings using a cellular 4G remote connection
- Dual SIM 4G LTE with 3G fallback communicates on Optus and Telstra networks
- Non volatile memory stores all setup information in the event of a power failure
Installation Guide
4G LTE-FDD:
Frequency: B1(2100) B3(1800) B5(850) B8(900) B28(700)
Bandwidth: Max 10Mbps (DL) Max 5Mbps (UL)
© Security Wholesalers Australia. All rights reserved. https://www.securitywholesalers.com.au/product/permaconn-pm54-3-in-1-dual-sim-alarm-communicator-4g-router-and-wifi/
3G HSPD+:
Frequency: B1(2100) B5(850) B8(900)
Bandwidth: Max 21Mbps (DL) Max 5.76Mbps (UL)
Antenna:
2 antennas for Cellular (MIMO) + 1 for Wi-Fi
WIFI Capability:
Supports: IEEE 802.11b/g/n
Frequency: 2.4GHz
Ethernet Specs:
Ports: 3 x RJ-45 port
Physical layer: 10/100Base-T
Data rate: 10/100 Mbps
Interface: Auto MDI/MDIX
Routing/Failover:
IP pass-through; NAT, NAPT with IP Port Forwarding; Ethernet Bridging; DHCP; DNS Client and Server
Failover:
Automatic failover/failback to second cellular SIM, Wi-Fi or Ethernet.
IP/Wi-Fi to SIM A and finally SIM B.
Management:
Remote configuration via Atlas web portal
Data Modem:
2400 baud modem for alarm panel remote upload / download
Serial Port:
High Speed RS232 interface for serial connection to alarm and access control panels
Auxiliary Input:
3 x 24Hr inputs state change detected every second EOL 3.3K
Auxiliary Output:
3 x Open Collector outputs @ 50mA (max).
Function control using Atlas web portal and/or Pocket Secure app
Dimensions:
110mm (h) x 25mm (d) x 80mm (w)
Weight:
180 g
Power:
10 to 15V DC
Consumption:
Idle 0.12A @13.8V DC
Transmitting:
0.35A @13.8V DC
