Omada SG2210XMP-M2 10-Port Smart Managed Multi-Gigabit PoE+ Switch with 8 x 2.5G PoE+ Ports 2 x 10G SFP+ & 160W PoE Budget

Product SKU: SG2210XMP-M2

Product Overview

The Omada SG2210XMP-M2 is a 10-port smart managed multi-gigabit PoE+ switch designed for Wi-Fi 6 and Wi-Fi 7 access points, surveillance systems, servers and other business networks that need faster-than-Gigabit edge connectivity. Eight 100/1000/2500 Mbps RJ45 ports support IEEE 802.3af/at PoE and PoE+, while two dedicated 10G SFP+ slots provide high-capacity fibre or direct-attach uplinks. A 160 W total PoE budget supports compatible powered devices with up to 30 W available per PoE+ port. Layer 2+ features including static routing, VLANs, link aggregation, multicast management and advanced security combine with Omada SDN centralised management for flexible business deployment.

Key Capabilities

Best For

• Wi-Fi 6 & Wi-Fi 7 Access Points: 2.5G PoE+ access ports help avoid the 1G Ethernet bottleneck on compatible high-performance APs.
• High-Bandwidth CCTV: Multi-gigabit edge ports and 10G uplinks suit larger surveillance traffic loads and high-resolution IP camera networks.
• Servers & Storage: Dual SFP+ uplinks provide high-capacity connectivity to compatible servers, NAS devices and core switches.
• Offices & Education: VLANs, QoS, access control and Omada central management suit structured commercial networks.
• Multi-Gigabit Network Upgrades: Provides a practical step beyond conventional Gigabit PoE switching without moving every connection to 10G.

Why Choose the SG2210XMP-M2

The SG2210XMP-M2 combines multi-gigabit PoE access, 10G uplinks and a strong managed feature set in a compact fanless switch. Its eight 2.5G PoE+ interfaces are particularly useful for modern Wi-Fi access points and other devices that can exceed standard Gigabit Ethernet throughput, while the two 10G SFP+ ports provide enough upstream capacity to aggregate that traffic efficiently. Layer 2+ static routing, VLANs, ACLs, multicast controls and secure authentication provide considerably more control than a basic smart switch. Available through Security Wholesalers, the SG2210XMP-M2 is well suited to compact business networks that need multi-gigabit performance and Omada SDN integration.

Buyer Decision Tips

Key Features & Technical Specifications

Product Type	10-port smart managed multi-gigabit PoE+ switch.
Model	SG2210XMP-M2.
Copper Ports	8 × 100/1000/2500 Mbps RJ45.
SFP+ Ports	2 × 10G SFP+.
PoE Ports	8 × PoE/PoE+ RJ45 ports.
PoE Standards	IEEE 802.3af and IEEE 802.3at.
Maximum PoE Per Port	Up to 30 W on a supported PoE+ port.
Total PoE Budget	160 W.
Switching Capacity	80 Gbps.
Packet Forwarding Rate	59.52 Mpps.
Packet Buffer	12 Mbit.
MAC Address Table	16K entries.
Jumbo Frame	9 KB.
Static Routing	Up to 32 IPv4/IPv6 static routes.
IP Interfaces	Up to 32 IPv4/IPv6 interfaces.
VLAN	Up to 4K VLAN groups with 802.1Q Tagged VLAN, MAC VLAN, Protocol VLAN, GVRP and Voice VLAN.
Link Aggregation	Supported.
Spanning Tree	STP, RSTP and MSTP supported.
Loopback Detection	Supported.
IGMP Snooping	Supported.
Multicast Groups	Up to 511 shared IPv4/IPv6 multicast groups.
DHCP Server	Supported.
DHCP Relay	Supported.
QoS	802.1p CoS/DSCP, 8 priority queues, SP/WRR scheduling and bandwidth control.
ACL	Up to 230 entries with MAC, IP, IPv6, combined and time-based ACL support.
802.1X Authentication	Supported with RADIUS integration.
DHCP Snooping	Supported.
IP-MAC-Port Binding	Supported.
Port Security	Supported.
Port Isolation	Supported.
Storm Control	Broadcast, multicast and unknown-unicast storm control.
DoS Defence	Supported.
IPv6	IPv6 static routing, ACL, dual IPv4/IPv6, MLD Snooping and related IPv6 management functions supported.
Centralised Management	Omada Cloud-Based Controller, Omada Hardware Controller or Omada Software Controller.
Standalone Management	Web-based GUI and CLI supported.
SNMP	SNMP v1/v2c/v3.
RMON	Supported.
Zero-Touch Provisioning	Supported with Omada Cloud-Based Controller.
Cooling	Fanless.
Enclosure	Compact metal casing.

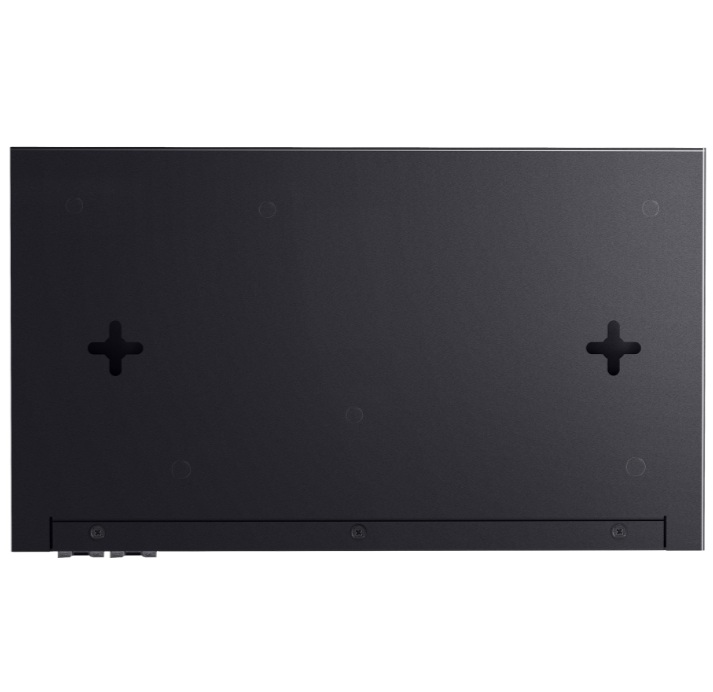

Mounting	Desktop or wall mounting.

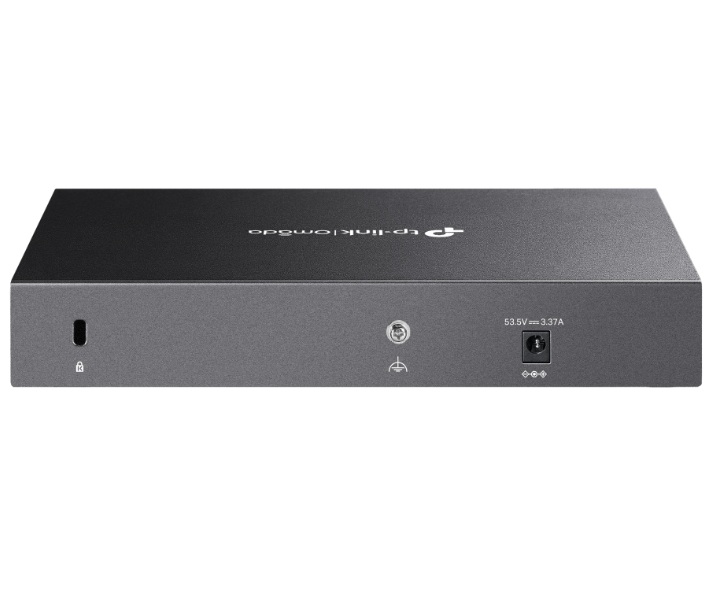

Power Supply	External 53.5 VDC, 3.37 A power adapter.
Maximum Power Consumption	180.1 W with a full 160 W PoE load connected.
Dimensions	226 × 131 × 35 mm.
Operating Temperature	0°C to 40°C.
Storage Temperature	-40°C to 70°C.
Operating Humidity	10% to 90% RH, non-condensing.
Storage Humidity	5% to 90% RH, non-condensing.
Certifications	CE and FCC.

Ideal Use Cases

Choosing the Right Model

• Choose the SG2210XMP-M2 if: You need eight 2.5G PoE+ access ports, dual 10G SFP+ uplinks and a 160 W PoE budget.
• Choose a higher-PoE-budget model if: The combined maximum load of your powered devices exceeds 160 W.
• Choose a larger multi-gigabit switch if: More than eight 2.5G access devices are required or significant future growth is expected.
• Choose this model over an unmanaged multi-gigabit switch if: VLANs, static routing, ACLs, authentication, multicast control and Omada SDN management are important to the network design.

FAQs

1. What ports does the Omada SG2210XMP-M2 provide?
   The Omada SG2210XMP-M2 provides eight 100/1000/2500 Mbps RJ45 PoE+ ports and two 10G SFP+ slots. This gives the switch ten network interfaces in total, with all eight copper ports supporting IEEE 802.3af/at PoE and PoE+. The two SFP+ uplinks are designed for high-speed fibre or direct-attach connectivity to compatible core switches, servers or other 10G network equipment.
2. What is the PoE budget of the SG2210XMP-M2?
   The SG2210XMP-M2 provides a total PoE budget of 160 W across its eight PoE+ ports, with up to 30 W available per supported port under IEEE 802.3at. The total connected PoE load should remain within the switch budget, so installers should add the maximum consumption of access points, cameras, phones or other powered devices rather than relying only on average power usage.
3. What switching performance does the SG2210XMP-M2 provide?
   The SG2210XMP-M2 provides 80 Gbps switching capacity and a 59.52 Mpps packet forwarding rate. It also includes a 12 Mbit packet buffer, a 16K MAC address table and support for 9 KB jumbo frames. This performance suits multi-gigabit Wi-Fi 6 and Wi-Fi 7 access points, surveillance devices, servers and other business equipment requiring 2.5G access with 10G uplinks.
4. Does the SG2210XMP-M2 support Layer 2+ and static routing features?
   Yes. The SG2210XMP-M2 supports Layer 2 and Layer 2+ functions including 802.1Q VLANs, link aggregation, STP/RSTP/MSTP, IGMP Snooping, DHCP Server, DHCP Relay, port mirroring, flow control and static routing. Omada specifies support for up to 32 IPv4/IPv6 static routes, allowing the switch to handle simple internal routing between network segments without relying entirely on an upstream router.
5. Can the SG2210XMP-M2 be managed through Omada SDN?
   Yes. The SG2210XMP-M2 integrates with the Omada SDN platform and supports centralised management through Omada Cloud-Based, Hardware or Software Controllers. It also supports standalone web and CLI management, SNMP and RMON. For Security Wholesalers installations, this provides flexibility to manage a single switch locally or include it within a larger centrally managed Omada network.
6. What are the physical and environmental specifications of the SG2210XMP-M2?
   The SG2210XMP-M2 measures approximately 226 × 131 × 35 mm and uses a fanless metal enclosure suitable for desktop or wall mounting. It operates from 0°C to 40°C and supports 10% to 90% non-condensing operating humidity. The switch uses an external 53.5 VDC, 3.37 A power adapter and can consume up to 180.1 W with a full 160 W PoE load connected.

Additional Information

• Omada SG2210XMP-M2 Datasheet
