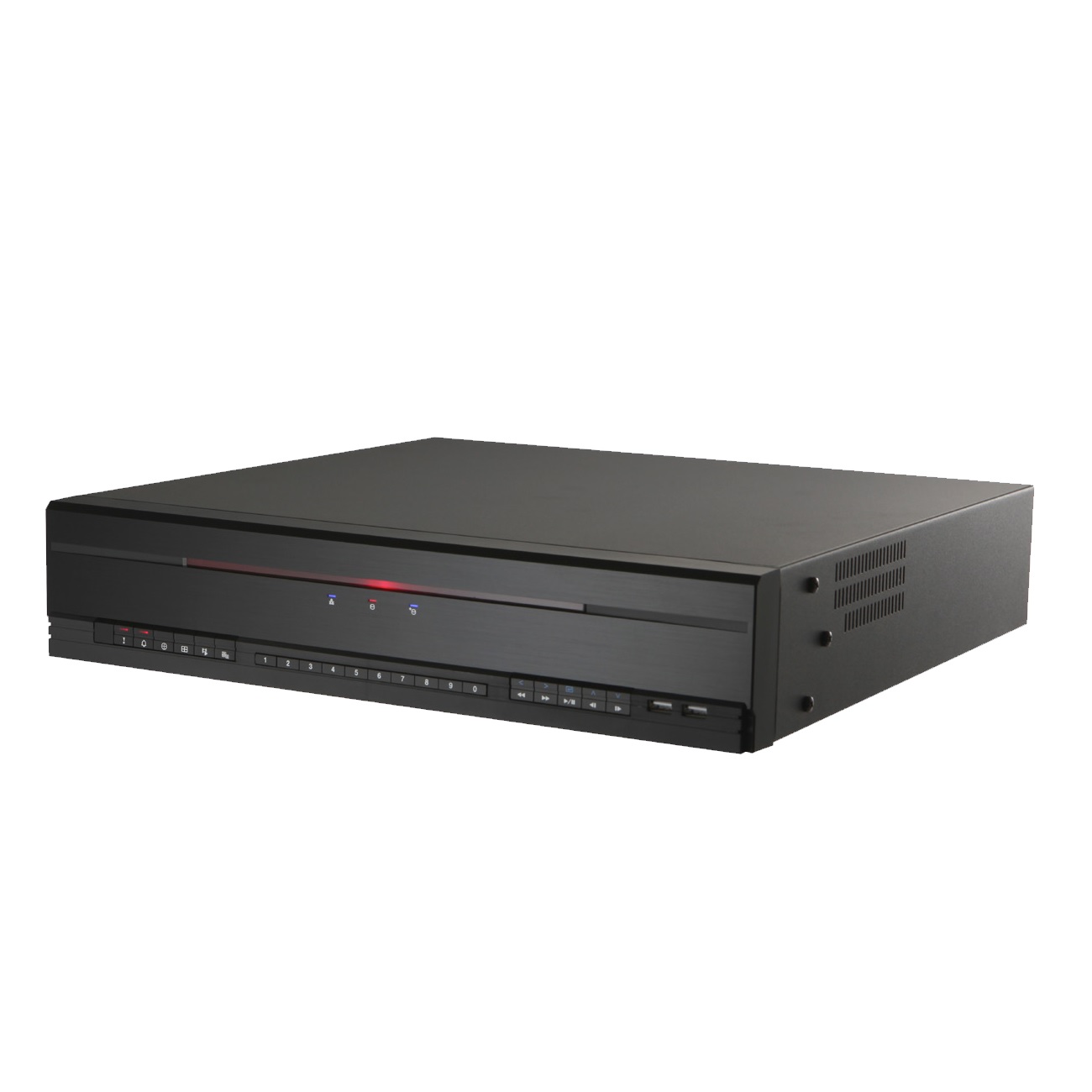

IDIS DR-3516P DirectIP 3500 Series H.265 4K Recorder, NDAA Compliant, 2TB HDD

The IDIS DR-3516P DirectIP™ 3500 Series H.265 4K Recorder is a high-performance NVR designed for seamless integration with IDIS DirectIP cameras. It supports up to 16 channels of real-time recording in Ultra HD 4K, ensuring crisp, detailed video footage for critical surveillance applications. Utilizing the H.265 video compression standard, the DR-3516P significantly reduces bandwidth and storage requirements while maintaining high video quality. The recorder is equipped with a powerful 320 Mbps throughput, ensuring smooth operation even under heavy loads. It also features dual monitor outputs, allowing operators to view multiple camera feeds simultaneously. For enhanced security, the recorder supports advanced encryption technologies to protect recorded data from unauthorized access. Its intuitive interface makes it easy to manage recordings, playback, and configure settings. Additionally, the DR-3516P is compatible with IDIS Intelligent Codec, which further optimizes storage by automatically adjusting the bitrate based on motion and scene complexity. The unit offers flexible storage options with support for up to 56TB of internal storage, ideal for long-term retention of video data.

Key Features

Total incoming throughput 320Mbps
Up to 480ips UHD real-time recording
Supports H.265 / H.264 codec
Supports UHD display
Up to 480ips live display
Easy to install, set-up and play with DirectIP™ cameras
Built-in 16 channel PoE Switch
Expandable up to 56TB using eSATA storage
Supports one-click network configuration through FEN service
Supports third-party cameras (Axis, Panasonic, ONVIF™)

$2,000.00 inc GST +3 Year Warranty & Support

Description
Video

16Ch

DirectIP

FEN Service

Quickly Backup

Scalability

NDAA Compliant

Redundancy Protection

The IDIS DR-3516P DirectIP™ 3500 Series H.265 4K Recorder is designed to provide high-performance video recording for advanced surveillance systems. Supporting up to 16 channels, this recorder delivers crystal-clear 4K resolution, ensuring that all video footage is captured in the highest quality possible. Its H.265 compression technology reduces bandwidth and storage requirements by up to 50%, making it efficient for long-term video storage without compromising quality. The DR-3516P features real-time recording at 30 frames per second per channel, guaranteeing smooth and uninterrupted playback. Equipped with a user-friendly interface, it offers seamless integration with IDIS cameras and DirectIP™ solutions, simplifying setup and management. It also features dual-streaming technology, allowing remote viewing of video in lower resolution while maintaining high-definition recording. With its built-in 320 Mbps throughput, the recorder is optimized for large-scale video data transfers. The DR-3516P supports various video analytics features, including motion detection and tamper alarms, for enhanced security monitoring. This recorder is an ideal choice for businesses requiring reliable, scalable, and high-definition video surveillance solutions.

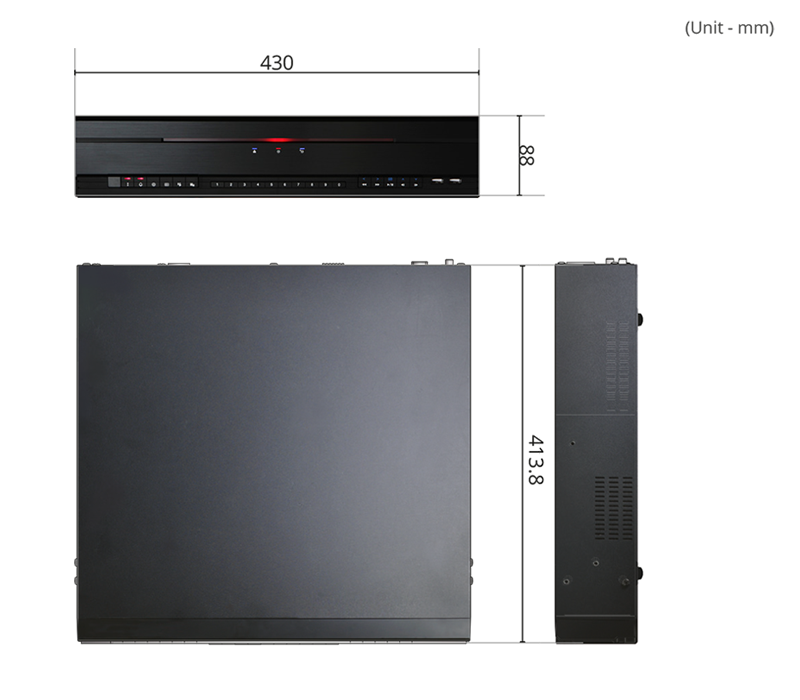

Dimension

Technical Specifications

Video
Video Inputs	16 IP channels
Max. Incoming Throughput	320Mbps
Supported Camera	DirectIP™, AXIS, PANASONIC, ONVIF™
Video Outputs	1 HDMI, 1 VGA
Display Resolution	HDMI : 3840×2160, 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200 VGA : 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200
Display Speed	Up to 480ips
Digital Zoom	x2 ~ x12
NVR Side Dewarping	–
Recording
Max. Throughput	180Mbps, 480ips@UHD
Recording Resolution	Up to 12MP (Depending on IP Camera)
Video Compression	H.265, H.264
Recording Mode	Time-Lapse, Event, Pre-Event, Panic
Trigger Event	IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc.
Playback
Performance	16ch synchronous playback 8ch 4K playback
Search Mode	Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite)
Digital Zoom	x2 ~ x12
Storage
HDD	SATA x 4, eSATA x 2
Total Capacity	The maximum HDD capacity is updated as new HDD models become available.
Network
Client Connection	Gigabit Ethernet(Client) x1
Video In Connection	Fast Ethernet(IP Camera) x16 +Gigabit Ethernet(Ext) x1
Transmission Speed	50Mbps / 100Mbps(BRP Mode)
PSE Power	PoE(IEEE 802.3at class 4) supported 16 ports, 130W
Event Notification	Email (attach clip (.cbf) .MP4), Callback to Remote S/W, Push notification (IDIS Mobile)
Two-way Audio	Yes
Interface
Audio In / Out	Local (NVR) : 1 RCA / 1RCA + 1HDMI IP Camera : 16 / 16 (Depending on IP Camera)
Alarm In / Out	Local(NVR) : 4 / 1 IP Camera : 16 / 16 (Depending on IP Camera)
Alarm Reset In	Yes
Serial Interface	RS232 (Terminal Block), RS485 (Terminal Block)
USB	USB 2.0 x 2, USB 3.0 x 1
User Interface	Mouse, IR Remote Control, Network Remote Keyboard
General
Operating System	Embedded Linux
Environmental
Operating Temperature	0°C to 40°C (32℉ ~ 104℉)
Operating Humidity	0% ~ 90%
Electrical
Power Consumption	100-240V~, 50/60Hz, 3.0-1.5A, 200W
Approval	FCC, CE, KC, CB, UL, PSE
Mechanical
Unit Dimensions (W x H x D)	430mm x 88mm x 420.5mm (16.9″ x 3.5″ x 16.6″)
Unit Weight	8.1kg (17.9 lb) (with 2 HDD)

SKU: DR-3516P-2TB Categories: CCTV Surveillance, Encoders and Decoders, IDIS, NVRs Tags: cctv encoder, DR-3516P, idis decoder, idis encoder, Idis HD Encoder, idis NVR
