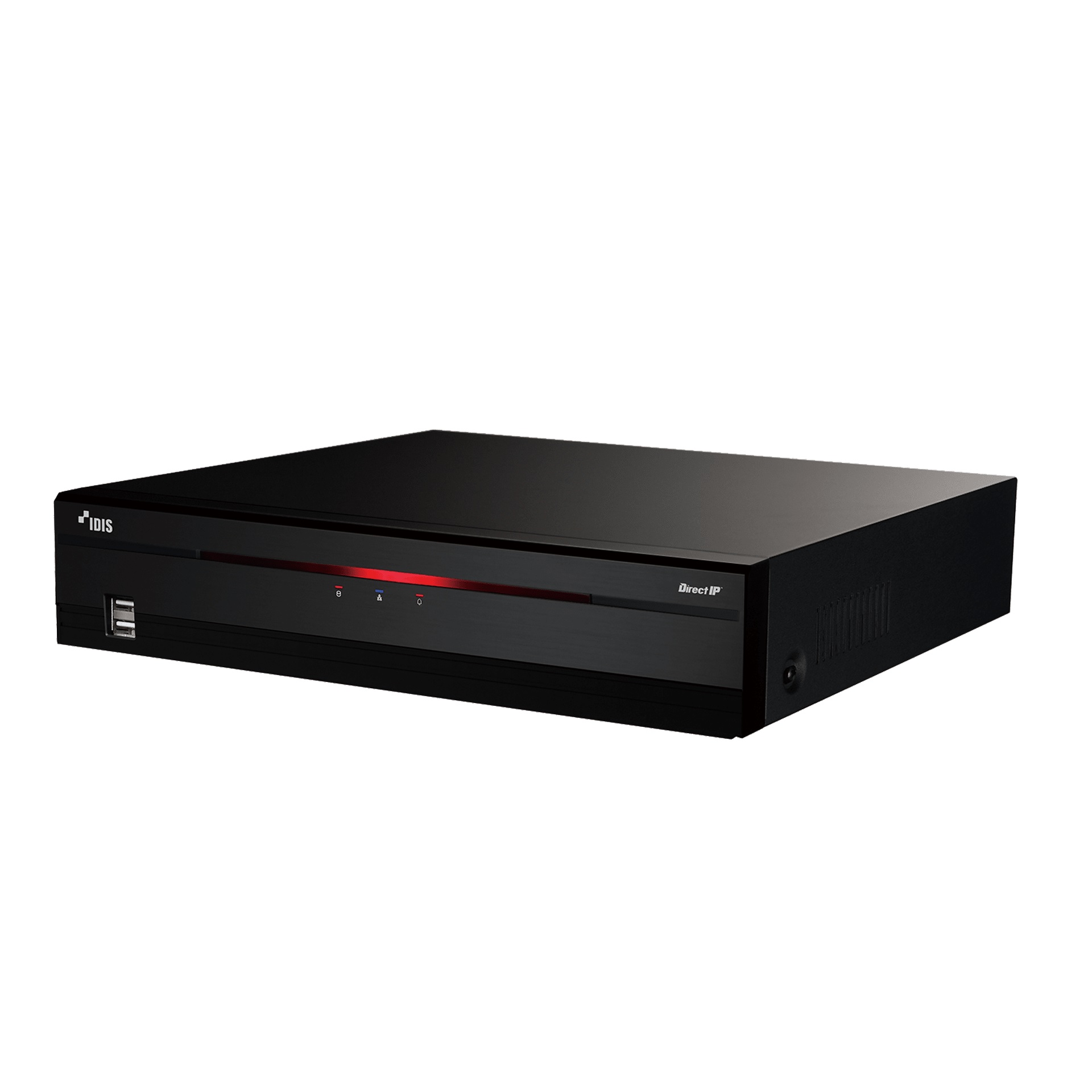

IDIS DR-2516P DirectIP™ 2500 Series H.265 4K Recorder, NDAA Compliant, 2TB HDD

The IDIS DR-2516P DirectIP™ 2500 Series H.265 4K Recorder is a highly advanced network video recorder (NVR) designed to deliver seamless, high-quality video recording and playback. With support for up to 16 channels, it offers robust scalability for medium-sized surveillance systems. This recorder uses H.265 video compression technology, which ensures efficient bandwidth usage while maintaining high-resolution video, significantly reducing storage requirements compared to older compression methods. It supports 4K ultra-high-definition (UHD) output, providing crystal-clear video quality for both live monitoring and playback. Equipped with powerful features like motion detection, tamper detection, and event-based recording, it enhances security by capturing critical incidents with precision. The DR-2516P also supports plug-and-play installation with IDIS DirectIP™ cameras, simplifying setup and reducing the need for extensive network configurations. Its intuitive interface ensures easy management and operation, whether through a connected monitor or remotely via IDIS’s mobile and web applications. Additionally, it integrates seamlessly with third-party devices and systems, offering flexibility for various security environments.

Key Features

Total incoming throughput 320Mbps
Up to 480ips UHD real-time recording
Supports H.265 / H.264 codec
Supports UHD display
Up to 480ips live display
Easy to install, set-up and play with DirectIP™ cameras
Built-in 8 channel PoE switch
Supports one-click network configuration through FEN service
Supports third-party cameras (Axis, Panasonic, ONVIF™)

$1,474.00 inc GST +3 Year Warranty & Support

Description
Video

16Ch

DirectIP

FEN Service

Quickly Backup

Scalability

NDAA Compliant

Redundancy Protection

The IDIS DR-2516P is a 16-channel DirectIP™ 2500 Series H.265 4K Recorder designed to provide superior video recording and storage capabilities for large-scale surveillance needs. This recorder supports real-time 4K UHD video output, ensuring high-resolution monitoring and playback. Equipped with H.265 advanced video compression, it significantly reduces bandwidth and storage usage without compromising video quality. The DR-2516P comes with an intuitive, user-friendly interface, making it easy to manage and control multiple cameras efficiently. Its DirectIP™ technology streamlines the setup process by eliminating the need for manual network configuration, enabling seamless plug-and-play installation. This recorder offers extensive storage options, with a built-in 2TB capacity that can be expanded to support additional external storage devices. It includes advanced security features such as secure data transmission with end-to-end encryption and multi-layered authentication for added protection. Remote access and mobile viewing capabilities are enabled through the IDIS Mobile app, providing users with real-time monitoring on-the-go. The recorder also integrates well with third-party systems and software, ensuring versatility in different surveillance environments. The DR-2516P is an ideal choice for users seeking a reliable, high-performance solution for 24/7 surveillance operations.

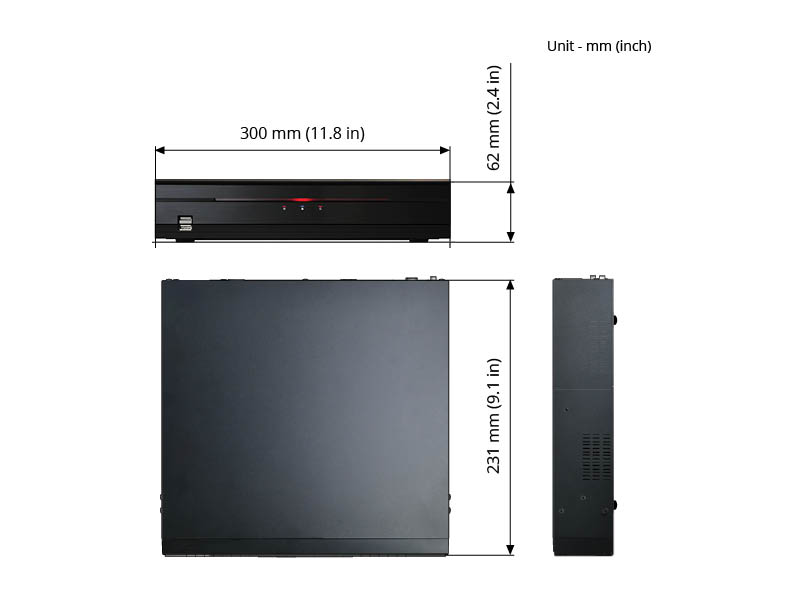

Dimension

Technical Specifications

Video
Video Inputs	16 IP channels
Max. Incoming Throughput	320Mbps
Supported Camera	DirectIP™, AXIS, PANASONIC, ONVIF™
Video Outputs	1 HDMI, 1 VGA
Display Resolution	HDMI : 3840×2160, 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200 VGA : 1920 x 1200 , 1920 x 1080, 1680 x 1050, 1600 x 1200
Display Speed	Up to 480ips
Digital Zoom	x2 ~ x12
NVR Side Dewarping	–
Recording
Max. Throughput	180Mbps, 480ips@UHD
Recording Resolution	Up to 12MP (Depending on IP Camera)
Video Compression	H.265, H.264
Recording Mode	Time-Lapse, Event, Pre-Event, Panic
Trigger Event	IDLA(Object Detection, Intrusion, Loitering, Line Crossing, Face Detection), BI(Exceed Occupancy Limit, Social Distancing, Mask Rule Violation, Queue Congestion), Motion, Trip-zone, Tampering, Video Loss, Audio Detection, Alarm In, Network Alarm, Text-in, System, Etc.
Playback
Performance	16ch synchronous playback 8ch 4K playback
Search Mode	Time-lapse, Event Log, Text-in, Thumbnail, Metadata(via IDIS Center, IDIS Solution Suite)
Digital Zoom	x2 ~ x12
Storage
HDD	SATA x 2, eSATA x 1
Total Capacity	The maximum HDD capacity is updated as new HDD models become available.
Network
Client Connection	Gigabit Ethernet(Client) x1
Video In Connection	Fast Ethernet(IP Camera) x8 + Gigabit Ethernet (Ext) x1
Transmission Speed	50Mbps / 100Mbps(BRP Mode)
PSE Power	PoE(IEEE 802.3at class 4) supported 8 ports, 50W
Event Notification	Email (attach clip (.cbf) .MP4), Callback to Remote S/W, Push notification (IDIS Mobile)
Two-way Audio	Yes
Interface
Audio In / Out	Local(NVR) : – / 1RCA + 1HDMI IP Camera : 16 / 16 (Depending on IP Camera)
Alarm In / Out	Local(NVR) : 4 / 1 IP Camera : 16 / 16 (Depending on IP Camera)
Alarm Reset In	–
Serial Interface	RS232 (Terminal Block)
USB	USB 2.0 x 1, USB 3.0 x 1
User Interface	Mouse, IR Remote Control, Network Remote Keyboard
General
Operating System	Embedded Linux
Environmental
Operating Temperature	0°C to 40°C (32℉ ~ 104℉)
Operating Humidity	0% ~ 90%
Electrical
Power Consumption	NVR: 12V=, 2.2A, 26.4W PSE: 48V=, 1.05A, 50.4W MAX
Approval	FCC, CE, KC
Mechanical
Unit Dimensions (W x H x D)	300mm x 62mm x 231 mm (11.8″ x 2.4″ x 9.1″)
Unit Weight	2.3kg (5.1lb) (with 1 HDD)

SKU: DR-2516P-2TB Categories: CCTV Surveillance, Encoders and Decoders, IDIS, NVRs Tags: cctv encoder, DR-2516P, idis decoder, idis encoder, Idis HD Encoder
