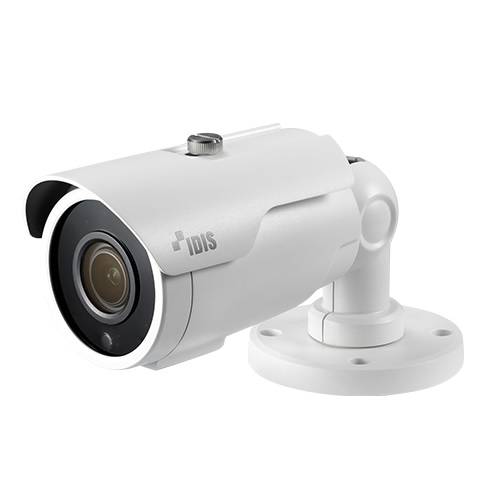

The IDIS DC-T2531WR is a 5MP IR bullet camera designed for high-quality video surveillance with advanced features. It is equipped with a 1/2.8″ SONY IMX 335 Starvis CMOS sensor, delivering superior image clarity and performance even in low-light conditions. The camera supports a motorized focus lens (MFZ) with a 2.7-13.5mm focal length, offering flexibility in zoom and field of view, which can range from 130.9° diagonally to 56.3° vertically. Its triple streaming capability allows simultaneous H.265 and MJPEG compression, optimizing bandwidth and storage efficiency while maintaining high-resolution recordings.
This camera includes 4 high-power IR LEDs, providing a 30-meter range for nighttime visibility. It supports two-way audio and has alarm inputs/outputs, making it ideal for integration into security systems that require interaction and alert triggers. It also features a durable, weatherproof casing with IP67 certification and IK10-rated vandal resistance, ensuring reliable outdoor performance in challenging environments.
Additionally, the camera offers edge storage with micro SDHC/SDXC support, allowing for local recording and smart failover protection during network disruptions. With ONVIF compliance, PoE (Power over Ethernet) support, and NDAA compliance, the DC-T2531WR integrates easily with a wide variety of systems and meets strict regulatory standards.

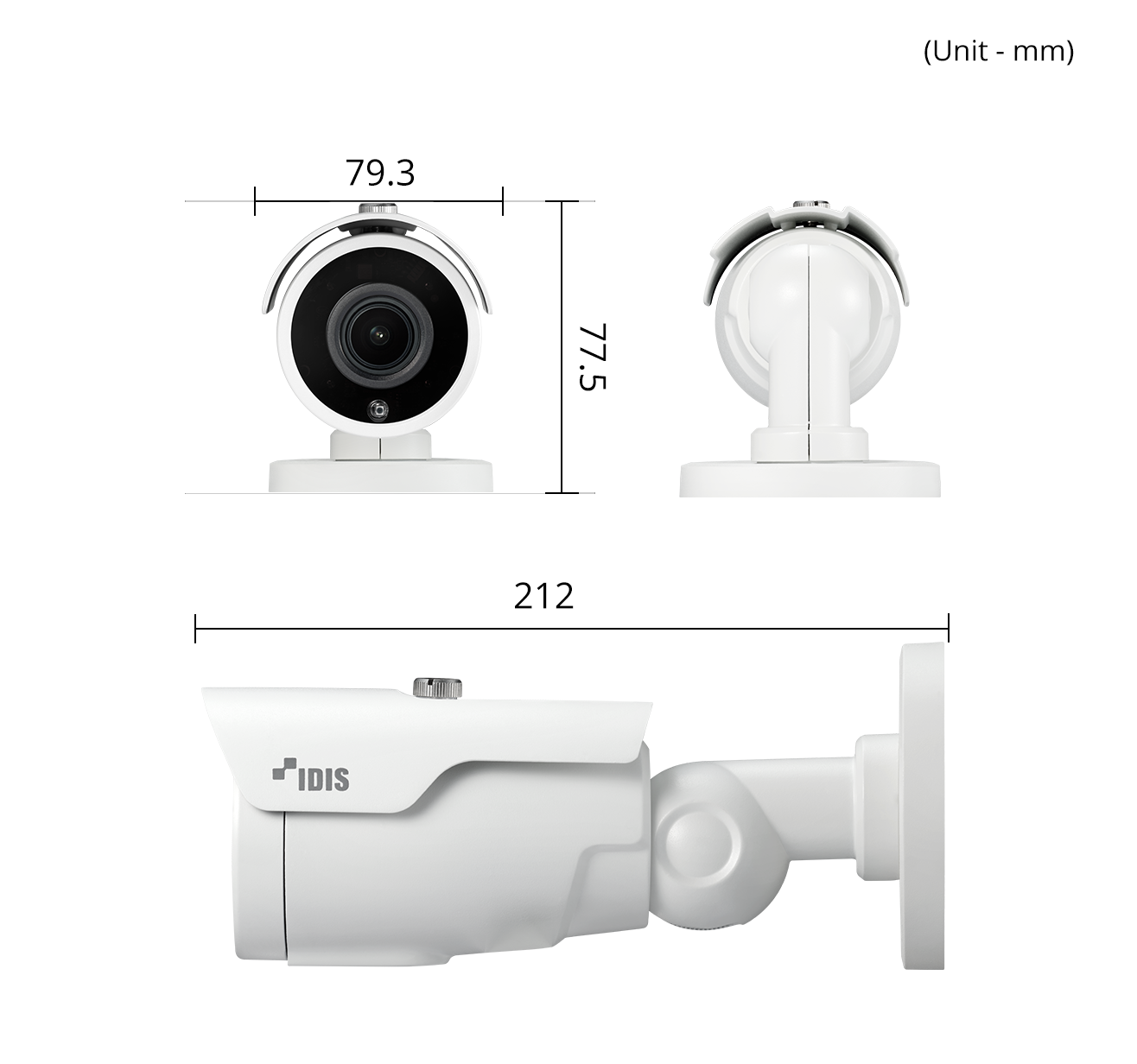

Dimension
Technical Specifications
| Video |
| Image Sensor |
1/2.8″ SONY IMX 335 Starvis CMOS Sensor |
| Total Number of Pixels |
2704 x 2104 |
| Scanning Mode |
Progressive Scan |
| Lens Type |
MFZ Lens |
| Focal Length |
f=2.7-13.5mm |
| F No. |
F=1.6-3.3±10% |
| Iris Control |
Fixed |
| Field of View |
130.9º(D), 108.1º(H), 56.3º(V) |
| Shutter Speed Control |
Min. 1/100,000 sec ~ Max. 1/2 sec |
| Day and Night Mode |
Auto / Day(Color) / Night(BW) / External |
| Infrared Distance |
30 m |
| Auto White Balance Mode |
Automatic, Manual |
| Noise Reduction |
2DNR/3DNR |
| Backlight Correction |
120dB (WDR) |
| Network |
| Video Compression |
H.265 Main profile, H.264(High, Main, Base line profile), MJPEG |
| SDK Support |
API, ONVIF Profile S/T Compliant |
| Video Frame Rate |
Up to 30fps@2592x1944p |
| Video Resolution |
2592×1944, 2560×1920, 2048×1536, 1920×1440,1600×1200, 1280×960, 640×480, 480×360 |
| Video Streaming (3 Streaming) |
Simultaneously H.265 and MJPEG (Multi Streaming) or Simultaneously H.264 and MJPEG (Multi Streaming) Independent Frame Rate and Bandwidth Control, VBR/CBR Mode |
| Protocols |
TCP/IP, UDP, IPv4/v6, HTTP, HTTPS, FTP, UPnP, RTP, RTSP, RTCP, DHCP, ARP, Zeroconf |
| Security |
Multi User Authority, IP Filtering, HTTPS |
| Ethernet |
RJ45 (10/100BASE-T) |
| Edge Storage |
micro SDHC/SDXC |
| Alarm and Event |
| Event In |
Onboot/Trigger/Network Loss/Tampering/Motion |
| Event Out Notification |
E-mail, FTP |
| Audio |
Line-In/Line-Out |
| Alarm Control |
Alarm-In 1/Alarm-Out 1 |
| General |
| Vandal Proof Casing |
IK10 |
| Outdoor Ready |
IP67 |
| Operation Temperature |
-10°C ~ +50°C |
| Operation Humidity |
0% ~ 95% |
| Electrical |
| Power Source |
DC 12V, PoE (IEEE 802.3af Class 2) |
| Power Consumption |
6.3W |
| Approval |
KC, CE, FCC |
| Mechanical |
| Dimension |
79.3mm x 77.5mm x 212mm |
