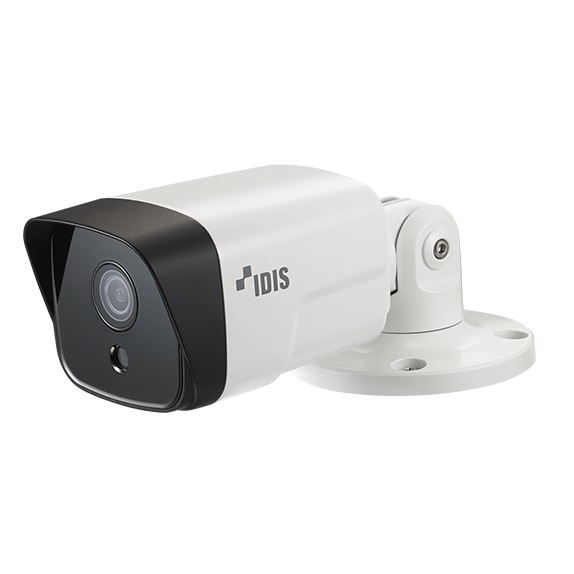

IDIS DC-E4216WRX 2.8mm Full HD IR Bullet Camera, NDAA Compliant

$297.00
FREE DELIVERYWARRANTY GUARANTEED
✔ Dedicated 5★ Customer Care Team   ✔ Fast & Responsive Tech Support

The IDIS DC-E4216WRX 2.8mm Full HD IR Bullet Camera is a high-performance surveillance solution, ideal for various security applications. It features a 2.8mm fixed lens, providing a wide field of view to cover large areas efficiently. With Full HD 1080p resolution, it delivers clear and detailed images, ensuring accurate monitoring even in low-light conditions. Equipped with IR LEDs, the camera provides night vision capabilities up to a significant distance, making it suitable for both day and night surveillance. The weatherproof design (IP67-rated) ensures reliable operation in harsh outdoor environments, protecting the camera from dust and water. It also supports H.265 video compression, reducing bandwidth and storage requirements without compromising image quality. The DC-E4216WRX includes various advanced features like true Wide Dynamic Range (WDR) to handle challenging lighting conditions and 3D Digital Noise Reduction (DNR) for clear image quality in low-light or high-motion scenarios. Its vandal-resistant housing (IK10-rated) protects against impacts, making it ideal for high-risk areas. The camera is ONVIF-compliant, ensuring compatibility with a wide range of third-party systems. Additionally, it supports PoE (Power over Ethernet), simplifying installation by reducing the need for additional power cables.

Key Features

  • Easy installation with DirectIP NVR
  • Full HD (1080p) resolution
  • Fixed-focal lens (f=2.8mm)
  • micro SD/SDHC/SDXC support
  • Two-way audio
  • Alarm in / out
  • IK10 / IP67 support
  • PoE (IEEE 802.3af Class 2)
  • Day and night (ICR)
  • True wide dynamic range (WDR)
  • IR LED (30 m / 98.4 ft, 4 units)
  • 3-axis mechanical design for installation
  • Supports ONVIF

DC-E4216WRX 2.8mm Datasheet

$297.00 inc GST +3 Year Warranty & Support


          2MP

   Fixed Lens

Weather Proof

       IR LED

   True WDR

Easy Installation

   Two-way audio

          IP67

         PoE

       ONVIF

NDAA Compliant

   IR Cut Filter Removable



The IDIS DC-E4216WRX 2.8mm Full HD IR Bullet Camera is a powerful surveillance solution that offers clear, high-definition video output in a compact, weather-resistant design. Featuring a 2.8mm fixed lens, it provides wide-angle coverage, ideal for monitoring large areas with precise detail. The camera supports full HD 1080p resolution, delivering sharp, clear video even in challenging lighting conditions. Its advanced IR technology ensures excellent night vision, extending visibility up to 30 meters in complete darkness. With built-in Wide Dynamic Range (WDR), the DC-E4216WRX effectively handles scenes with varying light intensities, ensuring balanced image quality. Designed with IP67 weatherproof and IK10 vandal-resistant ratings, it is suitable for both indoor and outdoor installations, capable of withstanding harsh weather and physical impacts. The camera also features H.265 video compression, reducing bandwidth usage and storage requirements without compromising quality. Supporting Power over Ethernet (PoE), installation is simplified, requiring only one cable for both power and data. Its compact and sleek form factor allows for discreet installation while maintaining a strong visual deterrent. Ideal for various applications, this camera is perfect for ensuring safety and security in a variety of environments, including commercial properties and residential areas.

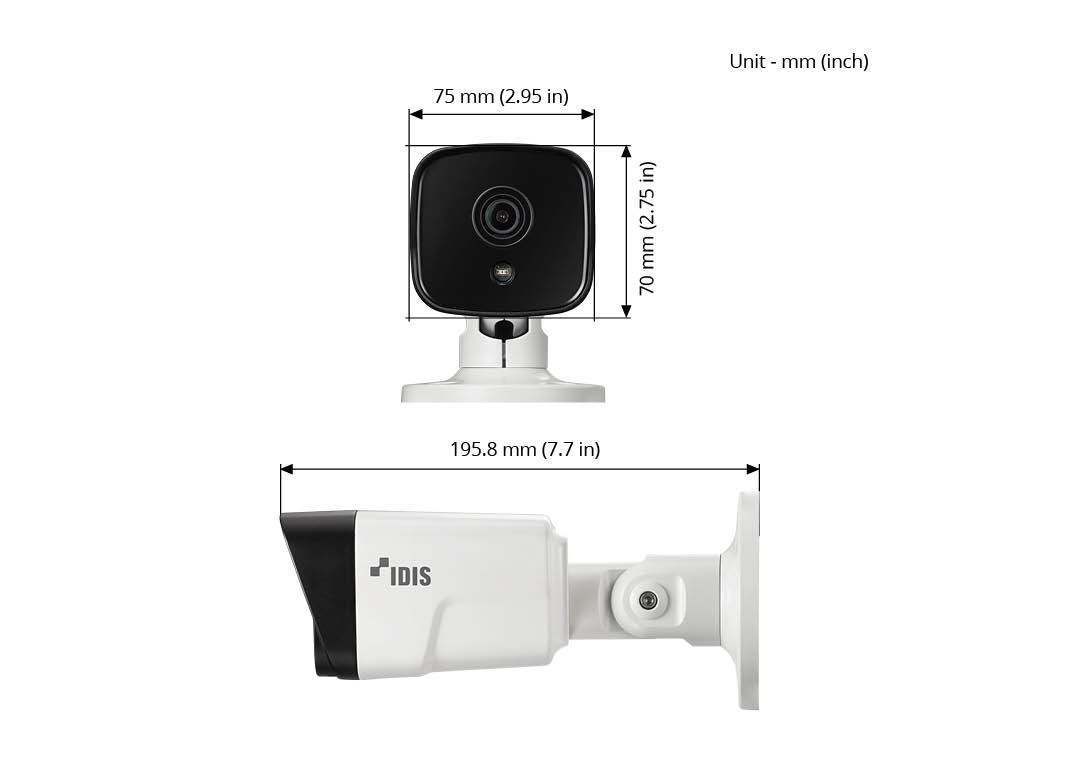

Dimension

Technical Specifications

Video
Image Sensor 1/2.8″ CMOS
Max. Resolution 1920 x 1080
Scanning Mode Progressive Scan
Lens Type Fixed-focal
Focal Length 2.8mm
Aperture F2.0
Iris Control Fixed Iris
Angular Field of View 111.6º(H), 61.5º(V), 127.3º(D)
Min. Illumination COLOR : 0.1 lux @ F2.0
B/W : 0 lux (IR LED ON)
Dynamic Range 120dB (True WDR)
Electronic Shutter Speed Auto / Manual (1/30 ~ 1/10,000), Anti-Flicker, Slow Shutter (1/7.5, 1/15)
Day and Night Yes (ICR)
IR Distance (LEDs) 30 m / 98.4 ft (4 ea)
Image Setting Exposure, White Balance, Self-Adjusting Video Mode(Sharpness, Contrast, Colors, Brightness Control)
Backlight Compensation BLC
Mirroring / Pivot Horizontal / Vertical / Pivot
Image Stabilizer –
De-fog Yes
Privacy Masking 8 Zones
Intelligent Video Video Motion Detection, Active Tampering Alarm, Trip Zone
Video Out –
Network
Video Compression H.265, H.264 (MP), M-JPEG
Intelligent Codec Yes
Bitrate Control H.265 – CBR / VBR, H.264 – CBR / VBR
Audio Compression ADPCM 16K, G.726, G.711 u-Law, G.711 a-Law
Two-way Audio Yes
IP Camera Protocol DirectIP 2.0, ONVIF Profile S/T
Max. Frame Rate 30ips : 1920 x 1080(WDR)
Supported Resolution 1920×1080, 1280×720, 640×360, 352×240
Multi-video Streaming Quadruple Streaming
Network Protocols DirectIP 2.0 Protocol, IPv4, IPv6, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/UDP RTSP/TCP, HTTP, HTTPS, FTP, SNTP, SMTP, FEN, mDNS, Upnp, SNMPv2
Security Digest authentication, Password Protection, User access log, IP Filtering, IEEE802.1x(EAP-TLS), Chained Fingerprint, SSL Encryption, HTTPS Encryption
Ethernet RJ45 (10/100BASE-T)
Recording Session Buffer (NLTSrec) Yes (Up to 60MB)
Edge Storage micro SD/SDHC/SDXC, Smart Failover (Up to 512GB)
Alarm and Event
Trigger Event Motion Detection, Alarm in, Audio detection, Tampering, Trip Zone
Event Notification Remote S/W, Email (with Image)
Audio Alarm Yes
Audio In / Out 1 / 1
Alarm In / Out 1 / 1
Environmental
Vandal Proof Casing IK10
Outdoor Ready IP67
Operating Temperature -20°C ~ +55°C (-4°F ~ +131°F)
*Starting up at above 0°C (32°F)
Operating Humidity 0% ~ 90%
Electrical
Power Source PoE IEEE 802.3af (Class 2)
Power Consumption PoE, IEEE 802.3af (Class 2), 6.1W
Approval FCC, CE, KC
Mechanical
Dimensions 75mm x 70mm x 195.8mm (2.95″ x 2.75″ x 7.7″)
Weight 0.655Kg (1.44 lb)
SKU: DC-E4216WRX-2.8MM Categories: , , , Tags: , , ,

Video

Accessory Configuration

Installation environment Accessory configuration

Wall

Junction Box

Model:DA-JB4150

or

Junction Box

Model:DA-JB2400

Celling

Junction Box

Model:DA-JB4150

or

Junction Box

Model:DA-JB2400

Pole

Junction Box

Model:DA-JB4150

+

Pole Mount

Model:DA-LM2000

or

Pole Mount

Model:DA-LM2000

+

Junction Box

Model:DA-JB2400

Corner

Corner Mount

Model: DA-RM2000

+

Junction Box

Model: DA-JB2400

or

Junction Box

Model: DA-JB4150

+

Corner Mount

Model: DA-RM2000
