Product Overview

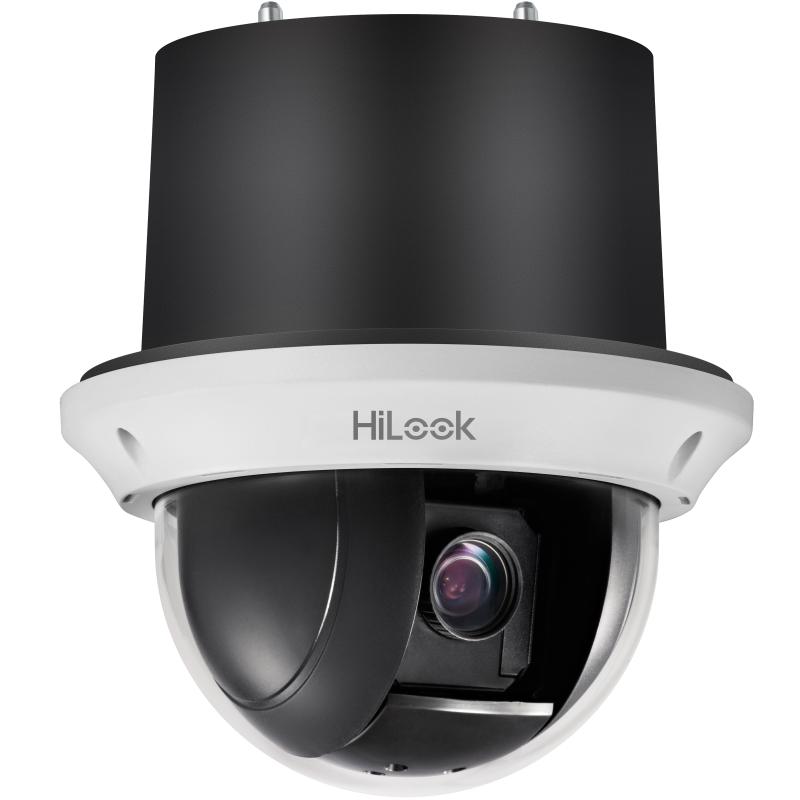

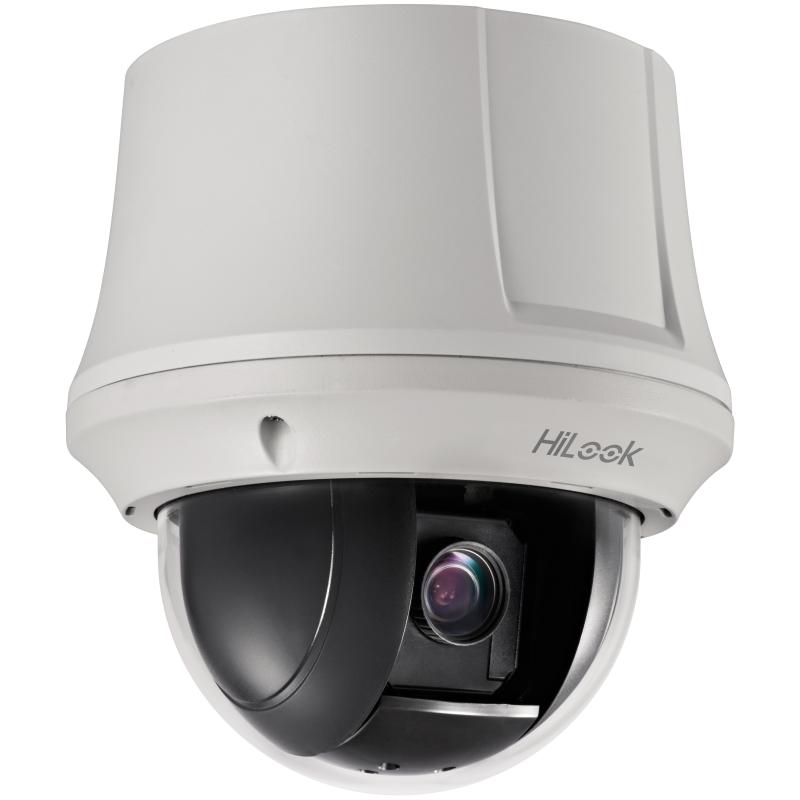

Wide-area monitoring across a car park, school campus, or industrial yard from a single mounting point is where the HiLook PTZ-N4215-DE3 is genuinely useful. This compact PTZ network dome camera delivers 15x optical zoom across a 5-75 mm focal range, combined with 360-degree continuous pan and 90-degree tilt, giving operators the ability to sweep a broad scene and then pull in close on a specific point without moving to a second camera. Featuring a progressive scan CMOS sensor with 120 dB True WDR and colour low-light performance down to approximately 0.005 lux, it holds a usable image across mixed lighting conditions including vehicle headlights, loading dock exposure, and poorly lit overnight environments. PoE+ (802.3at) allows single-cable installation via Cat6, and H.265+ compression reduces the storage load on connected NVRs. Onboard microSD recording up to 256 GB provides local fallback storage, and ONVIF compliance means the camera connects to most existing NVR and VMS platforms. Preset positions, patrol mode, and pattern scanning allow automated monitoring sweeps without requiring a dedicated operator.
Key Capabilities
15x Optical Zoom (5-75 mm)
Optical zoom preserves full sensor resolution at every focal length, unlike digital zoom which simply crops and upscales. The 5-75 mm range shifts the PTZ-N4215-DE3 from a broad scene overview to detailed subject resolution at distance, making it practical for car parks, open yards, and extended perimeter lines where a fixed lens camera would require multiple units to match the coverage.
360-Degree Pan with Patrol and Pattern Scanning
Continuous 360-degree pan removes fixed blind spots regardless of mounting direction. Patrol mode sequences the camera through saved preset positions automatically, and pattern scanning replays a manually recorded movement path on a loop. Both allow the camera to monitor large zones on a schedule without requiring an operator to hold the controls.
120 dB True WDR
True WDR at 120 dB handles scenes where extreme brightness and deep shadow appear together in the same frame. This is directly relevant to car park entry points lit by headlights, loading dock openings that mix internal and external exposure, and building entrances where outdoor glare would otherwise wash out a standard sensor completely.
Colour Low-Light to 0.005 Lux
Colour imaging is maintained down to approximately 0.005 lux, retaining usable footage in near-dark conditions where many cameras switch to a degraded monochrome output. This matters for outdoor areas with inconsistent or minimal artificial lighting after dark, and for sites where colour detail assists in distinguishing vehicles or clothing during footage review.
PoE+ (802.3at) Single-Cable Power
PoE+ delivers both network connectivity and power through a single Cat6 cable, removing the need for a separate 240 V power supply at the camera location. This reduces installation complexity and cost on large commercial sites. A 12 VDC input is also available for sites where PoE infrastructure is not already in place.
H.265+ Compression with MicroSD Edge Storage
H.265+ reduces file sizes significantly compared to H.264, lowering both NVR storage consumption and network bandwidth across multi-camera deployments. The built-in microSD slot supports cards up to 256 GB, providing a local recording layer that operates independently of NVR connectivity as either a primary standalone option or a failover backup.
Best For
- Large Open Areas Requiring Zoom Detail: The 15x optical zoom means a single PTZ-N4215-DE3 can hold a wide overview of a car park, schoolyard, or open commercial facility and then close in on a specific zone without losing image quality, reducing the number of cameras needed across the site.
- Unmanned Perimeter Monitoring: Patrol mode and pattern scanning allow the camera to cycle through fence lines and building boundaries automatically, making the PTZ-N4215-DE3 practical for after-hours monitoring where a live operator is not available to manually direct coverage.
- High-Contrast and Challenging Lighting Environments: The combination of 120 dB True WDR and 0.005 lux colour low-light performance makes this camera suited to loading docks, entry points, and outdoor areas where lighting conditions shift significantly between day and night or between lit and shadowed zones.
- Mixed-Brand NVR Installations: ONVIF compliance and H.265+ compression allow the PTZ-N4215-DE3 to integrate into existing NVR and VMS environments without requiring a full system replacement, making it a practical option for adding PTZ capability to an established infrastructure.
Why Choose the PTZ-N4215-DE3
The PTZ-N4215-DE3 occupies a practical position in the PTZ product range: a compact dome form factor with genuine 15x optical zoom, rather than the bulk and footprint of a full-sized outdoor PTZ unit. The 5-75 mm focal range delivers real working reach at distance, something that cannot be replicated by digital zoom without degrading the source image. The 120 dB True WDR and 0.005 lux low-light colour rating keep footage useful in conditions that cause simpler cameras to lose contrast or wash out entirely. Automated patrol and pattern scanning modes allow the camera to function as a scheduled monitoring asset rather than relying on continuous operator control. PoE+ simplifies cabling on new installations, and the 12 VDC alternative adds flexibility on established sites. MicroSD recording up to 256 GB provides local storage that remains functional even when NVR connectivity is interrupted. Available through Security Wholesalers, the PTZ-N4215-DE3 is well suited to installers and end-users who need genuine optical zoom and automated PTZ capability in a compact dome housing.
Buyer Decision Tips
Confirm PoE+ Before Selecting Your Switch: Standard PoE (802.3af) does not supply enough power for the PTZ-N4215-DE3 to run its pan-tilt motors, zoom mechanism, and IR simultaneously. You must use a PoE+ (802.3at) compliant switch or injector. Check the per-port power rating of any switch or NVR PoE port you intend to use before ordering. An underpowered port may cause the camera to operate in a reduced state or fail to start consistently.
Mounting Brackets Are Not Included – Plan for Zoom Stability: No mounting bracket is supplied with this camera. A separate wall or ceiling bracket suited to PTZ dome cameras must be sourced before installation. For outdoor positions exposed to wind or vibration, choose a rigid, low-resonance bracket: at 75 mm focal length, even minor physical movement from the mount translates to noticeable image shake. Confirm the bracket’s suitability for the mounting surface and wind load at the planned location before scheduling the install.
Key Features & Technical Specifications
| Image Sensor |
Progressive Scan CMOS |
| Max Resolution |
1920 x 1080 (2MP Full HD) |
| Frame Rate |
Up to 30 fps |
| Optical Zoom |
15x (5-75 mm) |
| Digital Zoom |
Supported |
| Pan Range |
360-degree continuous |
| Tilt Range |
Up to 90 degrees |
| WDR |
120 dB True WDR |
| Low-Light Performance |
Colour down to approx. 0.005 lux |
| Video Compression |
H.265+, H.265, H.264+ |
| Power Input |
PoE+ (802.3at) / 12 VDC |
| Onboard Storage |
MicroSD up to 256 GB |
| Network Interface |
Ethernet, ONVIF compatible |
| PTZ Functions |
Preset positions, patrol, pattern scanning |
| Housing |
Compact PTZ dome |
| Mounting |
Wall or ceiling (bracket sold separately) |
| Outdoor Suitability |
Indoor / Outdoor (confirm IP rating for variant) |
Ideal Use Cases
Car Parks and Open-Air Facilities
The 15x optical zoom combined with 360-degree pan allows a single PTZ-N4215-DE3 to cover entry and exit lanes, parking rows, and pedestrian zones across a large open site. The 120 dB True WDR directly addresses the common problem of vehicle headlights producing blown-out images at entry points and boom gate locations.
School and Campus Grounds
Patrol and pattern scanning allow the PTZ-N4215-DE3 to sweep school perimeters, playgrounds, and building entries automatically without a monitoring operator. Preset positions enable instant recall of key zones through a connected NVR or VMS, which is useful during both active supervision hours and after-hours security checks.
Warehouses and Distribution Centres
High-ceiling warehouse and distribution environments suit PTZ dome mounting. Positioned overhead, the zoom range covers loading dock activity, internal aisles, and goods handling areas from a single camera point. MicroSD edge recording up to 256 GB adds a local storage layer that continues operating if the primary NVR connection drops.
Industrial Yards and Perimeter Fence Lines
For industrial sites with extended fence lines or multiple access points, patrol mode sequences the PTZ-N4215-DE3 through saved positions covering each section of the perimeter automatically. The 0.005 lux colour low-light rating supports overnight monitoring of poorly lit yard environments without requiring additional lighting infrastructure.
Multi-Brand and Existing NVR Environments
ONVIF compliance allows the PTZ-N4215-DE3 to integrate with most existing NVR and VMS platforms. H.265+ compression reduces the bandwidth and storage load of adding a PTZ stream to an established system, making it a practical option for upgrading monitoring capability across a site without replacing the existing recording infrastructure.
Choosing the Right Model
- Choose this model if: You need genuine 15x optical zoom with 360-degree continuous pan from a compact dome housing, PoE+ single-cable power, and automated patrol or pattern scanning capability to cover a large open area from a single fixed mounting point.
- Choose a different model if: Your application requires a higher resolution sensor for fine detail capture at the maximum 75 mm focal length, a confirmed specific outdoor IP rating without needing to verify the variant, or if the camera position is fixed and pan coverage adds no value. In that case, a fixed-lens varifocal camera in the appropriate resolution may be a more cost-effective and simpler solution for the site.
FAQs
- How far can the PTZ-N4215-DE3 zoom in and still produce a usable image?
The 15x optical zoom covers a 5-75 mm focal range without degrading image quality, as it uses the full sensor at every magnification level. Effective working distance depends on scene lighting, contrast, and the level of detail needed for the task. For critical identification at a specific distance, test the zoom performance from the intended mounting position before finalising bracket placement, as real-world results vary by environment.
- Can the PTZ-N4215-DE3 operate without a dedicated monitoring operator?
Yes. Patrol mode cycles the camera through a sequence of saved preset positions automatically, and pattern scanning replays a manually recorded movement path on a continuous loop. Once configured through a compatible NVR or VMS, both modes run without operator input, making them suited to after-hours sweeps, overnight perimeter monitoring, and scheduled coverage across large sites where staffing a control room continuously is not practical.
- What power source does this camera require, and does standard PoE work?
The PTZ-N4215-DE3 requires PoE+ (802.3at), which provides up to 30 W per port. Standard PoE (802.3af), rated at 15.4 W, does not supply enough power to run the pan-tilt motors, zoom mechanism, and IR at the same time. Using an 802.3af port risks inconsistent camera operation or failure to start. A 12 VDC input is also supported for installations where PoE infrastructure is not available.
- Is this camera rated for fully exposed outdoor installation?
The outdoor suitability of the PTZ-N4215-DE3 is variant dependent. The product data does not confirm a specific IP66 or IP67 rating without identifying the exact variant supplied. Before specifying this camera for an exposed outdoor mounting position, confirm the IP protection rating of the specific unit you are ordering. Do not assume an outdoor rating applies without that verification in hand prior to purchase.
- Will the PTZ-N4215-DE3 integrate with a non-Hikvision NVR?
Yes, the camera is ONVIF compliant and connects to most ONVIF-compatible NVR and VMS platforms for live view and recording. Full PTZ control, including preset recall, patrol triggering, and pattern scanning, requires the NVR to support ONVIF Profile S with PTZ control. Verify that your chosen NVR platform supports PTZ commands over ONVIF before finalising the system design. Contact Security Wholesalers for guidance on confirmed platform compatibility if needed.
- Can this camera record locally without an NVR connected?
Yes. The PTZ-N4215-DE3 supports a microSD card up to 256 GB for onboard recording. This can function as a standalone local storage option or as a failover layer that continues recording when the NVR connection is interrupted. The microSD card is not included and must be sourced separately. Format the card through the camera’s own web interface rather than on a computer to ensure the file system is correctly set up for continuous loop recording.
- What cabling is recommended for runs to this camera in a commercial installation?
Cat6 is recommended for all data and PoE+ runs. For outdoor cable runs, shielded Cat6 (STP or FTP) is preferred to reduce electromagnetic interference and protect the cable against moisture ingress over time. The maximum recommended PoE run length is 100 metres from the switch port to the camera. Where runs exceed that distance, position a PoE+ compliant switch or mid-span injector closer to the camera rather than extending the cable beyond specification, which risks power drop and connection instability.
