Product Overview

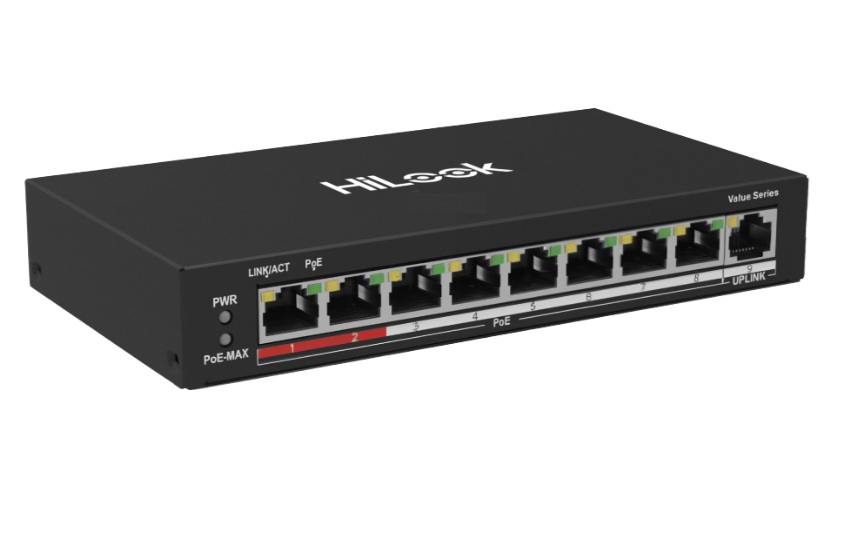

Small surveillance installations often run into the same wall: too many cameras, not enough ports, and cable runs that exceed standard PoE limits. The HiLook NS-0109P-60(B) addresses this directly as an 8-port unmanaged PoE switch built for compact, plug-and-play deployments. Featuring 8 x 100 Mbps PoE ports and a single 100 Mbps RJ45 uplink, it delivers a 60W total PoE budget with IEEE 802.3af/at support and up to 30W per port. A standout feature for field installers is the extend mode, which stretches cable transmission to 250 metres on ports 1 to 8, making it practical where cameras cannot be positioned close to the head-end. All ports carry 6kV lightning protection, adding a layer of resilience in exposed or outdoor-adjacent installs. With MAC address auto learning and auto aging built in, the NS-0109P-60(B) requires no manual configuration and suits installers and end users who need a straightforward network foundation for PoE-powered devices.
Key Capabilities
60W PoE Power Budget
With 60W shared across 8 PoE ports and IEEE 802.3af/at compliance, the switch can deliver up to 30W per port, accommodating a mix of standard IP cameras, intercoms, and access control readers from a single device.
250 m Extend Mode
Ports 1 to 8 support an extend mode that pushes the maximum transmission distance to 250 metres, allowing cameras to be positioned along long driveways, fence lines, or building perimeters without requiring a secondary switch mid-run.
6kV Lightning Protection
All ports include 6kV lightning protection, reducing the risk of surge damage in installs where cabling runs through exposed external pathways or in regions prone to electrical storms.
Unmanaged Plug-and-Play Operation
No software, login, or configuration is required. Connect power, plug in your PoE devices, and the switch handles the rest. This suits installers who need fast commissioning and end users who prefer a hands-off network device.
MAC Address Auto Learning and Aging
The switch automatically learns and ages MAC addresses, maintaining efficient data forwarding without manual table management. This keeps traffic directed appropriately across all connected devices without any user intervention.
Best For
- Small Camera Installations: The 8 PoE ports support up to 8 IP cameras simultaneously, making this a direct fit for homes, small offices, and retail sites running a single NVR or recorder.
- Long Cable Run Environments: Extend mode on all 8 PoE ports supports up to 250 m per run, useful where cameras are spread across large properties or positioned at building extremities.
- Exposed or Lightning-Prone Sites: The confirmed 6kV lightning protection on all ports gives this switch an edge in installs where external cabling passes through areas exposed to electrical surges.
- Plug-and-Play Deployments: The unmanaged design requires no network expertise. Installers can commission the switch quickly, and end users do not need to manage settings post-installation.
Why Choose the NS-0109P-60(B)
What separates the NS-0109P-60(B) from a generic 8-port PoE switch is the combination of extend mode and 6kV lightning protection built into every port. Most entry-level unmanaged PoE switches cap cable runs at the standard 100 m limit and offer minimal surge protection. The NS-0109P-60(B) extends this to 250 m on all 8 PoE ports, which changes what is achievable without additional switching hardware or signal repeaters. The 60W power budget with up to 30W per port via IEEE 802.3af/at covers the majority of modern IP cameras and intercoms. For installers who regularly work on sites with extended cable runs or where cabling is exposed to the elements, this switch offers practical advantages that simpler models cannot match. It is available at Security Wholesalers as part of the HiLook networking range, backed by HiLook’s focus on straightforward, cost-effective infrastructure.
Buyer Decision Tips
PoE Budget Planning: The NS-0109P-60(B) has a total PoE budget of 60W shared across 8 ports. If all 8 ports are in use simultaneously, average available power per device is 7.5W. Check the power draw of each connected camera or device before committing all 8 ports. Most standard IP cameras draw between 5W and 13W, so the budget suits mixed installs, but high-draw devices such as IR cameras with built-in heaters may affect total allocation.
Extend Mode Speed Consideration: When operating in extend mode for runs up to 250 m, the port speed is reduced compared to standard operation. For standard surveillance video streams this is generally not a limiting factor, but it is worth confirming your NVR and camera bitrates are compatible with the reduced throughput of extend mode before designing the system around very long runs.
Key Features & Technical Specifications
| Model |
NS-0109P-60(B) |
| Total Ports |
9 ports total |
| PoE Ports |
8 x 100 Mbps PoE ports (ports 1-8) |
| Uplink Port |
1 x 100 Mbps RJ45 |
| PoE Standard |
IEEE 802.3af / IEEE 802.3at |
| Total PoE Power Budget |
60W |
| Max Power Per Port |
Up to 30W |
| Switch Type |
Unmanaged |
| Max Transmission Distance (Extend Mode) |
250 m on ports 1-8 |
| Lightning Protection |
6kV on all ports |
| MAC Address Management |
Auto learning and auto aging |
| Port Speed |
10/100 Mbps |
| Brand |
HiLook by Hikvision |
Ideal Use Cases
Residential CCTV Systems
With 8 PoE ports and a 60W budget, the NS-0109P-60(B) can power a full camera installation for a residential property, feeding directly into a compatible NVR without requiring any network configuration from the homeowner or installer.
Small Commercial Sites
Retail stores, small offices, and light commercial buildings benefit from the unmanaged plug-and-play operation and 8-port capacity, avoiding the cost and complexity of a managed switch for straightforward PoE camera distributions.
Extended Perimeter Monitoring
The 250 m extend mode on all 8 PoE ports allows cameras to be positioned along fence lines, at gate entrances, or across long driveways without the need for a secondary switch, reducing hardware costs and installation time on large blocks.
Installations in Surge-Risk Environments
Sites where external cabling is exposed to weather or where lightning activity is a concern benefit from the 6kV per-port lightning protection, which reduces the risk of surge damage propagating through the network to connected cameras or recorders.
Choosing the Right Model
- Choose this model if: You need an 8-port unmanaged PoE switch for a small camera installation with a 60W power budget, particularly where cable runs may exceed the standard 100 m limit or where surge protection on all ports is a priority.
- Choose a different model if: Your installation requires Gigabit port speeds for higher-bitrate cameras or large file transfers, as this switch operates at Fast Ethernet speeds (100 Mbps) only. If you need more than 8 PoE ports or a higher total PoE budget to support a larger camera count, a higher-capacity managed or unmanaged switch would be more appropriate.
FAQs
- How many cameras can the NS-0109P-60(B) power at once?
The switch has 8 PoE ports with a combined 60W budget. The number of cameras it can power simultaneously depends on the power draw of each device. If your cameras each draw around 7W to 10W, you can run all 8 ports without exceeding the budget. For cameras drawing closer to 15W to 20W, you may be limited to 4 to 6 active devices before the budget is reached.
- What is extend mode and when should I use it?
Extend mode increases the maximum cable run on ports 1 to 8 from the standard 100 m limit up to 250 m. It is useful when cameras need to be positioned far from the switch, such as at a driveway gate, outbuilding, or perimeter fence. Note that port speed is reduced in extend mode, which is generally acceptable for standard IP camera video streams but should be verified against your camera’s bitrate requirements.
- Does this switch work with any PoE camera or NVR brand?
The NS-0109P-60(B) supports IEEE 802.3af and IEEE 802.3at PoE standards, which are the industry-standard protocols used by the vast majority of IP cameras, NVRs with PoE ports, intercoms, and access control readers. It is not proprietary to HiLook and will work with PoE devices from other manufacturers that adhere to these standards.
- Is this switch suitable for outdoor installation?
The NS-0109P-60(B) is a desktop-form-factor unmanaged switch and is not rated for direct outdoor installation. It should be installed in an indoor location or within a weatherproof enclosure. The 6kV lightning protection on all ports does, however, help protect the switch when cabling runs out to external camera locations.
- Does the NS-0109P-60(B) require any configuration after installation?
No. As an unmanaged switch, it requires no login, software, or network configuration. MAC address auto learning and auto aging are handled automatically. Simply connect the uplink port to your router or NVR and plug PoE cameras into the remaining 8 ports. It is available through Security Wholesalers for purchase online or via their trade counter.
- What is the difference between the 8 PoE ports and the 1 RJ45 uplink port?
The 8 PoE ports deliver both data and power to connected devices such as cameras or intercoms. The single RJ45 uplink port is a standard data-only port used to connect the switch to your network, typically plugging into a router, NVR, or upstream network switch. The uplink port does not supply PoE power.
