Product Overview

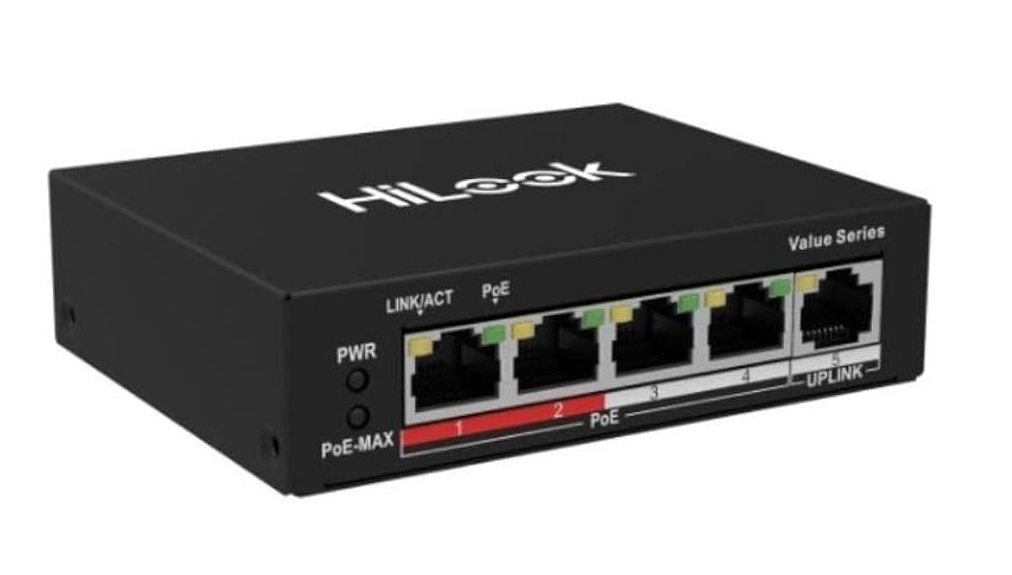

Small surveillance installations often do not need a managed switch with complex configuration. The HiLook NS-0105P-35(B) is a compact, unmanaged 5-port PoE switch built to power and connect up to 4 PoE-enabled IP cameras through a single Ethernet run per device, with a dedicated 100 Mbps uplink port for connection to an NVR or router. With a 35W total PoE budget and support for IEEE 802.3af and 802.3at standards, it suits setups where simplicity and cost-efficiency matter more than advanced traffic management. Featuring a fanless desktop design, 6kV lightning protection across all ports, and an extended transmission distance of up to 250 metres in long-range mode, the NS-0105P-35(B) is well suited to small business shopfronts, home surveillance systems, and compact commercial installs where a plug-and-play networking solution is the priority.
Key Capabilities
4-Port PoE Delivery
Four 10/100 Mbps PoE ports allow simultaneous power and data delivery to up to 4 IP cameras or other PoE devices over a single Cat5e or Cat6 cable run, eliminating the need for separate power supplies at each camera location.
35W Total PoE Budget
The 35W shared power budget supports IEEE 802.3af and 802.3at standards. This is sufficient for most standard IP cameras and PoE-powered access devices. Installers should account for the total draw across all connected devices when planning camera selection.
250m Extended Transmission Distance
Long-range mode extends PoE transmission up to 250 metres, well beyond the standard 100m Ethernet limit. This suits installations where cameras are positioned across a driveway, car park, or building perimeter where additional cable runs are needed.
6kV Lightning Protection
Built-in 6kV surge protection on all ports helps guard connected cameras and networking equipment against voltage spikes caused by nearby lightning strikes or power events, reducing the risk of equipment damage in outdoor camera deployments.
Plug-and-Play, Fanless Design
As an unmanaged switch, the NS-0105P-35(B) requires no configuration. Power it on, plug in cables, and the switch operates immediately. The fanless enclosure produces no operational noise, making it suitable for office spaces, reception areas, or enclosed cabinets.
Best For
- Small IP Camera Systems: Installers deploying up to 4 PoE IP cameras at a home, small office, or shopfront can use this switch to consolidate power and data without running separate power cabling to each camera.
- Extended Cable Runs: Where cameras are positioned beyond the standard 100m Ethernet limit, the 250m long-range mode allows the switch to serve sites with longer cable distances between the switch and individual cameras.
- Budget-Conscious Installations: The unmanaged design keeps cost down for straightforward camera deployments where VLAN configuration, QoS controls, or network segmentation are not required.
- Noise-Sensitive Locations: The fanless operation makes this switch appropriate for placement in reception areas, meeting rooms, or any environment where fan noise from networking hardware would be disruptive.
Why Choose the HiLook NS-0105P-35(B)
The NS-0105P-35(B) addresses the most common gap in small surveillance builds: powering cameras cleanly without overcomplicating the network layer. Unlike basic unmanaged PoE switches without surge protection, this model includes 6kV lightning protection across every port, which directly protects connected cameras and the NVR uplink from voltage transients. The 250m extended range mode provides flexibility that most compact desktop switches at this price point do not offer, allowing installers to reach cameras positioned across larger outdoor areas without additional active equipment. The 35W power budget is transparent and shared, making it straightforward to calculate camera compatibility before installation. Available through Security Wholesalers, the NS-0105P-35(B) is a practical addition to any HiLook camera deployment where a simple, cost-effective PoE distribution point is needed.
Buyer Decision Tips
Check the total PoE draw before purchasing: The NS-0105P-35(B) has a 35W shared budget across all 4 PoE ports. Add up the wattage of every camera you intend to connect. For example, 4 cameras drawing 10W each totals 40W, which exceeds the budget. Choose cameras rated at or below 8W each to stay within the 35W limit, or reduce the number of connected devices if using higher-draw cameras such as PTZ units.
Long-range mode and port speed: When using the 250m extended transmission distance feature, be aware that all ports on this switch operate at 100 Mbps maximum, not gigabit speeds. For small camera systems streaming standard HD or 4MP footage, 100 Mbps is generally sufficient. However, if you are connecting cameras with high-bitrate streams or multiple streams simultaneously, verify that total bandwidth across all 4 ports does not saturate the uplink connection to your NVR or router.
Key Features & Technical Specifications
| Model |
NS-0105P-35(B) |
| Total Ports |
5 (4 x PoE + 1 x uplink) |
| PoE Ports |
4 x 10/100 Mbps |
| Uplink Port |
1 x 100 Mbps |
| PoE Standards |
IEEE 802.3af / IEEE 802.3at |
| Total PoE Power Budget |
35W |
| Lightning / Surge Protection |
6kV on all ports |
| Maximum Transmission Distance |
250m (extended/long-range mode) |
| Standard Ethernet Range |
100m |
| Management Type |
Unmanaged |
| MAC Address Handling |
Auto-learning and auto-aging |
| Cooling |
Fanless |
| Form Factor |
Desktop |
| Brand |
HiLook by Hikvision |
Ideal Use Cases
Shopfront and Small Office Camera Systems
A retail shopfront or small office deploying up to 4 IP cameras benefits directly from the plug-and-play PoE delivery of this switch. A single Cat5e or Cat6 run per camera replaces separate power adapters, keeping the installation tidy and reducing labour time.
Home Surveillance with Extended Cable Runs
Homeowners running cable to cameras at a front gate, driveway, or side fence often exceed the standard 100m Ethernet limit. The 250m long-range transmission mode allows cameras at these distances to connect without additional equipment or active repeaters.
Outdoor Camera Installations with Lightning Risk
When cameras are mounted on exterior walls or poles exposed to the elements, voltage surges from nearby lightning strikes are a genuine risk. The 6kV surge protection built into every port helps protect both the cameras and the switch itself from transient damage.
Compact Comms Cabinet or Surveillance Enclosure
The desktop footprint of the NS-0105P-35(B) allows it to be positioned inside a small comms cabinet, on a shelf, or within a surveillance enclosure alongside an NVR. The fanless design ensures no additional noise is introduced into the cabinet environment.
Choosing the Right Model
- Choose this model if: You are deploying up to 4 PoE IP cameras, want plug-and-play simplicity with no switch configuration, need extended cable runs up to 250m, and are working within a 35W total power budget across all connected devices.
- Choose a different model if: You need to connect more than 4 PoE cameras, require gigabit port speeds for high-bitrate multi-camera streams, need VLAN or QoS configuration for managed network environments, or have cameras with higher individual power draw that would exceed the 35W shared budget.
FAQs
- How many cameras can the NS-0105P-35(B) power at once?
The switch has 4 PoE ports, so it can power up to 4 cameras simultaneously. However, the total PoE budget is 35W shared across all ports. If each connected camera draws 8W, that totals 32W and stays within budget. Cameras drawing more than 8-9W each may reduce how many devices can be powered at the same time.
- Does this switch work with any PoE IP camera, or only HiLook cameras?
The NS-0105P-35(B) supports IEEE 802.3af and 802.3at PoE standards. Any camera or device that complies with these standards should be compatible, regardless of brand. Always verify that the camera’s PoE standard matches and that total power draw across all 4 ports does not exceed 35W.
- What does the 250m transmission distance actually mean in practice?
In long-range mode, this switch can pass data and PoE power over a single cable run of up to 250m, compared to the standard 100m Ethernet limit. This is useful for cameras mounted at the end of a long driveway, along a fence line, or at a distant building entry point. Note that port speeds in extended mode are limited to 10 Mbps rather than 100 Mbps.
- Is any configuration needed to set up the NS-0105P-35(B)?
No. This is an unmanaged switch, meaning it requires no login, no software, and no network configuration. Connect the uplink port to your NVR or router, plug cameras into the PoE ports, and the switch handles data forwarding and power delivery automatically using MAC address auto-learning.
- Can the switch be mounted on a wall or DIN rail, or is it desktop only?
Based on confirmed product data, the NS-0105P-35(B) is a desktop-form-factor switch. It is designed to be placed on a flat surface such as a shelf, cabinet top, or within a surveillance enclosure. It is not confirmed for wall or DIN rail mounting.
- Where can I find the datasheet for the NS-0105P-35(B), and is it available through Security Wholesalers?
The official datasheet is linked in the Additional Information section below. The NS-0105P-35(B) is part of the Security Wholesalers range, supplied as part of the HiLook networking product line. The datasheet confirms port counts, PoE standards, power budget, and surge protection ratings.
