Product Overview
The HiLook HA-KIT-A2 is a standalone 4-wire video intercom kit designed for homes, townhouses, apartments, offices, shops and other small premises requiring simple visitor screening and door release control.

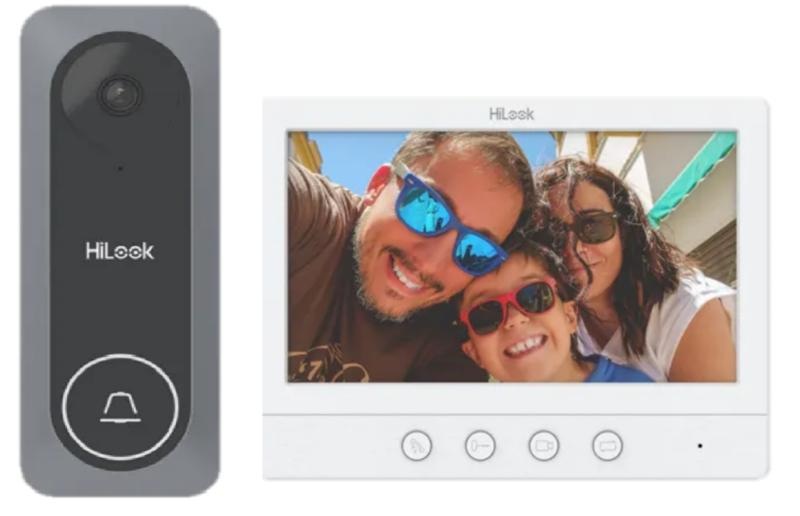

The kit includes a 7-inch indoor monitor, an outdoor door station, a 5-metre 4-wire connection cable, wall mounting hardware and an Australian standard power adapter. Its plug-and-play 4-wire design provides a straightforward alternative to a network-based IP intercom system.
Please note: The HA-KIT-A2 does not support Wi-Fi, Ethernet, Hik-Connect or mobile app access. Calls can only be viewed and answered from the connected indoor monitor.
Standalone 4-Wire Operation
The outdoor door station connects directly to the indoor monitor using four-wire cabling. When a visitor presses the call button, the indoor monitor rings and displays the live video feed from the entrance.
The user can then see the visitor, speak with them using two-way audio and activate a connected electric door strike or lock using the monitor’s unlock button.
No internet connection, network switch, router, cloud account or mobile application is required for normal operation.
7-Inch Indoor Monitor
The included indoor station features a 7-inch colour TFT screen with 1024 × 600 resolution. Physical control buttons provide easy access to answering calls, viewing the door station, communicating with visitors and activating a compatible door lock.
The monitor includes a built-in microphone and speaker for clear two-way voice communication.
HD Outdoor Door Station
The outdoor door station provides 1280 × 720 HD TVI video and a wide viewing angle to help identify visitors standing near the entrance.
A built-in omnidirectional microphone and loudspeaker allow visitors and occupants to communicate through the intercom system.
Infrared Night Vision
Integrated infrared illumination provides night vision up to approximately 3 metres, helping the indoor monitor display visitors in low-light and night-time conditions.
One-Press Door Unlocking
The system supports one-press door unlocking through the door station’s relay output. A compatible electric strike, magnetic lock, lock power supply and any required door hardware must be purchased separately.
The relay supports a maximum rating of 30V DC at 1A. Lock compatibility and wiring requirements should be confirmed before installation.
Expandable Intercom System
The HA-KIT-A2 can be expanded to support:
- Up to 2 compatible door stations
- Up to 3 compatible indoor monitors
- 1 compatible analogue surveillance camera
This makes it suitable for properties requiring an additional entrance station or extra indoor monitors in different rooms.
Key Features
- Standalone 4-wire video intercom system
- 7-inch colour indoor monitor
- 1024 × 600 indoor monitor resolution
- 1280 × 720 HD TVI door station camera
- Wide 130° horizontal viewing angle
- Two-way audio communication
- Infrared night vision up to approximately 3 metres
- One-press visitor calling
- One-press door unlocking
- Built-in microphone and loudspeaker
- Support for up to 2 door stations
- Support for up to 3 indoor monitors
- Support for 1 linked analogue camera
- No internet connection required
Package Inclusions
- 1 x HiLook outdoor door station
- 1 x HiLook 7-inch indoor monitor
- 1 x 5-metre 4-wire connection cable
- 1 x Wall mounting bracket
- 1 x Australian standard power adapter
Important Mobile App Information
The HiLook HA-KIT-A2 is not an IP or Wi-Fi intercom system. It does not connect to Hik-Connect and cannot send calls, video or notifications to a mobile phone.
Customers who require remote answering, mobile notifications or app-based door unlocking should select a compatible HiLook or Hikvision IP video intercom kit with Hik-Connect support.
Recommended Applications
- Residential front doors
- Townhouses and villas
- Small offices and reception entrances
- Retail shops
- Workshops and small commercial premises
- Installations where internet or mobile app access is not required
Installation Considerations
Before purchasing, confirm the required cable length, indoor monitor position, door station mounting location and electric lock requirements.
The included cable is approximately 5 metres long. Longer installations may require additional compatible cabling. Electric locks, strikes, lock power supplies and additional intercom stations are not included unless specifically stated.
