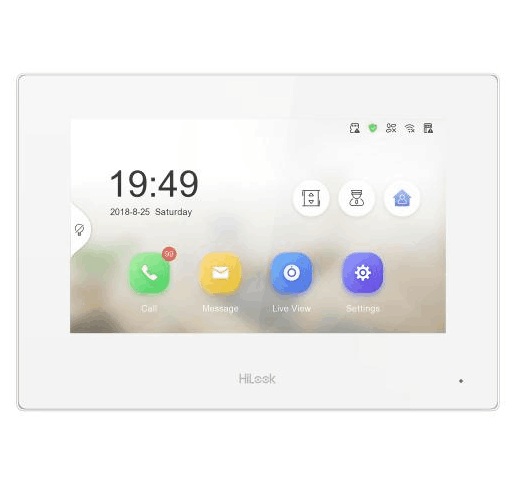

HiLook HA-IN-H1 7 Inch Hybrid HD WiFi Video Intercom Indoor Monitor with 1024×600 Touchscreen Built-In Mic & Speaker

Product SKU: HA-IN-H1

Product Overview

The HiLook HA-IN-H1 is a 7-inch Hybrid HD Wi-Fi video intercom indoor monitor designed for the HiLook HA-KIT-H1 platform, combining straightforward 4-wire visitor communication with internet-enabled remote control. Its colourful TFT display provides 1024 × 600 resolution and capacitive touchscreen operation, while the built-in omnidirectional microphone and loudspeaker support full-duplex two-way communication with compatible door stations. Wi-Fi 802.11 b/g/n connectivity allows supported Hik-Connect app functions, including remote visitor handling and door-control operation when the system is correctly configured. The monitor supports daisy-chain installation for additional indoor stations, can link with compatible HA-DS-H1 door stations and provides local TF card storage support up to 128 GB. Powered from 12 VDC and designed for indoor surface mounting, the HA-IN-H1 provides a practical bridge between conventional 4-wire intercom simplicity and connected smart-intercom convenience.

Key Capabilities

Best For

• Homes and townhouses: Provides a convenient touchscreen interface for seeing, speaking with and admitting visitors.
• Small offices: Allows visitor calls and supported door-control functions to be managed from an indoor location.
• Hybrid intercom upgrades: Adds Wi-Fi and app connectivity while retaining the straightforward 4-wire architecture between compatible system devices.
• Multiple indoor answering points: Daisy-chain expansion supports additional indoor monitors where more than one room requires visitor-call access.
• Cost-conscious connected intercom systems: Suitable where Hik-Connect convenience is desired without moving to a fully IP-based intercom platform.

Why Choose the HA-IN-H1

The HA-IN-H1 combines the familiarity of a conventional wired video intercom with the convenience of modern app connectivity. Its 7-inch capacitive touchscreen provides a clear local interface, while the built-in microphone and loudspeaker deliver full-duplex communication with compatible visitors at the door station. Wi-Fi connectivity extends the system into the Hik-Connect environment, and daisy-chain support makes it easier to add extra indoor answering points where required. TF card support, low power consumption and a compact surface-mounted design add further practicality. Available through Security Wholesalers, the HA-IN-H1 is particularly well suited to homes and small commercial sites that want connected visitor management without the cost or network complexity of a completely IP-based intercom system.

Buyer Decision Tips

Key Features & Technical Specifications

Product	Hybrid HD Wi-Fi video intercom indoor monitor.
Model	HA-IN-H1 / HA-IN-H1 AU.
System Platform	HiLook HA-KIT-H1 Hybrid HD intercom system.
Display Type	7-inch colourful TFT.
Display Resolution	1024 × 600.
Operation	Capacitive touchscreen.
Viewing Angle	Approximately 160° horizontal and 130° vertical.
Contrast	700:1 typical.
Brightness	250 cd/m² typical.
Operating System	Embedded Linux.
Processor	Embedded high-performance processor.
Memory	128 MB RAM, 32 MB ROM.
Audio Input	1 built-in omnidirectional microphone.
Audio Output	1 built-in loudspeaker.
Audio Compression	G.711U and G.711A, 64 Kbps.
Audio Processing	Noise suppression and echo cancellation.
Wi-Fi	IEEE 802.11 b/g/n, 2.4 GHz.
Mobile App	Supported Hik-Connect functionality through the compatible Hybrid HD system.
Linked Indoor Extensions	Up to 2.
Linked Door Phones	Up to 2.
Linked Analogue Camera	1 supported.
Alarm Inputs	2.
TF Card	Supported up to 128 GB.
4-Wire Interfaces	4.
Physical Buttons	None; touchscreen operation.
Power Supply	12 VDC.
Power Consumption	Up to 5 W.
Operating Temperature	-10°C to 50°C.
Operating Humidity	10% to 90%, non-condensing.
Installation	Indoor surface mounting.
Dimensions	175 × 113.5 × 18.1 mm.
Weight	Approximately 260 g without packaging.

Ideal Use Cases

Choosing the Right Model

• Choose the HA-IN-H1 if: You need a 7-inch touchscreen indoor monitor for the HiLook Hybrid HD 4-wire system with Wi-Fi, built-in audio and Hik-Connect support.
• Choose an additional HA-IN-H1 if: A compatible HA-KIT-H1 installation requires another indoor answering point within its supported expansion capacity.
• Choose the HA-IN-IP2 if: The installation uses the fully IP-based HiLook intercom architecture and requires Ethernet/PoE connectivity at the indoor monitor.
• Choose the HA-IN-A2 if: The system only requires a simpler conventional 4-wire analogue monitor without Wi-Fi or mobile-app connectivity.

FAQs

1. What type of indoor monitor is the HiLook HA-IN-H1?
   The HA-IN-H1 is a 7-inch Hybrid HD video intercom indoor monitor for the HiLook HA-KIT-H1 platform. It uses a 1024 × 600 colour TFT capacitive touchscreen and connects to compatible HA-DS-H1 door stations through the 4-wire intercom system. Wi-Fi provides internet connectivity for supported Hik-Connect functions, while the local 4-wire link carries the intercom video, audio and power-related connections between compatible system devices.
2. Does the HA-IN-H1 have a touchscreen?
   Yes. Hikvision’s current HiLook intercom brochure specifies a 7-inch colour TFT display with 1024 × 600 resolution and capacitive touchscreen operation. The screen provides the main local interface for answering visitor calls, viewing the connected door station, communicating with visitors and operating supported door-release functions within the Hybrid HD intercom system.
3. Does the HA-IN-H1 support Wi-Fi and Hik-Connect?
   Yes. The HA-IN-H1 supports 2.4 GHz Wi-Fi using IEEE 802.11 b/g/n and is designed as the internet-enabled indoor monitor in the HiLook Hybrid HD system. The current HiLook brochure describes all-in-one app control through Hik-Connect, allowing supported remote visitor-call and door-control functions when the system is correctly connected and configured.
4. Does the HA-IN-H1 support two-way audio?
   Yes. The indoor monitor includes one built-in omnidirectional microphone and one built-in loudspeaker. Supporting technical data also lists G.711U and G.711A audio compression, 64 Kbps audio bitrate, noise suppression and echo cancellation. These functions allow full-duplex conversation with visitors through a compatible HiLook HA-DS-H1 door station.
5. How many indoor and door stations can the HA-IN-H1 support?
   The HA-IN-H1 supports up to two linked indoor extensions and up to two linked door phones within the compatible Hybrid HD platform. The system is designed for daisy-chain connection between indoor stations, making it practical for homes or small premises where visitor calls need to be answered from more than one indoor location.
6. Does the HA-IN-H1 support a memory card?
   Yes. Supporting technical specifications for the HA-IN-H1 list a TF card slot supporting cards up to 128 GB. This provides local storage capability for supported intercom functions. The exact recording, snapshot and event-storage behaviour depends on the system firmware and configuration, so storage should be selected around the functions actually enabled on the installed system.
7. How is the HA-IN-H1 powered and installed?
   The HA-IN-H1 uses a 12 VDC power supply and is designed for surface mounting indoors. Its specified power consumption is up to 5 W, with an operating temperature range of -10°C to 50°C and 10% to 90% non-condensing humidity. When planning the monitor through Security Wholesalers, also confirm the 4-wire cable route, compatible door station and any additional indoor-station expansion before installation.
8. Who should choose the HiLook HA-IN-H1?
   Choose the HA-IN-H1 when a home, townhouse, office or small commercial premises needs a 7-inch touchscreen indoor monitor for the HiLook Hybrid HD 4-wire intercom system, with built-in two-way audio, Wi-Fi, Hik-Connect support and simple daisy-chain expansion. It is particularly suited to projects that want app connectivity without moving to a fully IP-based door-station architecture.
