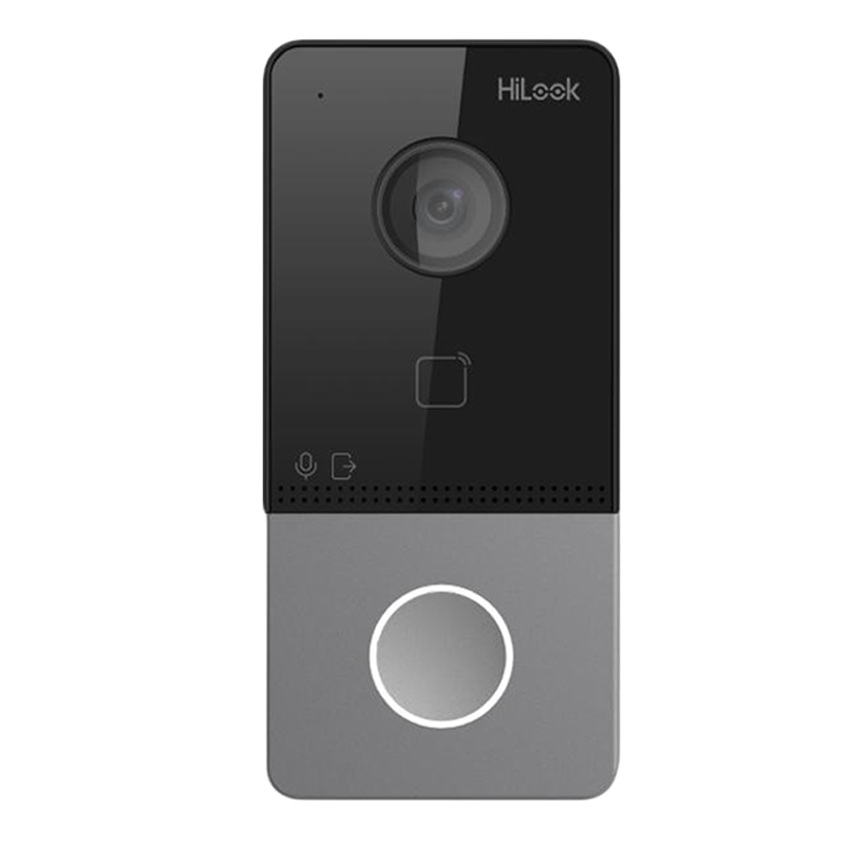

HiLook HA-DS-IP1 2MP Outdoor Black IP Video Intercom Door Station with PoE Mic Speaker IP65 & IR 3m

Product SKU: HA-DS-IP1

Product Overview

The HiLook HA-DS-IP1 is a black surface-mounted 2MP IP video intercom door station designed for residential, office and small commercial entrances requiring video calling, two-way audio and integrated door access control. Its 2MP HD camera provides up to 1920 × 1080 video with True WDR, backlight compensation and digital noise reduction, while the wide 131° horizontal and 78° vertical field of view helps capture visitors standing close to the entrance. Integrated infrared illumination provides supplemental lighting up to 3 metres. A built-in omnidirectional microphone and loudspeaker support two-way communication, while the integrated 13.56 MHz Mifare card reader provides an additional access method. The HA-DS-IP1 supports 10/100 Mbps Ethernet, 2.4 GHz Wi-Fi, IEEE 802.3af PoE or 12 VDC power and carries an IP65 protection rating for suitable outdoor installation.

Key Capabilities

Best For

• Residential entrances: See, speak with and remotely admit visitors at homes, villas and townhouses.
• Small offices: Provides visitor calling, two-way audio and electric-lock integration at controlled entrances.
• Staff access points: The integrated Mifare reader allows compatible card credentials to be used alongside intercom operation.
• Outdoor entry locations: IP65 protection and a broad operating-temperature range support suitable exposed installations.
• IP intercom upgrades: PoE, Wi-Fi and network connectivity provide more functionality than a conventional analogue 4-wire intercom system.

Why Choose the HA-DS-IP1

The HA-DS-IP1 combines visitor communication and basic access control in one compact surface-mounted door station. Its 2MP camera, True WDR and wide 131° field of view provide practical entrance coverage, while infrared illumination extends visibility when surrounding light is limited. Built-in microphone and speaker hardware provide two-way audio, and the Mifare reader and electric-lock relay allow compatible credentials and door-release control to be incorporated without adding a separate reader. PoE can simplify installation, while Ethernet and Wi-Fi provide flexible network connectivity. Available through Security Wholesalers, the HA-DS-IP1 is particularly useful where a straightforward black IP door station with weather resistance, card access and mobile-capable intercom integration is required.

Buyer Decision Tips

Key Features & Technical Specifications

Product	2MP IP video intercom door station with card access and two-way audio.
Model	HA-DS-IP1.
Colour / Installation	Black, surface mounted.
Operating System	Embedded Linux.
Operation	Single physical call button.
Camera	2MP HD camera.
Main Stream Resolution	1920 × 1080 or 1280 × 720.
Sub Stream	704 × 576.
Field of View	131° horizontal, 78° vertical.
Night Vision	Low-illumination IR supplemental lighting up to 3 m.
Image Enhancement	True WDR, BLC and digital noise reduction.
Motion Detection	Supported.
Video Compression	H.264.
Audio Input	Built-in omnidirectional microphone.
Audio Output	Built-in loudspeaker.
Two-Way Audio	Supported.
Audio Compression	G.711U, 64 Kbps.
Audio Processing	Noise suppression and echo cancellation.
Card Reader	Built-in 13.56 MHz Mifare card reader.
Lock Control	1 relay, maximum 30 VDC, 2 A.
Door Contact Input	1.
Exit Button Input	1.
Alarm Inputs	4.
RS-485	1.
Tamper Switch	1.
Ethernet	1 × RJ45 10/100 Mbps self-adaptive network interface.
Wi-Fi	2.4 GHz.
Network Protocols	TCP/IP and RSTP.
Power Supply	IEEE 802.3af standard PoE or 12 VDC.
Power Consumption	Less than 10 W.
Protection Rating	IP65.
Operating Temperature	-40°C to 53°C.
Operating Humidity	10% to 95%.
Dimensions	138 × 65 × 27 mm.

Ideal Use Cases

Choosing the Right Model

• Choose the HA-DS-IP1 if: You need a 2MP black surface-mounted IP door station with PoE, Wi-Fi, Mifare card access, two-way audio, 3 m IR and IP65 protection.
• Choose the HA-KIT-IP1 if: You need the HA-DS-IP1 supplied as part of a complete compatible IP intercom package with indoor station and associated kit components.
• Choose the HA-DS-A2-HILOOK if: The installation requires a simpler 4-wire analogue video intercom rather than an Ethernet/IP-based intercom system.
• Confirm lock requirements before installation if: The entrance uses electric locking, as lock voltage, current and fail-safe or fail-secure operation must suit the complete door-control design.

FAQs

1. Is the HiLook HA-DS-IP1 a 2MP door station?
   The HA-DS-IP1 uses a 2MP HD camera and supports main-stream resolutions of 1920 × 1080 and 1280 × 720. It also provides True WDR, backlight compensation and digital noise reduction to help maintain a clearer visitor image in difficult entrance lighting. The 131° horizontal field of view is especially useful where visitors stand close to the door station.
2. What field of view does the HA-DS-IP1 provide?
   The HA-DS-IP1 provides a wide 131° horizontal field of view and 78° vertical field of view. This helps capture visitors positioned close to the entrance and gives occupants a broader view around the doorway than a narrow conventional intercom camera. Final coverage still depends on mounting height, angle and the physical layout of the entrance.
3. Does the HA-DS-IP1 support night vision?
   Yes. Hikvision specifies low-illumination infrared supplemental lighting with a range of up to 3 metres. The IR illumination helps the door station maintain a usable visitor image when ambient lighting is limited. The 3 metre figure is an illumination range, so practical image quality will still depend on the mounting position and surrounding lighting conditions.
4. Does the HA-DS-IP1 support two-way audio?
   Yes. The door station includes a built-in omnidirectional microphone and built-in loudspeaker for two-way audio communication. It uses G.711U audio compression at 64 Kbps and supports noise suppression and echo cancellation. Two-way communication is available when the door station is integrated with the compatible HiLook intercom system or supported remote client environment.
5. Can the HA-DS-IP1 unlock an electric door lock?
   Yes. The HA-DS-IP1 provides one lock-control relay rated up to 30 VDC at 2 A, plus a door-contact input and exit-button input. This allows it to form part of a compatible electric-lock installation. The lock type, power supply, fail-safe or fail-secure operation and any emergency-release requirements should still be designed correctly for the complete doorway.
6. Does the HA-DS-IP1 support Mifare cards?
   Yes. Hikvision specifies a built-in 13.56 MHz Mifare card reader. This allows compatible Mifare credentials to be used for local access control in addition to video intercom calling and remote unlocking. The exact credential format and system configuration should be confirmed before issuing cards across an existing access-control environment.
7. Can the HA-DS-IP1 use PoE and Wi-Fi?
   Yes. The door station supports IEEE 802.3af standard PoE, 12 VDC power, 10/100 Mbps Ethernet and 2.4 GHz Wi-Fi. PoE can simplify installation by carrying network data and power over one Ethernet cable, while Wi-Fi offers additional network flexibility where appropriate. Wired Ethernet is generally preferred when a stable fixed connection is available.
8. Who should choose the HiLook HA-DS-IP1?
   Choose the HA-DS-IP1 when a home, office or small commercial entrance needs a black surface-mounted IP door station with 2MP video, 131° wide-angle coverage, 3 metre IR, built-in two-way audio, Mifare card access, PoE and IP65 protection. When planning the system through Security Wholesalers, confirm the compatible indoor station, lock hardware, network connection and power method before installation.
