Product SKU: DVR-204U-M1
Product Overview

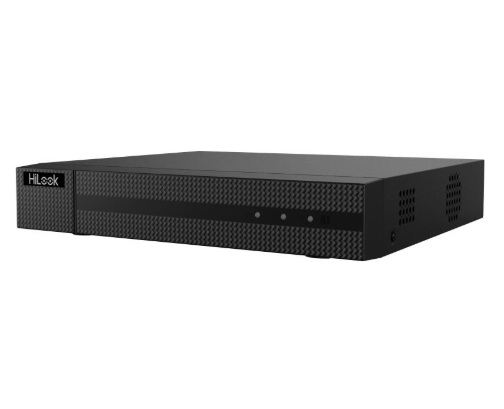

The HiLook DVR-204U-M1 is a 4-channel Turbo HD digital video recorder designed for upgrading and expanding coaxial CCTV systems while retaining support for modern high-resolution cameras. Four BNC inputs accept HDTVI, AHD, HDCVI and CVBS video, including compatible HDTVI cameras up to 8MP, while IP camera support allows hybrid analogue and network-camera configurations. Motion Detection 2.0 provides deep-learning human and vehicle classification across all four analogue channels to reduce unwanted alerts and improve event searching. H.265 Pro+ compression helps reduce storage requirements, while audio over coax simplifies compatible audio-capable camera installations. The recorder includes one SATA interface supporting a hard drive up to 10TB, synchronous four-channel playback, HDMI and VGA display outputs, and network connectivity for remote surveillance. Enhanced IP mode can expand the recorder to as many as eight IP channels when required.
Key Capabilities
Up to 8MP Turbo HD Recording
The DVR accepts compatible HDTVI camera signals up to 8MP and supports 8MP encoding at up to 8 fps on channel 1. Lower resolutions provide higher available frame rates, allowing the recording configuration to be balanced around image detail and motion requirements.
Motion Detection 2.0
Deep-learning-based Motion Detection 2.0 is enabled for the analogue channels and classifies human and vehicle targets. This can significantly reduce unwanted events generated by irrelevant movement such as leaves or changing lighting.
Analogue & IP Hybrid Expansion
Four analogue BNC inputs can operate alongside IP camera support. Standard operation supports additional IP channels, while Enhanced IP mode can expand the recorder to as many as eight IP channels with cameras up to 8MP resolution.
H.265 Pro+ Compression
H.265 Pro+ is designed to improve recording efficiency and reduce storage requirements compared with older video compression methods, helping make better use of the installed surveillance hard drive.
Audio Over Coax
Compatible Turbo HD cameras can carry audio over the same coaxial connection used for video. The recorder supports coaxial audio on up to four analogue channels, reducing the need for separate audio cabling in suitable installations.
Up to 10TB Internal Storage
One SATA interface supports a surveillance hard drive with capacity up to 10TB, allowing storage to be selected around the number of cameras, recording resolution, bitrate and required retention period.
Best For
- Existing coaxial CCTV upgrades: Replace an older DVR while retaining compatible coaxial camera cabling.
- 4-camera Turbo HD systems: Four BNC inputs suit compact residential, retail and small-business surveillance systems.
- High-resolution analogue cameras: Supports compatible HDTVI inputs up to 8MP for greater recorded image detail.
- Hybrid CCTV expansion: Add compatible IP cameras without immediately replacing the existing analogue infrastructure.
- Human and vehicle event searching: Motion Detection 2.0 helps focus alerts and playback searches on more meaningful targets.
Why Choose the DVR-204U-M1
The DVR-204U-M1 provides a practical upgrade path for CCTV systems that already use coaxial infrastructure but need higher recording resolution and more useful event detection. Support for HDTVI, AHD, HDCVI and CVBS cameras makes the recorder flexible across existing analogue installations, while Motion Detection 2.0 adds human and vehicle classification to all four analogue channels. H.265 Pro+ helps control storage use, audio over coax simplifies compatible installations, and IP-camera expansion provides a pathway toward a hybrid system. Available through Security Wholesalers, it is particularly suitable for smaller surveillance systems where maintaining existing cabling, supporting up to 8MP camera inputs and providing room for future IP expansion are important considerations.
Buyer Decision Tips
Buyer Tip: The DVR can accept 8MP camera video, but 8MP encoding is limited to up to 8 fps and is available on channel 1. If high frame rates at 8MP are essential across multiple cameras, compare the requirement with a higher-performance recorder before purchasing.
Buyer Tip: Enhanced IP mode allows the recorder to support up to eight IP channels, but Hikvision notes that this mode can conflict with Motion Detection 2.0 or other smart functions. Decide whether maximum IP-channel count or the recorder’s smart analogue functions are more important for the intended installation.
Storage Note: NO HDD INCLUDED. The DVR includes one SATA bay and supports one hard drive up to 10TB.
Key Features & Technical Specifications
| Product |
4-channel Turbo HD DVR with Motion Detection 2.0 and hybrid IP-camera support. |
| Model |
DVR-204U-M1. |
| Analogue Video Inputs |
4 × BNC. |
| Supported Analogue Formats |
HDTVI, AHD, HDCVI and CVBS. |
| Maximum HDTVI Input |
Up to 8MP, 3840 × 2160 at supported frame rates. |
| IP Video Input |
2 IP channels in standard configuration, providing up to 6 total channels when combined with analogue inputs. |
| Enhanced IP Mode |
Up to 8 IP channels; each up to 4 Mbps and up to 8MP resolution. |
| Motion Detection |
Motion Detection 2.0 with deep-learning human and vehicle classification on all analogue channels. |
| Quick Search |
Search by supported object or event type. |
| Video Compression |
H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264. |
| Encoding Resolutions |
8MP, 5MP, 3K, 4MP, 3MP, 1080p, 720p, WD1, 4CIF, VGA and CIF. |
| Main Stream Frame Rates |
8MP at 8 fps; 3K at 12 fps; 5MP at 12 fps; 4MP at 15 fps; 3MP at 18 fps; 1080p/720p and lower at up to 25 fps PAL / 30 fps NTSC. |
| 8MP Encoding Limitation |
8MP at 8 fps is available on channel 1. |
| Video Bitrate |
32 Kbps to 10 Mbps. |
| Audio Over Coax |
Up to 4 channels with compatible cameras. |
| Audio Input |
1 × RCA plus supported coaxial audio. |
| Audio Output |
1 × RCA. |
| Two-Way Audio |
1 channel using the first RCA audio input. |
| HDMI Output |
1 channel, up to 1920 × 1080 at 60 Hz. |
| VGA Output |
1 channel, up to 1920 × 1080 at 60 Hz. |
| Video Output Mode |
HDMI and VGA simultaneous output. |
| Synchronous Playback |
4 channels. |
| Total Bandwidth |
96 Mbps. |
| Remote Connections |
Up to 32. |
| Network Interface |
1 × RJ45 10/100 Mbps self-adaptive Ethernet. |
| Wi-Fi |
Can connect to a compatible Wi-Fi network using a supported USB Wi-Fi dongle. |
| USB |
2 × USB 2.0. |
| SATA |
1 SATA interface. |
| Maximum HDD Capacity |
Up to 10TB. |
| Hard Drive Included |
NO HDD INCLUDED. |
| Alarm Inputs / Outputs |
Not available. |
| Power Supply |
12 V DC, 1.5 A. |
| Power Consumption |
Up to 15 W without HDD. |
| Operating Temperature |
-10°C to 55°C. |
| Operating Humidity |
10% to 90%. |
| Dimensions |
260 × 222 × 45 mm. |
| Weight |
Up to approximately 1.16 kg without HDD. |
Ideal Use Cases
Existing Coaxial CCTV Upgrades
Replace an older recorder while continuing to use compatible installed coaxial cabling and Turbo HD cameras.
Homes
Four analogue camera inputs provide practical coverage for entrances, driveways, side areas and other key residential locations.
Retail & Small Business
Motion Detection 2.0 helps focus event searches on people and vehicles around compact commercial surveillance systems.
Hybrid Analogue/IP Systems
Retain existing coaxial cameras while gradually adding compatible IP cameras as surveillance requirements change.
Audio-Capable Turbo HD Systems
Audio over coax can simplify installations using compatible cameras by carrying supported video and audio through the existing coaxial connection.
Choosing the Right Model
- Choose the DVR-204U-M1 if: You need four analogue Turbo HD inputs, support for compatible cameras up to 8MP, Motion Detection 2.0, one HDD bay and hybrid IP-camera expansion.
- Choose a larger-channel DVR if: More than four analogue camera inputs are required without replacing existing channels with IP cameras.
- Choose an NVR if: The installation will use only IP cameras and does not need compatibility with existing coaxial CCTV infrastructure.
- Choose a multi-HDD recorder if: The required retention period cannot be achieved with a single hard drive of up to 10TB.
FAQs
- Is the HiLook DVR-204U-M1 an 8MP DVR?
Yes. The DVR-204U-M1 supports 8MP HDTVI input and can encode at up to 8MP at 8 fps, with Hikvision specifying that 8MP at 8 fps is available on channel 1. It also supports 3K and 5MP at up to 12 fps, 4MP at up to 15 fps and 1080p or 720p at up to 25 fps in PAL operation. This makes it suitable where an existing Turbo HD system needs higher-resolution recording without moving entirely to IP.
- How many analogue and IP cameras can the DVR-204U-M1 support?
The recorder has four BNC analogue video inputs. It also supports two IP camera inputs in its standard configuration, allowing up to six total video channels when analogue and IP inputs are combined. With Enhanced IP mode enabled, it can support up to eight IP channels, each up to 4 Mbps and up to 8MP resolution. Hikvision notes that Enhanced IP mode can conflict with Motion Detection 2.0 or other smart functions, so system requirements should be checked before enabling it.
- What is Motion Detection 2.0 on the DVR-204U-M1?
Motion Detection 2.0 uses deep-learning-based human and vehicle classification on all analogue channels. The recorder can distinguish people and vehicles from irrelevant movement such as leaves or changing lights, helping reduce false alarms compared with conventional motion detection. Quick search by object or event type is also supported, allowing recorded footage to be reviewed more efficiently when searching for relevant human or vehicle activity.
- What compression formats does the DVR-204U-M1 support?
The DVR-204U-M1 supports H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 video compression. H.265 Pro+ is designed to improve encoding efficiency and reduce storage requirements compared with older compression methods, although actual recording duration still depends on camera resolution, frame rate, scene complexity, bitrate settings and whether recording is continuous or event based.
- How much hard-drive storage can the DVR-204U-M1 support?
The recorder has one SATA interface and supports one hard drive with a capacity of up to 10TB. NO HDD INCLUDED. The actual retention period will depend on the number of cameras, selected resolutions, frame rates, compression, bitrates and recording schedule. When sizing storage through Security Wholesalers, calculate retention around the required recording period rather than selecting the largest drive without considering the configured recording workload.
- Does the DVR-204U-M1 support audio over coax?
Yes. The DVR supports audio over coaxial cable on up to four compatible analogue channels, which can simplify audio-capable Turbo HD installations by carrying video and supported audio through the same coaxial infrastructure. It also provides one RCA audio input, one RCA audio output and one-channel two-way audio using the first audio input. Audio capability still depends on the connected camera and system configuration.
- What video outputs does the DVR-204U-M1 have?
The recorder provides one HDMI output and one VGA output, with simultaneous HDMI and VGA operation supported. The listed output resolutions include up to 1920 × 1080 at 60 Hz. This means the DVR can connect directly to common Full HD monitors or televisions for local live view and playback, but the monitor output itself should not be confused with the recorder’s ability to accept and encode higher-resolution camera video.
- Who should choose the HiLook DVR-204U-M1?
Choose the DVR-204U-M1 when an installation needs four analogue Turbo HD camera inputs, support for up to 8MP recording, Motion Detection 2.0, H.265 Pro+ compression, audio over coax and one SATA bay supporting up to 10TB. It is particularly useful for upgrading an existing coaxial CCTV system while retaining the option to add IP cameras, including up to eight IP channels when Enhanced IP mode is used and its smart-function limitations are acceptable.
Additional Information
Hilook DVR-204U-M1 Datasheet
