Product Overview
For homes and small businesses that need multi-zone outdoor coverage without a complex installation, the IPC-T262H-MU and NVR-108MH-C-8P kit provides a complete 5-camera, 6MP AcuSense surveillance solution in a single purchase. Featuring HiLook turret cameras with 2.8mm fixed lenses, 30m EXIR night vision, and IP67 weatherproof housings, each camera suits eave, soffit, or wall mounting across driveways, entry points, car parks, and rear yards. Equipped with AcuSense human and vehicle detection, the cameras filter motion events by target type, reducing unwanted alerts triggered by animals or moving foliage. Built-in microphones capture audio context at each location. The included 8-channel PoE NVR connects all 5 cameras over a single Cat5e or Cat6 cable per run, with 3 channels spare for future expansion, 4K HDMI output, VGA output, and mobile viewing support. No hard drive is included and must be added separately.
Key Capabilities
6MP Turret Cameras for Outdoor Mounting
Each IPC-T262H-MU turret camera captures 6MP video with a 2.8mm fixed lens, providing a wide field of view suited to eave, soffit, and wall-mounted positions covering entry points, driveways, and outdoor access areas.
AcuSense Human and Vehicle Detection
AcuSense classifies motion events by target type, separating human and vehicle detections from background movement caused by animals, wind, or light changes. This reduces unwanted notifications and keeps event logs focused on relevant activity.
8-Channel PoE NVR with Plug-and-Play Setup
The NVR-108MH-C-8P includes 8 PoE ports that power and connect compatible IP cameras over a single Cat5e or Cat6 cable per run. All 5 included cameras connect directly without separate power supplies, and 3 ports remain free for future expansion.
30m EXIR Night Vision
Each camera uses EXIR technology to produce a more uniform illumination pattern across the 30m range, reducing hotspot overexposure at close range and maintaining detail on subjects further from the camera in low-light or no-light conditions.
120dB True WDR
With 120dB True Wide Dynamic Range, each camera handles high-contrast scenes such as doorways with bright daylight behind a subject, or entry points that combine artificial lighting with open outdoor areas, maintaining readable detail across the frame.
H.265+ Compression and 4K HDMI Output
H.265+ encoding reduces file size compared to H.264 without sacrificing recorded detail, extending the usable recording period per terabyte of storage. The NVR outputs at 4K HDMI resolution for use with a compatible monitor, alongside a VGA output option.
Best For
- Home Multi-Zone Coverage: 5 IP67-rated turret cameras cover driveways, entry doors, back yards, and side gates from eave or soffit positions, with all cameras powered by the single PoE NVR.
- Small Business Perimeter Monitoring: AcuSense detection filters alerts to human and vehicle events, making this kit suited to shopfronts, small warehouses, and outdoor yards where background movement would otherwise generate constant notifications.
- Plug-and-Play IP Installations: The 8-port PoE NVR eliminates the need for separate injectors or power adaptors at each camera location, making this kit straightforward for a single-run Cat5e or Cat6 cable installation.
- Expandable Starting Systems: With 3 channels unused after connecting the 5 included cameras, the NVR-108MH-C-8P accommodates up to 3 additional compatible PoE cameras as coverage needs grow.

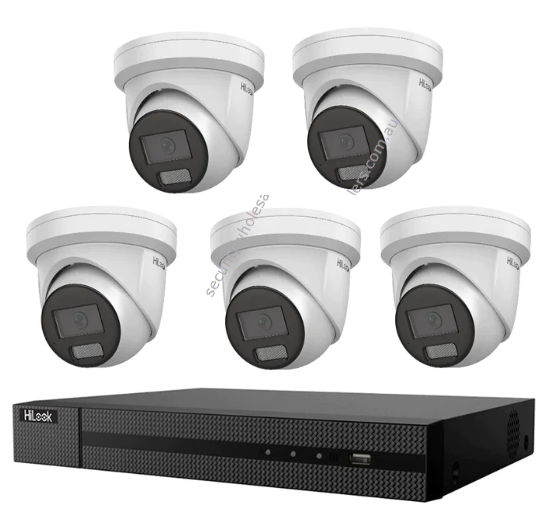

Why Choose the IPC-T262H-MU AcuSense 5-Camera Kit
This kit combines 5 individually capable IPC-T262H-MU cameras with a purpose-matched 8-channel NVR in a single purchase, removing the guesswork of pairing components. Each camera brings 6MP resolution, 120dB True WDR, 30m EXIR night vision, IP67 weatherproofing, AcuSense human and vehicle classification, and a built-in microphone, features that a basic 2MP or non-AcuSense camera would not include. The NVR-108MH-C-8P adds 80Mbps input bandwidth, 4K HDMI output, VGA output, mobile viewing support, and 8 PoE ports that handle both power and data in one cable run per camera. Three spare channels mean the system is not locked in at 5 cameras. Available through Security Wholesalers, this kit is built for buyers who want a structured, scalable IP system from the outset rather than a generic entry-level bundle.
Package Inclusions
Buyer Decision Tips
Storage Planning: No hard drive is included with this kit. The NVR-108MH-C-8P has 1 SATA bay supporting a single surveillance-grade HDD. At 6MP with H.265+ compression across 5 cameras, storage consumption is moderate but not trivial. A 4TB or 6TB surveillance HDD is a practical starting point for continuous recording, though the right capacity depends on your preferred retention period and how many cameras are recording simultaneously.
Camera Placement and Lens Field of View: All 5 IPC-T262H-MU cameras use a fixed 2.8mm lens, which provides a wide angle suited to close-range coverage of doorways, driveways under 15m, and corridors. If any location requires coverage of a longer approach, a carpark lane, or a narrow alley where a tighter field of view and greater reach are needed, a different lens focal length would be more appropriate and is not available in this kit configuration.
Key Features & Technical Specifications
| Kit Configuration |
5 x IPC-T262H-MU turret cameras + 1 x NVR-108MH-C-8P 8CH PoE NVR |
| Camera Resolution |
6MP per camera |
| Lens |
2.8mm fixed lens |
| IR Night Vision Range |
30m EXIR |
| Wide Dynamic Range |
120dB True WDR |
| Video Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Smart Detection |
AcuSense human and vehicle detection |
| Built-In Microphone |
Yes (per camera) |
| Weatherproof Rating |
IP67 |
| Camera Housing |
Turret / eyeball |
| NVR Model |
NVR-108MH-C-8P |
| NVR Channels |
8 channels (5 used, 3 spare) |
| PoE Ports |
8 x Plug-and-Play PoE |
| NVR Input Bandwidth |
80Mbps |
| NVR Video Output |
4K HDMI + VGA |
| Storage |
1 x SATA HDD bay (HDD not included) |
| Mobile Viewing |
Yes |
| NVR Decoding Capacity |
Up to 4-channel at 1080p |
Ideal Use Cases
Residential Multi-Entry Monitoring
5 IP67-rated turret cameras cover front doors, side gates, back yards, and garage entries simultaneously. The 2.8mm wide-angle lens suits close-range residential entry points, and the PoE NVR centralises all recording without separate power supplies at each camera.
Small Business Shopfront and Yard
AcuSense human and vehicle detection focuses event alerts on relevant activity at shopfronts, storage yards, and outdoor work areas, reducing the volume of irrelevant motion notifications that would otherwise require manual review after each trigger.
Rental and Investment Properties
The plug-and-play PoE setup and compact turret housing make this kit practical for eave or soffit installation across rental properties. IP67 weatherproofing ensures the cameras remain operational through outdoor weather exposure without additional housing.
Offices and Light Commercial Premises
With 6MP resolution and 120dB True WDR, cameras mounted above reception areas, loading bays, or car park entries produce clear images in mixed lighting conditions where windows or overhead lights create high-contrast scenes.
Systems with Planned Expansion
The NVR-108MH-C-8P has 3 unused PoE channels after connecting all 5 kit cameras. Installations that start with priority locations and plan to add cameras to secondary areas later benefit from the available headroom without replacing the recorder.
Choosing the Right Model
- Choose this kit if: You need 5 cameras with AcuSense detection, 6MP resolution, built-in microphones, and IP67 outdoor protection, all connected via a single PoE NVR with 3 spare channels for future growth and no need for additional power infrastructure at each camera location.
- Choose a different kit if: You need more than 8 cameras total, require varifocal lenses for varied coverage distances, need long-range IR beyond 30m for wide open areas, or require built-in storage in the NVR without a separate HDD purchase. A kit with a larger channel NVR or cameras with motorised zoom lenses would be more appropriate in those scenarios.
FAQs
- Does this kit include a hard drive?
No. The NVR-108MH-C-8P has 1 SATA bay but no hard drive is included in the kit price. You will need to add a compatible surveillance-grade HDD separately before the system can begin recording. Surveillance-specific drives such as WD Purple or Seagate Skyhawk are recommended for continuous 24/7 write cycles.
- How many additional cameras can I add to this system?
The NVR-108MH-C-8P supports up to 8 IP cameras. This kit includes 5 cameras, leaving 3 PoE ports free for future expansion. Any additional cameras added must be compatible with the NVR and must fall within the 80Mbps total input bandwidth limit.
- What does AcuSense detection actually do in this kit?
AcuSense analyses motion in each camera’s field of view and classifies detected objects as either human or vehicle. This means you can set the system to alert only on those target types, rather than triggering on every moving object. It does not require cloud processing and runs on the camera hardware directly.
- Are the cameras suitable for outdoor installation in Australian weather conditions?
Yes. Each IPC-T262H-MU carries an IP67 ingress protection rating, meaning the housing is dust-tight and protected against sustained water immersion. This covers rain, hose splash, and general outdoor exposure. The cameras are suited to eave, soffit, and wall-mounted outdoor positions across Australian climate conditions.
- Does the built-in microphone support two-way audio?
Each IPC-T262H-MU includes a built-in microphone that captures audio at the camera location. The product data confirms a built-in microphone only. Two-way audio would require a confirmed built-in speaker, which is not specified in the product data for this camera. Audio is captured and can be recorded or monitored, but outbound communication through the camera is not confirmed.
- What cable type do I need to run between each camera and the NVR?
Each camera connects to one of the NVR’s PoE ports using a standard Cat5e or Cat6 Ethernet cable. This single cable carries both power and network data. Maximum recommended cable run per segment is 100m for PoE over structured cabling. No separate power cables or injectors are required at each camera position. Available through Security Wholesalers, this kit is designed around that single-cable simplicity.
- Can I view the cameras remotely on a mobile device?
Yes. The NVR-108MH-C-8P supports mobile viewing. Once the NVR is connected to your local network and configured, compatible mobile apps allow you to view live feeds and recorded footage remotely. You will need a stable internet connection at the installation site and to complete the app setup and network configuration during commissioning.
Cabling Considerations
- Cable Type: Cat5e or Cat6 Ethernet cable for each camera-to-NVR run. Cat6 is recommended for new installations to provide headroom for higher bandwidth cameras added in future.
- Maximum Cable Run: Up to 100m per segment for PoE data and power over a single Ethernet cable run between camera and NVR PoE port.
- PoE Considerations: The NVR-108MH-C-8P provides PoE power directly through all 8 ports. No external PoE switch or injector is required for the included cameras. Confirm that any additional cameras added in future also fall within the NVR’s total PoE power budget.
- Wiring Tips: Run all cables before mounting cameras to avoid rework. Where cables pass through external walls or enter roof cavities, use conduit or weatherproof grommets to protect the cable jacket and maintain the IP67 rating of the camera installation. Label each cable run at the NVR end during installation to simplify future maintenance.
