Product SKU: HiLook-Turret-AcuSense-Kit-6MP/8CH-T262
Product Overview
Planning a full-site surveillance setup without the guesswork of component matching, the HiLook IPC-T262H-MU and NVR-108MH-C-8P 8-camera kit delivers a complete 6MP AcuSense IP system designed for residential properties and small commercial sites needing full perimeter coverage. Featuring 8 turret cameras rated IP67 for outdoor use, each unit captures 6MP video at 3072 x 2048 resolution with a 2.8mm fixed lens, 30m EXIR infrared night vision, and AcuSense human and vehicle detection to cut down on irrelevant motion events. Built-in microphones on every camera add audio context to recorded footage. The included NVR-108MH-C-8P connects all 8 cameras over a single PoE cable each with no separate power supply needed, supports 4K HDMI and VGA display outputs, and handles remote access through the HiLookVision mobile app. Storage capacity is selected separately via the single SATA bay.
Key Capabilities
6MP Turret Imaging Across All 8 Cameras
Every camera in the kit records at 6MP (3072 x 2048) through a 2.8mm fixed lens. This provides a wide field of view with enough detail for footage review across driveways, yards, building entries, and parking areas without needing to upgrade individual cameras later.
AcuSense Human and Vehicle Detection
Each IPC-T262H-MU uses AcuSense AI to filter motion events by human or vehicle targets. This reduces the volume of notifications triggered by animals, foliage movement, or lighting changes, so alerts arriving at the NVR or app are more likely to represent genuine activity worth reviewing.
Plug-and-Play 8-Port PoE NVR
The NVR-108MH-C-8P uses 8 built-in PoE ports to power and connect all cameras over a single Cat5e or Cat6 cable per camera. There is no need for separate power adaptors or injectors at each camera location, which simplifies installation routing and reduces cabling costs across larger properties.
30m EXIR Night Vision on Every Camera
All 8 cameras use EXIR infrared technology to illuminate scenes up to 30m in complete darkness. The EXIR design distributes light more evenly across the frame compared to standard IR, reducing bright centre hotspots and overexposed close-range subjects at building corners or entry points.
Built-In Microphones for Audio Context
Each IPC-T262H-MU includes a built-in microphone that records ambient audio alongside video. This adds an extra layer of evidential context to footage, capturing conversations, breaking glass, or other sounds that video alone would not record, directly within the NVR recording stream.
H.265+ Compression Across the Full System
All cameras encode in H.265+, and the NVR decodes H.265+/H.264+ streams. H.265+ uses adaptive bitrate to significantly reduce file sizes compared to standard H.265 or H.264, extending the recording duration on any hard drive added to the NVR’s single SATA bay.
Best For
- Full Home Coverage: 8 IP67-rated turret cameras provide enough positions to cover all sides of a residential property, including front and rear yards, side gates, garage entries, and outdoor access points in a single kit.
- Small Business Perimeters: The NVR’s 80Mbps incoming bandwidth handles 8 simultaneous 6MP streams without dropping frames, making the system suitable for small offices, retail shopfronts, and service businesses needing full exterior coverage.
- Sites Requiring Smarter Alerts: AcuSense filtering on every camera means installers deploying systems in areas with passing foot traffic, wildlife, or vegetation can configure human- and vehicle-only notifications to reduce alert fatigue.
- Single-Cable PoE Installations: Properties where running separate power to each camera position is impractical benefit directly from the NVR-108MH-C-8P’s built-in PoE ports, with each camera requiring only one Cat cable back to the NVR.
- Installers Needing a Pre-Matched System: All components are factory-matched and tested for compatibility. The plug-and-play PoE setup reduces commissioning time compared to sourcing cameras and recorders separately.
Why Choose the IPC-T262H-MU + NVR-108MH-C-8P 8CH Kit
Compared to a basic 2MP or 4MP kit, this system records at 6MP across all 8 cameras, which means noticeably more detail when reviewing footage from a distance or cropping into a specific area of a scene. The AcuSense detection built into every IPC-T262H-MU provides event filtering that basic motion detection cameras cannot replicate, separating human and vehicle alerts from environmental triggers without additional configuration. The NVR-108MH-C-8P supports 4K display output via HDMI, handles up to 80Mbps incoming bandwidth without bottlenecking across all 8 cameras, and connects to the HiLookVision app for remote live view and playback. At 120dB True WDR, the cameras handle mixed lighting at entry points that combine direct sunlight and shadow without blowing out the image. Available at Security Wholesalers, this kit is suited to installations where a 2MP system would leave the footage lacking the resolution needed for evidential use.

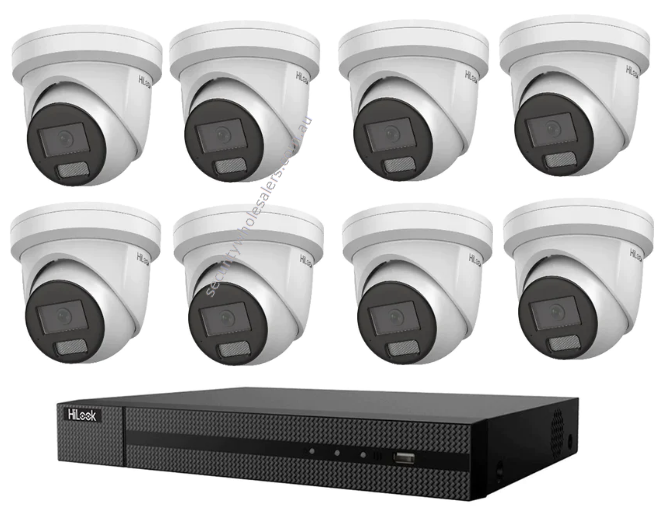

Package Inclusions
- 8 x HiLook IPC-T262H-MU 6MP AcuSense Turret Camera – 6MP, 2.8mm Fixed Lens, Built-In Microphone, EXIR 30m IR, AcuSense Human and Vehicle Detection, IP67, H.265+, 120dB True WDR
- 1 x HiLook NVR-108MH-C-8P 8CH PoE NVR – 8 Plug-and-Play PoE Ports, 80Mbps Bandwidth, 4K HDMI Output, VGA Output, H.265+/H.264+ Decoding, 1 x SATA Bay, HDD Not Included
Buyer Decision Tips
HDD Sizing for 8-Camera 6MP Recording: The NVR-108MH-C-8P has a single SATA bay and no pre-installed hard drive. Recording 8 cameras continuously at 6MP in H.265+ is storage-intensive. A 4TB surveillance-grade hard drive is a practical starting point for approximately 7 to 10 days of continuous recording across all 8 cameras depending on scene complexity and bitrate settings. If longer retention is required, a 6TB or 8TB drive should be considered at the time of purchase, as retrofitting storage later requires revisiting the NVR installation.
Camera Positioning with a 2.8mm Fixed Lens: All 8 IPC-T262H-MU cameras ship with a fixed 2.8mm lens, which gives a wide field of view suited to open areas, entries, and corners. This lens angle is not adjustable. For locations requiring a tighter, longer-distance view such as a narrow driveway approach or a car park lane, a 4mm or 6mm lens variant should be considered rather than relying on digital zoom in post.
Key Features & Technical Specifications
| Camera Model |
HiLook IPC-T262H-MU |
| NVR Model |
HiLook NVR-108MH-C-8P |
| Camera Resolution |
6MP (3072 x 2048) |
| Lens |
2.8mm Fixed |
| Infrared Range |
Up to 30m (EXIR) |
| AI Detection |
AcuSense Human and Vehicle Detection |
| Built-In Audio |
Built-in microphone on each camera |
| WDR |
120dB True WDR |
| Weather Rating |
IP67 |
| Compression |
H.265+ / H.264+ |
| Camera Housing |
Turret (White) |
| NVR Channels |
8 Channels |
| NVR PoE Ports |
8 x Plug-and-Play PoE |
| NVR Bandwidth |
80Mbps Incoming |
| NVR Display Output |
4K HDMI, VGA |
| NVR Storage |
1 x SATA Bay (HDD Not Included) |
| Remote Access |
HiLookVision Mobile App |
| Camera Quantity in Kit |
8 Cameras |
Ideal Use Cases
Full Residential Perimeter
With 8 IP67-rated turret cameras in a single kit, a double-storey home or large block can have all entry points, side gates, garage doors, and rear yard positions covered without sourcing additional cameras, using a single NVR with all ports filled.
Small Commercial Premises
Retail shopfronts, warehouses with a single building footprint, and service businesses can use this kit to cover all exterior access points and car park areas. The 80Mbps NVR bandwidth handles 8 simultaneous 6MP streams without compression artefacts at the display or recording stage.
Properties Needing Smarter Motion Notifications
Sites with tree lines, road traffic nearby, or wildlife activity benefit from AcuSense detection on all 8 cameras. Alerts can be configured to trigger only on humans or vehicles, which keeps notification volume manageable for app users monitoring the system remotely.
Installations Requiring Audio Evidence
The built-in microphone on every IPC-T262H-MU records ambient audio directly into the NVR stream. For entry points, reception areas with outdoor access, or gate positions where verbal exchanges occur, this provides audio evidence alongside video without needing external microphone hardware.
Mixed Lighting Entry Points
Building entrances that combine bright daylight and deep shadow, such as a covered driveway gate or a shopfront under a verandah, benefit from the 120dB True WDR on each camera, which balances exposure across bright and dark zones in the same frame.
Installer New-Build or Renovation Projects
Electricians and security installers fitting out a new build or major renovation can run a single Cat6 cable to each of the 8 camera positions during the build stage, then connect all cameras directly to the NVR’s PoE ports on commissioning with no additional switching or power hardware required.
Choosing the Right Model
- Choose this kit if: You need full 8-camera coverage at 6MP with AcuSense detection, built-in microphones, and 30m EXIR night vision across every position, connected via a single PoE cable per camera to the included 8-port NVR.
- Choose a different model if: Your installation requires varifocal lens adjustment at each camera position, as all IPC-T262H-MU cameras in this kit ship with a fixed 2.8mm lens only. A kit featuring motorised or manual varifocal cameras would be more suitable where precise long-distance framing is needed at specific locations.
- Choose a different model if: You need more than 8 camera positions. The NVR-108MH-C-8P supports exactly 8 channels with no expansion capability, so a site requiring 9 or more cameras would need a higher-channel NVR and a different kit configuration.
- Choose a different model if: Local storage retention beyond what a single SATA drive can hold is a priority. The NVR-108MH-C-8P has only 1 HDD bay, so installations requiring multi-drive RAID storage or very long retention periods at full 6MP resolution across all 8 cameras would benefit from an NVR with additional SATA capacity.
FAQs
- Does this kit include a hard drive?
No. The NVR-108MH-C-8P ships without a hard drive. The NVR has 1 x SATA bay that accepts a standard 3.5-inch surveillance-grade hard drive. You will need to purchase a compatible HDD separately. A 4TB surveillance drive is a common starting point for 8-camera continuous recording at 6MP in H.265+, though longer retention periods will require a larger capacity drive.
- Can all 8 cameras be powered directly from the NVR without a separate PoE switch?
Yes. The NVR-108MH-C-8P includes 8 built-in PoE ports that both power and connect each IPC-T262H-MU camera over a single Cat5e or Cat6 cable. No external PoE switch or individual power adaptor is required for any of the 8 cameras in this kit, as long as cable runs remain within the supported PoE distance.
- What is the resolution output when viewing all 8 cameras on screen at once?
The NVR-108MH-C-8P outputs up to 4K (3840 x 2160) via its HDMI port and VGA for standard monitors. When viewing all 8 channels simultaneously in a grid layout, each camera tile is rendered at a lower sub-stream resolution. Full 6MP resolution is available during single-camera live view and playback from recorded footage.
- What does AcuSense detection do differently from standard motion detection on the IPC-T262H-MU?
Standard motion detection triggers on any pixel change in the frame, including animals, rain, blowing leaves, and car headlight sweeps. AcuSense on the IPC-T262H-MU analyses detected objects and filters alerts to human or vehicle targets only. This means the notifications sent to the NVR and the HiLookVision app are far more likely to represent a genuine person or vehicle rather than an environmental false trigger.
- Is the built-in microphone on the IPC-T262H-MU recorded automatically by the NVR?
Yes. The IPC-T262H-MU transmits audio over the same IP/PoE connection used for video. The NVR-108MH-C-8P records this audio stream alongside the video channel for each camera, so playback includes the microphone audio captured at each camera location without any additional wiring or configuration required.
- Can the IPC-T262H-MU cameras be mounted on a wall bracket rather than directly surface-mounted?
Yes. The turret housing of the IPC-T262H-MU is compatible with compatible wall mount brackets and junction boxes. A wall bracket is useful when mounting the camera on a flat wall surface where the cable entry point needs to be concealed or where a flush mount would not provide the correct aiming angle for the intended coverage area. Brackets are available separately through Security Wholesalers.
- Does the NVR-108MH-C-8P support remote viewing without a static IP address?
Yes. The NVR-108MH-C-8P supports remote access via the HiLookVision mobile app using cloud relay, which means a static public IP address on the network is not required. The NVR registers with HiLook’s cloud service during setup, and the app connects via this registration. A stable internet connection at the installation site is still required for reliable remote access.
Cabling Considerations
- Cable Type: Cat5e minimum, Cat6 recommended for all camera runs. Cat6 provides better signal headroom over longer distances and is preferable for new installations.
- Maximum Cable Run: Standard PoE distance is 100m per camera from the NVR-108MH-C-8P’s PoE port to the IPC-T262H-MU camera. Cable runs beyond 100m will require a PoE extender or mid-span injector and are outside the scope of the NVR’s built-in PoE ports.
- PoE Considerations: The NVR-108MH-C-8P powers all 8 cameras over its built-in PoE ports. Confirm the total PoE power budget of the NVR against the power draw of each IPC-T262H-MU camera, particularly if additional powered accessories are connected to the same network segment.
- Wiring Tips: Run a single Cat6 cable from each camera position back to the NVR location. Avoid running camera cables parallel to 240V mains wiring for extended distances to reduce interference. Where cables run through external walls or roof spaces, use cable conduit to protect against UV degradation and pests.
