Product Overview

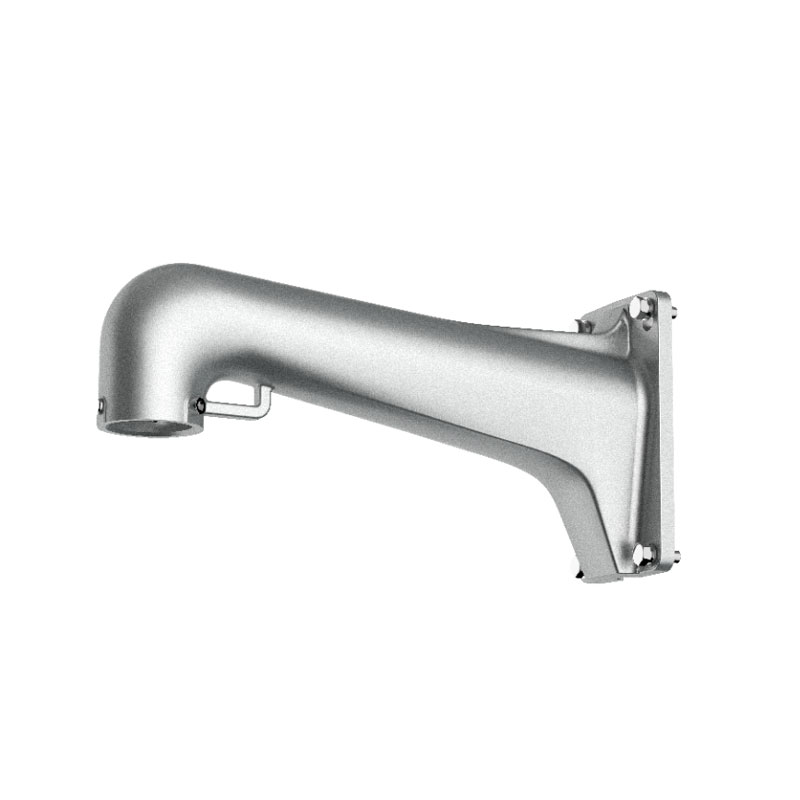

Wall-mounting a PanoVu series panoramic camera requires a bracket that can safely carry the weight and bulk of these larger housings, and the Hikvision DS-1603ZJ-P is purpose-built for exactly that role. Constructed from aluminium alloy and rated to a maximum load capacity of 20kg, this bracket provides a stable, secure mounting point on vertical surfaces such as building facades, external walls, and structural columns. Measuring 364.1 x 182mm and weighing 1.4kg, the DS-1603ZJ-P is designed to position PanoVu series cameras at the correct standoff from the wall surface to allow unobstructed wide-angle coverage. The grey finish blends with standard exterior wall surfaces. Note that this item carries a 4 to 5 week lead time, so installers should factor procurement time into project scheduling before ordering.
Key Capabilities
20kg Load Rating
The DS-1603ZJ-P supports a maximum load of 20kg, providing adequate capacity for PanoVu series camera housings. This rating ensures the bracket does not flex or shift under the weight of the camera over time.
Aluminium Alloy Construction
Manufactured from aluminium alloy, the bracket offers a practical combination of structural rigidity and reduced weight. Aluminium alloy resists corrosion, making it suitable for external wall installations exposed to weather and humidity.
PanoVu Series Compatibility
This bracket is specifically designed to suit Hikvision PanoVu series cameras. Using a manufacturer-matched bracket ensures correct alignment, mounting hole compatibility, and appropriate standoff distance for full panoramic field-of-view coverage.
Compact and Manageable Dimensions
At 364.1 x 182mm, the bracket provides the necessary reach and mounting surface without excessive protrusion. The 1.4kg bracket weight keeps the combined installation mass well within the 20kg load rating.
Best For
- PanoVu Camera Wall Installations: Designed specifically for the PanoVu series, this bracket is the correct solution when wall-mounting these cameras on building facades or structural columns where a ceiling or junction box mount is not practical.
- External Surface Mounting: The aluminium alloy construction and wall-mount profile suit installations on exterior walls where the bracket will be exposed to variable outdoor conditions over an extended service life.
- Planned Projects with Lead Time Flexibility: With a 4 to 5 week lead time, this bracket suits projects where installation scheduling allows for procurement lead times to be built into the project timeline.
Why Choose the DS-1603ZJ-P
Choosing a manufacturer-matched bracket for PanoVu series cameras removes the guesswork around mounting hole patterns, load tolerances, and camera positioning. The DS-1603ZJ-P is built to Hikvision’s specifications for the PanoVu range, meaning the mounting geometry is confirmed to work with these camera housings without modification or adaptation. The 20kg load capacity provides headroom above the typical weight of PanoVu housings, and the aluminium alloy body avoids the corrosion and structural fatigue issues associated with lower-grade mounting materials. Generic or universal brackets may appear similar but can introduce alignment problems or long-term instability. Installers sourcing this bracket through Security Wholesalers can be confident they are receiving the correct Hikvision accessory for PanoVu series deployment rather than a substitute that may not perform to specification.
Buyer Decision Tips
Buyer Tip: The DS-1603ZJ-P carries a 4 to 5 week lead time and should be ordered well ahead of your scheduled installation date. If your project has a fixed commissioning deadline, confirm stock availability at the time of order and factor the lead time into your procurement schedule. Do not assume this bracket will be available for immediate dispatch.
Key Features & Technical Specifications
| Model |
DS-1603ZJ-P |
| SKU |
HIK-1603ZJ-P |
| Bracket Type |
Wall mount bracket |
| Compatible Camera Series |
Hikvision PanoVu series |
| Material |
Aluminium alloy |
| Dimensions |
364.1 x 182mm |
| Weight |
1.4kg |
| Maximum Load Capacity |
20kg |
| Colour |
Grey |
| Lead Time |
4 to 5 weeks |
Ideal Use Cases
Building Facade Mounting
The wall-mount profile and 20kg load capacity make this bracket suited to mounting PanoVu cameras high on external building walls, covering wide outdoor areas such as forecourts, car parks, and perimeter zones.
Structural Column Mounting
Where ceiling mounting is not available, this bracket can be fixed to structural columns in warehouses, distribution centres, or large retail spaces to position PanoVu cameras for broad overhead coverage.
Commercial and Industrial Perimeters
The aluminium alloy construction and wall-mount design suit long-term outdoor installations at commercial properties, industrial sites, and campuses where PanoVu panoramic cameras are used for wide-area perimeter monitoring.
Planned Multi-Camera Deployments
For larger installations specifying multiple PanoVu cameras across a site, the DS-1603ZJ-P provides a consistent, manufacturer-matched mounting solution that simplifies installation and ensures a uniform result across all camera positions.
Choosing the Right Model
- Choose this model if: You are installing a Hikvision PanoVu series camera on a vertical wall surface and need a manufacturer-specified wall mount bracket with a confirmed 20kg load rating and aluminium alloy construction.
- Choose a different model if: Your installation requires a ceiling mount, pole mount, or corner mount configuration, as this bracket is designed specifically for flat wall surface mounting. If your PanoVu camera model uses a different bracket specification, check the camera’s datasheet to confirm compatibility before ordering.
FAQs
- Which Hikvision cameras is the DS-1603ZJ-P compatible with?
The DS-1603ZJ-P is designed specifically to suit the Hikvision PanoVu series cameras. If you are installing a camera outside the PanoVu range, you should confirm bracket compatibility against that camera model’s datasheet before purchasing, as mounting hole patterns and housing dimensions vary between series.
- What is the maximum load this bracket can support?
The DS-1603ZJ-P has a confirmed maximum load capacity of 20kg. PanoVu series cameras are larger than standard fixed cameras, and this load rating is designed to accommodate the housing weight safely over the life of the installation without bracket fatigue or shift.
- Can this bracket be used outdoors on an exterior wall?
Yes. The aluminium alloy construction resists corrosion, making the DS-1603ZJ-P suitable for outdoor wall installations. It should be mounted to a structurally sound surface that can support the combined weight of the bracket and the PanoVu camera.
- Why does this bracket have a 4 to 5 week lead time?
The DS-1603ZJ-P is not a stocked shelf item and is ordered to meet demand. This lead time is confirmed in the product listing. Installers should account for this when planning procurement and avoid leaving bracket ordering until close to the scheduled installation date. This bracket is available through Security Wholesalers for orders requiring the correct PanoVu-matched mounting solution.
- What are the physical dimensions of the bracket?
The DS-1603ZJ-P measures 364.1 x 182mm and weighs 1.4kg. These dimensions are specified in the Hikvision datasheet and reflect the standoff distance and mounting footprint needed to correctly position PanoVu series cameras for unobstructed wide-angle coverage from a wall surface.
