Product Overview

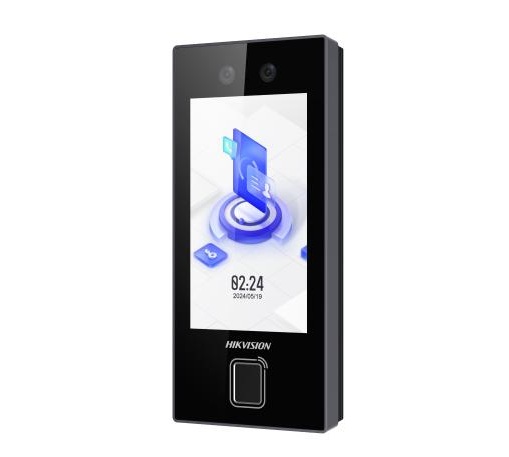

For access control points that need more than a basic card reader, the Hikvision DS-K1T344MFX-E1 Value Series face recognition terminal brings together face, fingerprint, M1 card, PIN and QR code authentication in one compact wall-mounted unit. Featuring a 2MP wide-angle camera, 4.3-inch touchscreen with 480 x 854 resolution, and dual power support through IEEE 802.3at PoE or 12VDC, it suits a wide range of commercial, residential and institutional entry points. Equipped with RS-485, Wiegand, lock control, exit button, door contact, tamper and USB interfaces, it integrates with compatible access control systems, locks and door hardware. It also stores up to 3,000 users, faces, fingerprints and cards alongside up to 150,000 event records, making it a practical fit for small to medium sites where credential flexibility and straightforward network-based installation are both priorities.
Key Capabilities
Five-Method Authentication in One Terminal
Face recognition, fingerprint, M1 card, PIN and QR code access are all supported from a single wall-mounted device. This removes the need to install separate readers for sites that require more than one credential type, or that want to allow different user groups to authenticate differently.
Fast Face Recognition Performance
The 2MP wide-angle camera supports face recognition at distances from 0.3m to 1.5m, with a listed recognition time of under 0.2 seconds and stated accuracy of at least 99%. This allows for smooth entry flow at busy access points without manual card or PIN input delays.
4.3-Inch Touchscreen Interface
The 480 x 854 resolution LCD touchscreen gives users a clear, interactive display for PIN entry, system prompts and guided authentication steps. This is useful at reception areas, visitor access points and any door where staff or visitors benefit from visible on-screen feedback.
PoE or 12VDC Power Options
IEEE 802.3at PoE support allows a single Ethernet cable to carry both power and network data, which can reduce cabling complexity during installation. 12VDC is also supported, giving installers flexibility where a separate power supply is already part of the door hardware design.
Practical Door Control Integration
RS-485, Wiegand, lock control output, exit button input, door contact input and tamper detection are all included. These interfaces support connection to compatible access controllers, electric strikes, magnetic locks and door monitoring hardware for a complete door control setup.
Best For
- Office and Commercial Entry Doors: Suitable for staff access points where face, card, fingerprint or PIN authentication is preferred over key-based entry.
- Warehouse and Secure Operational Areas: Useful for restricted staff entrances, plant rooms and stock areas where card-only access is not sufficient.
- Apartment and Strata Building Entries: Works at shared entry points where residents may use different credential types depending on building policy.
- Schools and Education Facilities: A practical fit for administration blocks, staff-only rooms and controlled gate access points that require event logging and flexible authentication.
Why Choose the DS-K1T344MFX-E1
The DS-K1T344MFX-E1 sits in a useful position between a standard card reader and a larger enterprise face terminal. Where a card reader handles only one credential type, this model adds face recognition at up to 1.5m, fingerprint authentication, QR code reading and PIN entry alongside M1 card support, all from a compact 165.2 x 75.7 x 25mm unit that weighs approximately 0.36kg. The IP65 protective design extends its suitability to selected semi-exposed entry points, and the 150,000 event record capacity supports audit requirements that a basic reader cannot meet. PoE support means cabling can be simplified where network infrastructure is already in place. Available through Security Wholesalers, this terminal is best suited to projects that need genuine credential flexibility at the door without investing in a full enterprise-grade terminal.
Buyer Decision Tips
Credential Matching: Confirm which authentication methods your site actually requires before ordering. The DS-K1T344MFX-E1 supports face, fingerprint, M1 card, PIN and QR code. If your access control system or existing credentials use a different card standard, check compatibility with the M1 13.56MHz reader before purchase.
Door Hardware Planning: PoE simplifies power and data cabling, but the overall door design still requires careful planning. Confirm the lock type, lock power source, access controller compatibility, exit button wiring, door contact position and cable routing before installation begins. The terminal integrates with compatible Hikvision access control systems and selected third-party platforms via Wiegand and RS-485.
Key Features & Technical Specifications
| Model |
DS-K1T344MFX-E1 |
| Product Type |
Value Series face recognition access control terminal |
| Authentication Methods |
Face, fingerprint, M1 card, PIN and QR code recognition |
| Camera |
2MP wide-angle camera for face and QR code recognition |
| Screen |
4.3-inch LCD touchscreen, 480 x 854 resolution |
| Face Recognition Distance |
0.3m to 1.5m |
| Recognition Speed |
Less than 0.2 seconds per user |
| Recognition Accuracy |
Listed accuracy of at least 99% |
| User Capacity |
Up to 3,000 users |
| Face Capacity |
Up to 3,000 faces |
| Fingerprint Capacity |
Up to 3,000 fingerprints |
| Card Capacity |
Up to 3,000 M1 cards (13.56MHz) |
| Event Record Capacity |
Up to 150,000 events |
| Audio |
Two-way audio supported with compatible client software, indoor station or main station |
| Interfaces |
Network, RS-485, Wiegand, lock control, exit button, door contact, tamper, USB |
| Power Supply |
12VDC or IEEE 802.3at PoE |
| Configuration |
Mobile web and PC web configuration supported |
| Weather Rating |
IP65 protective design |
| Installation |
Wall mounting |
| Dimensions |
165.2 x 75.7 x 25mm |
| Net Weight |
Approx. 0.36kg |
Ideal Use Cases
Staff Entry Doors
The multi-method authentication support means different staff groups can use face, fingerprint or card access at the same door, reducing the need for physical key management and supporting access records through the 150,000-event log.
Office Reception and Visitor Entry
The 4.3-inch touchscreen and QR code recognition make this terminal useful at reception-area doors where visitors may use temporary QR credentials while staff continue to use face or card access on the same terminal.
Warehouse and Secure Zones
Where card-only readers do not provide enough assurance, the fingerprint and face recognition options add biometric verification at stock rooms, plant rooms and high-value storage areas with a compact wall-mounted footprint.
Apartment and Strata Buildings
The 3,000-user capacity covers most medium-density residential buildings, and residents can use different credential types at the same entry point without the building needing separate readers for each method.
Schools and Education Campuses
Administration blocks, server rooms, staff-only areas and controlled gate access points benefit from the event logging, IP65 protective design and flexible authentication options this terminal provides in a single installed device.
Choosing the Right Model
- Choose this model if: Your site needs face recognition, fingerprint and M1 card authentication from one terminal, with PoE installation, door control outputs and event logging up to 150,000 records for a small to medium user base.
- Choose a different model if: Your site only requires card access and event logging, in which case a simpler card reader is more cost-effective. Alternatively, if you need a significantly larger user database or more advanced AI-based facial analysis features, a higher-tier face recognition terminal may be more appropriate.
- Check before ordering: Confirm that your access control platform supports the authentication workflows, Wiegand or RS-485 interface, lock type and power method you intend to use with this terminal before purchase.
FAQs
- What authentication methods does the DS-K1T344MFX-E1 support?
The DS-K1T344MFX-E1 supports face recognition, fingerprint, M1 card (13.56MHz), PIN and QR code access. These methods can be used individually or in combination depending on the access policy set for the door, making it suitable for sites that need to accommodate different user groups at the same entry point.
- How does PoE installation work on this terminal?
The DS-K1T344MFX-E1 supports IEEE 802.3at PoE, which allows a single Ethernet cable to carry both power and network data to the terminal. This can reduce the number of cables needed at the door. However, the lock, exit button and door contact still require separate wiring, so overall cable planning for the door assembly should be completed before installation.
- What is the face recognition range and speed on the DS-K1T344MFX-E1?
The terminal supports face recognition at distances between 0.3m and 1.5m, with a listed recognition time of under 0.2 seconds per user and stated accuracy of at least 99%. This allows users to authenticate without stopping directly in front of the camera, which supports entry flow at busier access points.
- Can the DS-K1T344MFX-E1 be installed outdoors?
The DS-K1T344MFX-E1 carries an IP65 protective design, which gives it a degree of protection against dust and water exposure. It can suit semi-exposed entry points when installed correctly. For fully exposed outdoor positions, consider sunlight direction relative to the camera, cable entry sealing, mounting surface preparation and whether a protective canopy or housing is needed for the specific location.
- How many users and events does this terminal support?
The DS-K1T344MFX-E1 stores up to 3,000 users, 3,000 face records, 3,000 fingerprints and 3,000 cards. It also logs up to 150,000 access events. For most offices, warehouses, schools and medium-density residential buildings, this capacity is enough to cover regular staff and resident populations without requiring a larger enterprise terminal. The DS-K1T344MFX-E1 is part of the Security Wholesalers access control range and is stocked for professional installation projects.
- Does the DS-K1T344MFX-E1 support two-way audio?
Two-way audio is supported on the DS-K1T344MFX-E1 when used with compatible client software, a compatible indoor station or a compatible main station. This allows an administrator or receptionist at a connected station to communicate with a person at the entry point before granting access. Confirm the full system configuration and software platform support before relying on this feature in a project design.
- How is the DS-K1T344MFX-E1 configured?
The terminal supports configuration via mobile web browser and PC web browser. This allows the installer or administrator to set up user credentials, access schedules and door control settings without dedicated client software installed on a fixed workstation. Final workflow configuration still depends on the connected access controller and any integrated platform being used on site.
Cabling Considerations
- Network Cable: Use CAT5e or CAT6 cabling for the network and PoE connection to the terminal. CAT6 is recommended for longer runs or where other network devices share the same infrastructure.
- PoE Cable Run: IEEE 802.3at PoE supports a maximum Ethernet run of 100m from switch to terminal. Runs beyond this require a PoE extender or a local 12VDC power supply at the door.
- Lock and Door Hardware Wiring: The lock control output, exit button input and door contact input each require separate cabling from the terminal to the respective door hardware. Cable gauge and run length should be matched to the lock type and power requirements for that circuit.
- Wiring Tips: Plan cable entry points and conduit paths before mounting the terminal backplate. Seal cable entry points on IP65-rated installations to maintain the protective rating. Confirm RS-485 or Wiegand connection requirements with the access controller before pulling cable, as termination and polarity vary between platforms.
