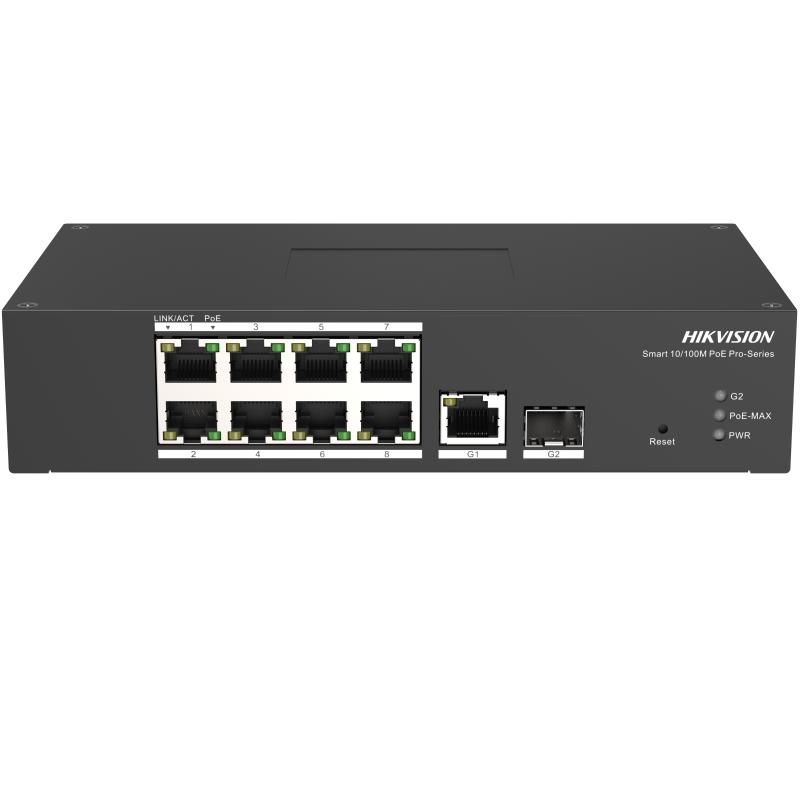

The Hikvision DS-3T1310P-SI/HS is an 8-port Fast Ethernet Smart Harsh PoE Switch designed for challenging environments. It features eight 10/100 Mbps PoE ports, one Gigabit RJ45 port, and one Gigabit fiber optical port, providing versatile connectivity options. The switch supports IEEE 802.3af and IEEE 802.3at PoE standards, delivering a maximum port power of 30 W and a total PoE power budget of 110 W. Its robust metal casing ensures durability, and the device operates reliably within a wide temperature range of -30°C to 65°C, making it suitable for harsh conditions.
© Security Wholesalers Australia. All rights reserved. https://www.securitywholesalers.com.au/product/hikvision-transmission-ds-3t1310p-si-hs-8-port-managed-poe1-x-uplink110w-30c-to-65c/
This smart switch offers advanced Layer 2 features, including PoE watchdog, STP/RSTP, VLAN, SNMP, QoS, and ERPS, enhancing network performance and security. The PoE watchdog function automatically detects and restarts unresponsive cameras, ensuring continuous operation. Additionally, the DS-3T1310P-SI/HS provides visualized topology management and network health monitoring, allowing for efficient network oversight. Its IP40 rating offers protection against intrusion and moisture, further solidifying its suitability for demanding industrial applications.
Technical Specifications:
| General |
| Shell |
Metal material |
| Net Weight |
0.6 kg (1.3 lb) |
| Gross Weight |
1.2 kg (2.6 lb) |
| Dimensions (W × H × D) |
197.00 mm × 114.20 mm × 42.20 mm (7.70” × 4.40” × 1.60”) |
| Operating Temperature |
-30 °C to 65 °C (-22 °F to 149 °F) |
| Storage Temperature |
-40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity |
5% to 95% (no condensation) |
| Relative Humidity |
5% to 95% (no condensation) |
| Power Supply |
48VDC, 2.5A |
| Installation Mode |
Desk-Mounted, Rail |
| Max. Power Consumption |
120 W |
| Power Consumption in Idle |
10 W |
| Surge Protection |
6 kV |
| Network Parameters |
| Ports |
8 × 10/100 Mbps PoE port, 1 × Gigabit RJ45 port, 1 × Gigabit fiber optical port |
| MAC Address Table |
16 K |
| Switching Capacity |
Whole-Device Performance: 9.2 Gbps
Port Performance: 5.6 Gbps |
| Packet Forwarding Rate |
Whole-Device Performance: 6.84 Mpps
Port Performance: 4.17 Mpps |
| Internal Cache |
4 Mbits |
| PoE Power Supply |
| PoE Standard |
IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin |
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) |
| PoE Port |
PoE: Ports 1 to 8 |
| Max. Port Power |
30 W |
| PoE Power Budget |
110 W |
| Software Function |
| Long Range |
Ports 1 to 8: up to 300 m. Performance may vary by camera model or cable condition. |
| Port Isolation |
Ports 1 to 8: isolate ports for improved security. Isolated ports can’t communicate with each other, but can communicate externally. |
| PoE Watchdog |
Ports 1 to 8: auto detect and restart unresponsive cameras. |
| QoS |
Supports service quality assurance via port-based priority and SP, WRR schedule modes. |
| Link Aggregation |
Supports static link aggregation, 1 aggregation group. |
| VLAN |
Supports 802.1Q, VLAN ID 1–4094, Trunk and Access port modes. Max. 4094 VLANs. |
| HPP |
Supports remote management via Hik-Partner Pro:
1. Port rate
2. Bandwidth utilization
3. PoE usage
4. Topology
5. Alarm status
6. Port/device restart
7. Long-range mode
8. Remote upgrade |
| Loop Prevention |
Disabled by default. Supports 802.1D STP and 802.1w RSTP. |
| System Maintenance |
Web device management, DHCP Client (default enabled), Super IP access (10.180.190.200), Hik-Central Pro, Hik-Partner Pro.
Cable detection, 802.1ab LLDP, port mirroring. |
| Storm Control |
Supports port rate limiting for broadcast, multicast, and unknown unicast packets. |
| DHCP Snooping |
Prevents unauthorized DHCP servers. Disabled by default. |
| Port Rate-Limiting |
Used for port bandwidth adjustment to prevent network congestion. |
| Approval |
| EMC |
CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020) |
| Safety |
CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry |
CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006) |
Hikvision Warranty
3-Year Manufacturer Warranty
