Product Overview

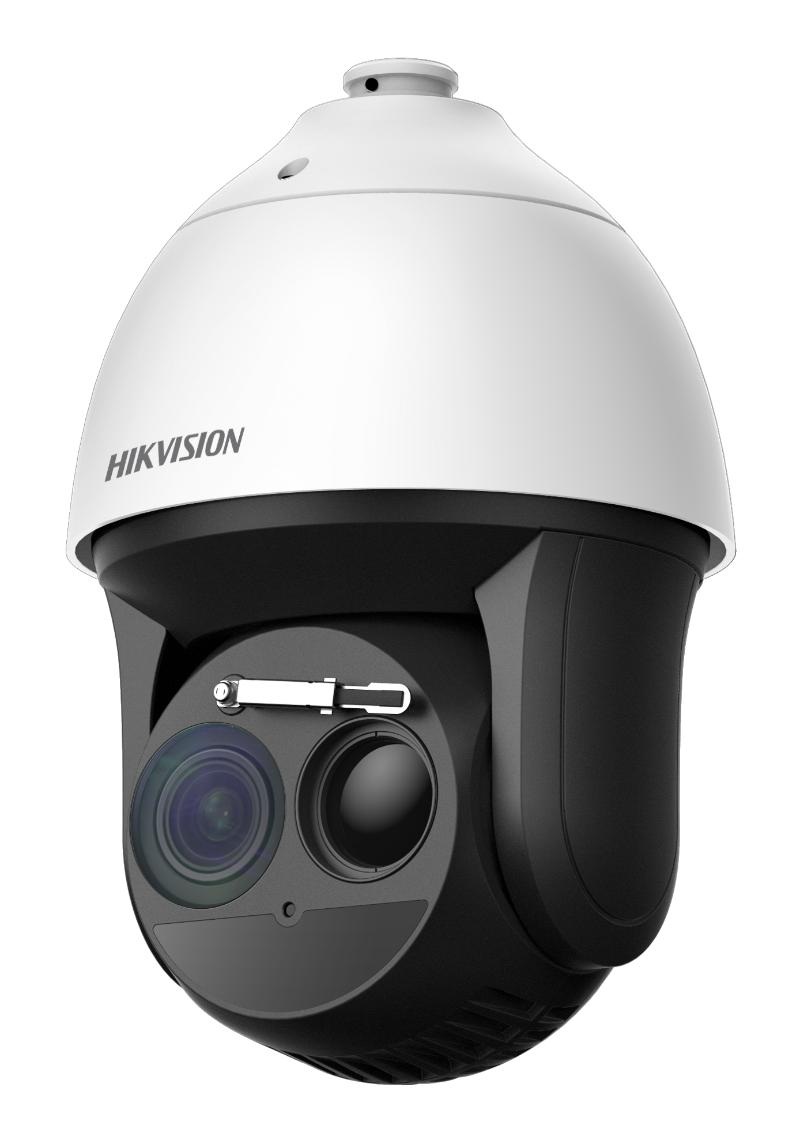

Combining thermographic heat detection with 40x optical PTZ verification, the Hikvision DS-2TD4167T-25/W is a bi-spectrum network speed dome built for critical infrastructure, industrial perimeters and high-risk monitoring sites. The thermal channel uses a 640 x 512 vanadium oxide uncooled focal plane array with a 25mm lens, supporting temperature measurement from -20°C to 550°C, dynamic fire detection across up to 10 fire points, and temperature exception alarms across points, areas and line rules. The optical channel pairs a 4MP 1/1.8″ CMOS sensor with a 6-240mm motorised lens providing 40x optical zoom, 120dB WDR and optical defog. Deep learning perimeter protection covers line crossing, intrusion, region entrance and region exit detection, while smart tracking supports panorama tracking, event tracking and multi-scene patrol tracking. With IP66 protection, TVS 6000V lightning protection, 200m IR, 7-channel alarm inputs and support for 24V AC, 36V DC, 48V DC or Hi-PoE power, it is built for demanding outdoor deployment at factories, substations, hydropower stations and fuel storage facilities. Please note: this product has a 70-day lead time.
Key Capabilities
Thermographic Temperature Measurement
The thermal channel measures temperatures from -20°C to 550°C with accuracy of ±2°C or ±2%, supporting point, area and line rules across 273 configurable presets. This makes it directly applicable to process monitoring, equipment supervision and heat anomaly detection in industrial environments.
Dynamic Fire Detection
The DS-2TD4167T-25/W supports dynamic fire detection across up to 10 simultaneous fire points, with a detection range of up to 1470m for a 2x2m object. This level of early detection is relevant for fuel storage zones, material handling areas, conveyor systems and high-risk manufacturing sites.
40x Optical Zoom Verification
The optical channel’s 6-240mm motorised lens provides 40x optical zoom, allowing operators to move from a wide field of view to close inspection of distant targets, perimeter activity or thermal events. DORI ranges extend to vehicle recognition at 564m and vehicle detection at 2255m.
Deep Learning Perimeter Protection
Line crossing, intrusion, region entrance and region exit detection are all supported using deep learning analytics. Up to 10 VCA scenes with 8 rules per scene can be configured, giving operators flexible coverage of fence lines, restricted zones, gates and critical infrastructure boundaries.
Smart Tracking and PTZ Control
Panorama tracking, event tracking and multi-scene patrol tracking are supported alongside 300 preset positions, 8 patrols with up to 32 presets per patrol, and 360-degree continuous pan with -20° to +90° tilt. This gives operators automated PTZ workflows across large or complex monitored sites.
Industrial-Grade Weather and Surge Protection
IP66 sealing, an operating temperature range of -40°C to 65°C, TVS 6000V lightning protection, surge protection and voltage transient protection are all confirmed. The camera also includes a wiper, supporting continuous outdoor operation in harsh industrial and perimeter environments.
Best For
- Industrial Fire Prevention: Dynamic fire detection with up to 10 fire points and a detection range of 1470m for a 2x2m object makes this camera directly applicable to fuel storage areas, conveyor systems and pyrophoric material handling sites.
- Substation and Energy Infrastructure Monitoring: Temperature exception alarms, thermal anomaly detection and long-range optical zoom support monitoring of transformers, switchgear and cable runs at substations and hydropower facilities.
- Critical Perimeter Security: Deep learning perimeter protection with line crossing, intrusion, region entrance and region exit detection helps secure fence lines, gates and restricted zones at high-security or critical infrastructure sites.
- Large Industrial Yards and Logistics Sites: Smart tracking and 40x optical zoom allow operators to cover expansive warehouse yards, logistics areas and storage facilities from a single PTZ camera position.
- Process Monitoring in Low-Visibility Conditions: The 640 x 512 thermal channel with NETD of 35mK and thermal image processing including DDE and 3D DNR enables heat detection and process supervision even through smoke, haze and low-light conditions where optical cameras cannot function reliably.
Why Choose the DS-2TD4167T-25/W
The DS-2TD4167T-25/W is a purpose-built thermographic speed dome, not a standard PTZ camera with basic heat awareness. Its 640 x 512 thermal sensor with 17μm pixel interval and NETD of 35mK provides the imaging sensitivity required for genuine industrial temperature monitoring and fire prevention, including dynamic fire detection covering up to 10 fire points and measurement across a range of -20°C to 550°C. The 40x optical zoom on the 4MP channel allows operators to immediately visually verify a thermal alarm from the same device rather than relying on a secondary camera. Deep learning perimeter protection across 10 configurable VCA scenes, 273 temperature measurement presets and multi-mode smart tracking make this camera suited to complex operational environments. Combined with TVS 6000V lightning protection, IP66 rating, wiper support and multi-voltage power compatibility, it is engineered for continuous outdoor use at demanding industrial and critical infrastructure sites. This model is available through Security Wholesalers with a 70-day lead time, which should be factored into project scheduling.
Buyer Decision Tips
Buyer Tip – Detection Distance vs Target Size: The fire detection and temperature measurement ranges of the DS-2TD4167T-25/W vary significantly with target size. Fire detection reaches 1470m for a 2x2m object but drops to 735m for a 1x1m object. Temperature measurement reaches 585m for a 2x2m object and 295m for a 1x1m object. Before installation, calculate the expected target size at your specific deployment distance to confirm the thermal channel will perform as required for your site.
Buyer Tip – Export Compliance and Lead Time: Thermal imaging cameras are subject to export control regulations in Australia and internationally. Confirm that your deployment scenario and end-user location comply with applicable export control requirements before ordering. This product has a 70-day lead time, so factor procurement timing into project schedules to avoid delays on critical site installations.
Key Features & Technical Specifications
| Model |
DS-2TD4167T-25/W |
| Product Type |
Thermographic Bi-Spectrum Network Speed Dome |
| Thermal Sensor |
Vanadium oxide uncooled focal plane array |
| Thermal Resolution |
640 x 512; output image resolution up to 1920 x 1080 |
| Pixel Interval |
17μm |
| NETD |
35mK at 25°C, F#1.1 |
| Thermal Lens |
25mm, F1.0 aperture |
| Thermal Field of View |
24.5° x 19.7° (horizontal x vertical) |
| Response Waveband |
8μm to 14μm |
| Optical Sensor |
1/1.8″ progressive scan CMOS, 4MP (2688 x 1520) |
| Optical Lens |
6-240mm motorised, 40x optical zoom |
| Optical WDR |
120dB |
| IR Distance |
Up to 200m |
| Temperature Measurement Range |
-20°C to 550°C; accuracy ±2°C or ±2% |
| Fire Detection |
Dynamic detection; up to 10 fire points; range up to 1470m (2x2m object) |
| Perimeter Protection |
Line crossing, intrusion, region entrance, region exit; up to 10 scenes, 8 VCA rules per scene |
| PTZ Pan / Tilt |
360° continuous pan; -20° to +90° tilt with auto flip |
| Presets / Patrols |
300 presets (273 configurable); 8 patrols with up to 32 presets per patrol |
| Smart Tracking |
Panorama tracking, event tracking and multi-scene patrol tracking |
| Local Storage |
microSD/SDHC/SDXC up to 256GB; NAS and ANR support |
| Alarm I/O |
7-channel alarm inputs; 2-channel relay outputs |
| Power Supply |
24V AC, 36V DC, 48V DC or Hi-PoE; max 65W |
| Protection |
IP66; TVS 6000V lightning, surge and voltage transient protection |
| Operating Temperature |
-40°C to 65°C |
| Dimensions / Weight |
266.6 x 410 x 198.6mm; approx. 9kg |
Ideal Use Cases
Industrial Fire Prevention
Dynamic fire detection covering up to 10 fire points with a range of 1470m for a 2x2m object makes the DS-2TD4167T-25/W suited to factories, fuel storage areas, conveyor systems and chemical handling zones where early fire indication is operationally critical.
Electrical Substations and Switchgear Monitoring
Temperature measurement supporting point, area and line rules across 273 configurable presets enables ongoing thermal monitoring of transformers, switchgear and cable infrastructure, helping operators identify thermal anomalies before they become faults or safety incidents.
Hydropower and Energy Site Perimeters
The combination of IP66 protection, -40°C to 65°C operating range, TVS 6000V lightning protection and deep learning perimeter protection supports long-term outdoor deployment at hydropower stations and energy infrastructure sites with demanding environmental and security requirements.
High-Security Perimeter Fence Lines
With VCA ranges of 175m for humans and 525m for vehicles, plus deep learning line crossing and intrusion detection across up to 10 configurable scenes, this camera is practical for fence line monitoring, restricted zone enforcement and gate surveillance at critical infrastructure sites.
Large Industrial Yards and Logistics Facilities
360-degree continuous pan, multi-scene patrol tracking and 40x optical zoom allow a single camera to cover extensive warehouse yards and logistics facilities. Smart tracking can follow moving targets automatically while operators can inspect distant activity with optical zoom following a thermal alert.
Choosing the Right Model
- Choose this model if: Your site requires thermographic temperature monitoring, fire detection, and long-range optical PTZ verification from a single device. The 25mm thermal lens, 640 x 512 thermal resolution and 40x optical zoom are suited to focused industrial monitoring where both heat detection and visual confirmation are operationally required.
- Choose a different model if: Your application only needs standard perimeter security without thermal or thermographic functions. A PTZ camera without a thermal channel will typically cost significantly less and may be more appropriate for video-only perimeter monitoring where temperature measurement and fire detection are not required.
- Choose a different model if: You need a wider thermal field of view for broad area scanning rather than focused detection. A shorter focal length thermal lens provides a wider field of view that may be better suited to open-area thermal screening rather than targeted long-range measurement.
FAQs
- What type of sites is the DS-2TD4167T-25/W designed for?
This camera is designed for industrial and critical infrastructure sites that require thermographic monitoring combined with optical PTZ surveillance. Confirmed applications include factories, electrical substations, hydropower stations, fuel and chemical storage facilities, industrial perimeters, logistics yards and any high-risk environment where temperature exception detection and fire indication are operationally important alongside visual security monitoring.
- What is the difference between the thermal channel and the optical channel on this camera?
The thermal channel uses a 640 x 512 vanadium oxide uncooled focal plane array to detect heat signatures, measure temperatures from -20°C to 550°C and identify fire points. The optical channel provides 4MP video with 40x optical zoom and 120dB WDR for visual identification and incident verification. Both channels operate simultaneously, with picture-in-picture display of partial thermal imagery over the optical view supported.
- What is the fire detection range of the DS-2TD4167T-25/W?
Fire detection range depends on target size. For a 2x2m object the confirmed detection range is 1470m, and for a 1x1m object it is 735m. Dynamic fire detection covers up to 10 simultaneous fire points. These figures should be matched against your actual target size and deployment distance before specifying this camera for a fire prevention role.
- How does the temperature measurement function work?
The camera supports 3 rule types including point, area and line measurement rules. Up to 273 presets can be configured as measurement scenes, with 21 rules per scene covering 10 points, 10 areas and 1 line. Temperature measurement covers -20°C to 550°C with maximum accuracy of ±2°C or ±2%. Alarms can be triggered when temperature exceptions exceed configured thresholds.
- Does this camera require specialised power supply or cabling for installation?
The DS-2TD4167T-25/W supports 24V AC, 36V DC, 48V DC and Hi-PoE power inputs with a maximum consumption of 65W. Standard PoE switches will not supply sufficient power for this camera. Confirm the power source, cable run distances, voltage drop calculations and whether a dedicated Hi-PoE switch or local power supply is required before finalising the installation design.
- What perimeter protection analytics are included, and how many rules can be configured?
The camera supports line crossing, intrusion, region entrance and region exit detection using deep learning. Up to 10 VCA scenes can be configured, with 8 VCA rules per scene. This allows operators to create layered detection coverage across multiple zones, fence lines, gates and restricted areas within a single camera installation.
- Are there export control considerations for purchasing a thermal camera?
Thermal imaging cameras including the DS-2TD4167T-25/W may be subject to export control regulations in Australia and internationally. These regulations can restrict who can purchase, use or export the product based on end-user location, intended application and deployment context. Confirm your specific compliance requirements with your legal or regulatory adviser before purchasing. Security Wholesalers recommends that all thermal camera purchases be reviewed against applicable export control obligations prior to order placement.
- What should be confirmed before specifying the DS-2TD4167T-25/W for a project?
Before specifying this camera, confirm the required thermal detection distance and target size, fire detection distance requirements, power supply type and cable routing, mounting structure and bracket load capacity (the camera weighs approximately 9kg), alarm input and output wiring requirements, network storage or NAS configuration, export compliance obligations and the 70-day lead time against project delivery schedules.
