Product Overview

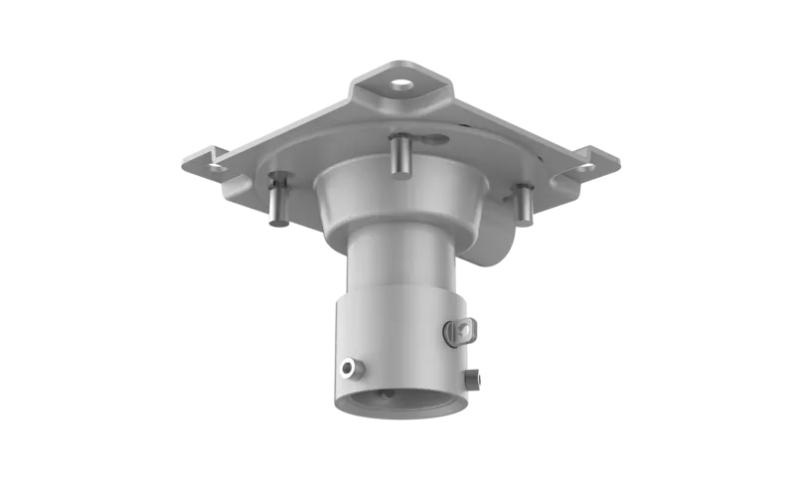

Industrial and coastal installations demand mounting hardware that can withstand prolonged exposure to salt air, chemical vapours, and moisture without deteriorating before the camera equipment it supports. The Hikvision DS-4610ZJ-GSAC addresses that requirement directly as a dedicated pendant mount bracket constructed from SUS316L stainless steel, a grade selected for its resistance to pitting and crevice corrosion in aggressive environments. With a compact 160 x 160 x 124mm footprint and an approx. 2.5kg build weight, the bracket provides a stable overhead mounting point for compatible Hikvision PTZ-style camera installations where a standard aluminium or galvanised bracket would not be appropriate. Finished in silver moon grey, the DS-4610ZJ-GSAC sits within Hikvision’s Explosion-Proof and Anti-Corrosion Series accessory range, making it the correct matching hardware for specialised camera deployments at ports, chemical processing sites, marine facilities, industrial plants, and exposed infrastructure locations.
Key Capabilities
SUS316L Stainless Steel Construction
SUS316L is a marine-grade stainless alloy with improved resistance to chloride-induced pitting compared with standard 304 stainless. This makes the bracket far better suited to salt air, chemical plant atmospheres, and persistent moisture than standard security mounting hardware.
Pendant Mount Design for PTZ Cameras
The pendant-style bracket provides a suspended mounting configuration suited to compatible Hikvision PTZ camera installations, supporting stable camera positioning overhead at industrial ceilings, structural beams, and outdoor overhangs where a wall mount is not practical.
Explosion-Proof and Anti-Corrosion Series Accessory
The DS-4610ZJ-GSAC is listed within Hikvision’s Explosion-Proof and Anti-Corrosion Series accessory range. Using matched accessories from the same series helps maintain system integrity and compatibility for specialised hazardous-area or corrosion-controlled deployments.
Compact but Solid Build Weight
At approx. 2.5kg and 160 x 160 x 124mm, the bracket provides a substantial stainless construction without excessive bulk. Installers should confirm the mounting structure and fixing hardware can support the bracket weight together with the compatible camera load.
Silver Moon Grey Professional Finish
The silver moon grey appearance gives the DS-4610ZJ-GSAC a professional look suited to visible installations at port infrastructure, commercial-industrial facilities, and public-facing sites where hardware finish matters alongside corrosion resistance.
Best For
- Coastal and Marine Facilities: SUS316L stainless construction provides meaningful corrosion resistance in salt-air environments where standard bracket materials deteriorate rapidly.
- Chemical Processing and Industrial Plants: Sites with corrosive atmospheric conditions benefit from a stainless steel mounting accessory within Hikvision’s anti-corrosion series rather than a standard security bracket.
- Port and Logistics Infrastructure: Pendant mounting at exposed overhead positions in port facilities, yards, and loading areas where PTZ-style cameras require durable, corrosion-resistant support hardware.
- Specialised Hikvision Anti-Corrosion Camera Installations: Installers specifying Hikvision explosion-proof or anti-corrosion camera systems who need matched accessory hardware from the same product range.
Why Choose the DS-4610ZJ-GSAC
Standard security mounting brackets are typically constructed from die-cast aluminium or mild steel with a painted finish, materials that perform adequately in sheltered suburban installations but degrade in corrosive industrial and coastal conditions. The DS-4610ZJ-GSAC takes a different approach by using SUS316L stainless steel throughout, a material grade selected specifically for its resistance to chloride environments, chemical exposure, and persistent moisture. Paired with a pendant mount configuration suited to compatible Hikvision PTZ camera installations, the bracket provides a durable overhead mounting solution where a cheaper accessory would not last. The 160 x 160 x 124mm form factor and approx. 2.5kg weight make it a practical choice for professional installers working on industrial, port, and marine surveillance projects. The DS-4610ZJ-GSAC is available through Security Wholesalers for specialists fitting out hazardous-area and corrosion-controlled CCTV deployments. Note that a 70-day lead time applies to this product and should be factored into project scheduling.
Buyer Decision Tips
Confirm camera compatibility before ordering: The DS-4610ZJ-GSAC is designed for compatible Hikvision PTZ-style camera installations within the Explosion-Proof and Anti-Corrosion Series. Not all Hikvision cameras are compatible. Confirm the camera model is listed as compatible with this bracket before placing an order, and verify the mounting structure, fixing type, fastener material, and cable routing path suit the site conditions.
Plan for the 70-day lead time: This bracket carries a 70-day lead time. For project-based installations at ports, industrial facilities, or chemical sites, order the DS-4610ZJ-GSAC well ahead of the planned installation date to avoid scheduling delays. Confirm fastener material, corrosion-resistant fixing hardware, and cable conduit requirements in advance so all components arrive together.
Key Features & Technical Specifications
| Model |
DS-4610ZJ-GSAC |
| Product Type |
Anti-Corrosion Pendant Mount Bracket |
| Accessory Series |
Hikvision Explosion-Proof and Anti-Corrosion Series Accessories |
| Mount Type |
Pendant mount bracket |
| Material |
SUS316L stainless steel |
| Appearance |
Silver moon grey |
| Dimensions |
160 x 160 x 124mm |
| Weight |
Approx. 2.5kg |
| Camera Compatibility |
Compatible Hikvision pendant and PTZ-style camera installations within the anti-corrosion and explosion-proof series |
| Application |
Pendant mounting for compatible Hikvision anti-corrosion camera systems in harsh environments |
| Suitable Environments |
Industrial sites, coastal facilities, chemical environments, ports, marine locations, warehouses, and harsh outdoor installations |
| Lead Time |
70 days |
Ideal Use Cases
Port and Waterfront Infrastructure
Ports combine salt air, moisture, and industrial pollutants in a single location. The SUS316L stainless build resists the chloride-driven corrosion that typically degrades standard brackets in these settings, making it a practical choice for pendant-mounted PTZ camera support at waterfront facilities.
Chemical and Processing Plants
Chemical facilities require mounting hardware that can tolerate corrosive airborne compounds. As a Hikvision Explosion-Proof and Anti-Corrosion Series accessory, the DS-4610ZJ-GSAC is designed for these controlled environments where bracket material selection is a safety and longevity consideration.
Marine and Offshore Sites
Marine environments present some of the harshest corrosion conditions for security hardware. The pendant mount format and SUS316L stainless construction support durable camera installation at shipyards, offshore facilities, and marine infrastructure where standard materials fail prematurely.
Industrial Warehouses and Factories
Manufacturing and processing environments with dust, moisture, and chemical exposure benefit from a stainless pendant mount that maintains structural integrity over time. The compact 160 x 160 x 124mm size keeps the installation footprint manageable on industrial ceiling structures.
Exposed Energy and Infrastructure Sites
Power generation facilities, substations, and other exposed infrastructure installations often require pendant-mounted PTZ surveillance at height. The DS-4610ZJ-GSAC provides a matched Hikvision accessory for anti-corrosion camera systems deployed in these demanding outdoor settings.
Choosing the Right Model
- Choose this model if: You are installing a compatible Hikvision PTZ-style camera in an industrial, coastal, chemical, or marine environment where a pendant mount configuration is required and corrosion resistance is a key specification. The SUS316L stainless build and Explosion-Proof and Anti-Corrosion Series designation make it the appropriate hardware for these conditions.
- Choose a different model if: The installation site is a standard indoor or sheltered suburban outdoor location where a standard aluminium or die-cast bracket is adequate. Standard mounting accessories are lighter, more readily available, and more cost-effective for installations not exposed to corrosive conditions. Also confirm compatibility if mounting a non-PTZ Hikvision camera, as this bracket is designed for pendant and PTZ-style applications within the anti-corrosion series.
FAQs
- What environments is the DS-4610ZJ-GSAC designed for?
The DS-4610ZJ-GSAC is designed for installations where mounting hardware is exposed to corrosive conditions, including coastal and marine environments, chemical processing sites, industrial facilities, and ports. The SUS316L stainless steel construction provides meaningful corrosion resistance in these settings compared with standard painted or aluminium security brackets.
- Why is SUS316L stainless used instead of standard stainless steel?
SUS316L stainless steel contains molybdenum, which improves resistance to chloride-induced pitting and crevice corrosion. This makes it more suitable than standard 304-grade stainless for environments with salt air, chemical vapours, or persistent moisture, which is why it is the material selected for this anti-corrosion series accessory.
- Which cameras is the DS-4610ZJ-GSAC compatible with?
The bracket is listed for compatible Hikvision PTZ-style and pendant camera installations within the Explosion-Proof and Anti-Corrosion Series. Compatibility should be confirmed against the specific camera model before ordering. Not all Hikvision cameras are compatible with this bracket, and using it with an incompatible camera may affect installation integrity.
- What are the dimensions and weight of the bracket?
The DS-4610ZJ-GSAC measures 160 x 160 x 124mm and weighs approximately 2.5kg. Installers should confirm the mounting surface, fixing hardware, and structural load capacity are appropriate to support both the bracket weight and the compatible camera being installed.
- Does this bracket require corrosion-resistant fixing hardware as well?
Yes. To maintain long-term corrosion resistance across the full mounting system, fixings, anchors, and any supplementary hardware should also be made from suitable corrosion-resistant materials, such as stainless steel fasteners, appropriate to the site’s environmental conditions. Using standard mild steel fixings in a corrosive environment would undermine the bracket’s material advantage.
- What is the lead time and where can the DS-4610ZJ-GSAC be sourced?
The DS-4610ZJ-GSAC carries a 70-day lead time from date of order. Project installers should account for this when scheduling industrial or specialised surveillance installations. The bracket is part of the Security Wholesalers range and is available to professionals fitting Hikvision anti-corrosion and explosion-proof camera systems in Australia.
