Product SKU: Hikvision DS-K1105EDB
Product Overview

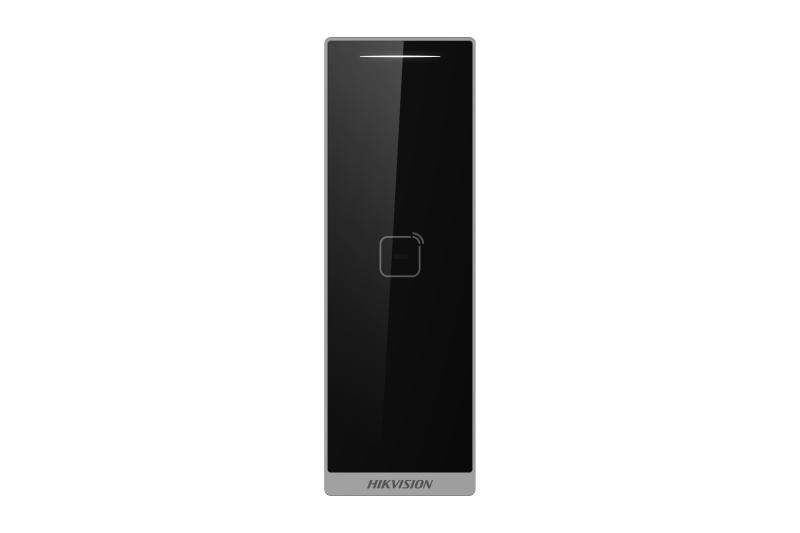

The Hikvision Pro Series DS-K1105EDB Multi-Technology Card Reader is a compact, weatherproof access control reader designed for secure and flexible entry authentication. It supports M1, EM and DESfire card reading, Bluetooth authentication, RS-485, Wiegand W26/W34 and OSDP protocol support, making it suitable for a wide range of Hikvision and compatible access control systems. With a built-in buzzer for read status indication, online upgrade support, occlusion detection, touch panel operation and an IP66-rated housing, the DS-K1105EDB is ideal for offices, apartments, schools, warehouses, retail stores, commercial buildings, gated facilities and outdoor access points requiring durable multi-technology access control.
Why Choose the Hikvision DS-K1105EDB
The Hikvision DS-K1105EDB is ideal for sites that need a reader capable of supporting multiple credential types and communication protocols. Its built-in card reading module supports both M1 and EM cards, while DESfire card compatibility gives installers a more flexible option for modern access control deployments. Bluetooth authentication adds convenient mobile access support, and the reader also supports RS-485, Wiegand and OSDP integration for broader system compatibility. The IP66 weatherproof design allows installation in suitable indoor and outdoor locations, while the slim wall-mounted form factor keeps the reader discreet and professional at doors, gates and controlled entry points.
Key Capabilities
Multi-Technology Card Reading
The DS-K1105EDB supports EM, M1 and DESfire card reading, making it suitable for access control systems that require compatibility with multiple credential types and migration between older and newer card technologies.
Bluetooth Authentication
Bluetooth support allows compatible mobile-based authentication workflows, helping users access doors using supported mobile credentials or Bluetooth-enabled interaction where configured through the access control system.
RS-485, Wiegand and OSDP Support
RS-485, Wiegand W26/W34 and OSDP protocol support provide flexible integration options for Hikvision access controllers and compatible third-party access control systems.
IP66 Weatherproof Design
IP66 protection supports reliable installation at suitable indoor and outdoor access points, helping protect the reader from dust and water exposure when installed correctly.
Status Buzzer and Upgrade Support
The built-in buzzer helps identify reading status, while online upgrade support helps keep the reader maintained through compatible access control infrastructure.
Key Features
-
M1, EM and DESfire Support: The DS-K1105EDB supports EM cards, M1 cards and DESfire cards, giving installers flexible credential compatibility for different access control requirements.
-
Dual-Frequency Card Reading: Built-in M1 and EM reading supports 13.56MHz and 125kHz credentials, making the reader suitable for mixed-card environments and upgrade pathways.
-
Bluetooth Authentication: Bluetooth support provides a convenient mobile credential option when configured with compatible Hikvision access control systems and supported user devices.
-
RS-485 and OSDP Support: The reader includes one RS-485 interface and supports OSDP protocol at 19200 baud, helping support secure and flexible reader-to-controller communication.
-
Wiegand W26/W34 Support: Wiegand protocol support allows integration with compatible legacy and third-party access control systems where W26 or W34 reader formats are required.
-
IP66 Weatherproof Protection: IP66 protection helps shield the reader against dust and water exposure, making it suitable for outdoor doors, gates and exposed entry points when correctly installed.
-
Built-In Buzzer: The integrated buzzer provides audible feedback for card reading status, helping users understand whether a credential has been read successfully.
-
Occlusion Detection: Occlusion detection helps identify obstruction or tampering attempts, supporting improved access control reliability and security monitoring.
-
Touch Panel Operation: Touch panel operation provides a clean and modern user interaction surface for access control use at doors and entry points.
-
Wall-Mount Design: The compact wall-mounted form factor makes the reader suitable for door frames, wall entries, gate posts and controlled access areas where space is limited.
Specifications Summary
| Feature |
Specification |
| Model |
DS-K1105EDB |
| Product Type |
Pro Series Multi-Technology Card Reader |
| Supported Card Types |
EM card, M1 card and DESfire card |
| Card Reading Frequency |
13.56MHz and 125kHz |
| Bluetooth Authentication |
Supported |
| RS-485 Interface |
1 × RS-485 |
| OSDP Protocol |
Supported over RS-485, 19200 baud |
| Wiegand Protocol |
Supported, W26/W34 |
| Authentication Methods |
Card swiping and Bluetooth authentication |
| Buzzer |
Built-in buzzer supported |
| Online Upgrade |
Supported |
| Touch Panel |
Supported |
| Occlusion Detection |
Supported |
| Power Supply |
12VDC |
| Power Consumption |
≤6W |
| Protective Level |
IP66 |
| Working Temperature |
-40°C to 65°C |
| Working Humidity |
0% to 90% |
| Installation |
Wall mounting |
| Dimensions |
139 × 46 × 21.2mm |
| Weight |
Approx. 167.7g |
| Best Use |
Access-controlled doors, commercial buildings, offices, apartments, schools, warehouses, outdoor entries, gates and secure facilities |
Access Control and Integration Notes
- Supports EM, M1 and DESfire card reading for flexible credential compatibility.
- Supports 13.56MHz and 125kHz card reading frequencies.
- Supports Bluetooth authentication for compatible mobile access workflows.
- Supports RS-485 protocol, Wiegand W26/W34 protocol and OSDP protocol.
- OSDP is supported over RS-485 at 19200 baud.
- Built-in buzzer provides audible card-read status feedback.
- Online upgrade support helps maintain compatible access control deployments.
- IP66 protection supports suitable indoor and outdoor installation when correctly sealed and wired.
Ideal Use Cases
- Commercial Office Doors – Suitable for staff entrances, meeting areas, restricted rooms and shared office access points requiring card or Bluetooth authentication.
- Apartment and Building Entries – Useful for common entries, lift lobby access, service doors and controlled residential building access points.
- Schools and Education Facilities – Practical for staff-only areas, administration offices, secure gates, equipment rooms and perimeter access points.
- Warehouses and Industrial Sites – Ideal for loading zones, staff entries, restricted storage rooms, plant rooms and external access doors where weather resistance is important.
- Outdoor Gates and Secure Perimeters – Suitable for compatible gate access systems, perimeter doors and external entry points requiring an IP66-rated reader.
Understanding Multi-Technology Card Reader Use
The Hikvision DS-K1105EDB is designed for access control systems where multiple credential types and flexible controller communication are required. It can read EM, M1 and DESfire cards, while also supporting Bluetooth authentication for compatible mobile access workflows. RS-485, OSDP and Wiegand support help installers integrate the reader into different access control architectures, from Hikvision controller-based systems to selected legacy Wiegand deployments. For best results, credential type, controller compatibility, wiring distance, protocol choice, outdoor sealing and access control software settings should be confirmed before installation.
| Reader Function |
What It Provides |
Best For |
| M1, EM and DESfire Reading |
Multi-technology card credential support |
Mixed-card systems, credential upgrades and flexible access deployments |
| Bluetooth Authentication |
Mobile credential support where configured |
Modern access control workflows and convenient user entry |
| RS-485, OSDP and Wiegand |
Flexible controller communication options |
Hikvision access controllers, OSDP deployments and selected Wiegand systems |
| IP66 Weatherproof Housing |
Dust and water protection for exposed locations |
Outdoor doors, gates, warehouses and external building entries |
Tip:
Use the Hikvision DS-K1105EDB where a compact weatherproof card reader needs to support multiple credential technologies, Bluetooth access and flexible controller protocols. Confirm access controller compatibility, credential type, OSDP or Wiegand wiring requirements, power supply, mounting location, cable path and IP66 sealing before installation.
FAQs
- What is the Hikvision DS-K1105EDB used for?
The DS-K1105EDB is used as an access control card reader for doors, gates and controlled entry points. It supports multiple credential types and communication protocols, making it suitable for commercial, residential, education, warehouse and outdoor access control installations.
- What card types does the DS-K1105EDB support?
The reader supports EM cards, M1 cards and DESfire cards. It includes built-in card reading support for 13.56MHz and 125kHz credentials, making it practical for mixed-card environments or access control upgrades.
- Does the DS-K1105EDB support Bluetooth?
Yes, the DS-K1105EDB supports Bluetooth authentication. When configured with compatible Hikvision access control systems and supported mobile credentials, users can authenticate using Bluetooth-based access workflows.
- What communication protocols are supported?
The reader supports RS-485, Wiegand W26/W34 and OSDP protocol. OSDP is supported over RS-485 at 19200 baud, giving installers flexible integration options depending on the controller and system design.
- Is the DS-K1105EDB suitable for outdoor use?
Yes, the reader has an IP66 protective rating and operates from -40°C to 65°C. It can be used in suitable outdoor access control locations when installed, wired and sealed correctly.
- Does the reader provide feedback when a card is read?
Yes, the DS-K1105EDB includes a built-in buzzer for identifying card reading status. This provides audible feedback to help users know when a credential has been detected.
- What power supply does it require?
The reader requires 12VDC power and has a listed power consumption of ≤6W. Power supply capacity and wiring distance should be checked before installation.
- What should be checked before installation?
Before installation, confirm controller compatibility, credential type, protocol choice, RS-485 or Wiegand wiring, OSDP settings, 12VDC power supply, outdoor sealing, mounting surface and access control software configuration.
