Product Overview

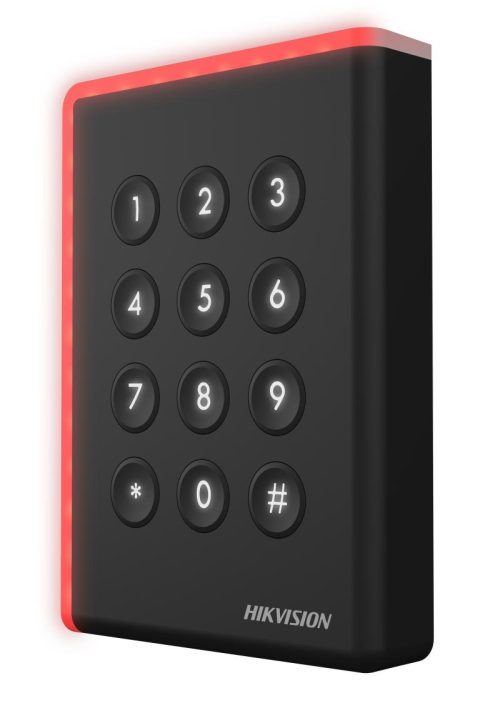

For access control installations that need both card and PIN-based credential verification in a single wall-mounted unit, the Hikvision DS-K1108AMK offers a compact Pro Series M1 card reader with integrated keypad. Supporting M1/Mifare card reading at 13.56MHz to ISO 14443-A standard, the reader presents a read distance of up to 50mm and is compatible with RS-485, Wiegand W26/W34 and OSDP communication protocols, giving installers flexibility to match controller and wiring requirements on site. It also includes a built-in buzzer for audible credential feedback, a tamper-proof function to detect unauthorised interference at the reader body, and online upgrade support through compatible Hikvision access control infrastructure. Built to IP65, the DS-K1108AMK is suited to wall mounting at controlled doors, staff entrances, apartment common areas, secure rooms and external entry points where dust and weather exposure are a factor.
Key Capabilities
M1/Mifare Card Reading at 13.56MHz
The DS-K1108AMK reads M1/Mifare credentials at 13.56MHz to ISO 14443-A standard with a read distance of up to 50mm. This suits commercial access control systems using M1 card credentials at doors, gates and controlled entry points.
Integrated Keypad
The built-in keypad supports PIN entry and card-plus-PIN access workflows where enabled through the connected controller. This is useful for secure rooms, restricted areas and sites where a single credential type is not sufficient.
Triple Protocol Support: RS-485, Wiegand and OSDP
Supporting RS-485, Wiegand W26/W34 and OSDP over RS-485 at 9600, 19200 or 38400 baud gives installers three communication pathways to match the controller type and site wiring already in place, reducing integration constraints.
Tamper-Proof Function
The tamper-proof function detects physical interference with the reader body. This is particularly useful at public-facing entry points, external doors and shared access areas where the reader is exposed to general foot traffic or unauthorised access attempts.
IP65 Weatherproof Design
Rated IP65 for dust and water ingress protection, the DS-K1108AMK can be installed at outdoor and semi-exposed entry points including external building doors, warehouse entries and sheltered gate access points when correctly mounted and sealed.
Best For
- Card-and-PIN Entry Control: The integrated keypad and M1 card support allow card-only, PIN-only or card-plus-PIN access workflows, depending on controller configuration, making this reader suitable where layered credential verification is required.
- Multi-Protocol Access Control Projects: RS-485, Wiegand W26/W34 and OSDP support in a single unit reduces the need to specify different readers for different controller types across a site or staged installation.
- External and Semi-Exposed Entry Points: IP65 protection and a confirmed working temperature range of -20 degrees Celsius to 65 degrees Celsius suit the reader for outdoor-facing doors, covered walkways and warehouse entries.
- Secure Doors Requiring Tamper Detection: The tamper-proof function supports reader security at public-facing access points such as apartment common entrances, staff-only doors and controlled commercial entry points.
Why Choose the DS-K1108AMK
The DS-K1108AMK stands out among M1 card readers through its combination of three communication protocols in a single compact unit. Where a card-only reader on a single protocol would leave an installer locked to one controller type, the DS-K1108AMK supports RS-485, Wiegand W26/W34 and OSDP, keeping the reader compatible across a wider range of access control systems and site configurations. The integrated keypad adds PIN-based workflow support without needing a separate keypad device, and the IP65 rating with a -20 to 65 degree Celsius operating range extends its suitability to external doors and locations that a non-rated reader could not handle. DIP switch ID configuration allows straightforward bus addressing when multiple readers are installed on the same controller. Available through Security Wholesalers, the DS-K1108AMK is a practical reader specification for commercial, industrial and residential access control projects where flexibility and durability both matter.
Buyer Decision Tips
Protocol and Controller Match: Before specifying the DS-K1108AMK, confirm which communication protocol your access controller uses. RS-485 with OSDP is the more secure option for supported controllers, while Wiegand W26/W34 suits legacy systems. If your controller uses RS-485 with OSDP, confirm the baud rate (9600, 19200 or 38400) is supported at both ends before wiring. DIP switch settings on the reader must also be configured to match the controller’s reader ID addressing, so review the controller documentation before installation.
Keypad and PIN Workflow Confirmation: The keypad on the DS-K1108AMK provides hardware input capability, but whether PIN-only or card-plus-PIN workflows are supported depends entirely on the connected access controller and its software configuration. Confirm that the controller and access management software support the intended credential workflow before committing to the DS-K1108AMK as a PIN-enabled reader on your project.
Key Features & Technical Specifications
| Model |
DS-K1108AMK |
| Product Type |
Pro 1108A Series M1 Card Reader with Keypad |
| Card Type |
M1 / Mifare card |
| Card Frequency |
13.56MHz |
| Card Standard |
ISO 14443-A |
| Card Reading Distance |
Up to 50mm |
| Keypad |
Built-in keypad included |
| Communication Protocols |
RS-485, Wiegand W26/W34, OSDP |
| RS-485 Interface |
1 x RS-485 |
| OSDP Support |
Supported over RS-485 |
| OSDP Baud Rate |
9600, 19200 and 38400 |
| Wiegand Support |
W26 and W34 |
| ID Configuration |
Via DIP switch |
| Indicators |
Power indicator and status LED |
| Buzzer |
Built-in beeper |
| Tamper-Proof Function |
Supported |
| Online Upgrade |
Supported |
| Power Supply |
12VDC |
| Power Consumption |
2W or less |
| Protective Level |
IP65 |
| Working Temperature |
-20 degrees Celsius to 65 degrees Celsius |
| Working Humidity |
10% to 90%, non-condensing |
| Installation |
Wall mounting |
| Dimensions |
123 x 88 x 21mm |
| Net Weight |
Approx. 0.14kg |
| Gross Weight |
Approx. 0.37kg |
Ideal Use Cases
Office and Commercial Building Entry
The M1 card reading capability and optional PIN input through the integrated keypad make the DS-K1108AMK suitable for staff doors, reception entries and restricted floor access in office buildings where layered credential control is a consideration.
Apartment and Residential Building Common Areas
IP65 protection and tamper-proof function suit shared building entries, lift lobby access doors and basement car park gates where the reader is exposed to general resident and visitor traffic daily.
Warehouse and Industrial Access Points
The -20 to 65 degree Celsius operating range and IP65 rating support installation at external warehouse doors, loading dock entries and plant room access points where temperature variation and dust exposure are common.
Schools and Education Facilities
Staff-only rooms, administration areas, server rooms and equipment stores in schools benefit from the card-plus-PIN capability on the DS-K1108AMK, allowing credential combinations that suit different user access levels.
Retail Back-of-House and Secure Rooms
Stock rooms, cash handling areas and manager offices in retail environments benefit from the compact 123 x 88 x 21mm wall-mount form factor and M1 card support, keeping controlled access discreet and practical without requiring a large reader footprint.
Choosing the Right Model
- Choose this model if: Your access control project requires M1/Mifare card reading with an integrated keypad in a single compact unit, your controller supports RS-485, Wiegand W26/W34 or OSDP, and the installation involves outdoor-facing or semi-exposed entry points where IP65 protection and a wide operating temperature range are needed.
- Choose a different model if: Your site uses a different card technology such as EM/125kHz or smart card formats other than M1, or if your access controller only accepts a communication protocol not covered by RS-485, Wiegand W26/W34 or OSDP. If a keypad is not required, a card-only reader variant may better suit the entry point and reduce per-door cost across larger projects.
FAQs
- What card technology does the DS-K1108AMK support?
The DS-K1108AMK supports M1/Mifare card credentials operating at 13.56MHz to the ISO 14443-A standard, with a maximum read distance of up to 50mm. It is designed for access control systems that use M1 card technology and is not compatible with EM or 125kHz card formats.
- Can the keypad be used for PIN-only access, or does it require a card?
The keypad hardware on the DS-K1108AMK supports PIN input, but whether PIN-only, card-only or card-plus-PIN workflows are available depends entirely on the connected access controller and its software configuration. Check your controller documentation and software capabilities before designing credential workflows around PIN-only entry.
- What communication protocols does the DS-K1108AMK support?
The reader supports RS-485, Wiegand W26 and W34, and OSDP over RS-485 at baud rates of 9600, 19200 and 38400. Communication protocol selection and reader ID addressing are both configured using the DIP switches on the unit, so confirm controller requirements before wiring and commissioning.
- Is OSDP more secure than Wiegand for this reader?
OSDP is generally considered a more secure communication protocol than Wiegand because it supports encrypted data transmission between the reader and controller, while Wiegand transmits data without encryption. If your controller supports OSDP over RS-485, using OSDP with the DS-K1108AMK is recommended for higher-security access points. Confirm OSDP compatibility with your controller before specifying this pathway.
- Can the DS-K1108AMK be installed outdoors?
Yes. The IP65 rating protects the reader against dust ingress and water jets, and the confirmed working temperature range of -20 degrees Celsius to 65 degrees Celsius supports installation in outdoor and semi-exposed locations. For outdoor mounting, ensure the reader is correctly sealed against the wall surface and that cable entry points are properly weatherproofed to maintain the IP65 rating in practice.
- How does the tamper-proof function work on the DS-K1108AMK?
The tamper-proof function detects physical interference with the reader body and can trigger an alert through the connected access control system. This is useful at public-facing entry points, external doors and high-traffic areas where the reader may be subject to interference. The controller must support tamper alarm processing for this function to generate actionable alerts.
- Where can I access the datasheet and technical documentation for the DS-K1108AMK?
The DS-K1108AMK datasheet is available through the Additional Information section below. The reader is part of the Security Wholesalers access control range, and the datasheet covers card frequency, protocol support, DIP switch configuration, electrical specifications and environmental ratings to support pre-installation planning and system design.
Cabling Considerations
- Cable Type: Use shielded twisted pair cable for RS-485 wiring to maintain signal integrity over longer cable runs. For Wiegand connections, use the cable specification recommended by the access controller manufacturer, typically multi-core shielded cable.
- Maximum Cable Run: RS-485 supports cable runs up to 1200 metres in standard deployments, though actual performance depends on cable quality, number of devices on the bus and baud rate selection. Wiegand is typically limited to shorter runs of up to 150 metres, depending on cable gauge and controller specifications.
- Power Supply Wiring: The DS-K1108AMK requires a 12VDC power supply with a confirmed maximum consumption of 2W. Ensure the power supply cable is sized appropriately for the cable run length to avoid voltage drop at the reader. A regulated 12VDC power source is recommended.
- Wiring Tips: Confirm DIP switch settings for reader ID and protocol selection before finalising wiring. Where multiple readers are installed on a single RS-485 bus, each reader must have a unique address configured via DIP switch. For outdoor runs, ensure all conduit entry points and cable penetrations through the mounting surface are sealed to maintain IP65 protection at the reader location.
