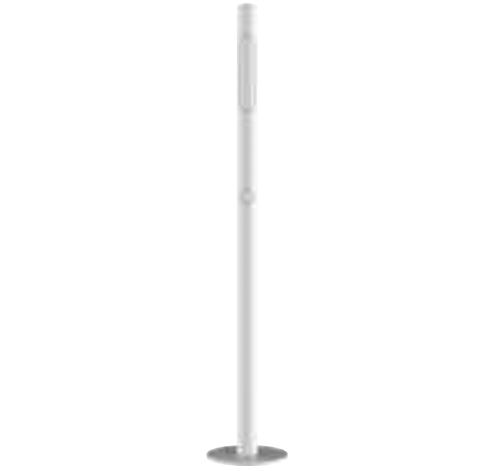

Hikvision L1300-R117 1.3m White Pole for LPR Camera Unit Waterproof Q235 Steel

Product SKU: L1300-R117

Product Overview

The Hikvision L1300-R117 is a 1.3 metre mounting pole designed for compatible LPR camera units used in licence plate recognition, parking, entrance and exit monitoring applications. Manufactured from Q235 material with a surface spray treatment, the pole provides a purpose-built mounting structure for supported traffic-camera installations. Hikvision specifies a waterproof design and a cap arrangement intended to simplify cable routing through the pole for a cleaner installation. The white version provides a professional finish suited to commercial car parks, gated entrances, logistics sites and vehicle access points. At approximately 1.3 metres high, the L1300-R117 is designed to position compatible LPR hardware at a practical low-level mounting height around controlled vehicle lanes.

Key Capabilities

Best For

• LPR Camera Installations: Designed for compatible licence plate recognition camera units positioned around vehicle lanes.
• Car Park Entrances & Exits: Suitable for controlled vehicle access points where a dedicated low-height camera support is required.
• Commercial Driveways: Provides a purpose-built mounting structure for supported entrance and exit monitoring systems.
• Logistics & Industrial Sites: Useful around loading yards, depots and controlled vehicle gates using compatible LPR hardware.
• Parking Management Systems: Can form part of a supported Hikvision parking or entrance-control camera installation.

Why Choose the L1300-R117

The L1300-R117 provides a cleaner and more predictable mounting solution than adapting a generic pole for a compatible Hikvision LPR camera installation. Its 1.3 metre height is designed around vehicle entrance and exit applications, while Q235 construction, surface treatment and waterproof design make it suitable for purpose-built outdoor deployments. Internal cable routing through the capped pole can also produce a neater installation and reduce exposed cabling around the camera location. Available through Security Wholesalers, the L1300-R117 is particularly useful where installers want a manufacturer-matched support structure for compatible parking, LPR and vehicle-access camera hardware.

Buyer Decision Tips

Key Features & Technical Specifications

Product Type	Pole for compatible LPR camera unit.
Model	L1300-R117.
Application	Licence plate recognition, parking and entrance/exit camera mounting.
Appearance	White version.
Material	Q235.
Surface Treatment	Surface spray treatment.
Height	Approximately 1300 mm / 1.3 m.
Current Published Dimensions	Approximately 60 × 60 × 1300 mm.
Earlier ESP Version Dimensions	Approximately Ø60 × 1300 mm.
Current Published Net Weight	Approximately 8.9 kg.
Earlier ESP Version Weight	Approximately 8.88 kg.
Packaged Weight	Approximately 10 kg on the current L1300-R117 specification.
Packaged Dimensions	Approximately 80 × 80 × 1350 mm on the current specification.
Waterproof Design	Yes.
Cable Management	Cap design intended to simplify wiring through the pole.
Mounting Surface	Earlier Hikvision documentation specifies installation on a flat surface.

Ideal Use Cases

Choosing the Right Model

• Choose the L1300-R117 if: You need a 1.3 metre purpose-built pole for a compatible Hikvision LPR camera unit.
• Confirm the exact revision if: Pre-fabricated mounting hardware depends on whether the supplied pole uses the current 60 × 60 mm profile or an earlier approximately Ø60 mm format.
• Choose a taller pole if: The project requires elevated overview surveillance rather than low-level vehicle and licence-plate capture.
• Check the complete mounting system if: The camera, illuminator or other accessories add significant load or wind area to the installation.

FAQs

1. What is the Hikvision L1300-R117 designed for?
   The Hikvision L1300-R117 is a 1.3 metre pole designed for compatible LPR camera unit installations. Its purpose is to provide a dedicated mounting structure for supported licence plate recognition and entrance/exit camera hardware. Hikvision specifies Q235 construction, a surface spray treatment, a waterproof design and a cap arrangement intended to make cable routing easier.
2. What are the dimensions of the Hikvision L1300-R117?
   The current Hikvision datasheet lists the L1300-R117 at approximately 60 mm × 60 mm × 1300 mm. Earlier ESP-L1300-R117 documentation describes the pole as approximately 60 mm in diameter × 1300 mm high. For Security Wholesalers installations, confirm the exact supplied variant before preparing foundations, brackets or pre-cut mounting hardware.
3. What material is the L1300-R117 made from?
   Hikvision specifies Q235 as the material for the L1300-R117. The pole also uses a surface spray treatment. This makes it a purpose-built structural accessory for compatible LPR camera installations rather than a generic lightweight camera bracket.
4. Is the Hikvision L1300-R117 waterproof?
   Yes. Hikvision lists a waterproof design as a key feature of the L1300-R117 pole. The cap design is also intended to make wiring easier. The waterproof design of the pole does not replace the need to seal cable entries and install the connected camera, junctions and mounting hardware according to their own environmental requirements.
5. How much does the Hikvision L1300-R117 weigh?
   The current Hikvision L1300-R117 datasheet lists a net weight of approximately 8.9 kg and a packaged weight of approximately 10 kg. Earlier ESP-L1300-R117 documentation lists approximately 8.88 kg. These figures are close, but the exact supplied hardware revision should be confirmed where structural calculations or freight planning require precise values.
6. What installation surface is required for the L1300-R117?
   Hikvision’s earlier ESP-L1300-R117 documentation states that the mount should be installed on a flat surface. The supporting surface, anchors and foundation should be selected for the site conditions and the complete installed load. Security Wholesalers installations should also account for wind exposure, camera weight, cable routing and any compatible accessories fitted to the pole.

Additional Information

• Hikvision L1300-R117 Pole for LPR Camera Datasheet
