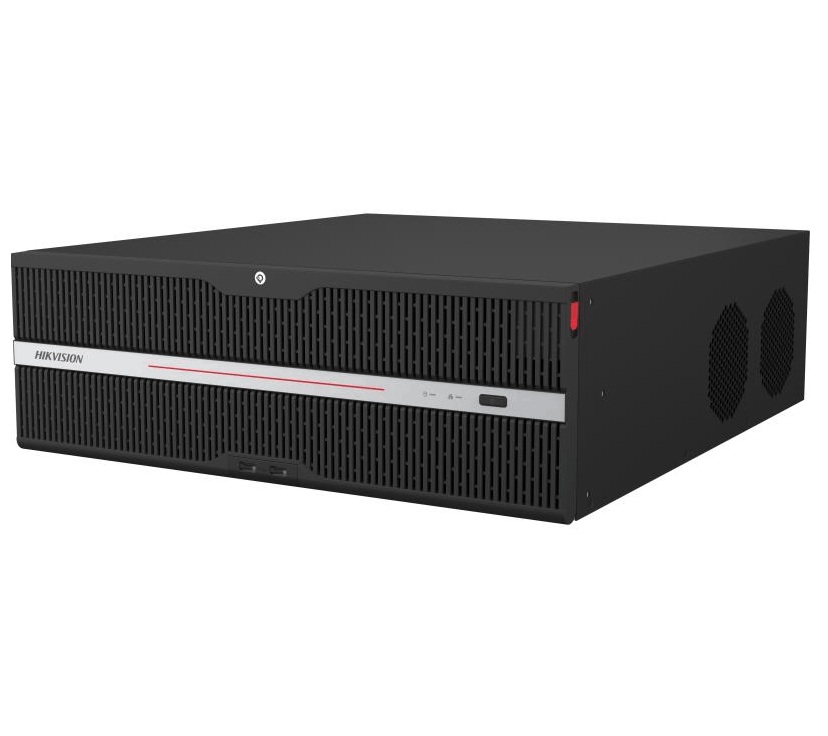

Hikvision IDS-9632NXI-P16 32CH DeepinMind Pro AcuSeek NVR with 32MP Recording 8K HDMI 320Mbps 16 SATA RAID & AcuSearch NO HDD included

Product SKU: iDS-9632NXI-P16

Product Overview

The Hikvision iDS-9632NXI-P16 is a 32-channel DeepinMind Pro AcuSeek network video recorder designed for medium-to-large commercial, industrial and enterprise surveillance systems requiring advanced AI search, high-resolution recording and resilient storage. It accepts IP cameras up to 32MP, provides 320 Mbps incoming and 400 Mbps outgoing bandwidth, and supports 8K HDMI output for high-resolution local monitoring. AcuSeek enables natural-language video searching, while AcuSearch, Guanlan large-scale AI models, facial recognition, perimeter protection and video structuralisation provide advanced investigation and event-analysis capabilities. The recorder includes 16 SATA interfaces supporting up to 20TB per drive, one eSATA interface and RAID 0/1/5/6/10 support for flexible storage design. Dual Gigabit Ethernet, extensive alarm I/O, 16-channel synchronous playback and powerful GPU-based analytics make the iDS-9632NXI-P16 suitable for security operations where rapid search, large storage capacity and intelligent video analysis are essential.

Key Capabilities

Best For

• Warehouses and logistics centres: Rapid AcuSeek and AcuSearch investigation can help security teams locate relevant people, vehicles and objects across large camera networks.
• Factories and industrial sites: Advanced perimeter protection and large storage capacity suit continuous surveillance across multiple operational zones.
• Shopping centres and business parks: Facial recognition, video structuralisation and AI search support complex multi-camera investigations.
• Enterprise security rooms: 8K display output, high decoding capacity and extensive alarm interfaces suit central monitoring environments.
• Long-retention CCTV systems: Sixteen SATA bays and RAID support provide considerably greater storage flexibility than conventional small NVRs.

Why Choose the iDS-9632NXI-P16

The iDS-9632NXI-P16 is designed for surveillance systems where finding important footage quickly is as critical as recording it. AcuSeek allows operators to search video using natural-language descriptions, while AcuSearch, Guanlan AI perimeter protection, facial recognition and video structuralisation provide additional investigation tools. Its 320 Mbps incoming bandwidth accommodates demanding camera networks, and 16 SATA bays with multiple RAID options provide the storage architecture required for longer retention and data redundancy. Dual Gigabit networking, extensive alarm I/O and 8K local display capability further suit professional control-room environments. Available through Security Wholesalers, it is particularly well matched to large sites that need intelligent search and enterprise-level storage rather than a basic channel-count-focused recorder.

Buyer Decision Tips

Key Features & Technical Specifications

Product	32-channel DeepinMind Pro AcuSeek AI network video recorder.
Model	iDS-9632NXI-P16.
IP Video Inputs	32 channels.
Maximum Camera Resolution	Up to 32MP; up to 8 channels of 32MP or 24MP IP video inputs.
Incoming Bandwidth	320 Mbps.
Outgoing Bandwidth	400 Mbps.
Recording Resolutions	32MP, 24MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF and QCIF.
Video Compression	H.265+, H.265, H.264+ and H.264.
Decoding Capacity	Up to 2-ch at 32MP/30 fps, 2-ch at 24MP/30 fps, 4-ch at 16MP/30 fps, 8-ch at 8MP/30 fps, 16-ch at 4MP/30 fps or 32-ch at 2MP/30 fps.
Synchronous Playback	16 channels.
AcuSeek	Natural-language AI video search; all channels with compatible AcuSense cameras using AcuSearch, or up to 16-ch 2MP / 8-ch 4MP / 4-ch 8MP using NVR-side processing.
AcuSeek Modelling	Up to 600,000 targets per day with compatible camera-side AcuSearch configuration.
AcuSearch by Camera	All channels with compatible cameras, up to 600,000 targets per day.
AcuSearch by NVR	Up to 16-ch 2MP, 8-ch 4MP or 4-ch 8MP normal IP camera access.
AI by NVR	Facial recognition, perimeter protection, video structuralisation, AcuSearch and AcuSeek.
AI by Camera	Facial recognition, perimeter protection, video structuralisation, AcuSearch, Motion Detection 2.0, ANPR, people counting and VCA on compatible cameras.
AI Processing	Three GPU engines with configurable intelligent processing resources according to selected analytics.
Large-Model Perimeter Protection	Up to 12-ch at 2MP, 8-ch at 4MP or 4-ch at 8MP using NVR-side processing.
Standard Perimeter Protection	Up to 24-ch at 2MP, 16-ch at 4MP or 8-ch at 8MP using NVR-side processing.
Video Structuralisation	Up to 16-ch at 2MP, 12-ch at 4MP or 6-ch at 8MP.
Facial Recognition	Up to 16-ch video-stream facial analytics or up to 32-ch face-picture comparison depending on configuration.
Face Libraries	Up to 32 libraries with up to 100,000 face pictures.
ANPR	Supported through compatible camera-side ANPR analytics.
HDMI 1	Up to 8K 7680 × 4320 at 30 Hz; also supports 4K, 2K and 1080p outputs.
HDMI 2	Up to 4K 3840 × 2160 at 60 Hz; limited to 1080p maximum when HDMI 1 operates at 8K.
VGA Outputs	2 × VGA, up to 1920 × 1080 at 60 Hz.
CVBS Output	1 × BNC.
Audio Output	2 × RCA.
Two-Way Audio	1 × RCA input.
Network Interfaces	2 × RJ45 10/100/1000 Mbps self-adaptive Gigabit Ethernet.
Remote Connections	Up to 128.
RAID	RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10.
SATA Interfaces	16 × SATA for 3.5-inch hard drives.
Maximum HDD Capacity	Up to 20TB per hard drive according to the current datasheet.
eSATA	1 interface.
USB	Front: 2 × USB 2.0; rear: 2 × USB 3.0.
Serial Interfaces	1 × RS-232 and 1 × full-duplex RS-485.
Alarm Inputs / Outputs	16 inputs / 9 outputs.
Auxiliary Power Outputs	Controllable 12 VDC, 1 A output and continuous 12 VDC, 1 A output.
Power Supply	100–240 VAC, 50–60 Hz.
Power Consumption	Up to 50 W without hard drives.
Operating Temperature	-10°C to 55°C.
Operating Humidity	10% to 90%.
Dimensions	442 × 498 × 146 mm.
Weight	Up to approximately 12.5 kg without hard drives.

Ideal Use Cases

Choosing the Right Model

• Choose the iDS-9632NXI-P16 if: You need 32 IP channels, AcuSeek, AcuSearch, 32MP recording support, 8K HDMI, 16 internal hard drives and RAID.
• Choose the iDS-9632NXI-P8 if: The same DeepinMind Pro AI platform is suitable but eight internal SATA bays provide enough storage capacity.
• Choose a higher-channel DeepinMind Pro NVR if: The final system requires more than 32 IP camera channels from one recorder.
• Plan camera compatibility carefully if: Full-channel AcuSeek or camera-side AcuSearch is required, because supported AI performance depends on the connected camera models and enabled analytics.

FAQs

1. How many IP cameras can the Hikvision iDS-9632NXI-P16 support?
   The iDS-9632NXI-P16 supports up to 32 IP camera channels, with camera resolutions up to 32MP. Hikvision specifies that up to eight 32MP or 24MP IP video inputs can be connected. The recorder provides 320 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth, making it suitable for larger high-resolution surveillance systems where many concurrent camera streams, playback sessions and intelligent analytics need to be handled by one NVR.
2. What is AcuSeek on the iDS-9632NXI-P16?
   AcuSeek is Hikvision’s AI video search function that allows operators to describe a target using natural-language text and search recorded footage for matching people, vehicles, animals or objects. With compatible AcuSense cameras that have AcuSearch enabled, AcuSeek can work across all channels and model up to 600,000 targets per day. Conventional camera deployments use the NVR’s own AI engines and therefore have lower channel limits depending on camera resolution.
3. What is the difference between AcuSeek and AcuSearch?
   AcuSearch is designed to quickly locate matching human or vehicle targets after a relevant target is selected, while AcuSeek uses text-based semantic search to find footage matching a written description. The iDS-9632NXI-P16 supports both functions. Compatibility and channel count depend on whether analytics are supplied by compatible cameras or generated by the NVR’s own GPU engines, so the final camera mix should be considered when designing the system.
4. Does the iDS-9632NXI-P16 support 32MP recording and 8K display output?
   Yes. The NVR accepts IP camera resolutions up to 32MP and supports recording resolutions including 32MP, 24MP, 12MP, 8MP and lower formats. HDMI 1 can output up to 8K at 7680 × 4320 and 30 Hz, while HDMI 2 supports up to 4K. When HDMI 1 operates at 8K, the maximum HDMI 2 output resolution is limited to 1080p.
5. How much storage can the iDS-9632NXI-P16 support?
   The iDS-9632NXI-P16 provides 16 SATA interfaces for 3.5-inch hard drives, with Hikvision specifying support for up to 20TB per drive on the current datasheet. It also includes one eSATA interface and supports RAID 0, RAID 1, RAID 5, RAID 6 and RAID 10. Actual usable capacity depends on the number and size of installed drives, the chosen RAID level and the required redundancy strategy.
6. What AI analytics are built into the iDS-9632NXI-P16?
   The NVR supports facial recognition, perimeter protection, video structuralisation, AcuSearch and AcuSeek using onboard intelligent processing. It also works with compatible camera-side analytics including facial recognition, perimeter protection, Motion Detection 2.0, ANPR, people counting and VCA. Hikvision’s Guanlan large-scale AI models are used for advanced analytics, while configurable GPU engines allow processing resources to be assigned according to the required security application.
7. What perimeter-protection capacity does the iDS-9632NXI-P16 provide?
   Using NVR-side analytics without the large model, perimeter protection supports up to 24 channels at 2MP, 16 channels at 4MP or eight channels at 8MP. Large-model perimeter protection supports up to 12 channels at 2MP, eight channels at 4MP or four channels at 8MP. Compatible AcuSense cameras can provide large-model perimeter protection across all channels when the required camera-side functions are supported and enabled.
8. Who should choose the Hikvision iDS-9632NXI-P16?
   Choose the iDS-9632NXI-P16 when a larger commercial, industrial or enterprise surveillance system needs 32 IP channels, up to 32MP camera input, 8K local display, 320 Mbps incoming bandwidth, advanced AcuSeek and AcuSearch functions, RAID storage and up to 16 internal hard drives. When planning the recorder through Security Wholesalers, match camera analytics, GPU requirements, RAID level and retention targets to the final system rather than sizing the NVR from channel count alone.

Additional Information

Hikvision iDS-9632NXI-P16_Datasheet
