Product Overview

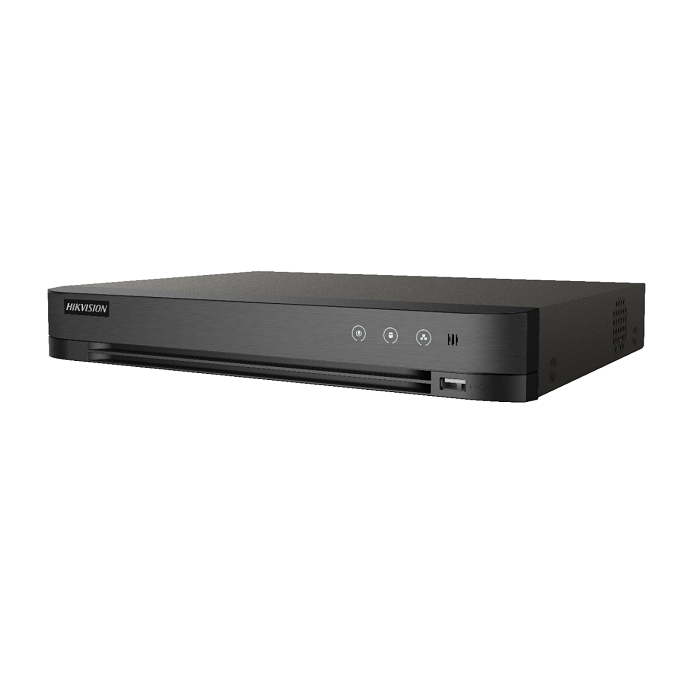

Upgrading an existing coaxial CCTV installation to 5MP or 8MP resolution no longer requires re-cabling from scratch. The iDS-7208HUHI-M1/S is an 8-channel 1U DVR from Hikvision’s M1/S series, purpose-built to accept HD-TVI cameras at up to 8MP over coax while also supporting 5MP AHD, 5MP HD-CVI, standard definition analogue, and up to 8 x 8MP IP cameras in a fully hybrid configuration. Equipped with H.265 Pro+ compression, storage requirements can be reduced by up to 50 percent compared to older codecs, which is a meaningful saving across an 8-channel system recording continuously. Built with deep learning-based AcuSense technology, the recorder delivers perimeter protection and smarter motion detection to cut down on event noise. This model ships with a 3TB HDD pre-installed, HDMI output at 4K resolution, VGA output at up to 1080P, and a single SATA bay supporting up to 10TB total storage.
Key Capabilities
Hybrid Multi-Format Recording
Accepts HD-TVI (up to 8MP), 5MP AHD, 5MP HD-CVI, standard analogue SD, and up to 8 x 8MP IP cameras simultaneously. This flexibility allows existing coaxial cameras to remain in service while IP cameras are added to expand coverage without a full system replacement.
AcuSense Deep Learning Detection
Deep learning algorithms classify motion events by human and vehicle targets, significantly reducing false alerts triggered by animals, trees, or lighting changes. Perimeter protection rules such as line crossing and intrusion detection add structured event filtering across all 8 channels.
H.265 Pro+ Compression
H.265 Pro+ is Hikvision’s most efficient compression tier for this recorder, cutting bandwidth and storage consumption by up to 50 percent compared to H.264. Across an 8-channel system recording at 5MP or 8MP, this difference translates directly into longer usable retention on the included 3TB HDD.
4K HDMI and 1080P VGA Outputs
The HDMI port supports 4K UHD display output, allowing live view and playback to be reviewed on a 4K monitor with full clarity. The concurrent VGA output at up to 1080P means a secondary monitor can be connected for a control room or reception desk setup without additional hardware.
Pre-Installed 3TB HDD
The recorder ships with a 3TB hard drive already installed, removing the need to source and fit a drive separately before commissioning. The SATA bay accepts drives up to 10TB, so storage can be upgraded later if longer retention or higher-resolution recording demands increase.
Dual Recording System
Supports dual recording streams per channel, enabling high-resolution main stream recording for archival alongside a lower-resolution sub-stream for remote viewing over mobile or web connections without placing unnecessary load on upload bandwidth.
Best For
- Coax Upgrade Projects: Sites already cabled with coaxial cable that need to move from legacy SD analogue to 5MP or 8MP HD-TVI without re-pulling cable throughout the building.
- Small Commercial Installations: Retail stores, offices, and warehouses requiring 8 channels of high-resolution recording with AI-assisted event detection at a manageable system cost.
- Hybrid Mixed-Camera Sites: Installations combining existing TVI or analogue cameras with newer IP cameras, using the hybrid channel support to consolidate all feeds into a single recorder.
- Perimeter and Entry Monitoring: Sites where AcuSense perimeter protection rules are needed to trigger alerts on human or vehicle crossings rather than general motion at entrances, gates, or loading areas.
Why Choose the iDS-7208HUHI-M1/S
The iDS-7208HUHI-M1/S sits at the intersection of coaxial practicality and modern AI capability. Where a basic 8-channel TVI DVR would record motion without classification, this model applies deep learning to distinguish humans and vehicles, producing actionable alerts rather than a log full of irrelevant triggers. Supporting HD-TVI at up to 8MP means the recorder is not just compatible with today’s TVI cameras but has headroom for higher-resolution hardware without replacing the recorder. H.265 Pro+ compression preserves that resolution advantage without consuming excessive storage on the included 3TB drive. The 4K HDMI output ensures the resolution improvement is visible at the monitor level, not just in recordings. For installers and end users sourcing this through Security Wholesalers, the unit arrives ready to commission with the HDD pre-fitted, reducing on-site setup time considerably.
Buyer Decision Tips
Storage Planning: With a single SATA bay, this recorder supports a maximum of one internal drive up to 10TB. At 8 channels recording continuously in 5MP H.265 Pro+, the included 3TB HDD will provide moderate retention. If your site requires 30 or more days of uninterrupted 8-channel recording, plan to upgrade the internal drive to 8TB or 10TB at installation rather than after go-live. There is no second bay to add capacity later without replacing the existing drive.
IP Channel Limit and Bandwidth: The hybrid IP channel support allows up to 8 IP cameras to be added, but the total channel count remains 8 across all input types combined. When mixing TVI and IP channels, confirm the IP cameras are compatible with Hikvision’s ONVIF or proprietary protocol to ensure AcuSense metadata and event triggers pass correctly through the recorder rather than recording generic motion only.
Key Features & Technical Specifications
| Model |
iDS-7208HUHI-M1/S |
| Video Channels |
8 channels |
| Maximum TVI Resolution |
Up to 8MP HD-TVI at 8fps; up to 5MP HD-TVI at 12fps |
| Supported Input Formats |
8MP HD-TVI, 5MP AHD, 5MP HD-CVI, standard definition analogue, up to 8 x 8MP IP |
| Compression |
H.265 Pro+, H.265 Pro, H.265, H.265+, H.264+, H.264 |
| HDMI Output |
4K (UHD) |
| VGA Output |
Up to 1080P |
| Storage Interface |
1 x SATA, up to 10TB |
| Included HDD |
3TB pre-installed |
| AI Features |
AcuSense deep learning, perimeter protection (line crossing, intrusion detection), Video Content Analytics (VCA) |
| Recording Mode |
Dual recording system (main stream and sub-stream) |
| Form Factor |
1U desktop/rack |
| Power Supply |
12VDC, 1.5A |
| Operating Temperature |
-10 to 55 degrees Celsius |
| Operating Humidity |
10% to 90% non-condensing |
| Dimensions |
315 x 242 x 45mm |
| Weight |
1.16kg (without HDD) |
Ideal Use Cases
Retail and Small Commercial Sites
An 8-channel capacity covers a typical shopfront with internal aisles, a back office, and external entry points. AcuSense human detection on the recorder generates reliable alerts for after-hours intrusion without requiring dedicated AI cameras at every position.
Coaxial System Upgrades
Properties with established coax cabling can move to 5MP or 8MP HD-TVI resolution by replacing only the cameras and this DVR, retaining all existing cable runs. This avoids the cost and disruption of re-cabling an entire site to Cat6 for IP migration.
Warehouses and Storage Facilities
Perimeter protection VCA rules can be configured to trigger alerts when people or vehicles enter defined zones outside business hours. The 8MP TVI recording capability ensures aisle views and loading dock footage retain enough detail for post-incident review.
Office Buildings and Multi-Tenancy
Dual recording streams allow a high-resolution local archive while a compressed sub-stream is used for remote monitoring by a management company or security firm, keeping bandwidth consumption low without sacrificing on-site recording quality.
Hybrid Legacy-Plus-IP Installations
Sites replacing older cameras progressively can run a mix of retained analogue or TVI cameras alongside newly added IP cameras on the same recorder. The hybrid architecture supports SD analogue through to 8MP IP within the 8-channel total, consolidating all feeds into one interface.
Choosing the Right Model
- Choose this model if: Your site uses or plans to use HD-TVI cameras over existing coaxial cable, you need AcuSense deep learning detection at the recorder level across 8 channels, and you want a unit that arrives ready to record with a 3TB HDD already installed.
- Choose a different model if: You need more than 8 channels, require more than a single HDD bay for higher storage capacity without drive replacement, or are deploying a fully IP-based system where a dedicated NVR with multi-bay storage and native PoE switching would be more appropriate.
FAQs
- Can the iDS-7208HUHI-M1/S record 8MP TVI cameras on all 8 channels simultaneously?
Yes, the recorder supports up to 8MP HD-TVI input across all 8 channels. At 8MP the frame rate is 8fps per channel. If 5MP TVI cameras are connected, the recorder records at up to 12fps per channel. The actual frame rate and resolution combination should be confirmed against your camera models and the recorder’s total bandwidth allocation.
- Does the recorder work with my existing analogue cameras?
Yes. The iDS-7208HUHI-M1/S supports standard definition analogue input alongside 5MP AHD, 5MP HD-CVI, and 8MP HD-TVI over BNC connectors. This makes it suitable for transitional installations where older analogue cameras are retained on some channels while higher-resolution TVI cameras are installed on others.
- How many IP cameras can be added to this DVR?
Up to 8 x 8MP IP cameras can be added. The total channel count across all input types, whether TVI, analogue, or IP, remains 8. Adding IP cameras does not expand the recorder beyond its 8-channel capacity.
- What does AcuSense actually do on this recorder?
AcuSense uses deep learning to classify detected objects as human or vehicle. Rather than recording any movement as a generic motion event, the recorder can filter and flag only events involving people or vehicles. Perimeter protection rules including line crossing and intrusion detection can be applied per channel, enabling structured alarm responses rather than broad motion alerts.
- Can the 3TB HDD be replaced with a larger drive?
Yes. The single SATA bay supports drives up to 10TB. The pre-installed 3TB HDD can be replaced at any point with a higher-capacity drive. Note that there is only one bay, so the maximum internal storage is limited to a single drive. External storage via network or additional devices would need to be considered if 10TB is insufficient for your retention requirements.
- What monitor connections does the iDS-7208HUHI-M1/S support?
The recorder provides an HDMI output at 4K (UHD) resolution and a VGA output at up to 1080P. Both outputs can be used simultaneously, which suits installations where a main control monitor and a secondary public-facing or reception display are needed from the same unit.
- Where can I access the datasheet and is this model backed by warranty?
The full iDS-7208HUHI-M1/S datasheet is linked in the Additional Information section below. This model is available through Security Wholesalers and is covered by a 3-year warranty with local support. The warranty period and support terms should be confirmed at time of purchase.
