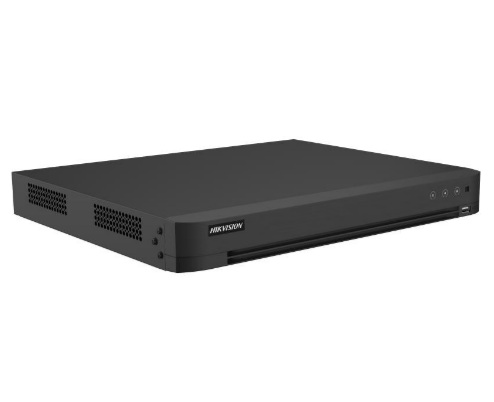

Hikvision iDS-7208HTHI-M2/XT 8-Channel AcuSense Turbo HD DVR with 8MP Recording 2 HDD Bays & H.265+ – NO HDD included

Product SKU: IDS-7208HTHI-M2-XT

Product Overview

The Hikvision iDS-7208HTHI-M2/XT is an 8-channel AcuSense Turbo HD DVR designed for high-resolution analogue CCTV systems that require intelligent human and vehicle filtering, advanced search functions and flexible hybrid camera support. Eight BNC inputs accept HDTVI, AHD, HDCVI and CVBS cameras, while supported configurations can accommodate up to 16 IP camera inputs at resolutions up to 8 MP. The recorder supports recording at up to 8 MP, efficient H.265 Pro+ compression and intelligent functions including Motion Detection 2.0, perimeter protection, face recognition and AcuSearch. Two SATA bays support up to 12 TB per drive for substantial local storage capacity, while 4K HDMI output and Gigabit Ethernet suit modern monitoring and network environments. NO HDD included.

Key Capabilities

Best For

• 8-Channel Turbo HD Systems: Ideal for upgrading or building systems around high-resolution analogue CCTV cameras.
• Mixed Camera Technologies: Five-signal compatibility supports HDTVI, AHD, HDCVI, CVBS and IP cameras within one recorder platform.
• Human & Vehicle Detection: AcuSense Motion Detection 2.0 helps focus event searches and alerts on more relevant activity.
• Longer Video Retention: Two HDD bays with up to 12 TB support per drive suit sites requiring substantial recording capacity.
• Hybrid CCTV Upgrades: Existing coaxial camera infrastructure can be retained while supported IP cameras are progressively added.

Why Choose the iDS-7208HTHI-M2/XT

The iDS-7208HTHI-M2/XT combines the practical advantages of coaxial CCTV with newer AI-assisted search and alarm functions. Its eight BNC inputs support multiple analogue HD standards, while IP camera expansion provides a pathway for hybrid upgrades without immediately replacing an existing cabling infrastructure. Motion Detection 2.0, advanced perimeter protection, face functions and AcuSearch help operators review relevant events more efficiently, while H.265 Pro+ reduces storage demand compared with less efficient codecs. Available through Security Wholesalers, the DVR is particularly well suited to homes and commercial sites that need 8 MP recording, two hard-drive bays and intelligent AcuSense functionality in a compact 1U recorder.

Buyer Decision Tips

Key Features & Technical Specifications

Product Type	8-channel AcuSense Turbo HD hybrid DVR.
Model	iDS-7208HTHI-M2/XT.
Analog Video Inputs	8 × BNC.
Supported Analog Signals	HDTVI, AHD, HDCVI and CVBS.
IP Camera Inputs	8 channels standard, up to 16 channels in supported configurations, each up to 8 MP.
Maximum Recording Resolution	Up to 8 MP.
8 MP Recording Frame Rate	12/15 fps depending on configured television standard.
Other Encoding Resolutions	5 MP, 3K, 4 MP, 3 MP, 1080p, 720p, WD1, 4CIF, VGA and CIF.
Video Compression	H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264.
Motion Detection 2.0	Up to 8 analogue channels with human and vehicle classification.
Perimeter Protection	Up to 8 analogue channels on advanced model functions.
Face Picture Comparison	Up to 4 channels for compatible HD analogue cameras.
Face Capture	Up to 4 channels.
Face Picture Libraries	Up to 16.
AcuSearch	Up to 8 channels.
Decoding Capability	Up to 24 × 1080p at 30 fps.
Synchronous Playback	8 channels.
HDMI Output	1 × HDMI, up to 4K 3840 × 2160 at 30 Hz.
VGA Output	1 × VGA, up to 1920 × 1080 at 60 Hz.
CVBS Output	1 × BNC.
Audio Input	1 × RCA plus up to 8 channels audio over coaxial cable.
Audio Output	1 × RCA.
Two-Way Audio	1 × RCA using the first audio input.
Network Interface	1 × RJ45 10/100/1000 Mbps self-adaptive Gigabit Ethernet.
Total Bandwidth	256 Mbps.
Remote Connections	Up to 64.
Network Protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF and ISUP.
HDD Bays	2 × SATA interfaces.
Maximum HDD Capacity	Up to 12 TB per supported hard drive.
Included Storage	NO HDD included.
RS-485	1 × half-duplex serial interface.
USB	Front: 1 × USB 2.0; rear: 2 × USB 3.0.
Alarm I/O	Not standard; optional support depending on configuration.
Power Supply	12 VDC, 5 A.
Power Consumption	≤15 W without HDD.
Operating Temperature	-10°C to 55°C.
Operating Humidity	10% to 90%.
Dimensions	Approximately 384 × 313 × 52 mm.
Weight	≤1.78 kg without HDD.

Ideal Use Cases

Choosing the Right Model

• Choose the iDS-7208HTHI-M2/XT if: You need eight analogue channels, 8 MP recording, two HDD bays and AcuSense intelligent functions in one Turbo HD DVR.
• Choose a larger-channel recorder if: More than eight analogue cameras are required or the system is likely to expand significantly beyond the supported hybrid configuration.
• Choose an NVR instead if: The project is entirely IP-based and does not need HDTVI, AHD, HDCVI or CVBS camera inputs.
• Plan HDD capacity before purchase if: You require a specific retention period, because this recorder is supplied with NO HDD included and storage requirements vary substantially with bitrate and recording settings.

FAQs

1. How many cameras does the Hikvision iDS-7208HTHI-M2/XT support?
   The Hikvision iDS-7208HTHI-M2/XT provides eight analog BNC inputs and can also accept IP cameras. Hikvision lists 8 IP channels as standard and up to 16 IP camera inputs in supported configurations, with each IP channel supporting up to 8 MP resolution. The final camera mix should be checked against the recorder’s enabled channel mode, total bandwidth and decoding limits.
2. What smart AcuSense functions does the iDS-7208HTHI-M2/XT support?
   The recorder supports deep-learning Motion Detection 2.0 on all eight analog channels with human and vehicle classification, helping reduce false alarms caused by movement such as leaves or changing light. It also supports up to eight channels of advanced perimeter protection, four-channel face picture comparison for HD analog cameras, four-channel face capture and eight-channel AcuSearch functionality.
3. Can the iDS-7208HTHI-M2/XT record 8 MP cameras?
   Yes. Hikvision specifies recording up to 8 MP resolution. The main stream supports 8 MP at 12 or 15 fps, depending on the video standard, while lower resolutions support higher frame rates. The recorder accepts HDTVI, AHD, HDCVI, CVBS and IP sources, but the exact supported resolution and frame rate depend on the signal type and channel configuration.
4. How much hard-drive storage does the iDS-7208HTHI-M2/XT support?
   The iDS-7208HTHI-M2/XT provides two SATA interfaces and supports up to 12 TB per hard drive according to the current datasheet, allowing up to 24 TB of raw installed capacity when two supported 12 TB drives are fitted. This product is supplied with NO HDD included, so storage drives must be selected separately according to camera count, bitrate, recording schedule and retention requirements.
5. What video outputs and network connection does the iDS-7208HTHI-M2/XT provide?
   The recorder provides one HDMI output supporting up to 4K resolution, one VGA output up to 1920 × 1080 and one CVBS output. It also includes a Gigabit RJ45 Ethernet interface and supports network protocols including Hik-Connect, HTTPS, ONVIF, NFS and iSCSI. For Security Wholesalers installations, network and storage sizing should still reflect the actual camera bitrates and remote-access requirements.
6. What power and operating conditions apply to the iDS-7208HTHI-M2/XT?
   The iDS-7208HTHI-M2/XT uses a 12 VDC, 5 A power supply and consumes up to 15 W without hard drives installed. Hikvision specifies an operating temperature range from -10°C to 55°C and working humidity from 10% to 90%. The chassis measures approximately 384 × 313 × 52 mm and weighs up to 1.78 kg without hard drives.

Additional Information

• Hikvision iDS-7208HTHI-M2_XT Acusense DVR Datasheet
