Product Overview

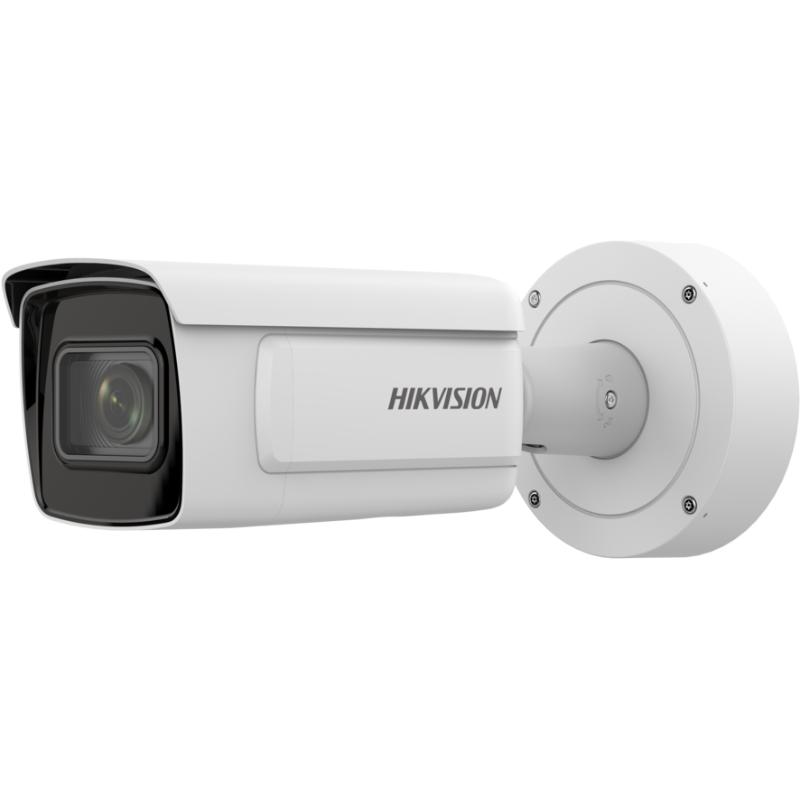

Built for demanding outdoor surveillance where image detail and intelligent classification both matter, the iDS-2CD7AC5G0-IZHS is a 12MP DeepinView motorised varifocal bullet camera from Hikvision. Featuring a 2.8-12mm motorised varifocal lens, installers can adjust the field of view remotely to suit wide-entry monitoring, long-corridor approaches, or focused coverage of loading areas without physical lens adjustment. Equipped with DarkFighter low-light technology, the camera maintains colour and detail in near-dark conditions that would challenge standard infrared cameras. It integrates deep learning AI analytics covering multi-target detection, hard hat detection, face recognition, queue management, and vehicle identification, making it suited to high-accountability environments where standard motion detection is insufficient. Additional capabilities include intrusion detection, line crossing detection, perimeter protection, IP67 weather resistance, IK10 vandal resistance, and a corrosion-resistant housing for coastal or industrial sites. This is a special-order product with a lead time of usually 6-8 weeks.
Key Capabilities
12MP DeepinView Imaging
At 12MP, the iDS-2CD7AC5G0-IZHS captures a level of scene detail that allows AI analytics to classify subjects accurately at distance. This resolution is particularly important at entry points, checkpoints, and large open areas where zoomed forensic review is likely.
Motorised Varifocal Lens (2.8-12mm)
The motorised varifocal lens allows remote zoom and focus adjustment during commissioning. For outdoor bullet installations covering fence lines, driveways, or loading docks, this avoids the need to physically reposition the camera to achieve the right framing after mounting.
Deep Learning AI Analytics
Onboard deep learning supports multi-target detection, face recognition, hard hat detection, queue management, vehicle identification, intrusion detection, line crossing, and perimeter protection. These analytics reduce false trigger rates and support operational intelligence beyond basic motion alerts.
DarkFighter Low-Light Technology
DarkFighter uses a large image sensor optimised for low-light sensitivity, delivering colour-accurate and detail-rich images in conditions where standard cameras would produce noisy or washed-out results. This is valuable for unlit outdoor areas at night or poorly lit industrial environments.
IP67, IK10, and Corrosion-Resistant Housing
The combination of IP67 dust and water ingress protection, IK10 vandal impact resistance, and a corrosion-resistant housing makes this camera suitable for coastal installations, chemical storage areas, and industrial yards where standard camera housings would degrade over time.
H.265+ Compression with WDR
H.265+ reduces storage and bandwidth demands significantly compared to older codecs, which matters at 12MP where raw data volumes are high. Wide Dynamic Range handles high-contrast scenes such as entrances with direct sunlight, preserving detail in both bright and shadowed areas simultaneously.
Best For
- Construction Sites and Industrial Yards: Hard hat detection and perimeter intrusion analytics make this camera directly useful for WHS compliance monitoring and after-hours trespass alerts in outdoor industrial environments.
- Coastal and Corrosive Environments: The confirmed corrosion-resistant housing extends camera service life in marine, coastal, or chemically aggressive environments where standard aluminium housings would corrode.
- High-Security Entry Points and Checkpoints: Face recognition and vehicle identification analytics support access accountability at gates, loading bays, and controlled entry points for commercial and government facilities.
- Large Outdoor Approaches and Perimeter Fence Lines: The motorised varifocal lens and 12MP resolution allow precise framing and forensic detail capture along long outdoor approaches, car park perimeters, and boundary fence lines.
- Retail Distribution and Logistics Hubs: Queue management and multi-target detection analytics provide operational data alongside security coverage, supporting both loss prevention and workflow monitoring in high-traffic warehouse and dispatch environments.
Why Choose the iDS-2CD7AC5G0-IZHS
Most outdoor bullet cameras at this price point deliver video capture and basic motion detection. The iDS-2CD7AC5G0-IZHS operates differently. Its deep learning engine runs genuine AI classification onboard, meaning hard hat detection, queue management, face recognition, and vehicle identification are processed at the camera rather than being dependent on server-side software. At 12MP, the level of scene detail captured supports reliable AI classification at greater distances than lower-resolution models. The motorised varifocal lens (2.8-12mm) adds installation flexibility that a fixed-lens bullet cannot offer, particularly on large sites where camera positions are set before final coverage requirements are confirmed. The corrosion-resistant IK10 housing adds durability value that matters on coastal or industrial projects. Available through Security Wholesalers, this camera is a special-order item with a lead time of usually 6-8 weeks, so project timelines should account for this when specifying.
Buyer Decision Tips
Buyer Tip 1 – Lead Time Planning: The iDS-2CD7AC5G0-IZHS carries a lead time of usually 6-8 weeks as a special-order product. For project-based installations, confirm your site timeline before ordering. If the project requires immediate deployment, discuss alternative stocked models with your account manager before specifying this camera.
Buyer Tip 2 – NVR Compatibility for AI Analytics: To fully utilise the onboard AI analytics including face recognition, hard hat detection, and queue management, ensure your NVR or VMS platform supports DeepinView camera integration. Not all Hikvision NVR models surface every DeepinView analytics stream. Verify compatibility at the NVR specification level before finalising your system design.
Key Features & Technical Specifications
| Product Model |
iDS-2CD7AC5G0-IZHS |
| Resolution |
12MP |
| Camera Type |
DeepinView AI Network Bullet Camera |
| Lens Type |
Motorised varifocal |
| Focal Length |
2.8-12mm |
| Low-Light Technology |
DarkFighter |
| AI Analytics |
Multi-target detection, face recognition, hard hat detection, queue management, vehicle identification, intrusion detection, line crossing detection, perimeter protection |
| Video Compression |
H.265+ |
| Wide Dynamic Range |
Yes |
| Weather Protection |
IP67 |
| Vandal Resistance |
IK10 |
| Housing |
Corrosion resistant |
| Power |
PoE (Power over Ethernet) |
| Product Category |
Hikvision DeepinView, Hikvision AcuSense, Hikvision Corrosion Resistant |
| Lead Time |
Usually 6-8 weeks (special order) |
Ideal Use Cases
Construction Site Monitoring
Hard hat detection analytics allow site managers to receive alerts when workers enter hazardous zones without appropriate PPE. Combined with perimeter intrusion detection, this camera covers both WHS compliance and after-hours security in a single installation.
Coastal and Marine Facilities
The corrosion-resistant housing is specifically suited to ports, marinas, fish processing facilities, and beachside commercial properties where salt air and moisture would degrade a standard camera housing within months.
Secure Entry Gates and Vehicle Access Points
Vehicle identification and face recognition analytics allow this camera to support access accountability at controlled entry points. The 12MP resolution provides the detail necessary for confident identification review at typical gate-to-camera distances.
Warehouse and Logistics Operations
Queue management analytics add operational value beyond security by helping identify bottlenecks in dispatch, receiving, and staging areas. The motorised varifocal lens allows precise framing of high-traffic zones without repositioning the camera bracket.
Critical Infrastructure and Government Sites
Facilities requiring audit-grade footage with AI-assisted event classification benefit from the combination of 12MP imaging, DarkFighter night performance, and deep learning analytics that can be reviewed and searched by event type rather than manually scrubbing footage.
Industrial Perimeter and Fence Lines
Line crossing and intrusion detection analytics trigger alerts when the defined perimeter boundary is breached. The bullet form factor allows directional mounting along fence lines and the motorised lens enables fine adjustment to match the specific approach corridor being monitored.
Choosing the Right Model
- Choose this model if: Your project requires 12MP resolution with onboard deep learning AI analytics including hard hat detection, face recognition, or vehicle identification, and the installation environment involves coastal exposure, industrial corrosion risk, or vandal-prone outdoor locations where both IP67 and IK10 ratings are required.
- Choose a different model if: Your application requires immediate availability, as this camera carries a 6-8 week lead time. If your project only requires standard motion detection or basic perimeter alerts without AI classification, a lower-resolution fixed-lens bullet with standard IR would deliver comparable results at lower cost and with faster availability.
- Choose a different model if: Your NVR or VMS platform does not support DeepinView analytics integration. The onboard AI capabilities of this camera require compatible software to surface actionable alerts. Without that compatibility, the AI investment in this model is not fully utilised.
FAQs
- What makes the iDS-2CD7AC5G0-IZHS a DeepinView camera rather than a standard AI camera?
DeepinView is Hikvision’s designation for cameras running onboard deep neural network processing for high-accuracy subject classification. Unlike simpler AI cameras that use basic pixel-change detection or edge filtering, DeepinView cameras process scenes using trained deep learning models, enabling analytics like face recognition, hard hat detection, and queue management that require genuine multi-attribute classification rather than simple object detection.
- Does the hard hat detection work in outdoor conditions with variable lighting?
Hard hat detection is supported by the deep learning engine onboard the camera. DarkFighter technology helps maintain image quality in low-light conditions, and the camera includes Wide Dynamic Range processing for high-contrast outdoor scenes. Both of these contribute to maintaining consistent image quality for AI classification across varying lighting conditions, though performance will depend on subject distance and angle relative to the camera’s field of view.
- What does the corrosion-resistant rating mean in practice for the iDS-2CD7AC5G0-IZHS?
The corrosion-resistant housing designation indicates the external surfaces and materials have been treated or selected to resist degradation from salt air, chemical exposure, and humidity levels typically found in marine, coastal, or industrial chemical environments. This extends the operational lifespan of the camera in locations where a standard housing would suffer surface corrosion, seal failure, or connector degradation over time.
- How does the motorised varifocal lens affect installation compared to a fixed-lens bullet camera?
A motorised varifocal lens allows the installer to adjust zoom and focus remotely via the camera’s interface or NVR after the camera is mounted and cabled. This is particularly useful on large outdoor sites where the exact framing requirement is confirmed on-site rather than pre-planned. It avoids the need to physically re-angle or reposition the camera bracket during commissioning to achieve the required field of view.
- What NVR or VMS is needed to access the full AI analytics on this camera?
To access DeepinView analytics including face recognition, hard hat detection, and queue management as searchable or alertable events, you need an NVR or VMS platform that supports DeepinView camera integration. Not all Hikvision NVR models surface every analytics stream from DeepinView cameras. Confirm compatibility at the NVR specification level before finalising your system design. Security Wholesalers can assist with compatibility queries if you provide your intended NVR model.
- What is the lead time and why does it apply to this product?
The iDS-2CD7AC5G0-IZHS carries a lead time of usually 6-8 weeks because it is a special-order product rather than a standard stocked item. This is typical for high-specification DeepinView cameras that are ordered to meet specific project requirements. Factor this into project scheduling when specifying this camera, particularly if commissioning deadlines are fixed.
- Does the iDS-2CD7AC5G0-IZHS support PoE, and what PoE standard is required?
Yes, the camera supports Power over Ethernet, allowing a single Cat5e or Cat6 cable to carry both data and power to the camera. Confirm the specific PoE standard (802.3af or 802.3at) required by checking the datasheet linked in the Additional Information section below, as the power draw of a 12MP camera with motorised varifocal lens may require an 802.3at (PoE+) capable switch port rather than a standard 802.3af port.
