Product Overview

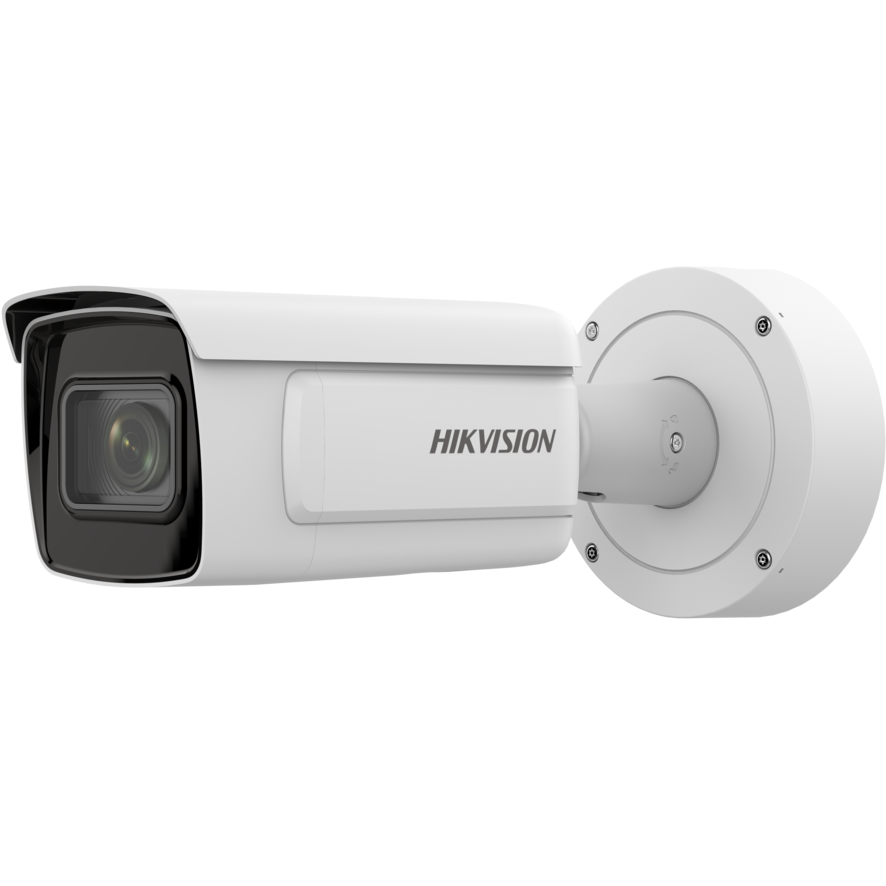

Built for demanding perimeter and long-range surveillance, the iDS-2CD7A86G0-IZHS is an 8MP 4K bullet camera combining Hikvision’s DarkFighter low-light technology with DeepinView AI analytics and a motorised varifocal lens. The bullet housing is designed for wall and pole mounting at property boundaries, loading docks, car parks, and industrial yards where directional coverage across extended distances is the priority. Featuring a motorised varifocal lens, installers can adjust zoom and focus remotely without physical access to the camera, which significantly reduces commissioning time at height or in difficult locations. Equipped with 120dB true WDR, the camera maintains usable image detail when strong backlighting or mixed lighting conditions are present. It also includes IP67 ingress protection and an IK10 vandal-resistant rating, making it suitable for exposed outdoor locations. H.265+ compression and support for 5 simultaneous streams help manage bandwidth and storage across larger installations. Please note this is a special order item with a lead time of 5 to 12 weeks.
Key Capabilities
8MP 4K Resolution
8 megapixel imaging at 4K delivers the pixel density needed to capture readable detail across wide outdoor scenes, from vehicle registration plates to individual identification at perimeter entry points and loading areas.
DarkFighter Low-Light Performance
DarkFighter technology is engineered for environments where lighting is inconsistent or minimal, such as unlit car parks, perimeter fence lines at night, and industrial yards with only partial artificial lighting. Colour detail is retained at significantly lower light levels than standard cameras.
Motorised Varifocal Lens
The motorised varifocal lens allows zoom and focus to be adjusted remotely via the camera’s interface, removing the need to physically reposition the unit after installation. This is a practical advantage for cameras mounted at height on poles, building facades, or gantries.
120dB True WDR
120dB true wide dynamic range handles high-contrast scenes where bright sunlight enters a shaded area, such as gate entries, warehouse doors, and covered loading bays. Both the bright and shadowed portions of the frame remain usable.
DeepinView AI Analytics
The DeepinView platform provides deep learning-based analytics capabilities suited to commercial and industrial deployments where accurate detection and classification is needed to trigger reliable alerts and reduce unwanted notifications.
IP67 and IK10 Construction
Full IP67 dust and water ingress protection combined with an IK10 impact resistance rating means this camera can be installed in exposed outdoor locations and areas where physical contact or interference is a realistic concern, including construction sites and public-facing infrastructure.
Best For
- Perimeter and Fence Line Monitoring: The bullet housing provides a fixed directional view along fence lines, boundaries, and approach corridors, while DarkFighter technology maintains image quality through the night without relying solely on IR illumination.
- Industrial Yards and Loading Docks: 8MP resolution and 120dB WDR handle the challenging mixed lighting common in industrial environments, where vehicles, machinery, and personnel move between bright outdoor and shaded indoor zones.
- Pole or High-Mount Installations: The motorised varifocal lens removes the need for repeated physical access during commissioning, making it practical for cameras installed at height where adjustment would otherwise require elevated access equipment.
- Commercial Car Parks and Entry Points: 4K resolution combined with DeepinView analytics supports detection and classification tasks at entry gates, access lanes, and open parking areas where accurate object identification matters.
Why Choose the iDS-2CD7A86G0-IZHS
The iDS-2CD7A86G0-IZHS sits in Hikvision’s DeepinView range, a tier positioned above standard network cameras where deep learning analytics, DarkFighter low-light performance, and 4K imaging are all required in a single outdoor bullet unit. A basic 4K bullet without DarkFighter will produce noticeably degraded colour and detail in low-light outdoor conditions, which is exactly where perimeter cameras are tested most often. The motorised varifocal lens is a practical differentiator for commercial installers: achieving precise framing on a standard fixed-lens camera at height requires physical repositioning, whereas this model can be dialled in remotely after mounting. Combined with H.265+ compression supporting 5 streams and an IP67 and IK10-rated housing, this camera is suited to installations where image quality, placement flexibility, and long-term outdoor durability are all non-negotiable requirements. It is available through Security Wholesalers as a special order item.
Buyer Decision Tips
Buyer Tip – Special Order Lead Time: The iDS-2CD7A86G0-IZHS is a special order item with a lead time of 5 to 12 weeks. If your project has a fixed completion date, place the order well in advance of the installation schedule. Confirm the lead time at the time of ordering to account for any variability in freight and customs clearance.
Buyer Tip – Motorised Varifocal and NVR Compatibility: To take full advantage of the motorised varifocal lens adjustment from a recorder interface, ensure the NVR supports Hikvision’s remote focus and zoom control via ONVIF Profile S or Hikvision’s own protocol. Not all third-party recorders expose this control, so verify compatibility before specifying the NVR for the project.
Key Features & Technical Specifications
| Model |
iDS-2CD7A86G0-IZHS |
| Resolution |
8 MP (4K) |
| Camera Type |
Outdoor bullet, motorised varifocal |
| Low-Light Technology |
DarkFighter |
| WDR |
120 dB true WDR |
| Analytics Platform |
DeepinView (deep learning AI) |
| Compression |
H.265+ / H.265 / H.264+ / H.264 |
| Video Streams |
5 simultaneous streams |
| Ingress Protection |
IP67 |
| Impact Rating |
IK10 |
| Housing |
Bullet |
| Lens Type |
Motorised varifocal |
| Availability |
Special order – 5 to 12 weeks lead time |
Ideal Use Cases
Industrial Perimeter Fencing
The directional bullet housing and DarkFighter low-light capability make this camera a practical choice for monitoring fence lines and perimeter boundaries at industrial facilities where lighting is limited and coverage distances are long.
Commercial Car Parks
8MP resolution combined with DeepinView analytics supports accurate monitoring across open car park areas. The 120dB WDR manages the contrast between sunlit entry zones and shaded bays, maintaining usable image quality throughout the day.
Loading Docks and Logistics Sites
The IK10 vandal-resistant rating and IP67 weatherproofing suit the tough physical environment of loading docks. 4K imaging captures vehicle and personnel activity at the point where goods are transferred, with fine detail available for review.
Construction Sites
Construction sites involve changing layouts, limited permanent power, and exposure to dust and water. The IP67 housing handles the environmental conditions, and the motorised varifocal lens allows the field of view to be adjusted as the site evolves without remounting.
Entry Gates and Access Lanes
At entry and exit points where vehicles or pedestrians approach from a single direction, the bullet form factor provides focused coverage. True WDR at 120dB prevents overexposure when headlights or direct sunlight point toward the lens.
Choosing the Right Model
- Choose this model if: You need 4K outdoor bullet coverage with DarkFighter low-light performance, motorised varifocal remote lens adjustment, and DeepinView deep learning analytics in a single IK10-rated housing for a perimeter, industrial, or commercial application.
- Choose a different model if: Your project has a short delivery timeline that cannot accommodate a 5 to 12 week special order lead time, or if the installation site requires discreet ceiling mounting rather than a visible directional bullet.
- Choose a different model if: The location requires a wide-angle overview of a large area from a single point rather than directional long-range coverage, in which case a fisheye or multi-sensor camera would provide better area coverage from fewer mounting positions.
FAQs
- What does the DeepinView classification mean for this camera?
DeepinView is Hikvision’s deep learning analytics platform, positioned above standard smart detection. Cameras in this range use deep learning algorithms to improve the accuracy of detection and classification tasks at the edge. This reduces the number of unwanted alerts triggered by non-relevant motion in complex outdoor environments like industrial yards and perimeter zones.
- How does DarkFighter technology differ from standard IR low-light performance?
Standard IR cameras switch to monochrome (black and white) night vision in low light. DarkFighter uses a larger sensor aperture and advanced processing to retain colour imaging at much lower light levels before switching modes. This means that in partially lit environments such as car parks with intermittent lighting, the iDS-2CD7A86G0-IZHS continues to deliver colour detail that standard cameras would lose.
- What does the motorised varifocal lens allow me to do that a fixed lens does not?
A fixed lens camera must be physically moved or repositioned to change its field of view. The motorised varifocal lens on the iDS-2CD7A86G0-IZHS allows zoom and focus to be adjusted remotely through the camera’s web interface or a compatible NVR. For cameras mounted on poles or at height, this eliminates the need for a second site visit with elevated access equipment just to fine-tune the framing after initial installation.
- Is this camera suitable for exposed outdoor locations in Australian weather conditions?
Yes. The IP67 rating confirms the housing is sealed against dust ingress and against sustained water jets, making it suitable for exposed outdoor mounting in rain, humidity, and dusty industrial environments. The IK10 vandal-resistant rating adds impact resistance for locations where physical contact with the camera is possible.
- Why does this camera support 5 simultaneous streams?
Multi-stream support allows the camera to output different resolution or frame rate streams for different purposes at the same time. A high-resolution stream can be recorded to the NVR while a lower-bandwidth stream is used for live viewing on mobile or remote access, without any one use compromising the other. This is useful in commercial installations where both local recording quality and remote monitoring bandwidth need to be managed independently.
- What is the lead time for this camera and how should I plan around it?
The iDS-2CD7A86G0-IZHS is a special order item with a lead time of 5 to 12 weeks. This is a common characteristic of Hikvision’s higher-tier DeepinView models, which are not held as standard warehouse stock. If you are specifying this camera for a project, factor the lead time into your procurement schedule and confirm availability with Security Wholesalers before committing to an installation date with your client.
- Does H.265+ compression affect compatibility with recorders or VMS platforms?
H.265+ is Hikvision’s proprietary enhanced compression built on top of the H.265 standard. It delivers better storage efficiency than standard H.265 but requires a Hikvision NVR or a VMS with confirmed H.265+ support to take full advantage of the bandwidth savings. If you are integrating this camera into a third-party system, verify that the platform supports H.265+ decoding, or plan storage estimates based on standard H.265 bitrates instead.
