Product Overview

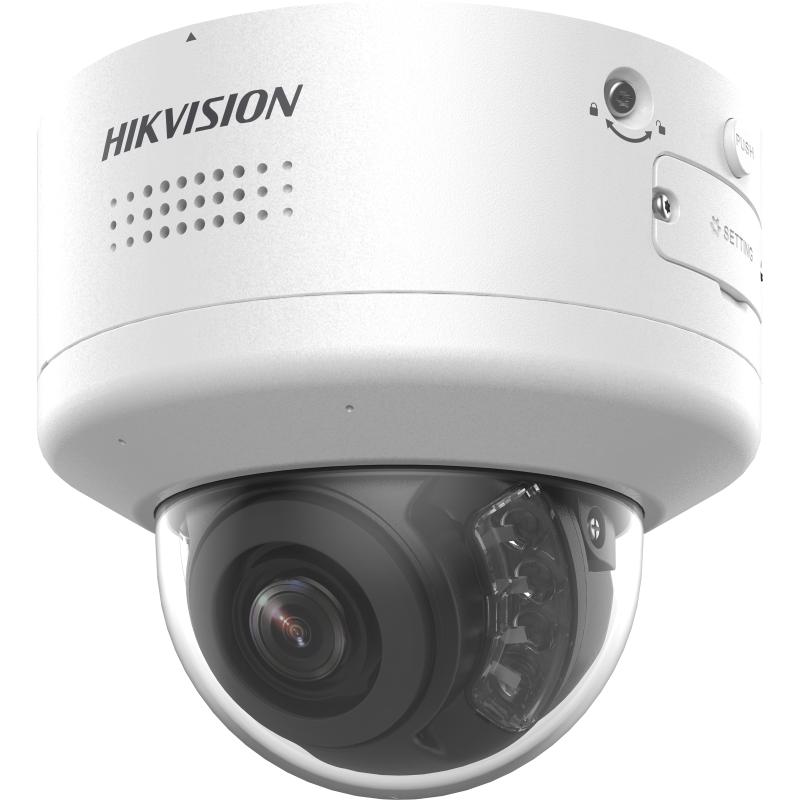

Built for demanding outdoor and critical infrastructure deployment, the Hikvision iDS-2CD7586G2-XZHS-Y is an 8MP DeepinView PTRZ motorised varifocal dome camera engineered around one key challenge: extracting reliable detail from difficult environments. Featuring Darkfighter 2.0 technology and a large 1/1.8-inch sensor, it maintains usable image quality in near-dark conditions where standard cameras would struggle. The 140 dB AWDR handles extreme contrast scenes such as backlit entrances, tunnels, and outdoor chokepoints. PTRZ capability allows remote pan, tilt, rotate, and zoom adjustment during commissioning, significantly reducing the need to reposition the mount after cabling. ShotN technology keeps moving subjects sharp at high frame rates, with capture up to 60 fps at full 8MP or 120 fps at 2MP for high-speed monitoring. Rated IP67, IK10, and optionally NEMA 4X, this dome camera is built for installations where the environment is as much of a challenge as the surveillance requirement itself.
Key Capabilities
Darkfighter 2.0 Low-Light Imaging
The 1/1.8-inch sensor combined with Darkfighter 2.0 technology enables the camera to produce clear, detailed footage in near-zero light conditions. This is particularly valuable at unlit perimeters, car park entrances, and outdoor corridors where supplementary lighting is not always available.
140 dB AWDR for High-Contrast Scenes
A 140 dB wide dynamic range rating allows the camera to simultaneously resolve detail in both very bright and very dark areas of the same frame. Entrances with strong backlight, loading dock doorways, and mixed indoor-outdoor transitions are handled without blown highlights or crushed shadows.
PTRZ Remote Installation Adjustment
Pan, tilt, rotate, and zoom can all be adjusted remotely after the camera is mounted and cabled. This removes the need to re-access ceiling or high-wall mount points during commissioning, cutting installation time significantly on multi-camera or difficult-access sites.
ShotN Technology for Moving Subjects
ShotN captures sharp frames of fast-moving subjects that would otherwise appear motion-blurred. Combined with frame rates up to 60 fps at 8MP or 120 fps at 2MP, this makes the camera well suited to monitoring vehicle traffic, pedestrian flow at high volume entry points, and fast-paced logistics environments.
DeepinView AI with Face Recognition
The DeepinView platform brings deep learning-based analytics to this camera, including face recognition capability. This supports intelligent monitoring at controlled access points, building entrances, and perimeter gates where subject identification adds operational value beyond standard motion detection.
G-Sensor, Power Meter, and Durable Housing
A built-in G-sensor detects physical disturbance or tampering, while the integrated power meter allows monitoring of device power consumption. IP67 dust and water ingress protection, IK10 impact resistance, and an optional NEMA 4X corrosion resistance rating address the full range of harsh outdoor deployment conditions.
Best For
- Critical Infrastructure Entry Points: The combination of Darkfighter 2.0, 140 dB AWDR, and face recognition makes this camera well matched to controlled access gates, secure building entrances, and facility chokepoints where subject identification in variable lighting matters.
- High-Speed Traffic and Logistics Monitoring: Frame rates of 60 fps at 8MP and ShotN technology allow the camera to capture clear images of moving vehicles and personnel in fast-paced environments such as loading docks, logistics hubs, and highway monitoring installations.
- Exposed Outdoor Locations: IP67, IK10, and optional NEMA 4X ratings make this dome suitable for coastal environments, industrial yards, and locations where weather, corrosion, or physical interference are ongoing concerns.
- Multi-Camera Commercial Installations: PTRZ remote adjustment and H.265+ compression with up to 5 simultaneous streams reduce both installation labour and network load on large commercial sites managed by professional integrators.
Why Choose the iDS-2CD7586G2-XZHS-Y
The iDS-2CD7586G2-XZHS-Y occupies a specific position in the Hikvision lineup that most 8MP dome cameras do not. The pairing of Darkfighter 2.0 with a large 1/1.8-inch sensor addresses genuine low-light gaps that standard sensors leave unresolved. The 140 dB AWDR rating goes well beyond what entry-level or mid-tier domes offer, handling the kind of extreme contrast found at outdoor access points and covered loading areas. PTRZ adjustment is a practical differentiator for professional installers: being able to refine the field of view remotely after mounting avoids the time and cost of revisiting cable runs. The built-in G-sensor and power meter add diagnostic value that simpler cameras omit. DeepinView face recognition adds an analytics layer that positions this camera for applications where identification, not just detection, is the goal. Available through Security Wholesalers, the iDS-2CD7586G2-XZHS-Y is a purpose-built tool for integrators working on high-specification commercial and infrastructure projects.
Buyer Decision Tips
Buyer Tip 1 – PTRZ vs Standard Varifocal: PTRZ adjustment on this camera is designed to simplify commissioning rather than enable ongoing pan/tilt tracking like a full PTZ. If your application requires active directional tracking of moving subjects, a motorised PTZ camera is more appropriate. If your goal is to lock in the correct viewing angle remotely without revisiting the mount point, PTRZ on the iDS-2CD7586G2-XZHS-Y is a genuine time-saver on hard-to-access installations.
Buyer Tip 2 – NEMA 4X Option and Corrosive Environments: The standard build is rated IP67 and IK10, which covers the majority of outdoor deployments. If the installation is in a coastal, marine, or chemically exposed environment where corrosion is a specific concern, confirm that the NEMA 4X variant is sourced. The base model and the NEMA 4X-rated version should not be treated as interchangeable for these applications.
Key Features & Technical Specifications
| Model |
iDS-2CD7586G2-XZHS-Y |
| Resolution |
8MP (3840 x 2160) |
| Image Sensor |
1/1.8-inch |
| Low-Light Technology |
Darkfighter 2.0 |
| Wide Dynamic Range |
140 dB AWDR |
| Frame Rates |
8MP at 60 fps; 2MP at 120 fps |
| Motion Capture Technology |
ShotN |
| AI Analytics Platform |
DeepinView |
| Face Recognition |
Yes |
| Installation Adjustment |
PTRZ – pan, tilt, rotate, zoom (motorised varifocal) |
| Video Compression |
H.265+ |
| Simultaneous Streams |
Up to 5 |
| Ingress Protection |
IP67 |
| Impact Resistance |
IK10 |
| Corrosion Resistance |
Optional NEMA 4X |
| Built-in Sensors |
G-sensor (vibration detection), power meter |
| Housing Type |
Dome |
Ideal Use Cases
Secure Facility Entrances
Face recognition via DeepinView and 140 dB AWDR make this camera suited to monitoring controlled access gates and building entry points, where backlit conditions and subject identification requirements are both common challenges.
Highway and Traffic Monitoring
ShotN technology and frame rates up to 60 fps at 8MP allow clear capture of fast-moving vehicles. The IP67 and optional NEMA 4X ratings support roadside or bridge mounting in exposed conditions over extended deployments.
Industrial and Logistics Sites
Loading docks, warehouse dispatch areas, and freight terminals benefit from the camera’s high-speed frame rates, Darkfighter 2.0 for poorly lit dock interiors, and IK10 vandal resistance in environments where equipment contact is a practical risk.
Perimeter and Outdoor Boundary Monitoring
The Darkfighter 2.0 sensor handles low-light perimeter coverage without requiring extensive artificial lighting. The G-sensor provides tamper detection, and the IP67 rating ensures reliable operation through rain, dust, and temperature variation.
Hard-to-Access Ceiling or Elevated Mounts
PTRZ remote adjustment allows the field of view to be refined after installation without returning to the mount point. This is particularly practical on elevated structures, covered walkways, or ceiling positions where physical re-access after cabling is time-consuming or costly.
Choosing the Right Model
- Choose this model if: Your project requires 8MP resolution with Darkfighter 2.0 low-light performance, DeepinView face recognition, and PTRZ remote adjustment in a dome housing rated for harsh outdoor environments, including optional NEMA 4X corrosion resistance.
- Choose a different model if: You need continuous motorised pan and tilt tracking of moving subjects across a wide area – PTRZ on this camera is an installation alignment tool, not an active tracking mechanism. A full PTZ camera would be more appropriate for ongoing directional tracking requirements.
- Choose a different model if: The installation is a straightforward fixed-angle indoor position without high-contrast lighting or fast-motion requirements, where a standard fixed-lens dome at lower cost would deliver equivalent results for the application.
FAQs
- What does PTRZ mean on the iDS-2CD7586G2-XZHS-Y, and how does it differ from a standard PTZ camera?
PTRZ stands for pan, tilt, rotate, and zoom – all of which can be adjusted remotely during commissioning without physically repositioning the mount. This is distinct from a full PTZ camera, which continuously tracks and repositions in real time. On this dome, PTRZ is an installation tool that locks the camera angle in place once set, making it well suited to hard-to-access mounting positions.
- How does Darkfighter 2.0 differ from standard low-light camera technology?
Darkfighter 2.0 builds on Hikvision’s earlier Darkfighter platform by combining a large 1/1.8-inch sensor with advanced processing to produce colour and detail in very low ambient light levels. On the iDS-2CD7586G2-XZHS-Y, this is paired with 140 dB AWDR, allowing the camera to handle both near-darkness and extreme contrast in the same scene – a combination that standard low-light cameras do not offer at this level.
- What is ShotN technology and when does it matter?
ShotN is Hikvision’s technology for capturing sharp images of fast-moving subjects by optimising shutter behaviour to reduce motion blur. Combined with frame rates up to 60 fps at 8MP and 120 fps at 2MP, it is particularly useful in logistics, traffic, and high-pedestrian-flow environments where conventional cameras would produce blurred frames of moving subjects.
- Is the face recognition on this camera processed at the edge or does it require a server?
The iDS-2CD7586G2-XZHS-Y carries the DeepinView designation, which indicates deep learning analytics processed at the camera edge. Face recognition is confirmed as a capability of this model. For full system configuration, integration details, and server or VMS requirements specific to your deployment, consult the product datasheet or your system integrator.
- What does the built-in G-sensor do on this camera?
The G-sensor is a vibration and physical disturbance detector built into the camera hardware. It can detect if the camera has been moved, knocked, or tampered with and trigger an alert via the camera’s event management system. This adds a physical security layer to installations where camera tampering or repositioning is a concern, such as exposed outdoor or public-facing mounting positions.
- What is the difference between the standard IP67/IK10 rating and the optional NEMA 4X rating?
IP67 covers dust ingress protection and water immersion resistance, while IK10 covers impact resistance against physical force. NEMA 4X adds corrosion resistance, which is relevant in coastal, marine, or chemically exposed environments where salt air or industrial chemicals could degrade standard housing materials over time. The NEMA 4X option should be specified at the time of ordering for these applications.
- How many video streams can the iDS-2CD7586G2-XZHS-Y output simultaneously, and what compression does it use?
The camera supports up to 5 simultaneous video streams, allowing different resolution and quality outputs to be sent to recording, live monitoring, and remote access destinations at the same time. H.265+ compression reduces bandwidth and storage requirements compared to H.264, which is relevant when recording 8MP footage continuously across a multi-camera installation. The iDS-2CD7586G2-XZHS-Y is available through Security Wholesalers for professional integrators working on high-specification commercial projects.
