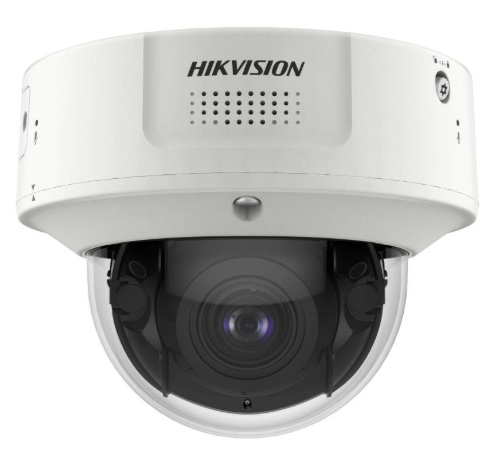

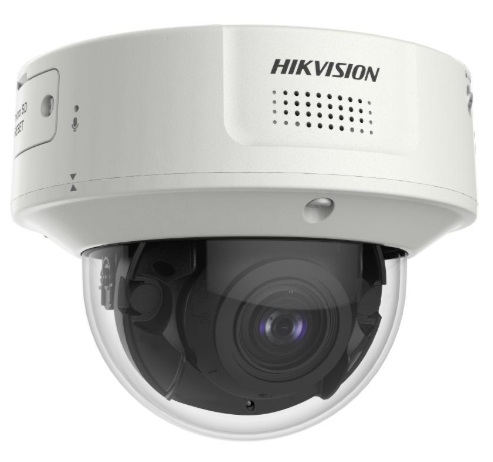

Hikvision iDS-2CD7186G2-IZS 8MP Gen2 Outdoor DeepinView Dome Camera with AcuSense & Motorised Varifocal IR 40m 2.8-12mm

Product SKU: IDS-2CD7186G2-IZS-2.8-12MM

Product Overview

The Hikvision iDS-2CD7186G2-IZS is an 8 MP DeepinView outdoor motorised varifocal dome camera designed for high-performance commercial, enterprise and intelligent surveillance applications. Its 1/1.8-inch progressive scan CMOS sensor captures up to 3840 × 2160 resolution, while the 2.8–12 mm motorised P-iris lens provides a wide-to-telephoto horizontal field of view from approximately 112.3° to 41.2°. DarkFighter 2.0 low-light technology, 140 dB WDR and up to 40 m smart infrared illumination support demanding day and night environments. Beyond conventional human and vehicle perimeter classification, the camera provides advanced DeepinView functions including face capture and comparison, multi-target detection, people counting, queue management, heat mapping, PPE detection and activity analysis.

Key Capabilities

Best For

• Commercial Entrances: Motorised framing, face analytics and 140 dB WDR suit busy doorways and reception approaches.
• Retail & Shopping Environments: Queue management, heat maps and people counting provide analytics beyond conventional CCTV recording.
• Industrial & Workplace Monitoring: PPE, hard-hat and activity analysis functions can support specialised safety-monitoring applications.
• Transport & Public Areas: High frame rates and multi-target detection suit scenes with people and vehicles moving at different speeds.
• Outdoor High-Risk Areas: IP67 weather protection and IK10 vandal resistance support exposed or physically demanding installations.

Why Choose the iDS-2CD7186G2-IZS

The iDS-2CD7186G2-IZS goes well beyond the feature set of a standard 8 MP dome camera. Its DarkFighter 2.0 imaging, 140 dB WDR, high-frame-rate recording and motorised P-iris lens address demanding image-quality requirements, while DeepinView analytics add face capture, face comparison, human and vehicle classification, queue management, people counting, PPE detection and activity analysis. Dual microphones, a built-in speaker, alarm interfaces and up to 1 TB local storage further extend its standalone capabilities. Available through Security Wholesalers, this 2.8–12 mm version is particularly suitable where both flexible scene framing and advanced intelligent analytics are required from one robust outdoor camera.

Buyer Decision Tips

Key Features & Technical Specifications

Product Type	8 MP DeepinView motorised varifocal dome network camera.
Model	iDS-2CD7186G2-IZS.
Image Sensor	1/1.8-inch Progressive Scan CMOS.
Maximum Resolution	3840 × 2160.
Monitoring Mode Frame Rate	50 Hz: up to 50 fps at 3840 × 2160; up to 100 fps at 1920 × 1080. 60 Hz: up to 60 fps at 3840 × 2160; up to 120 fps at 1920 × 1080.
Smart Mode Frame Rate	50 Hz: up to 25 fps at 3840 × 2160. 60 Hz: up to 30 fps at 3840 × 2160.
Lens	2.8–12 mm motorised varifocal P-iris lens.
Horizontal Field of View	112.3° to 41.2°.
Vertical Field of View	58.1° to 23.1°.
Diagonal Field of View	137.4° to 47.3°.
Aperture	F1.38 to F2.53.
Focus	Auto, semi-auto and manual.
DORI – Wide	Detect 87 m, Observe 34.5 m, Recognise 17.4 m, Identify 8.7 m.
DORI – Telephoto	Detect 216 m, Observe 85.7 m, Recognise 43.2 m, Identify 21.6 m.
Minimum Illumination	Colour: 0.0005 lux at F1.2 with AGC on; B/W: 0.0001 lux at F1.2; 0 lux with IR.
IR Range	Up to 40 m for the 2.8–12 mm version.
IR Wavelength	850 nm.
Wide Dynamic Range	140 dB.
Image Enhancement	BLC, HLC, 3D DNR, distortion correction, defog and EIS.
Deep-Learning Computing	5 TOPS with HEOP 2.0 OpenDevSDK support.
AI Open Platform	Supports up to 4 detection, classification or mixed models.
Multi-Target Detection	Simultaneous face, human body and vehicle detection and capture with target attribute extraction.
Face Capture	Detects up to 120 faces simultaneously and can capture up to 40 face pictures per frame.
Face Comparison	Up to 10 face libraries, up to 30,000 faces per library and 150,000 faces total.
Perimeter Protection	Line crossing, intrusion, region entrance and region exiting with human and vehicle target classification.
People Analytics	Multi-dimensional people counting, queue management, regional people counting and heat map.
Workplace Analytics	On/off-duty detection, PPE detection, hard-hat detection and supported smoking/mobile-phone activity analysis.
Video Compression	H.265+, H.265, H.264+, H.264 and MJPEG on supported streams.
Video Streams	Up to 5 streams.
Built-In Microphones	2.
Built-In Speaker	Yes; maximum sound pressure level 98 dB, approximately 10 m speaker range.
External Audio	1 line input and 1 line output.
Alarm I/O	2 inputs and 2 outputs.
RS-485	1 half-duplex interface supporting Hikvision, Pelco-P and Pelco-D.
Ethernet	1 × RJ45 10/100/1000 Mbps self-adaptive Ethernet port.
On-Board Storage	microSD/microSDHC/microSDXC up to 1 TB.
Network Storage	NAS with NFS and SMB/CIFS plus Automatic Network Replenishment.
ONVIF	Profiles S, G, T and M.
Power	12 VDC ±20%, 24 VAC ±20% or PoE IEEE 802.3at Type 2 Class 4.
Maximum PoE Consumption	15.7 W.
Protection Rating	IP67.
Impact Protection	IK10.
Anti-Corrosion Protection	Standard non-Y model has no specific anti-corrosion classification; -Y variants provide NEMA 4X moderate protection.
Operating Temperature	-30°C to 65°C for the standard non-H model.
Dimensions	Approximately Ø144.3 × 114.1 mm.
Weight	Approximately 1.1 kg.

Ideal Use Cases

Choosing the Right Model

• Choose the 2.8–12 mm version if: You need flexible wide-to-medium scene coverage with motorised adjustment and up to 40 m infrared illumination.
• Choose the 8–32 mm version if: The installation needs tighter framing, greater pixel density on distant subjects and the model’s longer 60 m IR specification.
• Choose monitoring mode if: High frame rate is more important than running the full advanced DeepinView analytics set.
• Choose smart mode if: Face analytics, people counting, queue management, PPE detection or other advanced DeepinView functions are the primary requirement.

FAQs

1. What resolution does the Hikvision iDS-2CD7186G2-IZS provide?
   The Hikvision iDS-2CD7186G2-IZS captures up to 3840 × 2160 resolution from a 1/1.8-inch progressive scan CMOS sensor. In monitoring mode, the current datasheet lists up to 50 fps at 8 MP in 50 Hz systems and up to 60 fps at 8 MP in 60 Hz systems. In smart mode, the camera supports up to 25 fps at 8 MP in 50 Hz systems and 30 fps in 60 Hz systems.
2. What lens and infrared range does the iDS-2CD7186G2-IZS 2.8–12 mm version provide?
   The 2.8–12 mm version uses a motorised varifocal P-iris lens with a horizontal field of view from approximately 112.3° at the wide end to 41.2° at telephoto. Hikvision specifies smart 850 nm infrared illumination up to 40 metres for this lens version, with automatic, semi-automatic and manual focus modes.
3. What DeepinView analytics does the iDS-2CD7186G2-IZS support?
   The camera supports advanced DeepinView analytics including simultaneous face, human-body and vehicle detection, face capture and comparison, human and vehicle perimeter protection, multi-dimensional people counting, queue management, regional people counting, heat mapping, on/off-duty detection, PPE detection and activity analysis. Supported functions depend on the selected smart mode and system configuration.
4. Does the iDS-2CD7186G2-IZS support audio and alarm functions?
   Yes. The camera includes two built-in microphones and a built-in speaker, plus one line-level audio input and one line-level audio output. It also provides two alarm inputs and two alarm outputs. Supported event linkages include recording, capture, alarm output and audible warning, allowing the camera to participate in more advanced security workflows.
5. Can the iDS-2CD7186G2-IZS be installed outdoors?
   Yes. The iDS-2CD7186G2-IZS is rated IP67 for dust and water resistance and IK10 for vandal resistance. The standard non-H model is specified for operation from -30°C to 65°C. For Security Wholesalers installations, the mounting method, cable entry and environmental exposure should still be assessed so the completed installation maintains the required protection.
6. What power and storage options does the iDS-2CD7186G2-IZS support?
   The camera can be powered by 12 VDC, 24 VAC or PoE using IEEE 802.3at Type 2 Class 4. The current datasheet lists maximum PoE power consumption of 15.7 W. It also includes a built-in microSD, microSDHC and microSDXC card slot supporting up to 1 TB, together with NAS storage and Automatic Network Replenishment.

Additional Information

• Hikvision iDS-2CD7186G2-IZHSY DeepinView Dome Camera Datasheet
