Product Overview

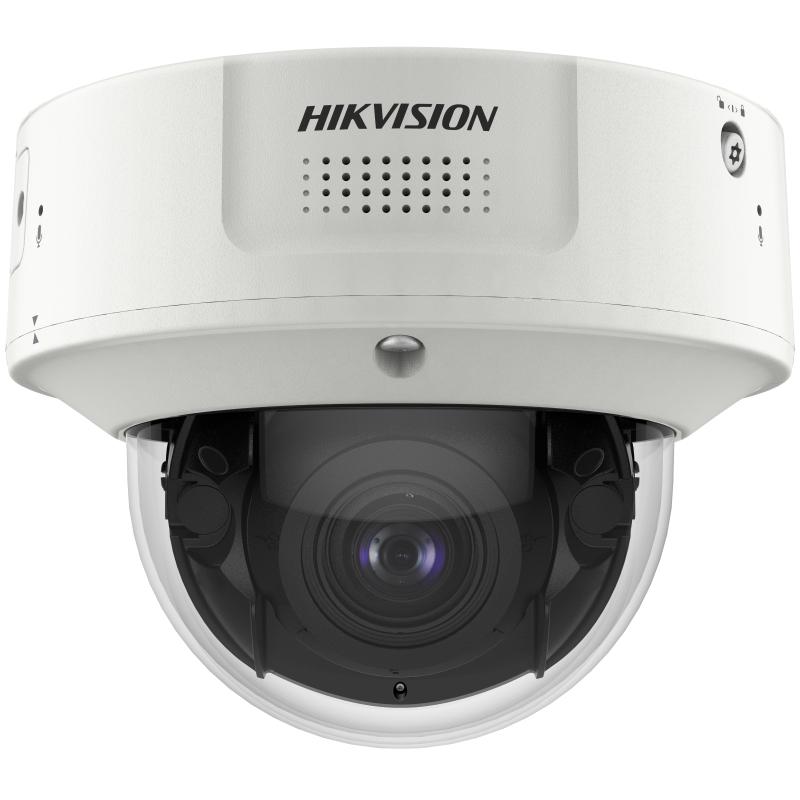

Built for commercial and institutional environments where standard cameras fall short, the Hikvision iDS-2CD7186G0 is an 8MP DeepinView motorised varifocal dome camera that combines deep learning analytics with DarkFighter low-light imaging in a vandal-resistant housing rated IK10 and IP67. Featuring a motorised varifocal lens, installers can adjust field of view remotely without repositioning the camera physically, making it practical for locations where access is difficult after installation. Equipped with 120dB Wide Dynamic Range, the camera handles backlit entrances, glazed lobbies, and high-contrast corridors without losing detail. H.265+ compression supports efficient storage and bandwidth use across up to 5 simultaneous streams. It is well suited to retail environments, transportation hubs, building entrances, and any site requiring AI-assisted video intelligence in a ceiling-mounted dome form factor that withstands tampering and harsh weather conditions.
Key Capabilities
8MP 4K DeepinView Imaging
The 8MP sensor delivers 4K resolution across wide interior spaces, providing enough detail to identify individuals, read signage, and capture evidence-grade footage in retail aisles, lobby areas, and transit corridors where standard HD resolution would not suffice.
Motorised Varifocal Lens
The motorised varifocal lens allows remote zoom and focus adjustment after the camera is mounted, reducing the need for a technician to return to site. This is especially useful for ceiling-mounted dome installations in occupied buildings where physical access during setup is limited.
DarkFighter Low-Light Technology
DarkFighter technology allows the iDS-2CD7186G0 to produce usable colour imagery in very low ambient light conditions, making it effective in dimly lit corridors, underground car parks, and transitional spaces where lighting is inconsistent or deliberately reduced overnight.
Deep Learning Analytics
As part of the DeepinView series, this camera supports deep learning-based video analytics including perimeter protection and people counting. These capabilities allow operators to extract actionable intelligence from footage rather than relying solely on passive recording.
120dB Wide Dynamic Range
The 120dB WDR rating handles scenes where bright light sources and dark shadows exist in the same frame, such as building entrances with glass facades, security checkpoints, and indoor areas adjacent to large windows where backlit images would otherwise obscure subjects.
IK10 Vandal Resistance and IP67 Weather Sealing
The IK10 impact rating and IP67 dust and water ingress protection make this dome camera suitable for exposed locations including external building soffits, covered car park ceilings, and public-facing indoor areas where tampering or environmental exposure is a genuine concern.
Best For
- Commercial Retail Environments: The 8MP resolution combined with deep learning analytics supports people counting and loss prevention monitoring across large retail floor areas from a single ceiling-mounted unit.
- Building Entrances and Lobbies: The 120dB WDR and DarkFighter technology address the backlit and variable lighting conditions typical of glazed entry points, ensuring clear imagery of individuals entering and exiting.
- Transportation Hubs and Public Spaces: DeepinView perimeter protection and people counting analytics assist operators monitoring high-traffic areas where manual review of continuous footage is impractical.
- Installations Requiring Remote Lens Adjustment: The motorised varifocal lens suits sites where post-installation access is restricted, such as high ceilings, occupied facilities, or locations where repeat site visits add cost.
Why Choose the iDS-2CD7186G0
The iDS-2CD7186G0 occupies a specific tier within Hikvision’s dome camera range, one designed for operators who need more than standard surveillance recording. The combination of 8MP DeepinView deep learning analytics, DarkFighter low-light performance, and a motorised varifocal lens in a single IK10/IP67-rated dome housing is not replicated in Hikvision’s standard fixed-lens dome range. A fixed-lens camera cannot be refocused remotely after installation. A camera without DarkFighter will produce noisier, less usable imagery in low ambient light. A camera without DeepinView analytics requires third-party software or manual review to extract intelligent event data. The iDS-2CD7186G0 addresses all three limitations while maintaining H.265+ compression efficiency across 5 simultaneous video streams. Available through Security Wholesalers, this model suits integrators and end users who need a premium AI-enabled dome with the build quality to match demanding installation environments.
Buyer Decision Tips
Motorised Varifocal Planning: The motorised varifocal lens requires initial configuration through the camera’s web interface or a compatible VMS to set the correct zoom and focus position. Before installation, confirm the intended coverage zone and mounting height so the lens can be dialled in during commissioning. On high ceilings in occupied buildings, this remote adjustment capability removes the need for elevated work platforms after the cable and bracket are fixed.
Analytics and NVR Compatibility: The DeepinView deep learning analytics in the iDS-2CD7186G0 operate at the camera edge, but to configure, receive alerts from, and store analytics event data you will need a Hikvision NVR or VMS that supports DeepinView camera integration. Confirm your recorder firmware version supports this model before deployment to ensure all analytics features are accessible rather than just basic video recording.
Key Features & Technical Specifications
| Model |
iDS-2CD7186G0-IZ(H)S(Y) |
| Series |
Hikvision DeepinView |
| Resolution |
8MP (4K) |
| Lens Type |
Motorised varifocal |
| Low-Light Technology |
DarkFighter |
| Wide Dynamic Range |
120dB WDR |
| Video Compression |
H.265+ |
| Video Streams |
5 streams |
| Analytics |
Deep learning-based (DeepinView), perimeter protection, people counting |
| Housing Type |
Vandal dome |
| Ingress Protection |
IP67 (dust and water resistant) |
| Impact Rating |
IK10 (vandal proof) |
| Power Input |
PoE (Power over Ethernet) |
| Remote Management |
Hik-Connect compatible |
| Mounting Options |
Ceiling, wall, pole |
Ideal Use Cases
Retail Loss Prevention
The 8MP resolution captures detailed imagery across wide retail floor areas from ceiling mounting points, while deep learning analytics can support people counting and zone-based event detection relevant to loss prevention workflows.
Building Entry and Reception Monitoring
The 120dB WDR handles the backlit conditions common at glazed building entrances and reception desks, where natural light from exterior windows would otherwise wash out the image and obscure approaching individuals.
Underground and Covered Car Parks
DarkFighter technology and the IK10/IP67 rated housing make this dome camera suitable for covered and underground car park ceilings, where lighting is minimal, tampering risk is elevated, and the environment is damp or dusty.
Transportation Hubs
In bus terminals, train stations, and airport corridors, the motorised varifocal lens allows coverage zones to be precisely configured during commissioning without physical repositioning, and people counting analytics provide operational data alongside security monitoring.
Industrial and Institutional Facilities
Where perimeter protection analytics are required alongside a hardened dome housing, the IK10 vandal rating and IP67 sealing allow ceiling or wall mounting in exposed indoor areas such as factory floors, warehouses, and institutional corridors that experience physical wear and variable environmental conditions.
Choosing the Right Model
- Choose this model if: You need a ceiling-mounted vandal dome with 8MP 4K resolution, remote motorised varifocal lens adjustment, DarkFighter low-light performance, and edge-based deep learning analytics for a commercial, retail, or institutional site where standard fixed-lens cameras lack the intelligence or image quality required.
- Choose a different model if: Your site requires continuous pan, tilt, and zoom control rather than a fixed-frame installation: this camera sets its field of view at commissioning and holds it. A PTZ camera is better suited to wide-area patrol or operator-directed tracking. Similarly, if analytics are not required and budget is a primary constraint, a standard 8MP fixed-lens dome will cover the resolution requirement at lower cost.
FAQs
- What does the motorised varifocal lens allow you to do that a fixed-lens dome cannot?
The motorised varifocal lens on the iDS-2CD7186G0 lets you adjust the zoom level and focal point remotely through the camera’s web interface or a compatible VMS after the unit is physically mounted. A fixed-lens dome locks the field of view at manufacture. This makes the motorised varifocal particularly useful on high ceilings or in occupied spaces where repositioning the camera after cabling is impractical.
- Is the IK10 rating sufficient for publicly accessible ceiling areas?
IK10 is the highest standardised impact resistance rating for enclosures, representing protection against 20 joules of impact force. For ceiling-mounted domes in retail, transit, or institutional settings where opportunistic tampering is a risk, IK10 provides meaningful physical hardening. It is not an absolute guarantee against sustained deliberate attack, but it meets the standard expected for commercial vandal dome installations.
- What does DarkFighter technology mean for this camera’s night-time performance?
DarkFighter is Hikvision’s low-light imaging technology, achieved through a larger image sensor and optimised optics that gather more light at low lux levels. In practical terms, the iDS-2CD7186G0 can produce usable colour or detailed monochrome imagery in dimly lit corridors, car parks, and transitional spaces that would cause a standard sensor to produce noisy, unusable footage.
- What analytics does the DeepinView series support on this camera?
The DeepinView designation indicates deep learning-based video analytics running at the camera edge. Confirmed capabilities for this series include perimeter protection (detection and classification of human and vehicle intrusions) and people counting. These analytics operate independently of the recorder, though a compatible Hikvision NVR or VMS is required to configure alert rules and access analytics event data.
- How does 120dB WDR benefit installations at building entrances?
Building entrances with glass facades expose cameras to simultaneous bright exterior light and darker interior conditions in the same frame. Without adequate WDR, the camera either overexposes the bright zone or underexposes the dark zone, making subjects in one area invisible. The 120dB WDR on the iDS-2CD7186G0 compresses the tonal range so detail is retained across both zones in a single image.
- Does the iDS-2CD7186G0 support PoE, and what does that mean for cabling?
Yes, the camera supports Power over Ethernet, meaning a single Cat5e or Cat6 cable carries both network data and power to the unit. This eliminates the need for a separate power cable or local power outlet at each camera position, simplifying ceiling and wall installations and reducing the overall cost of running cabling to multiple locations across a site.
- Where can I find the official datasheet and purchase this camera?
The official Hikvision datasheet for the iDS-2CD7186G0 is linked in the Additional Information section below. The camera is part of the Security Wholesalers range and is listed as in stock. Contact the team for volume pricing or project-specific advice before placing a large order.
